D-Link DUB-9240 - UWB Wireless USB Manuel utilisateur

2D-Link DUB-9240 Quick Install Guide

D-Link DUB-2240 Wireless USB 4-Port Hub

D-Link DUB-1210 USB Adapter

USB Cable

Power Adapter (5V/3A)

Firmware, Drivers, and Utilities CD

Quick Installation Guide

USB Extension Cable

Package Contents

Note: Using a power supply with a different voltage than the one

included with the DUB-2240 will cause damage and void the warranty

for this product.

If any of the above items are missing, please contact your reseller.

Your DUB-9240 should contain all the items listed below. Before you

begin the installation of the device, please check to make sure that

the following items are included in your package.

System Requirements

Windows®Vista™or XP (Service Pack 2)

20MB Hard Drive Space

An available USB 1.1 port

3 D-Link DUB-9240 Quick Install Guide

Hardware Overview

Antenna

Power Receptor

Mini USB port

The 4-port USB hub hardware features:

Reset Button

4D-Link DUB-9240 Quick Install Guide

Before connecting your DUB-1210 USB Adapter or DUB-2240

Wireless USB 4-Port Hub, insert the provided CD into the CD drive on

your PC. The InstallShield Wizard will start automatically and detect

what operating system you are running on the PC.

Note: For long PIN association, the PIN is located on the label on

the bottom of the USB hub. Follow manufacturer’s instructions for

installation.

After the InstallShield Wizard detects what operating system is running

on your PC, the Welcome screen will appear.

As instructed, do not plug the USB adapter or hub into the PC at this

time. Only connect the power adapter to the hub

Click Next

Installation

5 D-Link DUB-9240 Quick Install Guide

To accept the terms of the

License Agreement, select “I

accept the terms in the license

agreement” as shown.

Select the user you are installing

the software application for.

Choose “Anyone who uses this

computer” to allow all users.

Click Next

Click Next to continue

Select a destination folder where

the software will be installed.

By default the software will

install in the C:\Program Files\

D-Link\Wireless USB\folder.

Select Change to install in a

different folder.

6D-Link DUB-9240 Quick Install Guide

When the wizard is ready to

install the software, you will be

prompted to begin the installation.

Click Back to make changes to

the previous steps or Cancel to

exit the wizard without installing

the software.

Click Install

With the installation nearly

complete, the wizard will instruct

you to connect the USB hub

to the computer to begin the

association process and install

the hub.

Click Next

The wizard will prompt you

when the software has installed

successfully and the devices are

ready to use.

This completes the software setup.

7 D-Link DUB-9240 Quick Install Guide

Click Finish

After the software has been installed, plug the USB

adapter into an available USB port on your computer to

establish a wireless connection to the wireless hub.

You may now plug your USB devices into the wireless

hub.

Note: For the best reception and performance, position

the adapter vertically using the provided USB

extension cable.

8D-Link DUB-9240 Quick Install Guide

Using the Control Center

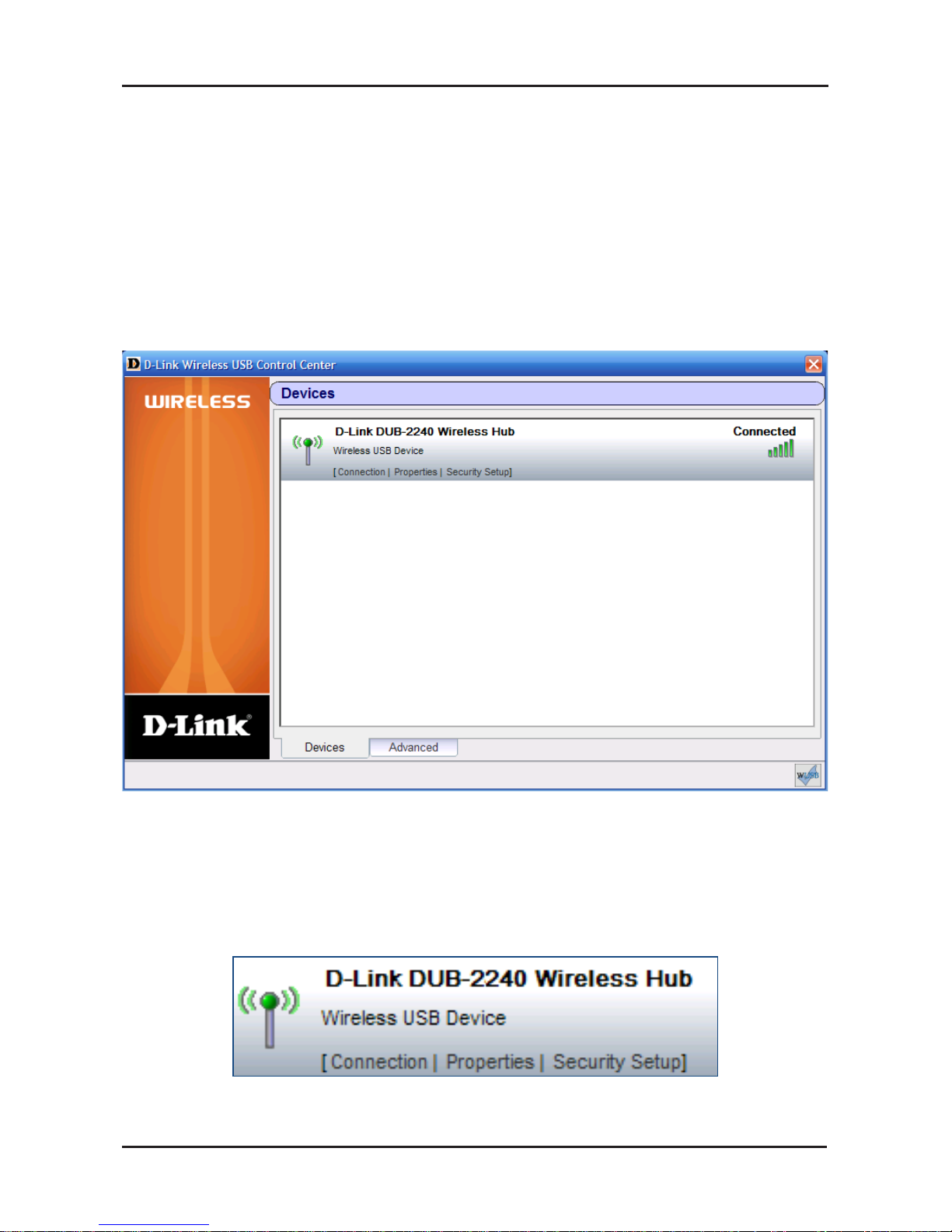

The Devices screen displays the status of the connection between

the wireless USB adapter and hub.

Devices

From the Devices screen, you can check the connection status of the

wireless USB hub, the properties, and setup security for the wireless

connection.

9 D-Link DUB-9240 Quick Install Guide

Connection

The Connection Status option allows you to disconnect from the

wireless USB hub.You may also select when the USB hub will connect

to the USB adapter.

Select one of the following:

• Auto connect to this device - The USB adapter will connect to

the hub upon startup. This is the default option.

• Prompt before connecting to this device - You will receive an

alert asking if you would like to connect to the USB hub.

• Manually connect to this device - You must open the software

and click Connect to connect to the USB hub.

10D-Link DUB-9240 Quick Install Guide

Properties

You can change the name of the wireless hub. This is helpful if you

are attached to multiple hubs. In the box, type in a new name and

click Apply.
