D-Link DXS-3600-32S Manuel utilisateur





3 Fan, AC Power Supply, 1 Expansion Slot, 24-Port 10GBase-X SFP ,

L3 Management Stacked Switch /

Управляемый стекируемый коммутатор 3 уровня с 24 портами

10GBase-X SFP , 1 слотом расширения, источником питания AC и

3 вентиляторами

 !"#$$!"%

&

This Quick Installation Guide gives instructions for setting up the D-Link DXS-3600-32S switch. The model

you have purchased may appear slightly different from those shown in the illustrations. For more detailed

information about the device, its components, making network connections and technical specifications,

please refer to the User Manual.

'()

• DXS-3600-32S Switch

• Power Cord

• AC power supply module

• 3 Fan modules

• DB-9 to RJ-45 console cable

• 4 Rubber Feet

• 2 Mounting Brackets

• Mounting kit

• Quick Installation Guide

• Warranty Certificate

• CD ROM

If any of the above items are damaged or missing, please contact your local reseller for replacement.

*&+&,-&-+

.&'

'& &/

SD Card Slot This port can be used to insert an external SD memory card. The maximum

capacity SD card that can be inserted into this port is 32Gb.

Management port (MGMT) This is a 10/100/1000Mbps Out-Of-Band management port that can be used to

configure this switch without being connected to the network.

Console Port This port is an RJ-45 connection port that can be used to connect to the Command

Line Interface (CLI) of this switch for configuration, management and monitoring.

This port uses a special console cable (included with the packing) with a DB9

interface to connect the Switch to a PC’s COM port.

10 Gigabit ports This switch is equipped with SFP/SFP /WDM ports. These ports can operate at

10Gbps speeds and support a vast collection of SFP/SFP /WDM transceivers.

Expansion Module Slot This slot can be equipped with several kinds of additional modules. These modules

are not included and should be bought separately:

• DXS-3600-EM-4XT (Four 10GBase-T Copper ports)

• DXS-3600-EM-8T (Eight 1000Base-T Copper ports)

• DXS-3600-EM-4QXS (Four 40Gbps QSFP transceiver slots)

• DXS-3600-EM-8XS (Eight 10Gbps SFP transceiver slots)

• DXS-3600-EM-Stack (Two 120Gbps CXP Stacking ports)

01&

01- )&  &/

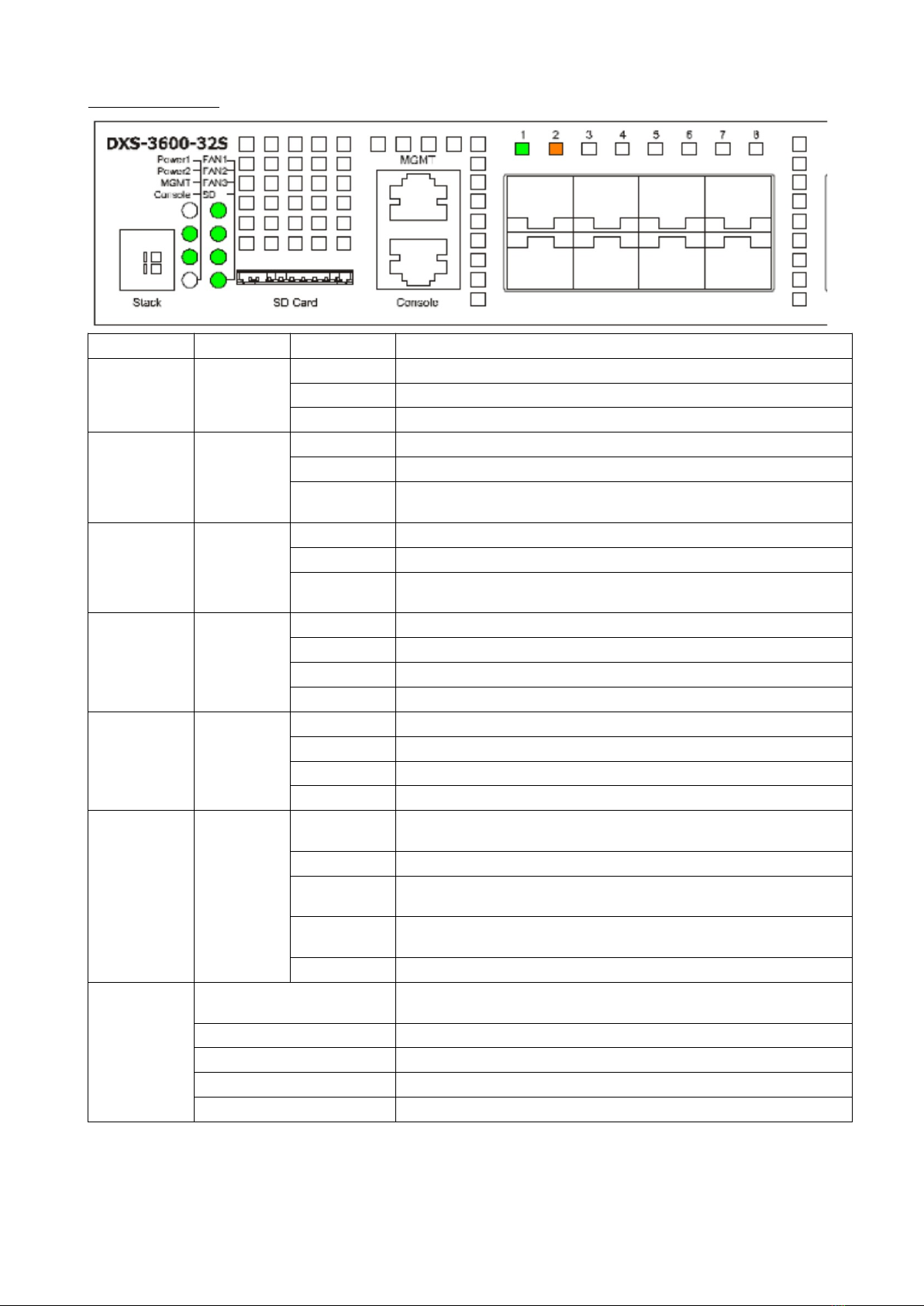

Power 1,

Power 2

Green/Amber Solid Green Power on

Solid Amber Power supply fails

Light off Power off

Management

(MGMT)

Green Solid Green A link to the management port was successfully established

Blinking Green When activity on this port is taking place

Light off There is no link present or when this interface was shutdown from within

the switch’s configuration

Console Green Blinking Green During the Power-On Self Test (POST)

Solid Green A user is logged in through the console port

Light off After the POST finished successfully and no user is connected to the

console port

Fan1, Fan2,

Fan3

Green/Amber Solid Green When the fan is operating normally

Solid Amber When the switch is booting up or when a diagnostics test is taking place

Blinking Amber When a fan fails

Light off When the fan is not receiving power

SD Green/Red Solid Green If a Secure Digital (SD) card is plugged in

Blinking Green When the Switch is reading or writing data to and from the SD card

Light off When no SD card is plugged into the SD port

Solid Red When an SD card failure has been detected

Link/Act Green/Amber Solid Green When there is a secure connection to a 10Gbps Ethernet device at any

of the ports

Blinking Green When a 10Gbps port is active

Solid Amber When there is a secure Ethernet connection to a 1Gbps Ethernet device

at any of the ports

Blinking Amber When there is reception or transmission (i.e. Activity-Act) of data

occurring at any of the ports / when a 1Gbps port is active

Light off When there is no link or activity

Stacking ID

1-4 Indicates the stacking ID, which can be assigned manually by the user

or automatically by the system

H Indicates this switch is the master switch in the stack

h Indicates this switch is the backup master switch in the stack

E Indicates there was an error in the system’s self-test

G Indicates the Safeguard engine entered the exhausted mode

2&'

'& &/

Power Supply Module Slots These slots can be equipped with two kinds of additional modules. Only one power

supply module is included. Any additional modules should be bought separately.

• DXS-PWR300AC (300W AC power supply tray with front-to-back airflow)

• DXS-PWR300DC (300W AC power supply tray with front-to-back airflow)

Fan Module Slots • DXS-3600-FAN-FB (normal fan tray with front-to-back airflow)



/& 34

When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached

on the bottom at each corner of the device’s base. Allow enough ventilation space between the device and

the objects around it.

2

The switch can be mounted in a standard 19-inch rack using the provided mounting brackets.

How to install the mounting brackets onto the switch (figure above) and onto the rack (figure below):

1. Fasten the mounting brackets A and B to the sides of the switch using the screws provided, as seen in the

figure above.

2. Fasten the mounting bracket C in the appropriate open space in the rack using the screws provided, as

seen in the figure below.

3. Simply slide the switch (fastened bracket B into fastened bracket C) into the rack.

4. Lastly, fasten mounting bracket A to the rack using the screws provided.

Make sure that there is adequate space around the Switch to allow for proper air flow, ventilation, and

cooling.

(5&-&35&-&'&

Connect SFP devices to the corresponding ports of the switch.

)('+&

(6)'+&7

Connect the one end of the AC power cord supplied to the AC power connector and the other end into a

properly grounded electrical outlet. The switch will automatically adjust the AC power setting to adapt to any

voltage supply in the range from 100~240VAC at 50~60Hz.

In addition, an optional second AC power supply module can be plugged into the second power supply

module slot displayed above. When the primary AC power connection fails, the secondary AC power

connection will take over all the power immediately and automatically. The AC power supply modules are

hot-swappable, meaning, that they can be inserted and removed while the switch is powered on.

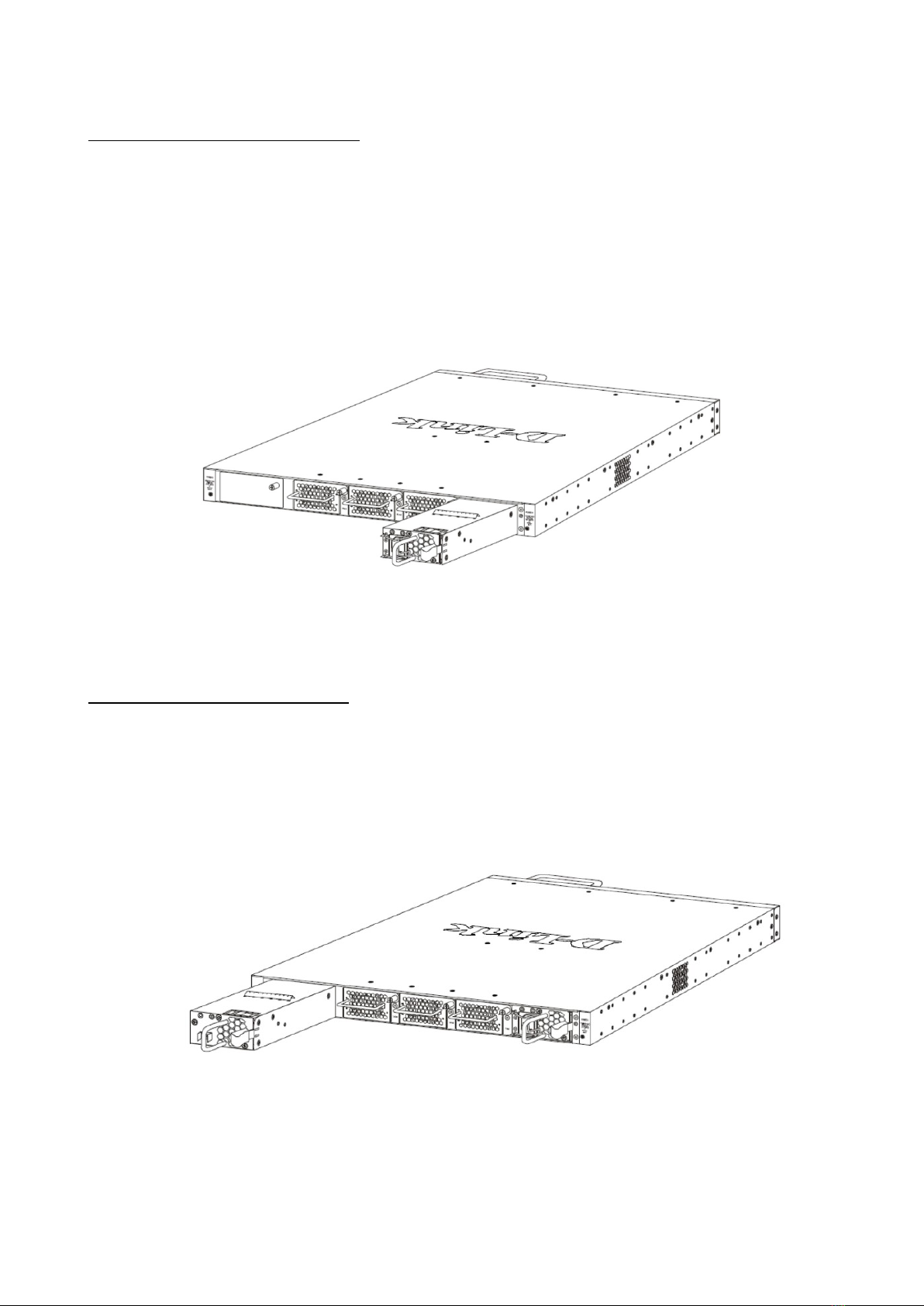

Install an AC Power Supply Module as shown on the picture below.

()'+&7

This switch supports a unique dual power input feature. The DC power module will be activated if the

AC power module turns off.

1. Install a DC Power Supply Module. Use the grounding screw on the DC Power Module and a minimum of

18 AWG stranded copper wire to ground the switch.

2. Connect the one end of the DC power cord supplied to a DC power module, that will be activated when

the AC power is not working, and to a power source (-48VDC/5.2A). Please make sure that connection

polarity (positive and negative) is correct.

The DC power and AC power of the device will back up each other immediately when one of the power

sources fail. If both power sources fail, unplug the switch. When the power source has been restored, plug

the switch’s power back in.

8,519 The Power Modules all support a specific airflow direction. This air-flow direction must be the same

as the Fan Module installed. By default the airflow direction of the Power Module and Fan Module installed is

front-to-back.

(.73.7'&

Located on the rear panel of this switch there are three fan module ports.

The user can easily remove and insert fan modules into these ports.

+3)

+318

End node is a generic name for edge networking devices that will be connected to this switch. Typical

examples of end nodes are Personal Computers (PCs), Notebooks, Access Points, Print Servers, VoIP

Phones and more. Each end node will be outfitted with a 10/100/1000Mbps, RJ-45, networking port.

Normally end nodes will connect to this switch by using a standard twisted-pair, UTP/STP, network cable.

After a successful connection, the corresponding Link/Act light will illuminate and blink to indicate that packet

activity is taking place on that port.

The diagram below display a typical end node connected to the Switch.

+33& +3

Another popular configuration is to connect this switch to another switch or hub. This network typography is

considered when one Switch does not have enough ports to cater for all the end nodes in the network. There

is a great deal of flexibility in the type of cabling that can be used to interlink switches.

Two or more switches can also be interlinked using fiber-optic cables or direct-attached cables via the

switch’s SFP, SFP , and WDM ports. Lastly two or more switches can also be interlinked using QSFP

interfaces supported by the DXS-3600-EM-4QXS optional modules.

+3 (

The DXS-3600-32S supports stacking 4 switches together while being managed by one IP address through

Telnet, the Web User Interface, the RJ45 console port or through SNMP. This cost effective switch provides

an affordable solution for administrators to upgrade their networks using either the DXS-3600-EM-Stack or

the DXS-3600-EM-4QXS modules to scale and stack the switches.

• Duplex Chain – The Duplex Chain topology stacks switches together in a chain-link format. Each switch in

a chain is connected to the upper and the lower units, while the upper and the lower switches are not

connected. If there is a break in the chain, then data transfer will obviously be affected.

• Duplex Ring – The Duplex Ring stacks switches in a ring or circle format. Each switch in a chain is

connected to the upper and the lower units, the upper and the lower switches are also connected. This

topology is very resilient due to the fact that if there is a break in the ring, data can still be transferred through

the stacking cables between switches in the stack.

The DXS-3600-EM-Stack module uses the CXP Cables (DEM-CB50CXP: CXP to CXP 50 cm Stacking

Cable) to make the following stacking topologies:

The figure below illustrates how switches can be stacked in a Duplex Chain formation using the

DXS-3600-EM-Stack module.

The figure below illustrates how switches can be stacked in a Duplex Ring formation using the

DXS-3600-EM-Stack module.
