D-Link Securicam DCS-3415 Manuel utilisateur

2D-Link DCS-3415 Quick Install Guide

System Requirements

• Windows®XP or Windows Vista®

• At least 256MB of memory (512MB recommended)

• Internet Explorer 6.x or higher

• VGA card resolution: 800 x 600 or above

• CPU: 1.7GHz or above (2.8GHz plus processor with 512MB

memory and a 32MB video card is required for multiple camera

viewing and recording in IP surveillance program)

• An available Ethernet connection

CAT5 Ethernet Cable

Package Contents

DCS-3415

18x PoE Network

Camera

Minimum System Requirements

If any of the above items are missing, please contact your reseller.

CD-ROM with Manual

and Setup Wizard

Power Adapter

Camera Stand Quick Install Guide

Note: Using a power supply with a different voltage than the one included

with your product will cause damage and void the warranty for this product.

3 D-Link DCS-3415 Quick Install Guide

Hardware Overview

Connections

Rear View

Microphone Connector

The DCS-3415 has an internal

built-in microphone. To use an

external microphone, plug it into

the microphone connector.

Microphone On/Off Switch

Select to turn the microphone

On or Off.

Audio Out Connector

Use the Audio Out connector for

2-way audio connection. Speakers

(not included) may be connected

to the camera for 2-way audio

communication.

Ethernet Cable Connection (PoE)

The network camera’s back panel

features an RJ-45 connector for

10Base-T Ethernet or 100Base-TX

Fast Ethernet cabling. This port

supports the NWay protocol, allowing

the network camera to automatically

detect or negotiate the transmission

speed of the network.

The Ethernet port can also be used

to power the camera by using a

PoE switch.

DI/DO

The DCS-3415 provides a general I/O terminal block.

The I/O connectors provide the physical interface to

send and receive digital signals to and from a variety of

external devices.

DC12V output

Support for external device (like IR light)

RS485

Port is designed for external pan/tilt/zoom devices.

Reset Button

To reset the camera to the

factory default settings,

hold the button down for

30 seconds until the power

LED flashes through its

cycle twice.

DC Power Connector

The DC power input

connector is located on the

back panel. This is labeled

“12V DC” with a single

socket to supply power to

the Network Camera.

4D-Link DCS-3415 Quick Install Guide

Hardware Overview

LEDs

Front View

Built-in Microphone

LED and Built-in Microphone

Compact Flash Card Slot

Status LED

Blinking Red: indicates power is

being supplied to the camera.

Solid Green: indicates that a

connection has been established via

Ethernet port.

Blinking Green: indicates Ethernet

trafc in the camera.

If the Ethernet connection is not

established the Status LED will not

be lit.

CF card slot

CompactFlash (CF) is a mass

storage device format used in

portable electronic devices. The

CF card slot can be seen at the

side of the network camera.

Note: Ensure to remove the rubber

strip before using it.

5 D-Link DCS-3415 Quick Install Guide

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the Ethernet port

located on the Network Camera’s back panel and

connect the other end to your network.

Connect Using Power-Over-Ethernet

Once you connect an Ethernet cable to your

PoE switch or adapter, the Power LED on the

DCS-3415 will turn green to indicate a proper

connection.

Attach the External Power Supply

Attach the supplied power adapter to the DC

power input connector located on the Network

Camera’s back panel (labeled DC 12V) and

connect the other end to an AC power outlet.

Note: When you have a proper connection, the LED on the network

camera will turn green.The light may go on and off and your computer

may show an intermittent loss of connectivity.This is normal until you

have conﬁgured your Network Camera.

6D-Link DCS-3415 Quick Install Guide

Hardware Installation

The package comes with a camera stand with a swivel ball screw

head that can be attached to the Network Camera’s bottom socket

cavity. Attach the camera stand to the Network Camera and place

it for your application. There are holes located in the base of the

camera stand allowing the camera to be mounted to the ceiling or

any wall securely.

7 D-Link DCS-3415 Quick Install Guide

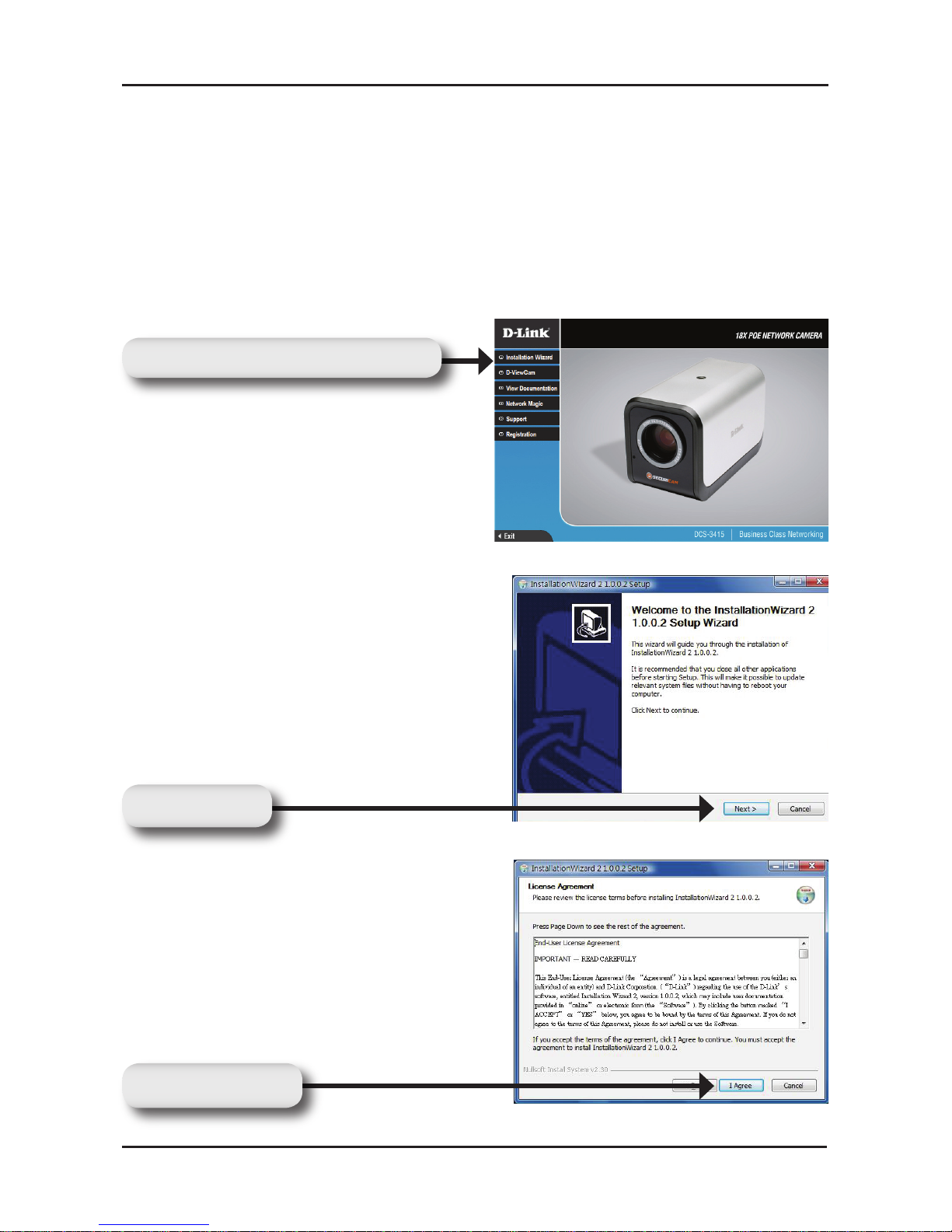

Software Installation

Turn on the computer and insert the D-Link DCS-3415 CD into the

CD-ROM drive. The following step-by-step instructions displayed are

shown when using Windows Vista®operating system. The steps and

screens are similar when using other Windows®operating systems.

Software Installation

Click Next to continue.

Click I Agree to accept the License

Agreement.

Click Next

Click I Agree

Click Installation Wizard

8D-Link DCS-3415 Quick Install Guide

Software Installation

Click Finish to complete the

installation.

To start the installation click

Install.

Note: The installation may take

several minutes to complete.

Click Install

Click Finish

9 D-Link DCS-3415 Quick Install Guide

Conﬁguration

Conﬁguring Your Camera with

the Installation Wizard

Click on the D-Link Installation Wizard icon that was created in your

Windows Start menu.

The Installation Wizard will appear and show the MAC address of your

DCS-3415 and an IP Address (which may or may not be correct

depending on what you have your DCS-3415 connected to). If you

have a DHCP server on your network, there will be a valid IP Address

displayed here.

Note: A DHCP server is a device such as a router that automatically

issues IP settings.

Click Manual Setup

Enter the admin ID and password.

Note: The default Admin ID is admin

with the password left blank.

Click Next

10D-Link DCS-3415 Quick Install Guide

Conﬁguration

A new window will pop up to ask if

you want to setup a PPPoE for the

device. Click No for quick setup.

For further information refer to the

manual for details.

Check the Get IP by DHCP Server

Automatically box to obtain a new

IP address every time the camera

starts up. Click Next to continue.

Select UPnP Port Forwarding if

your router supports this function.

If not, choose Manual to manually

enter your port numbers. Click

Next to continue.

Click Next
