D-Link DCS 6513 Manuel utilisateur

This document will guide you through the basic

installation process for your D-Link Network

Camera.

DCS-6513

Quick Install Guide

Full HD WDR Day & Night Outdoor Dome Network Camera

D-Link DCS-6513 Quick Install Guide

DCS-6513 Quick Install Guide

The install guide provides basic instructions for installing the DCS-6513 Network Camera. For

additional information about how to use the camera, please see the User Manual which is available

on the CD included in this package or from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. microSD Card Installation

4. Hardware Installation

5. Conguration with Wizard

6. Adjusting the 3-axis gimbal

1. Package Contents

DCS-6513 Network Camera

Manual and Software on CD-ROM

Quick Install Guide

Power Adapter

Security Wrench

Extension Adapter

Cable Cover

Screws

Rubber Plug

Weather Shield

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all local

codes and prevent voiding your warranty.

D-Link DCS-6513 Quick Install Guide 3

2. Hardware Overview

Install the microSD Card

Push the microSD card* into the camera with the gold

contacts oriented towards the base of the camera. To

eject, push the microSD card into the slot.

* microSD card is sold separately

3. microSD Card Installation

Disassemble the Camera

Open the camera enclosure by loosening the

four screws. Lift the dome o the base of the

camera.

Power Connector

Connects to 12V DC power

adapter.

24V Power Connector

Connects to 24V AC power.

BNC

Analog video output.

Ethernet Jack

RJ-45 connector for Ethernet which can also be used to

power the camera using Power over Ethernet (PoE).

Reset Button

Resets the camera to its

factory default settings.

Audio In

Connects to a microphone.

DI/DO Wiring, 12V DC Output

I/O connectors for external devices

Audio Out

Connects to external speakers.

D-Link DCS-6513 Quick Install Guide

4. Standard Mounting Instructions

Mounting Installation

Refer to the User Manual for detailed instructions regarding installation and mounting of the

camera using a mounting bracket.

Style 1 - Concealed Cable Installation

Height: 23mm (0.9 inches)

Diameter: 183mm (7.2 inches)

Weight: 400g (0.9lbs)

Figure 2.1

Figure 2.2

Weather Shield

Weather shield

37mm screw

D-Link DCS-6513 Quick Install Guide 5

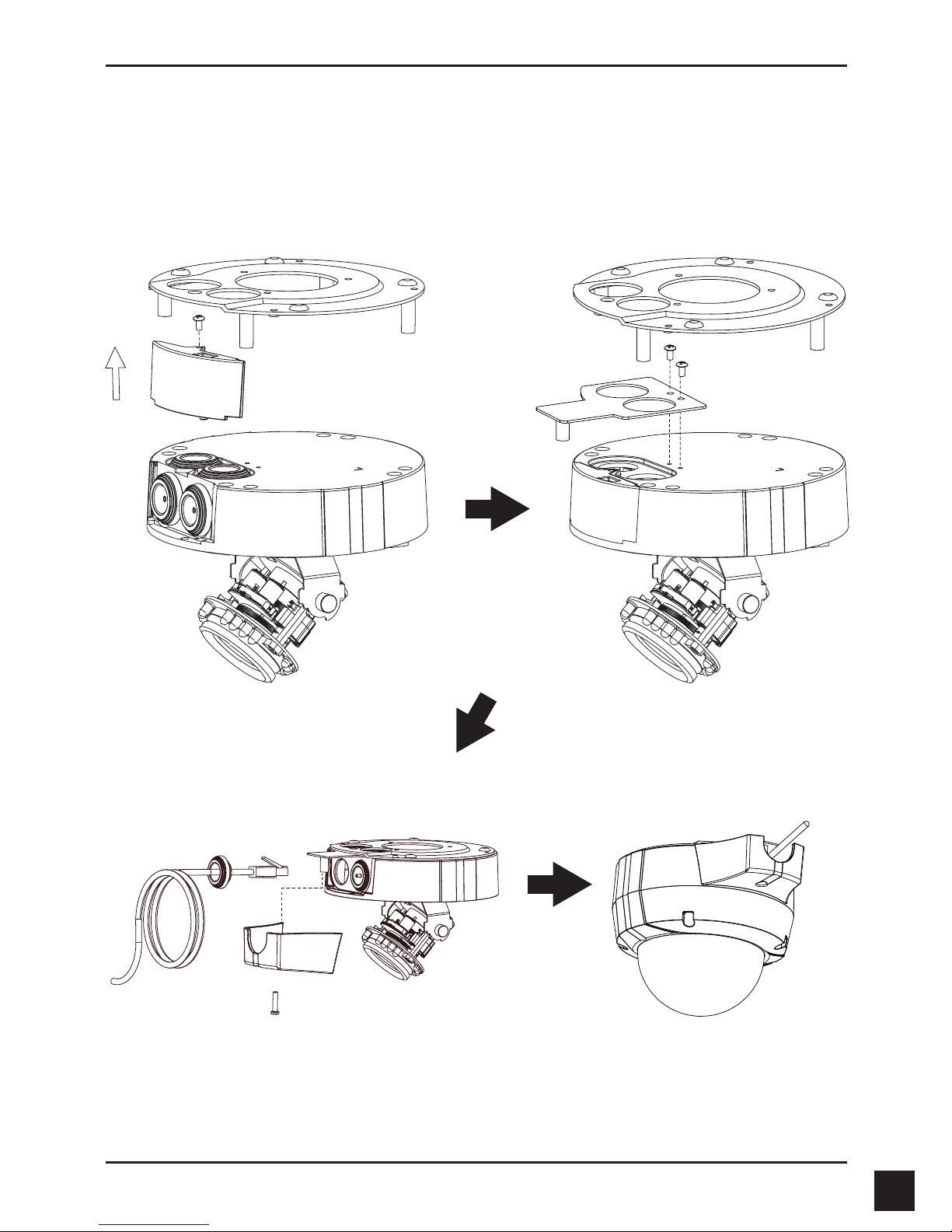

Style 2 - Exposed Cable Installation

Height: 23mm (0.9 inches)

Diameter: 183mm (7.2 inches)

Weight: 400g (0.9 lbs)

Figure 2.3 Figure 2.4

Figure 2.6

Figure 2.5

D-Link DCS-6513 Quick Install Guide

Pendant Mount (DCS-34-2)

Height: 201mm (7.9 inches)

Diameter: 150mm (5.9 inches)

Weight: 665g (1.45lbs)

Figure 3.4

Pendant

Bracket

Bracket Cap

Rubber

Seal

Figure 3.2

Figure 3.3

Figure 3.1

Bracket

Cap

Mounting

Plate

D-Link DCS-6513 Quick Install Guide 7

Wall Mount (DCS-34-3)

Height: 253mm (9.96 inches)

Diameter: 150mm (5.9 inches)

Weight: 770g (1.7lbs)

Bracket Cap

Bent

Bracket

Figure 4.2

Figure 4.4

Figure 4.3

Figure 4.1

Bracket

Cap

Mounting

Plate

Dome

Camera

Bent

Bracket

D-Link DCS-6513 Quick Install Guide

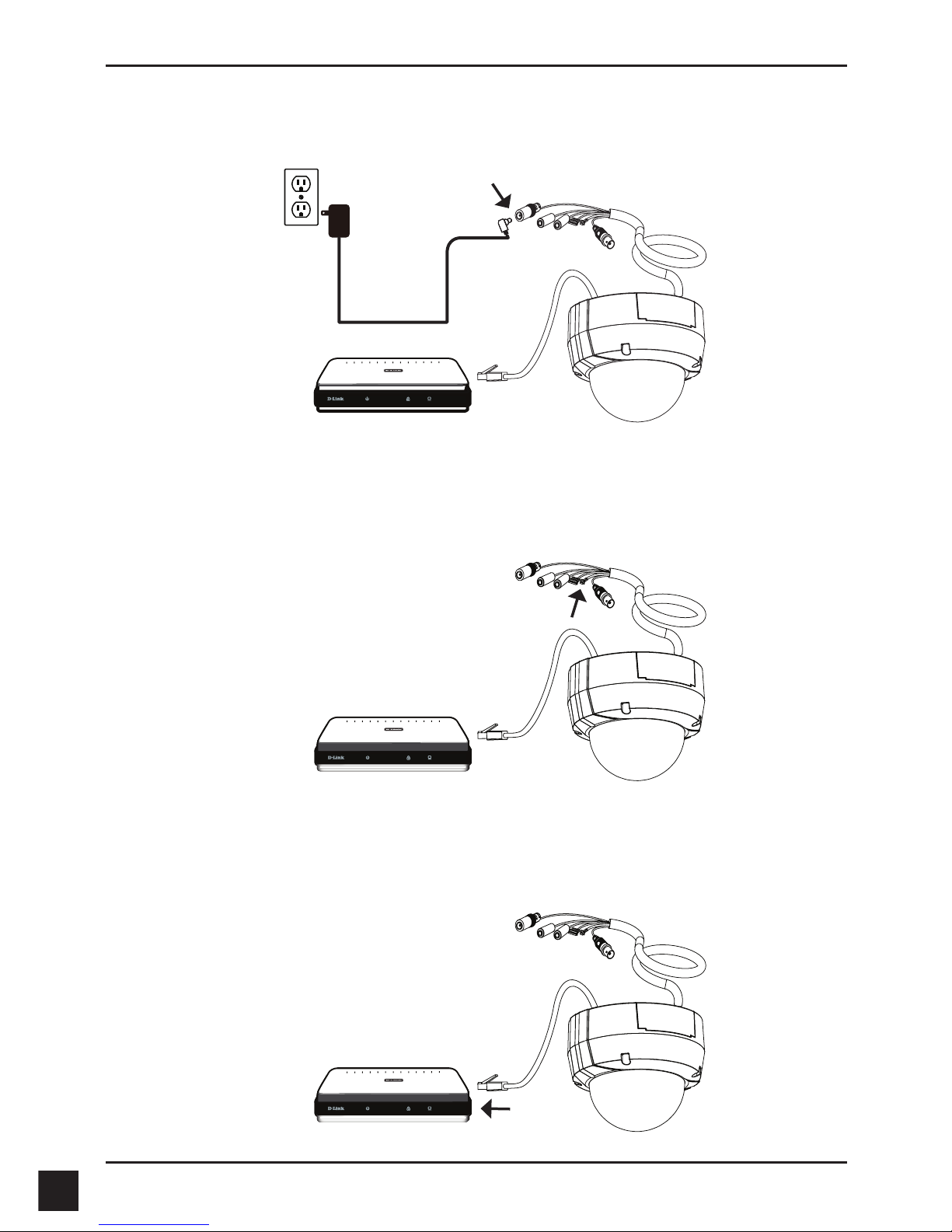

Connection with a PoE Switch

If you are using a PoE switch, connect the IP camera to the switch via an Ethernet cable, which will

provide transmission of both power and data over a single cable.

General Connection Using 24V AC Power Wiring

1. Connect the network camera to a switch or router via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power source such as your building's

emergency power.

General Connection Using 12V DC Power Adapter

1. Connect the network camera to a switch or router via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6513 Quick Install Guide 9

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6513 CD into your computer's CD-ROM drive to begin the installation. If the Autorun

function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click

Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to nish.

D-Link DCS-6513 Quick Install Guide

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select Static IP if the

camera will use the same IP address each time it is started.

Click Next to proceed to the next page.

Enter the Admin ID and password. When logging in for the

rst time, the default Admin ID is admin with the password

left blank.

Click Next to proceed to the next page.

The Setup Wizard will appear and display the MAC address

and IP address of your camera(s). If you have a DHCP server

on your network, a valid IP Address will be displayed. If your

network does not use a DHCP server, the network camera's

default static IP 192.168.0.20 will be displayed.

Click the Wizard button to continue.
