D-Link DCS-4603 Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-4603

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Vigilance Full HD PoE Dome Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-4603 Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the Network

Camera on your network. For additional information about how to use the

camera, please see the User Manual which is available on the CD included in

this package or from the D-Link support website.

Package Contents

DCS-4603 Vigilance Full HD PoE Dome Camera

Mounting Kit

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certified technicians so as to

conform to all local codes and prevent voiding your warranty.

D-Link DCS-4603 Quick Installation Guide

ENGLISH

Hardware Overview

IR LEDs

Provide illumination for

low-light environments

Camera Lens

Reset Button

Resets camera back

to the factory default

settings

Ethernet Jack

RJ-45 connector for Ethernet which can also be used

to power the camera using Power over Ethernet (PoE)

Power Connector

Connects to an optional 12 V / 1.5 A

power adapter (not included)

Camera Cover Cover Screws

The three screws can

be removed with the

included wrench

Tilt Adjustment Screw

Can be loosened to

adjust camera angle

Inner Cover

D-Link DCS-4603 Quick Installation Guide 3

ENGLISH

IR LEDs

Provide illumination for

low-light environments

Cover Screws

The three screws can

be removed with the

included wrench

Tilt Adjustment Screw

Can be loosened to

adjust camera angle

Conguring the Camera

Insert the DCS-4603 CD into your computer's CD-ROM drive to begin the

installation. If the Autorun function on your computer is disabled, or if the

D-Link Launcher fails to start automatically, click the Start button and type D:\

autorun.exe (where D: represents the drive letter of your CD-ROM drive) and

press Enter.

Click on the D-Link Setup Wizard SE icon that

was created in your Windows Start menu (Start >

D-Link > Setup Wizard SE).

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you

have a DHCP server on your network, a valid IP

Address will be displayed. If your network does not

use a DHCP server, the network camera's default

static IP 192.168.0.20 will be displayed.

Select your camera, then click the Wizard button to

continue.

Click Setup Wizard and follow the instructions to

install the Setup Wizard.

Enter the Admin ID and password. When logging in

for the first time, the default Admin ID is admin with

the password left blank.

Click the checkboxes if you wish to change the

admin ID and password for the camera, and enter

the new ID and password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

D-Link DCS-4603 Quick Installation Guide

ENGLISH

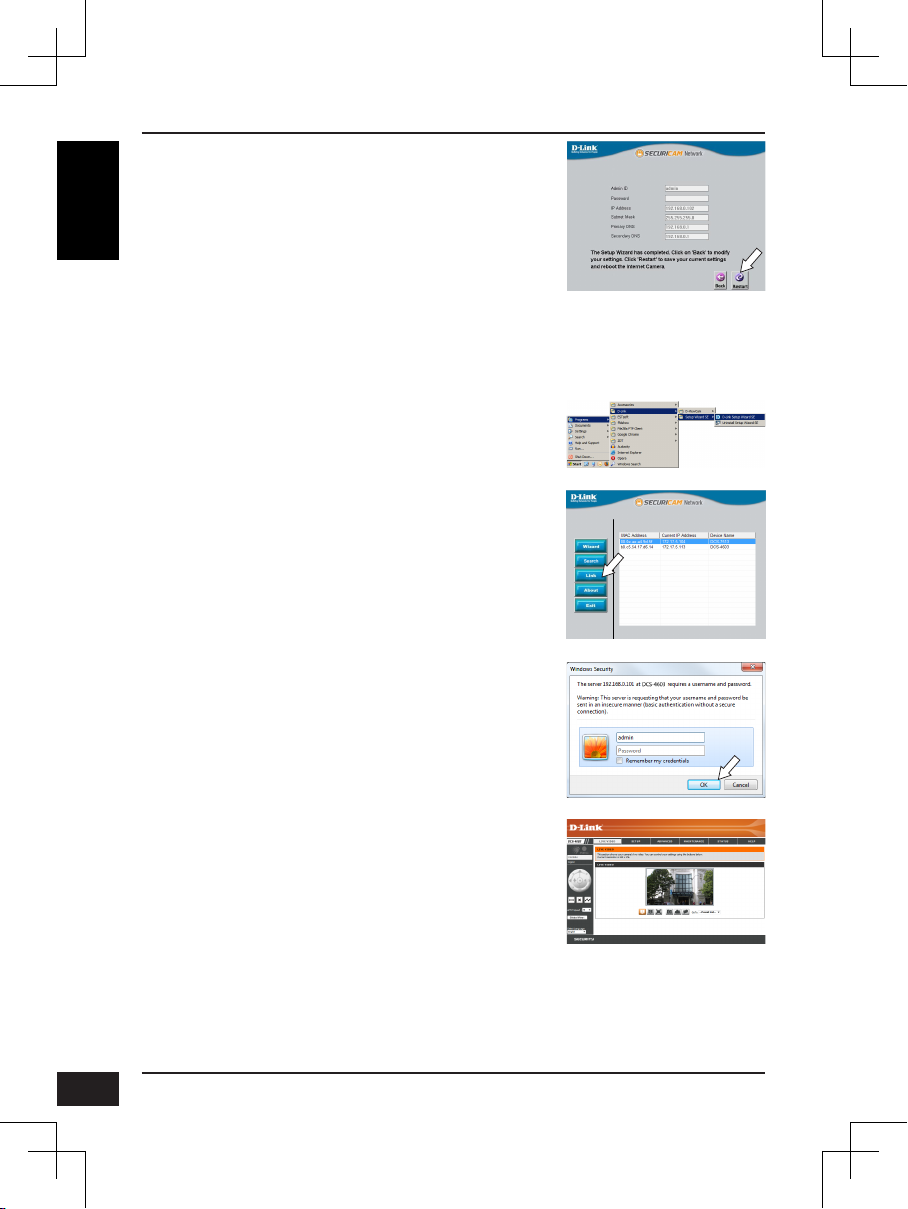

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that

was created in your Windows Start menu (Start >

D-Link > Setup Wizard SE).

Select the camera and click Link to access the web

configuration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

This section displays your camera’s live video. You

can select your video profile and view or operate

the camera. For additional information about web

configuration, please refer to the user manual,

which is available on the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Take a moment to confirm your settings and click

Restart.

D-Link DCS-4603 Quick Installation Guide 5

ENGLISH

Mounting Instructions

It is highly recommended that you configure and test your camera before

mounting it.

Place the mounting sticker where you want to

position the camera.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall

anchors into the holes.

If you are running the camera cables through

the wall, drill a hole in the center and pull the

cables through the hole.

Use the included wrench to loosen the 3 screws on

the top of the camera, then lift the camera cover off.

Use the screws provided to mount the camera to

the wall.

If you are running the camera cables out the

side of the camera, guide the camera cables

through the cable channel on the base.

D-Link DCS-4603 Quick Installation Guide

ENGLISH

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Reattach the camera cover.

To adjust the camera's angle, pull the black inner

cover and remove it from the camera.

Loosen the adjustment screw on the side of the

camera, then retighten it after moving the camera to

the desired angle. You can also rotate the camera

by grasping the camera and turning it left or right.

When you are done adjusting the camera's angle,

put the inner cover back into place.

Note: The camera has a limited range of motion; if

it stops when you are adjusting it, do not attempt to

rotate or tilt the camera any further in that direction.

340

D-Link DCS-4603 Quick Installation Guide 7

ENGLISH

Using the DCS-37-1 Mount (optional)

Use the provided screws to mount the DCS-37-1 to

the wall.

Place the DCS-37-1 mounting sticker in the

desired location, then use a 6 mm drill bit to drill

the required holes 25 mm deep and insert the wall

anchors into the holes. If you plan to pass cables

through the wall, you will also need to drill a hole for

the cable channel.

Remove the cover from the camera.

Pass the camera connectors through the back

or bottom cable channel on the DCS-37-1. Use

the provided screws to mount the camera to

the DCS-37-1 using the set of mounting holes

marked A.

Remove the inner cover and adjust the angle and

rotation of the camera as desired, then put the inner

cover back in place.

Attach the camera cover.

If you are passing the camera cables through the

wall, place the rubber stopper into the bottom cable

channel to seal it.

D-Link DCS-4603 Quick Installation Guide

ENGLISH

Using the DCS-37-2 Mount (optional)

Use the provided screws to mount the DCS-37-2 to the wall

using the inner mounting holes.

Place the DCS-37-2 mounting sticker in the desired location,

then use a 6 mm drill bit to drill the required holes 25 mm

deep and insert the wall anchors into the holes. If you plan to

pass cables through the wall, you will also need to drill a hole

for the cable channel.

Remove the cover from the camera.

Pass the camera connectors through the back or side cable

channel on the DCS-37-2. Use the provided screws to mount

the camera to the DCS-37-2 using the set of mounting holes

marked A.

Remove the inner cover and adjust the angle and rotation

of the camera as desired, then put the inner cover back in

place.

Attach the camera cover.

If you are passing the camera cables through the wall, place

the rubber stopper into the bottom cable channel to seal it.

Additional Information

Additional help and product information is available online

at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty

information for your region.
