D-Link DCS-3710 Manuel utilisateur

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-3710

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Megapixel Day & Night WDR Network Camera

Quick Installation Guide

Руководство по быстрой установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

クイックインストールガイド

D-Link DCS-3710 Quick Install Guide

Installation Steps

ENGLISH

DCS-3710 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-3710 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or

from the D-Link support website.

Installation Steps

Verify the package contents against the list below.1.

Hardware Overview2.

Hardware Installation3.

Conguration with Wizard 4.

Adjust the Zoom/Focus5.

1. Package Contents

DCS-3710 Network Camera°

Camera Stand°

Manual and Software on CD-ROM°

CAT5 Ethernet Cable°

Power Adapter°

Quick Install Guide°

C-CS Mount Adapter (5mm Ring)°

If any of the above items are missing, please contact your reseller.

D-Link DCS-3710 Quick Install Guide 3

Hardware OverviewHardware Overview

ENGLISH

2. Hardware Overview

LED

Power and network indicator

I/O Connector

I/O connectors for external devices

BNC

Analog video output

Reset

Press and hold this button for

5 seconds to reset the camera

Audio In

Audio input connector for a

microphone

DC Power

12V DC

Audio Out

Audio output for external speakers.

Ethernet (PoE)

RJ-45 connector for Ethernet

which can also be used to power

the camera using PoE

Lens Connector

Connect to a CS mount

ICR Sensor

The IR-Cut Removable sensor judges

lighting conditions and switches from

color to infrared accordingly

Rear Panel

Front Panel

D-Link DCS-3710 Quick Install Guide

Hardware Overview

ENGLISH

DC-Iris Connector

Connector for DC auto iris lens

DIP Switch

Toggles between several regional formats.

Iris Level

Can be used to adjust the auto iris

1. AES: Auto Electric Shutter

2. DC IRIS: Toggle auto iris (DC drive)

3. NTSC: TV output signal selector

4. PAL: TV output signal selector

SD Card Slot

Local SD card for storing

recorded images and video

Right Panel

Left Panel

D-Link DCS-3710 Quick Install Guide

Hardware Installation

ENGLISH

3. Hardware Installation

Basic Connection (without PoE)

Connect the camera to your switch or router via Ethernet cable.

Connect the supplied power cable from the camera to a power outlet.

Connection Using a PoE Switch

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-3710 Quick Install Guide

Conguration with Wizard

ENGLISH

4. Conguration with Wizard

Click Installation Wizard to begin the installation.

Insert the DCS-3710 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\DCS-3710.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-3710 Quick Install Guide

Conguration with Wizard

ENGLISH

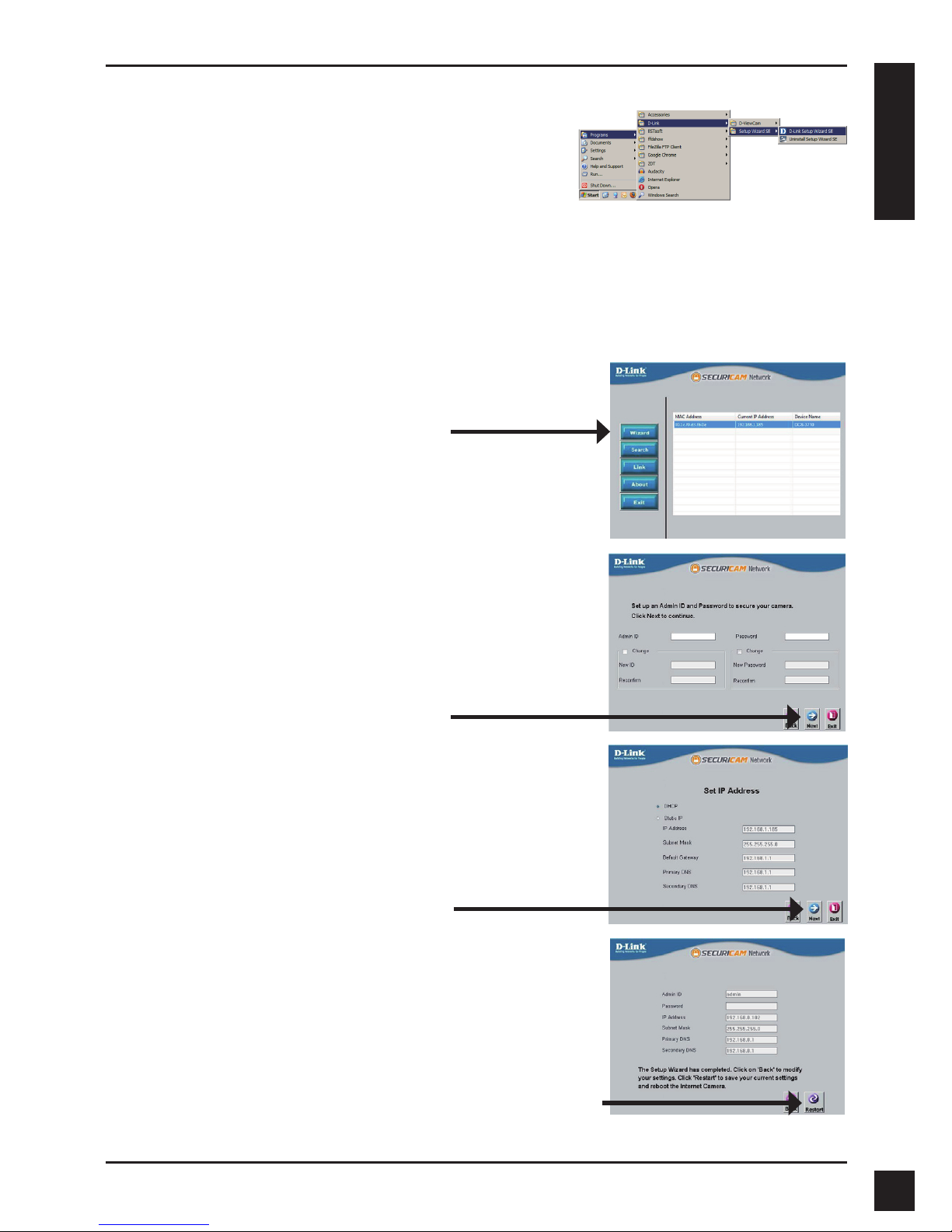

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-3710 Quick Install Guide

Conguration with Wizard

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

D-Link DCS-3710 Quick Install Guide

Adjust the Zoom/Focus

ENGLISH

5. Adjust the Zoom/Focus

Adjust Zoom Ratio

Unscrew the focus controller to loosen

the zoom controller. Adjust the zoom

factor by moving the controller the left or

right until the desired range is achieved.

Tighten the zoom controller once

completed.

Adjust Focus

Unscrew the focus controller to loosen

it. Adjust the focal range by moving

the controller to the left or right until

the image is clear. Tighten the focus

controller once completed.

D-Link DCS-3710 Quick Install Guide

Technical Support

ENGLISH

Technical Support

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: 1800-233-0000 (MTNL & BSNL Toll Free)

+91-832-2885700 (GSM, CDMA & Others)

Web: www.dlink.co.in

E-Mail: [email protected]

Indonesia, Malaysia, Singapore and Thailand:

Tel: +62-21-5731610 (Indonesia)

Tel: 1800-882-880 (Malaysia)

Tel: +65 6501 4200 (Singapore)

Tel: +66-2-719-8978/9 (Thailand)

24/7, for English Support only

Web: http://www.dlink.com.sg/support/

E-mail: [email protected]

Korea:

Tel: +82-2-2028-1815

Monday to Friday 9:00am to 6:00pm

Web: http://www.d-link.co.kr

E-mail: [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

Egypt:

Tel: +202-2919035

+202-2919047

Sunday to Thursday 9:00am to 5:00pm

Web: http://support.dlink-me.com

E-mail: [email protected]

Iran:

Tel: +98-21-88880918,19

Saturday to Thursday 9:00am to 5:00pm

Web: http://support.dlink-me.com

E-mail: [email protected]

[email protected]
