D-Link DCS-5615 Manuel utilisateur

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-5615

Documentation also available

on CD and via the D-Link

Website

Quick Install Guide

Full HD Mini Pan &Tilt Dome Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-5615 Quick Install Guide

ENGLISH

DCS-5615

Quick Install Guide

This install guide provides basic instructions for installing the DCS-5615 Network

Camera. For additional information about how to use the camera, please see the

User Manual, which is available on the CD included in this package or from the D-Link

Support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

5. Adjusting the Viewing Angle

6. Attaching the Enclosure

1. Package Contents

° DCS-5615 Network Camera

° User Manual and Software on CD-ROM

° Quick Install Guide

° Mounting Kit

° Ethernet Extension

° Power Adapter

° Alignment Sticker

If any of the above items are missing, please contact your reseller.

D-Link DCS-5615 Quick Install Guide

ENGLISH

2. Hardware Overview

Plastic housing

Tilt 80°

Pan -180° Pan +180°

D-Link DCS-5615 Quick Install Guide

ENGLISH

2. Hardware Overview

DC Power

Connects to the 12 V DC

power adapter to power

the camera

Ethernet Jack

RJ-45 connector is for Ethernet,

and can also be used to power

the camera using Power over

Ethernet

DI connector

DI connectors provide a

physical interface to receive

digital signals from a variety of

external devices

microSD Card Slot

Local microSD card for storing

recorded images and video

RESET

microSD

Reset

D-Link DCS-5615 Quick Install Guide

ENGLISH

Open the microSD card plastic cover at the bottom.

Slip the card socket forward and up.

Insert a microSD card, close the the cover, and push it back to secure the installation. Install the

plastic cover by pressing it back to its original position.

3. Hardware Installation

icro

D-Link DCS-5615 Quick Install Guide

ENGLISH

3. Hardware Installation

1. Locate an area on the ceiling or wall which is capable of supporting the weight of

the camera.

2. Attach the alignment sticker to the intended location on the ceiling or wall.

3. Drill three pilot holes where the holes of the alignment sticker are located.

4. Insert the supplied plastic anchors into the drilled holes, and install “Plate A” with

three screws.

5. Attach “Plate B" to the bottom of the camera and secure it with two screws.

6. Slide the Camera into “Plate A“

7. Secure the camera to the “Plate A” with screw.

Plate A

D-Link DCS-5615 Quick Install Guide

ENGLISH

Plate B

D-Link DCS-5615 Quick Install Guide

ENGLISH

General Connection (without PoE)

Connect the network camera to a switch or router via an Ethernet cable.

Connect the supplied power adapter from the camera to a power outlet.

Connection with a PoE Switch

If using a PoE switch, connect the network camera to the switch via an Ethernet cable,

which will enable the transmission of both power and data over a single cable.

D-Link DCS-5615 Quick Install Guide

ENGLISH

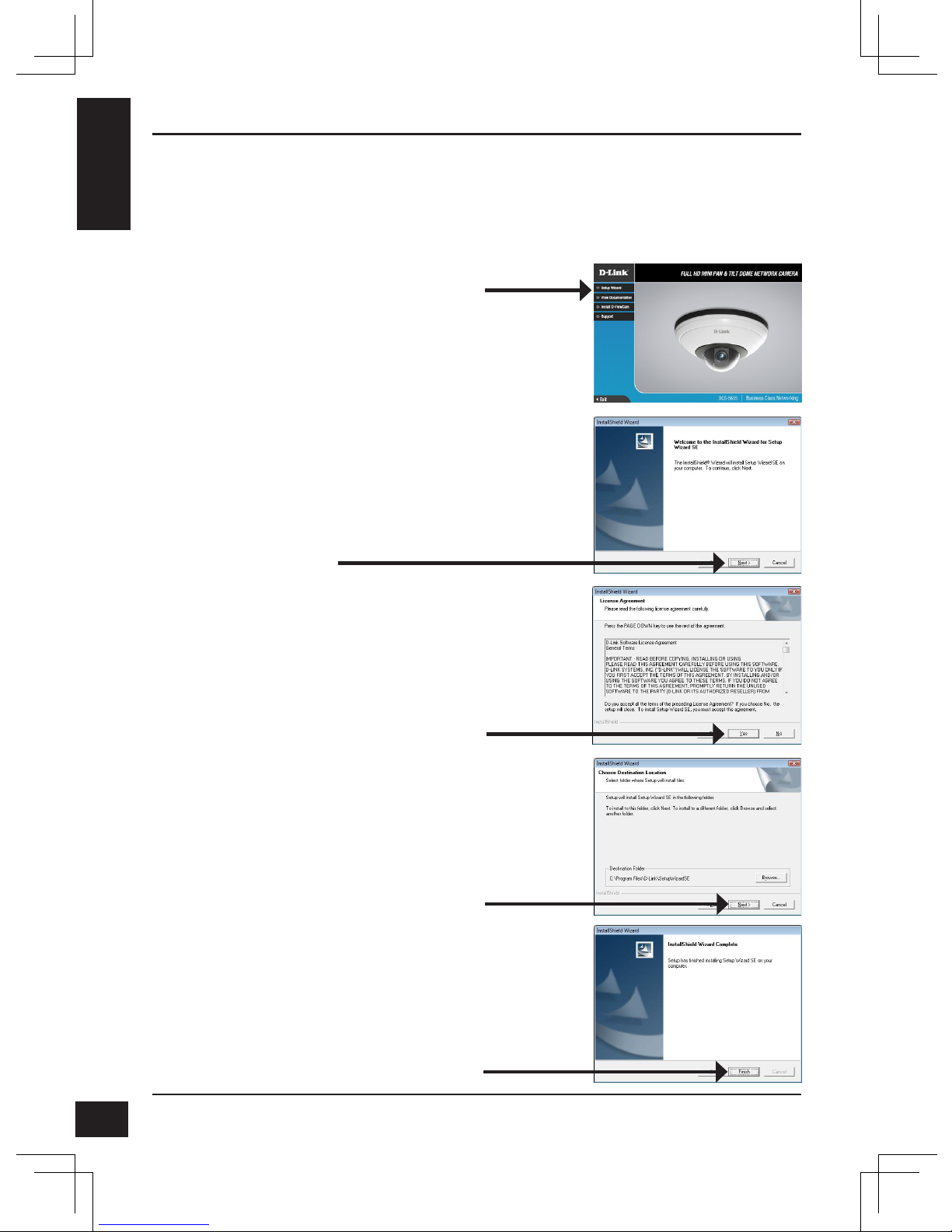

4. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-5615 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

The InstallShield Wizard window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to nish.
