D-Link DCS-4612EK Manuel utilisateur

Additional documentation is also available on the D-Link website

DCS-4612EK

Quick Installation Guide

Vigilance Outdoor Dome Camera

DCS-4614EK

DCS-4618EK

Contents

ENGLISH 1

DEUTSCH 13

FRANÇAIS 25

ESPAÑOL 37

ITALIANO 49

РУССКИЙ 61

УКРАЇНСЬКА 76

Quick Installation Guide 1

ENGLISH

Hardware Overview

DCS-4612EK/DCS-4614EK Front/Side

Figure 1: Front View Features

# Feature Description

1microSD

Slot

Slot for a microSD card.

Vertical

Adjustment

Screw

Loosen to adjust the vertical

angle of the camera

3 IR LED Provides illumination for low-

light environments

Horizontal

Adjustment

Screw

Loosen to adjust the horizontal

angle of the camera

5 Camera Lens Fixed camera lens

Table 1: Front View Descriptions

Before You Begin

This installation guide provides instructions

for installing and configuring your camera.

Additional documentation is also available on

the D-Link support website.

Refer to the manual for your model for

additional information on how to configure

the device using the associated Setup Wizard.

The manual and Setup Wizard may be found at

https://dlink.com/support/.

Package Contents

This package includes the following items:

• Vigilance Outdoor Dome Camera

• Cable Waterprooﬁng Connector

• Mounting Kit

• Allen Key

• Alignment Sticker

• Documentation

If any of the above items are damaged or

missing, please contact your local D-Link reseller.

Note: Using a power supply with a diﬀerent

voltage than the one recommended for the

device will cause damage and void the warranty

for this product.

System Requirements

• Computer running Microsoft Windows®

• Internet Explorer 11

2Quick Installation Guide

ENGLISH

DCS-4618EK Front/Side

Figure 2: Front View Features

# Feature Description

Vertical

Adjustment

Screw

Loosen to adjust the vertical

angle of the camera.

2 IR LED Provides illumination for low-

light environments

3 Camera Lens Motorized camera lens

4microSD

Slot

Slot for microSD card.

Table 2: Front View Descriptions

DCS-4612EK/DCS-4614EK/DCS-

4618EK Cable Interfaces

Figure 3: Cable Interfaces

# Feature Description

1Ethernet

Jack

RJ-45 connector for Ethernet. Can

also be used to power the camera

using Power over Ethernet (PoE)

2Power

Connector

Connects to an optional 12 V / 1.5 A

power adapter (not included)

3Reset

Button

Press and hold for more than ﬁve

seconds, then release to perform

a factory reset

Table 3: Cable Interface Descriptions

Management Options

To configure and manage your camera, it

is recommended that you download the

associated Setup Wizard and the D-ViewCam

software suite, both of which are available from

the D-Link website.

Installing the Setup Wizard

1. Open a web browser, navigate to

dlink.com/support/, and select your

region.

2. On the next screen, enter the model

number of your camera in the search bar

and click Search. Click the picture of your

camera. On the product page, click the

Download button next to SetupWizard.

3. Once the executable file has finished

downloading, click it and follow the

instructions to install the Setup Wizard.

Quick Installation Guide 3

ENGLISH

Conguring the Camera

1. Ensure that your camera is plugged in

(either using a 12 V 1.5 A power adapter

or a PoE-enabled device) and connected

to your computer with an Ethernet cable.

2. Open the Setup Wizard. It will display

the MAC address and IP address of your

camera. If you have a DHCP server on your

network, this will be a dynamic IP address.

If your network does not use a DHCP

server, the network camera’s default static

IP 192.168.0.20 will be displayed. Select

your camera, then click the Link button to

continue.

Figure 4: Launching the Setup Wizard

3. If this is your ﬁrst time logging in, you will be

prompted to create a password, which must

be between 8 and 30 characters and must

contain both letters and numbers. Press OK.

Figure 5: Creating a Password

4. To view the camera display, on the main

screen of the Setup Wizard, click the

Search button, then select your camera

and click the Link button to open the

camera’s web UI. Alternatively, open a

web browser and type the camera’s IP

address (displayed in step 2) into the URL

bar and press Enter. Enter the password

you created, and click Login to continue.

Figure 6: Authenticating

Installing D-ViewCam

1. Open a web browser, navigate to

dlink.com/support/, and select your

region.

2. On the next screen, click the D-ViewCam

link and click the most recent version to

download the D-ViewCam setup wizard

(packaged as a zip ﬁle).

3. Once the ﬁle has ﬁnished downloading,

unzip it, and click the executable file

SetupTool.exe. Follow the instructions

to install the D-ViewCam software suite.

For advanced viewing options, refer to the

D-ViewCam User Manual.

4Quick Installation Guide

ENGLISH

Mounting the Camera

Note:It is highly recommended that you conﬁgure

and test your camera before mounting it.

The DCS-4612EK, DCS-4614EK and DCS-4618EK

can be installed on the ceiling or wall. The

process is identical for both cameras.

Mounting the Camera

1. Use the included T10 or T15 screwdriver

to unscrew the three screws on the dome

cover and remove it.

Figure 7: Removing the Cover

2. Press the sides of the plastic lining and

gently lift it to remove the lining from

the camera.

Figure 8: Removing the Lining

3. Place the installation sticker on the ceiling

or wall. Using a 4 mm drill bit, drill three

holes 30 mm deep into the wall or ceiling.

Drive the plastic wall anchors into the holes.

Figure 9: Attaching the Camera

4. Insert three mounting screws into the

holes in the base of the device. Place the

device against the mounting sticker and

screw it in to attach it to the wall or ceiling.

Three screws with rubber gaskets are

provided with DCS-4618EK. To ensure

waterproofness you MUST mount the

DCS-4618EK with all three of the provided

screws.

Quick Installation Guide 5

ENGLISH

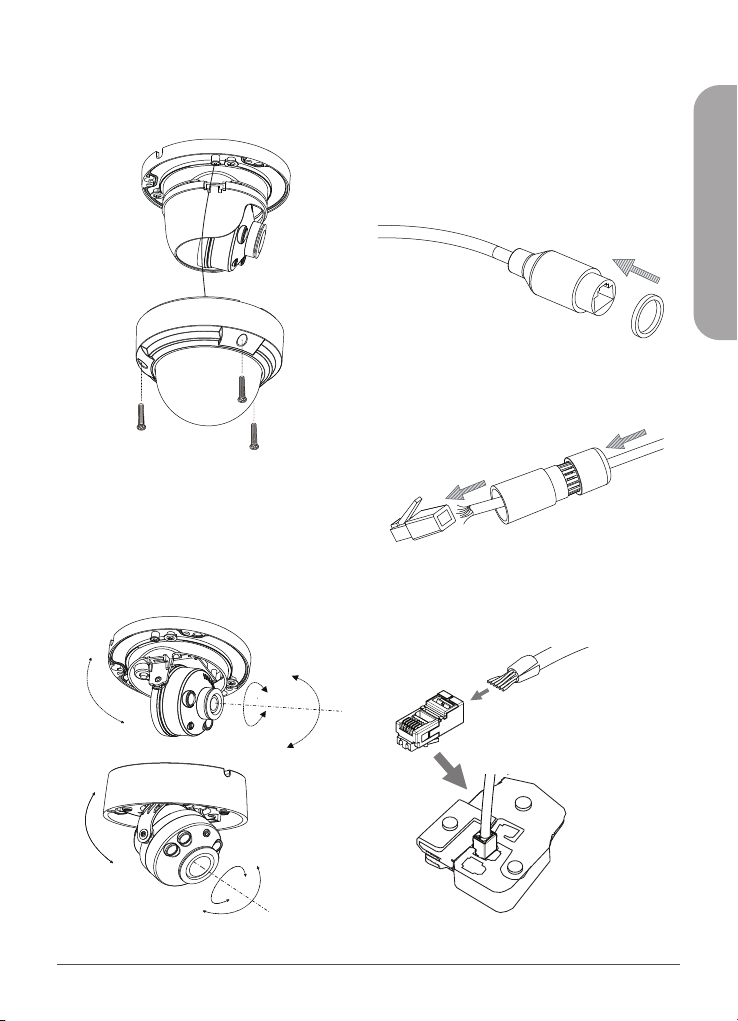

5. Reattach the lining to the camera body

by sliding it on until it clicks. Replace

the dome cover and refasten the screws

securing it in place.

Figure 10: Replace the dome cover

Adjusting the Lens

The angle, zoom and focus of the lens can

adjusted using the web UI. For information on

how to do this, refer to the User Manual.

15° - 90°

0 - 350° 0 - 335°

10° - 90°

0 - 350°

0 - 335°

Figure 11: Positioning the Lens

Waterproong Your Installation

To waterproof your camera, follow the instructions

below. A round Ethernet cable, a crimping tool,

and RJ-45 plugs are required for this procedure.

1. Place the washer around the base of the

Ethernet connector as shown.

Figure 12: Attaching the Washer Ring

2. Thread the bare Ethernet cable through

the waterproof connector as shown.

Figure 13: Threading the Cable

3. Attach an RJ-45 plug to the end of the

cable using a crimping tool.

Figure 14: Attaching the RJ-45 Connector

6Quick Installation Guide

ENGLISH

4. Connect the RJ-45 plug into the Ethernet

connector, then screw the waterproof

connector to the Ethernet connector by

turning it clockwise about one half-turn.

Figure 15: Attaching the Waterproof Connector

5. Screw the back part of the waterproof

connector clockwise until there is a tight

seal around the Ethernet cable.

Figure 16: Tightening the Connector

6. The power connector and reset

button cables are not waterproof. It is

recommended to use waterproof tape

to protect them. Wind the tape around

each cable in an overlapping manner to

cover them.

Figure 17: Wrapping the Power

Connector and Reset Button

Quick Installation Guide 7

ENGLISH

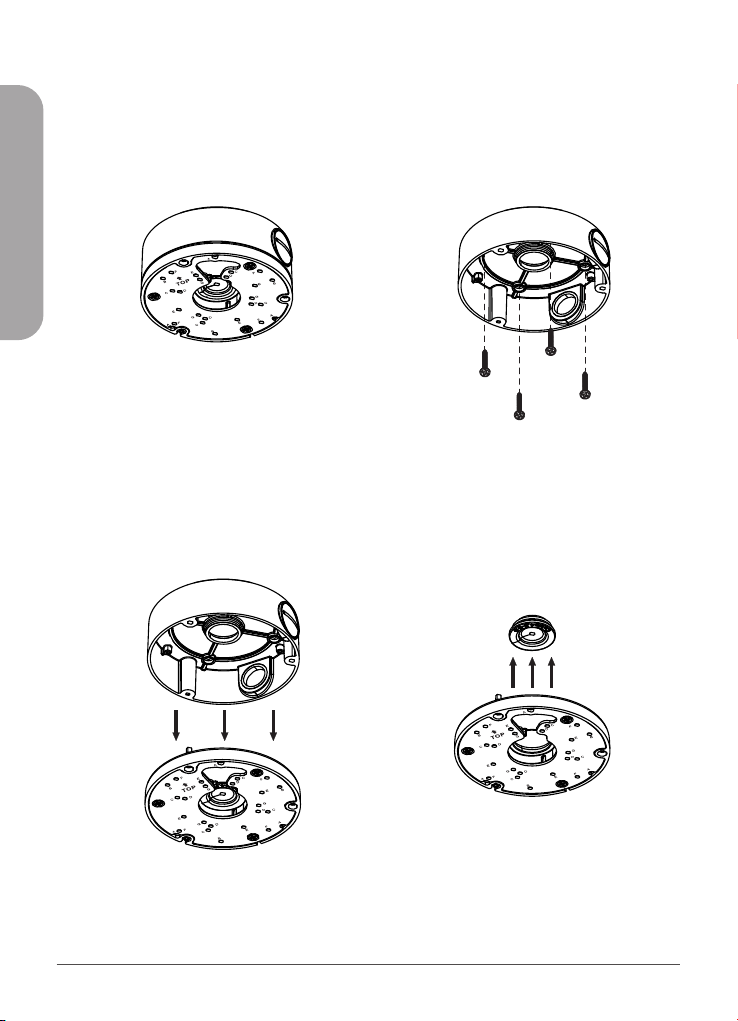

Using the DCS-37-5 Mount (optional)

1. 3.

4.2.

8Quick Installation Guide

ENGLISH

Using the DCS-37-6 Mount (optional)

1. 3.

4.2.
