ENGLISH

PACKAGE CONTENTS

FULL HD 180-DEGREE OUTDOOR WI-FI CAMERA

DCS-2670L

MOUNTING KIT

POWER ADAPTER

If any of these items are missing from your

packaging, contact your reseller.

QUICK INSTALLATION GUIDE

ETHERNET CABLE

WATERPROOF CABLE CONNECTOR

DCS-2670l

ENGLISH

SYSTEM REQUIREMENTS

• A broadband Internet connection

• Existing 10/100 Ethernet-based network or 802.11 n/g/b router (a D-Link

Cloud Router is recommended)

• iPhone®, iPad®, iPod®touch or Android™ smartphone or tablet (please refer to

the mobile app's store page to check whether your device is compatible)

• A mobile device with Bluetooth 4.0 is required for Bluetooth setup

Please follow the instructions below to set up your mydlink camera.

Congratulations, your DCS-2670L is now ready to use! Be sure to check the

mydlink.com website periodically for the latest firmware updates to keep your

product secure and up to date with the latest features.

Note: If you experience issues registering this camera with your mydlink

account, or if you purchased an open box or resold unit, perform a hard

reset by pressing and holding the Reset button on the device for 10

seconds while the device is powered on. If you are returning the device

to the place of purchase, please perform the hard reset procedure to

clear the device of any personal data.

Step 1: On your mobile device, download mydlink Lite by searching for

mydlink Lite in the iTunes App Store or Google Play.

Step 2: Launch the mydlink Lite app and create a new account or sign in to

your existing account.

Step 3: The app will guide you through the rest of the setup process. When

asked to scan the QR code, use the code on the device label.

PRODUCT SETUP

SettiNg uP YOur Camera WitH mYDliNK lite

DCS-2670l 3

ENGLISH

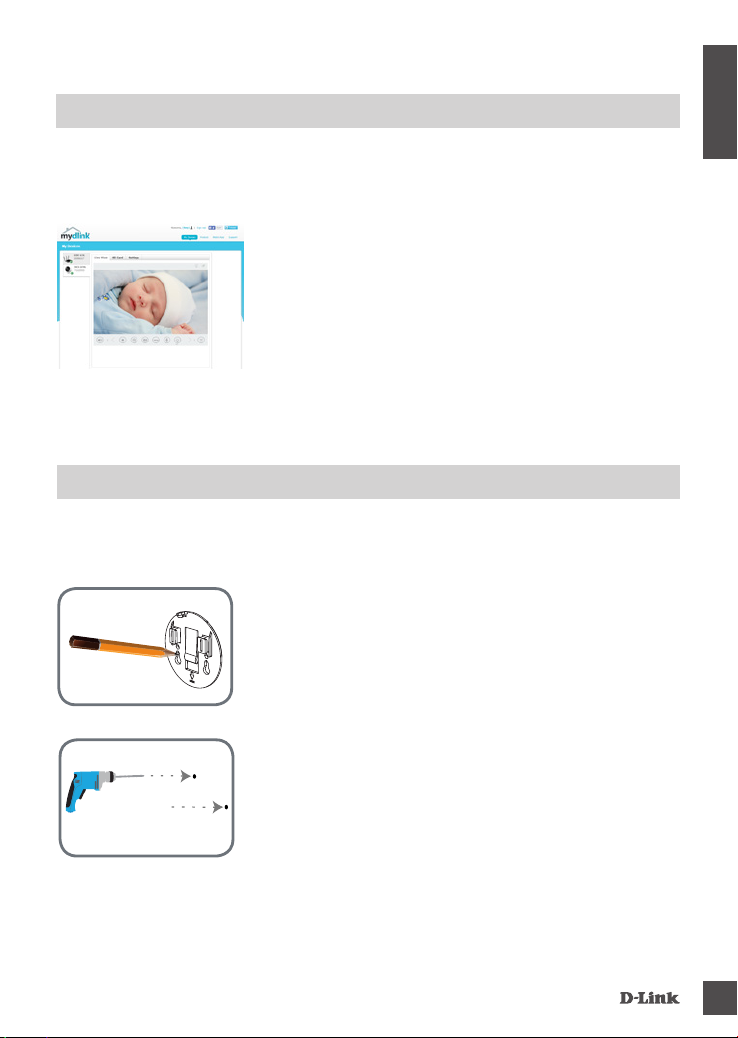

MOUNTING THE CAMERA

Please refer to the steps below to assist you with mounting the camera. It is

recommended that you configure the camera before mounting.

Step 1:

Open a web browser and go to www.mydlink.com,

then sign into mydlink.

Step 2:

Select your camera from the device list, and your

camera’s Live View will appear.

After registering your DCS-2670L camera with a mydlink account in the

mydlink Lite mobile app, you will be able to remotely access your camera from

the mydlink website.

mydlink PORTAL

Step 1:

Place the baseplate where you want to position the

camera and use a pencil to mark the holes. You can

use the large holes for a removable installation, or

the small holes for a fixed one. Make sure the lock

arrow on the plate is pointing down.

Step 2:

Depending on the material of the wall or ceiling, use

proper tools to drill holes 25 mm deep with a 6 mm

drill bit where you marked. If the wall is made out of

concrete, drill the holes first, then insert the plastic

anchors to support the screws.

DCS-2670l

ENGLISH

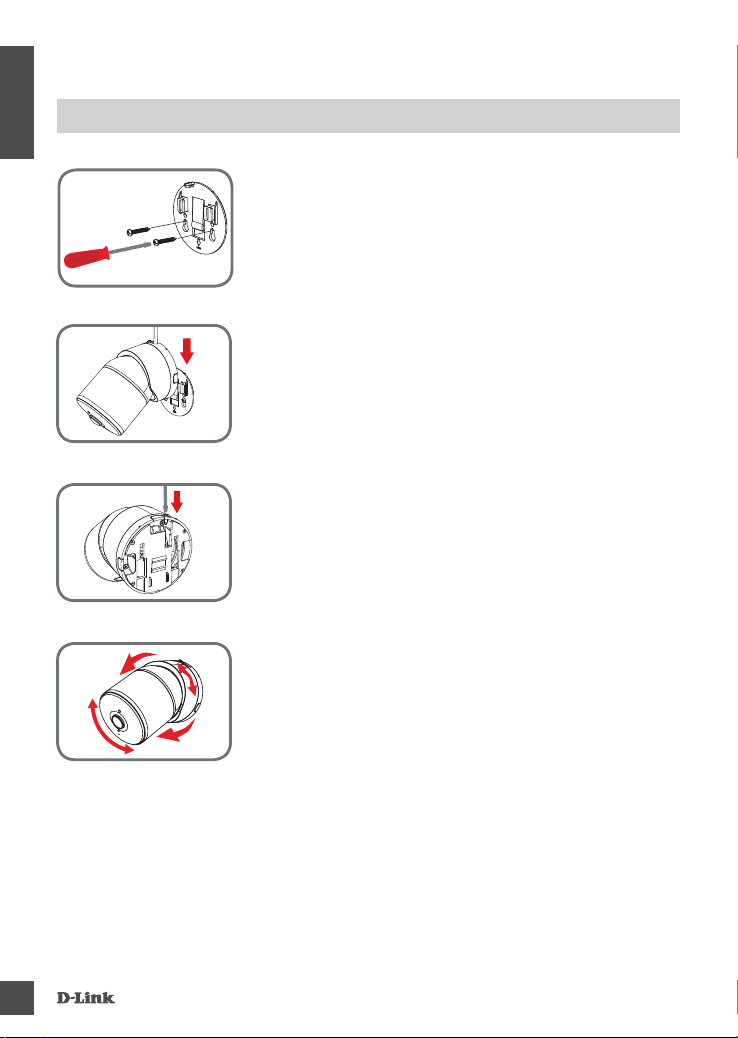

Step 4:

Place the camera over the baseplate and align the

nub with the hole on the camera. Attach the camera

by sliding it in the direction of the arrow. Then screw

the baseplate to the camera body.

MOUNTING THE CAMERA

Step 6:

Adjust the angles via the camera body and rotate the

silver base until you achieve your desired viewing

angle.

Step 5:

Once the camera is secured to the baseplate, use a

screwdriver to fasten the screw next to the hole at the

back of the camera body.

Step 3:

Place the baseplate over the holes that are in the

wall. Make sure to align the baseplate holes with the

holes in the wall. Use the supplied screws to attach

the baseplate to the surface of the wall.

DCS-2670l 5

ENGLISH

WATERPROOFING YOUR CAMERA

After configuring your camera, follow the instructions below to prevent water

from entering the camera's Ethernet and Power Cable connections.

Step 1:

Plug the power adapter into the dongle.

Step 2:

To waterproof the Ethernet socket, align the cap

according to the thread and twist it clockwise to

seal it.

WaterPrOOFiNg YOur CONNeCtOrS WHeN uSiNg Wi-Fi

WaterPrOOFiNg YOur etHerNet CONNeCtOr

If you are using an Ethernet connection, follow the instructions below to

prevent water from entering the camera's Ethernet cable connector.

Step 1:

Connect the power and Ethernet cables.

DCS-2670l

ENGLISH

Caution: Due to its IP65 rating we recommend that you install your device

under a roof or a shelter to protect the Power and Ethernet connections from

water seepage. However, the cables and connections need to be located

away from all potential water hazards.

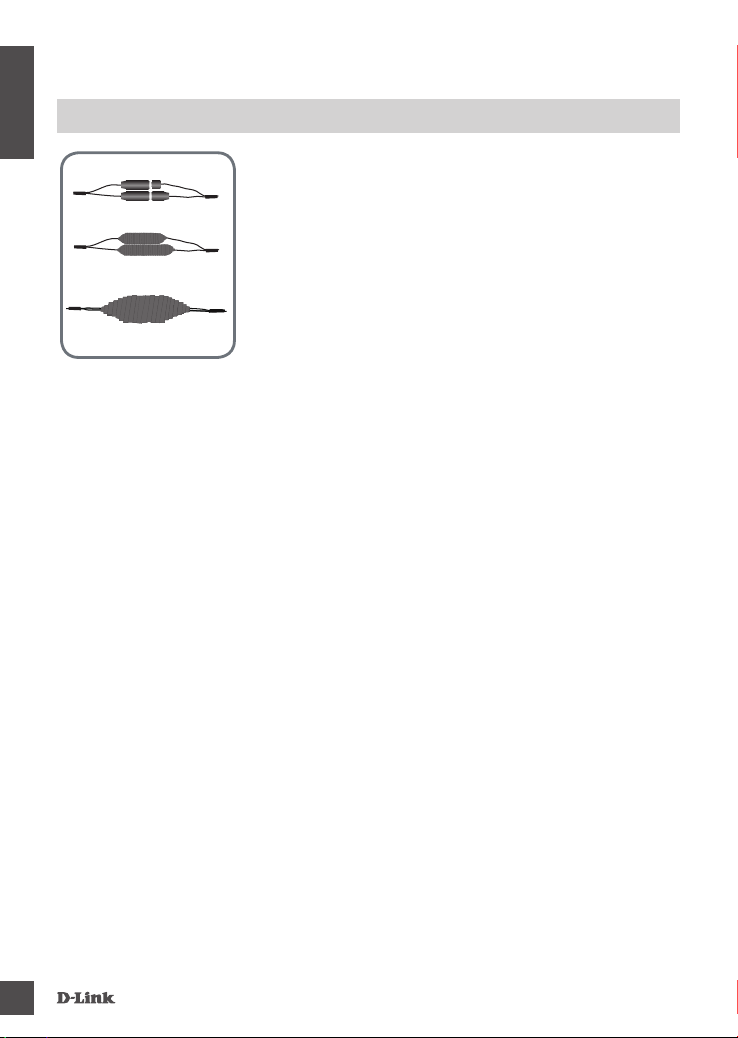

Wind waterproof tape, such as butyl rubber or vinyl

tape, around the individual cables and connectors

in a half-overlapping manner then wrap all the

connectors together. Be sure to cover all of the

connectors and any unsheathed cables.

Note: Butyl rubber tape should be wrapped by

stretching the tape to about twice its length, and

wrapping it around the cable. Failure to stretch the

tape sufficiently will result in insufficient waterproofing

performance.

uSiNg WaterPrOOF taPe

WATERPROOFING YOUR CAMERA

DCS-2670l 7

ENGLISH

TROUBLESHOOTING

FreQueNtlY aSKeD QueStiONS

1. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT

VISION MODE?

The IR night vision lights on the camera may be reflecting off of a nearby

surface or window. Try repositioning your camera to avoid reflections or

glare.

2. WHAT CAN I DO IF I FORGET MY CAMERA PASSWORD?

If you forget your camera password, you will need to perform a hard reset

of your camera. This process will change all your settings back to the

factory defaults.

To reset your camera, please use an unfolded paperclip to press and hold

the RESET button for at least 10 seconds while your camera is plugged in.

3. WHAT CAN I DO IF MY DCS-2670L IS NOT WORKING CORRECTLY?

Reset the camera (see next step) and run the setup steps starting

on page 4 again.

To make sure your hardware is installed correctly, make sure that:

- the power LED is green

- your Internet connection is working

- your router’s LAN & WAN connections are working

- your router supports UPnP™

- your camera is on the same network as your mobile device

- both your mobile device and camera have a working Internet connection

If your camera is still not working, check your router and make sure it has

the latest firmware.

DCS-2670l

ENGLISH

teCHNiCal SuPPOrt

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

Australia:

Tel: 1300-700-100

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

DCS-2670l 9

ENGLISH

teCHNiCal SuPPOrt

Iran

Unit 1, 1st Floor, Plot No 3, Pazhoheshgah (2)

Alley, Ahmad Ghasir (Bokharest) St. , Shahid

Beheshti (Abbas Abad) St. , Tehran, Iran.

Postal Code : 1514615911

Tel: +98-21-88880918,19

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949
