2D-Link DCS-3410 Quick Install Guide

System Requirements

• Internet Explorer 6.x or above

• Windows®XP or Windows Vista™

• 1.7GHz processor or better and at least 256MB of RAM

• An available Ethernet connection

CAT5 Ethernet Cable

Package Contents

DCS-3410

POE Day & Night Network Camera

System Requirements

If any of the above items are missing, please contact your reseller.

CD-ROM with Manual and

Setup Wizard

Camera Stand 12V 1.25A AC Power Adapter

3 D-Link DCS-3410 Quick Install Guide

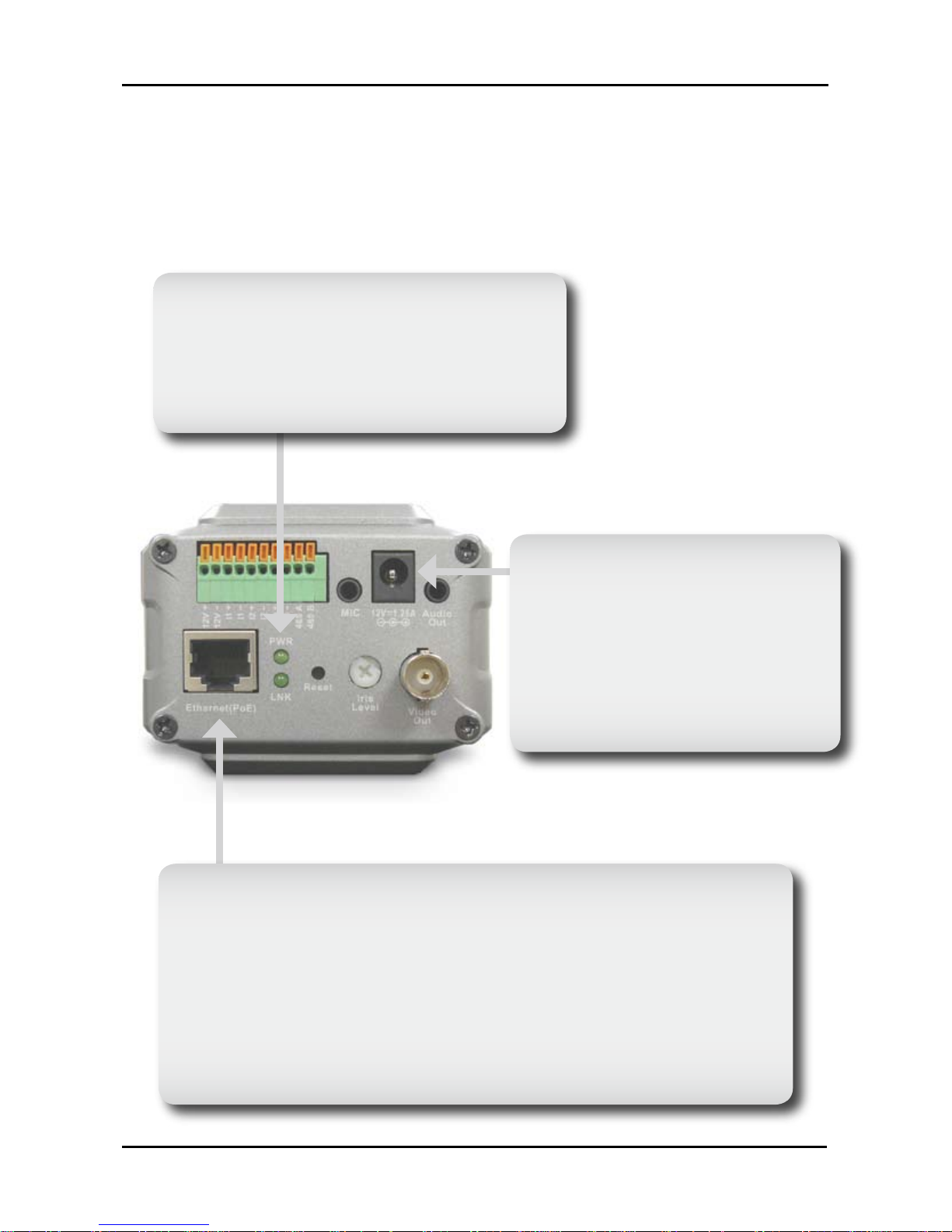

Hardware Overview

Connections

Ethernet Cable Connector (PoE)

The Network Camera’s back panel features an RJ-45 connector

for connections to 10Base-T Ethernet cabling or 100Base-TX Fast

Ethernet cabling. This network port supports the NWay protocol,

allowing the Network Camera to automatically detect or negotiate

the transmission speed of the network. The Ethernet port can also

be used to power the camera using a PoE switch.

Power LED

The power LED is on the back of the camera.

As soon as the power adapter is connected

to the camera, the LED will turn green.

DC Power Connector

The DC power input connector

is located on the DCS-3410

Network Camera’s back panel and

is labeled 12V DC with a single

socket to supply power to the

Network Camera.

4D-Link DCS-3410 Quick Install Guide

Hardware Overview

Audio Out Connector

The DCS-3410 provides an Audio Out connector to be used

for 2-way audio. Speakers (not included) may be connected

to the camera to provide audio for 2-way communication.

Microphone Connector

The DCS-3410 PoE Day & Night Network Camera has an internal

microphone built-in. However, you have the option of using

an external microphone by plugging it into the microphone

connector.

Iris Level

Used only when the DC-Iris lens

is connected to the camera. When

adjusting the Iris level, you can

determine the brightness of the video

images.

5 D-Link DCS-3410 Quick Install Guide

Hardware Overview

BNC

The BNC connector is used for professional

video connections. It benefits users who

integrate digital IP camera into traditional

system (CCTV) for both analog and digital video

streaming purpose.

I/O Connector

The DCS-3410 provides a terminal block with three pairs of

connectors situated on the back panel. Two pairs are for input and

the other is for output. The I/O connectors provide the physical

interface to send and receive digital signals to and from a variety

of external devices.

Link LED

Once a connection has been

established via Ethernet port, the

LINK LED will turn solid green. If

trafﬁc is passing to the camera the

LINK LED will blink. If no ethernet

connection is detected, the LINK

LED will not light up.

Reset Button

Reset will be initiated when the reset

button is pressed once and held until

the Power LED ﬂashes through its cycle

twice.

6D-Link DCS-3410 Quick Install Guide

Hardware Overview

DC-Iris Connector

The Camera supports additional DC-Iris lens,

and provides the power and control signal

required for adjusting the lens through this

DC-Iris connector (4-pin). You can attach any

standard DC-Iris lens (optional) for a speciﬁc

purpose, such as outdoor applications.

7 D-Link DCS-3410 Quick Install Guide

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the network cable

connector located on the Network Camera’s

back panel and attach it to the network.

Attach the External Power Supply

Attach the external power supply to the DC

power input connector located on the Network

Camera’s back panel (labeled DC 12V) and

connect it to an AC power outlet.

Note:When you have a proper connection,

the LED will turn green. The light may

cycle on and off and your computer may

show an intermittent loss of connectivity, this is normal until you have

conﬁgured your Network Camera.

Connect Using Power-Over-Ethernet

Once you connect an Ethernet cable to your PoE switch or adapter, the Power

LED on the DCS-3410 will turn green to indicate a proper connection and

power to the unit.

8D-Link DCS-3410 Quick Install Guide

Software Installation

Click Next

Insert the DCS-3410 CD into the CD-ROM drive. If the CD Autorun function

does not automatically start on your computer, click Windows®Start > Run.

In the Run command box type “D:\DCS3410.exe”, where D: represents the

drive letter of your CD-ROM. If it does start, proceed to the next screen.

Software Installation

Click Setup Wizard

Click Next to continue.

Click Yes

Click Yes to accept the License

Agreement.

9 D-Link DCS-3410 Quick Install Guide

Software Installation

Click Next

Click Finish

Click Finish to complete the instal-

lation.

To start the installation, click

Next.

Note: The installation may take

several minutes to complete.

10D-Link DCS-3410 Quick Install Guide

Conﬁguration

Conﬁguring Your Camera with

the Setup Wizard

Click on the D-Link Setup Wizard SE icon that was created in your Windows

Start menu.

Click the Wizard button

The Setup Wizard will appear and show the MAC address of the DCS-3410

and an IP Address (which may or may not be correct depending on what

you have your DCS-3410 connected to). If you have a DHCP server on your

network, there will be a valid IP Address displayed here.

Note: A DHCP server is a device that supplies the same IP address.

Click D-Link Setup Wizard SE
