D-Link DCS-4701E Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-4701E

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Vigilance HD Outdoor PoE Mini Bullet Camera

Quick Installation Guide

Краткое руководство по установке

D-Link DCS-4701E Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the Network Camera on

your network. For additional information about how to use the camera, please see the

User Manual which is available on the CD included in this package or from the D-Link

support website.

Package Contents

DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera

Cable Waterproong Connector

Rubber Power Connector Plug

Mounting Kit

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

2D-Link DCS-4701E Quick Installation Guide

ENGLISH

Hardware Overview

Camera Lens

IR LEDs

Provide illumination for low-light

environments

Adjustment Ring

Loosen to adjust camera angle

and tighten to lock camera angle

Reset Button

Press and hold for 10 seconds to

reset camera back to the factory

default settings

Grounding Screw

Can be attached to a

grounding wire if desired

Power Connector

Connects to an optional 12 V / 1.5 A

power adapter (not included)

Ethernet Jack

RJ-45 connector for Ethernet,

can also be used to power

the camera using Power over

Ethernet (PoE)

D-Link DCS-4701E Quick Installation Guide 3

ENGLISH

Conguring the Camera

Insert the DCS-4701E CD into your computer's CD-ROM drive to begin the installation.

If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to

start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the

drive letter of your CD-ROM drive.

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have a

DHCP server on your network, a valid IP Address will be

displayed. If your network does not use a DHCP server,

the network camera's default static IP 192.168.0.20 will be

displayed.

Select your camera, then click the Wizard button to

continue.

Click Setup Wizard and follow the instructions to install

the Setup Wizard.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click the checkboxes if you wish to change the admin ID

and password for the camera, and enter the new ID and

password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

4D-Link DCS-4701E Quick Installation Guide

ENGLISH

Take a moment to conrm your settings and click Restart.

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

Select the camera and click Link to access the web

conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

This section displays your camera’s live video. You can

select your video prole and view or operate the camera.

For additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

D-Link DCS-4701E Quick Installation Guide 5

ENGLISH

Mounting Instructions

It is highly recommended that you congure and test your camera before mounting it.

If you need to waterproof your installation, please continue to the next page.

Place the mounting sticker where you want to position the

camera. Make sure the camera base will be positioned so

that the cable channel is on the bottom.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall anchors

into the holes.

If you are running the camera cables through the wall,

drill a hole in the center and pull the cables through the

hole.

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Use the screws provided to mount the camera to the wall.

If you are running the camera cables out the side of

the camera, guide the camera cables through the cable

channel on the base.

To adjust the camera's angle, turn the adjustment ring

counterclockwise to loosen it, then move the camera to

the desired position and angle. When you are nished,

turn the adjustment ring clockwise to tighten it.

6D-Link DCS-4701E Quick Installation Guide

ENGLISH

To waterproof your camera installation, follow the instructions below. Round Ethernet

cable, a crimping tool, and RJ-45 plugs are required for this procedure.

Waterproong Your Installation

Place the washer around the base of the Ethernet

connector as shown.

Connect the RJ-45 plug into the Ethernet connector, then

screw the waterproof connector to the Ethernet connector

by turning it about a half-turn clockwise.

Thread bare Ethernet cable through the waterproof

connector as shown, then crimp an RJ-45 plug onto the

cable.

D-Link DCS-4701E Quick Installation Guide 7

ENGLISH

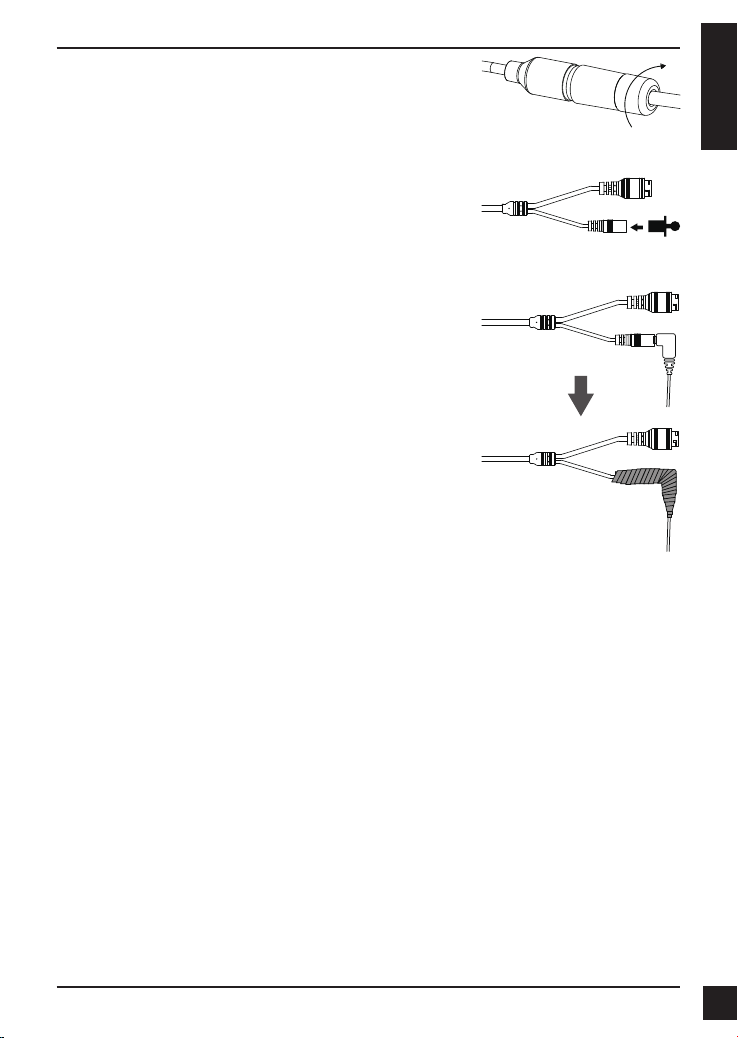

If you are using PoE to power your camera, use the

included rubber power connector plug to the power

connector.

If you are using a power adapter(not included) to

power your camera, wind waterproof tape around the

connection in an overlapping manner to cover it.

Additional Information

Additional help and product information is available online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.

Screw the back part of the waterproof connector clockwise

until there is a tight seal around the Ethernet cable.

36 D-Link DCS-4701E Quick Installation Guide

РУССКИЙ

Краткое руководство по установке

Данное руководство содержит основные инструкции по установке камеры

DCS-4701E в сети. Для получения дополнительной информации по настройке

камеры, пожалуйста, обратитесь к руководству пользователя на CD-диске из

комплекта поставки или через Web-сайт D-Link.

Комплект поставки

Внешняя сетевая HD-камера DCS-4701E с поддержкой PoE и ночной

съемки

Водонепроницаемый коннектор для кабеля

Резиновая заглушка для разъема питания

Комплект для монтажа

CD-диск с руководством пользователя и программным обеспечением

Краткое руководство по установке

Если что-либо из перечисленного отсутствует, пожалуйста, обратитесь к

поставщику.

Меры безопасности:

Во избежание прекращения гарантии, установку и обслуживание должны

проводить сертифицированные специалисты в соответствии с региональными

нормами и правилами.

3737

D-Link DCS-4701E Quick Installation Guide

РУССКИЙ

Обзор аппаратной части

Объектив камеры

Инфракрасная подсветка

Используется для работы

камеры в ночное время

Кольцо для регулировки

Ослабьте кольцо, чтобы

отрегулировать положение

камеры, а затем затяните

кольцо для фиксации камеры в

требуемом положении

Кнопка Reset

Нажмите и удерживайте кнопку

Reset в течение 10 секунд,

чтобы сбросить настройки

камеры к заводским

Винт для заземления

Может быть подключен к

проводу заземления

Разъем питания

Разъем для подключения 12 В / 1,5 А

адаптера питания (адаптер не входит в

комплект поставки)

Ethernet-разъем

Разъем RJ-45 для подключения

Ethernet-кабеля, а также для подачи

питания камеры по технологии

Power over Ethernet (PoE)
