D-Link DP-300+ Manuel utilisateur

Software and specications subject to change without notice.

If any of the above items are missing, please contact your reseller.

CD-ROM (Software, Manual and Warranty)

Before You Begin

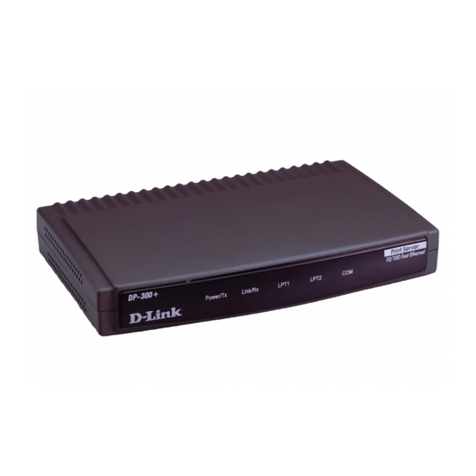

DP-300+Fast Ethernet Multi-Port Print Server

Check Your Package Contents

Fast Ethernet Multi-Port

Print Server

5V DC, 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage this product

and void its warranty.

This product can be setup using

any current Web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 7.0

You will need an Ethernet-enabled device, such as a laptop or desktop computer and

a LPT printer or printer with serial port that will connect to the DP-300+.

IMPORTANT: TURN OFF the power to the printer BEFORE installing the DP-300+

DP-300+

Connecting the DP-300+ to Your Network

Power Receptor:

Connects the AC

Power Adapter

LAN Port: Connects

to a router or switch.

COM port: Used

to connect a printer

with serial port.

LPT Ports: Used to

connect printers with

standard parallel port.

For Mac OS printing, please refer to manual (.pdf) located on the CD-ROM.

A. Insert one end of a straight-through CAT5 Ethernet cable into the DP-300+’s LAN Port.

Connect the other end to an Ethernet port on your gateway or switch.

B. Make sure that your Printer is turned OFF.

C. Attach one end of your printer cable to the appropriate port on the DP-300+ and the

other end to the corresponding port on your printer.

D. Turn ON the printer. Repeat steps B-D for each printer before proceeding to step E.

E. Plug one end of the power adapter into the DP-300+ and the other end into your electric

outlet. The DP-300+ will turn on and begin a self-test.

Note: Don’t connect the power cord to the DP-300+ until you are advised to do so.

Connecting the DP-300+ to Your

Network (continued)

The factory default IP address of the DP-300+ is 192.168.0.10. The IP address of the

DP-300+ must be in the same range as your network. You can change the IP address

of the DP-300+ to match the IP address scheme of your existing network. To access

the Print Server’s Web conguration interface, assign an IP address on one of the wired

PCs on your network to the same IP scheme as the Print Server.

For additional Windows operating system setup or information on the

Web-management interface, refer to the manual located on the CD-ROM.

Conﬁguring the DP-300+

Go to Start > Right-click on

My Network Places > select Properties >

Right click on the Network Connection

associated with your Network Adapter and

select Properties.

Click Internet Protocol (TCP/IP)

Click Properties

Open your Web browser and

type http://192.168.0.10 into the

URL address box. Then press

the Enter or Return key.

Click OK to apply

the new settings

Conﬁguring the DP-300+ (continued)

Input a static IP address in the

same range as the print server.

(192.168.0.xx)

Select Use the following IP address

IP address: 192.168.0.28

Subnet mask: 255.255.255.0

Click OK

Conﬁguring the DP-300+ (continued)

The IP address of the DP-300+ can

be modied from the Network option

under the Conguration tab.

This Quick Installation Guide will use

the Print Server’s default IP address

in all examples. Make the appropriate

changes if you have modied the

DP-300+’s IP address.

Select the System button under the

Conguration tab to view the Print

Server and Port names. If you change

the names of the ports, please make

note of them, as they will be needed

during the Add Printer Wizard.

The Add Printer Wizard

Click Next

For Windows XP:

Go to the Start menu> Conguration > Printers and Faxes> Add a Printer

Double-click on the

Add Printer icon

Click Next

Select Local Printer and

uncheck Automatically

detect and install my

Plug an Play printer.

The Add Printer Wizard (continued)

Click Next

The Port Name will ll in automatically.

Select Create a new port and

choose Standard TCP/IP Port

from the drop-down menu.

Click Next

Type 192.168.0.10

Click Next

Click OK

Enter the Port name for the port

the printer is attached to.

Select LPR

Select Custom

and click the

Settings button

Default port names differ with the device MAC ID:

PS-xxxxxx-P1 (for LPT Port 1)

PS-xxxxxx-P2 (for LPT Port 2)

PS-xxxxxx-S3 (for COM Port)

The Add Printer Wizard (continued)

PS-400E61-P1

In this window, scroll down and select

your printer manufacturer and model.

(If it is not listed, insert the driver

CD or diskette that came with your

printer and click Have Disk.)

Click Next

Click Finish

The printer name and default printer

settings are congured here.

Click Next

The Add Printer Wizard (continued)

Your Setup is now complete!

Click Finish

Click Next

Select Yes to print a test page

Click Next

The Add Printer Wizard (continued)

Click Finish to complete the Add

Printer Wizard.

Repeat the Add Printer Wizard

steps for each Printer/Port and

repeat the entire process on each

system that will be printing.

By opting to not share the printer,

each system will print directly to

the print server.

If the test page doesn’t print

successfully, please check the

Frequently Asked Questions in the

User Manual on the CD-ROM.

Select Do not share

this printer
