D-Link AirPlus G DP-G310 Manuel utilisateur

speciﬁcations subject to change without notice. DP-G310 .03092004

If any of the above items are missing, please contact your reseller.

CD-ROM (Software, Manual and Warranty)

Before You Begin

DP-G310 AirPlusTM G Wireless USB Print Server

Check Your Package Contents

DP-G310

AirPlusTM G 2.4GHz

Wireless Print

Server

5V DC 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage this

product and void its

warranty.

This product can be setup

using any current web

browser, i.e., Internet Explorer

6 or Netscape Navigator 7.0

You will need an Ethernet-enabled device, such as a laptop or desktop

computer and a USB printer that will connect to the DP-G310.

Important: TURN OFF the power to the printer before

installing the DP-G310.

All manuals and user guides at all-guides.com

Next, make sure that the Printer is turned OFF.

Using the USB cable, connect one end of the cable to the USB port of the

DP-G310 (shown below) and the other end to the USB port of the printer.

Turn ON the printer.

Then, plug one end of the power adapter into the DP-G310 and the other

end into your electric outlet. The DP-G310 will turn on and begin a self-test.

Connecting The DP-G310 To Your

Network

For Mac OS printing, please refer to manual (.pdf) located on the CD-ROM.

USB Port

Receptor for

AC Power

Adapter Network Port

First, insert one end of a straight-through CAT5 Ethernet RJ-45 cable into

the “Network Port” (shown below.) Connect the other end of the cable to the

LAN port of the gateway or switch. Note: Do not connect the power cord to

the DP-G310 until you are advised to do so.

Warning!

Only a USB printer may be connected to the USB port of the DP-G310. Do not

connect any other USB device to the USB port; doing so may damage the unit,

voiding the warranty for this product.

All manuals and user guides at all-guides.com

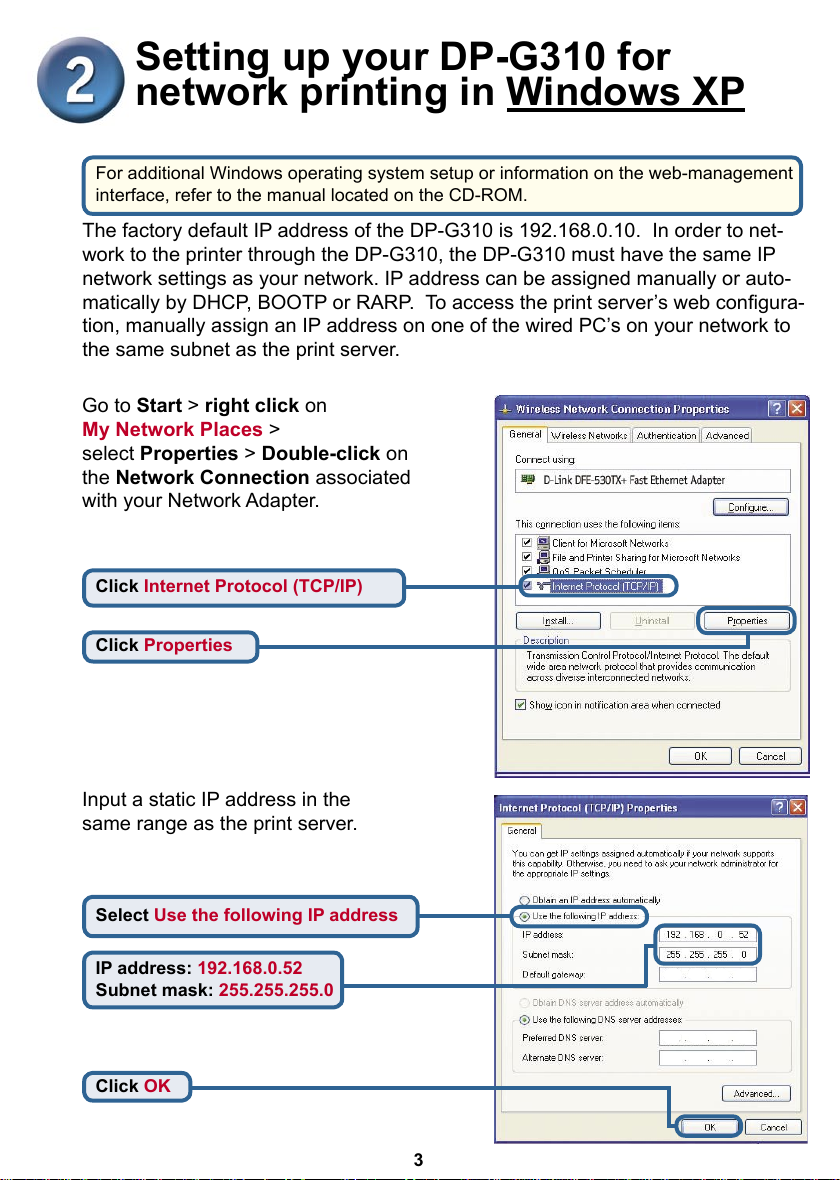

Setting up your DP-G310 for

network printing in Windows XP

The factory default IP address of the DP-G310 is 192.168.0.10. In order to net-

work to the printer through the DP-G310, the DP-G310 must have the same IP

network settings as your network. IP address can be assigned manually or auto-

matically by DHCP, BOOTP or RARP. To access the print server’s web conﬁgura-

tion, manually assign an IP address on one of the wired PC’s on your network to

the same subnet as the print server.

For additional Windows operating system setup or information on the web-management

interface, refer to the manual located on the CD-ROM.

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with your Network Adapter.

Input a static IP address in the

same range as the print server.

Click OK

Click Internet Protocol (TCP/IP)

Click Properties

Select Use the following IP address

IP address: 192.168.0.52

Subnet mask: 255.255.255.0

All manuals and user guides at all-guides.com

Setting up your DP-G310 for

network printing in Windows XP

(continued)

Using your web browser enter the IP

address of the DP-G310. By default

the IP address is set to 192.168.0.10

The IP address of the DP-G310 can be

modiﬁed on the Network tab of the web

conﬁguration menu.

The following instructions use the print

server’s default IP address as an example.

Make the appropriate changes if you

modify the DP-G310’s IP address.

Click OK to apply IP address settings.

*Note:Please notice that if you connect

your printer server in a LAN where a

DHCP server is present. The IP address

will differ from the one in the example

192.168.0.10.

Click OK

All manuals and user guides at all-guides.com

Setting up your DP-G310 for

network printing in Windows XP

(continued)

What is Infrastructure and Ad-Hoc Mode?

Ad-Hoc: Refers to two or more 802.11b wireless devices that communicate directly

with one another without using an access point or any connection to a wired network.

Infrastructure: Refers to an 802.11 network in which wireless devices communicate

with each other by ﬁrst going through an Access Point (AP) or wireless router.

Enter the SSID of the remote

access point or wireless rout-

er you wish to connect to.

If you would like to set

WEP Encryption, select the

encryption level and the key

here.

Click on the Conﬁguration tab to view

the current Wireless Settings.

64 bit WEP encryption uses a 10 hexidecimal character key. 128 bit WEP uses a 26

hexidecimal character key. The WEP encryption key must match the WEP settings on

your AP or wireless router to connect properly.

A workgroup name of your Wireless Network. All wireless devices must all have the

same SSID to communicate on the Wireless Network. All D-Link Wireless devices have

the default SSID of default, all lower case.

What is an SSID?

How does WEP Work?

Click on the System tab to view

the current Port Settings.

PS-121B28-U1

Write down on a piece of paper the

Port name that you wish to use.

Select your Connection Mode

All manuals and user guides at all-guides.com

Select “Local Printer.”

Click Next

Setting up your DP-G310 for

network printing in Windows XP

(continued)

Click Next

For Windows XP:

Go to Start>Printers and Faxes>Add a

Printer or Go to Start>Control Panel>

Printers and Faxes

Double-click on the

“Add Printer” icon

Please make sure to

deselect Automatically

detect and install my Plug

an Play printer.

All manuals and user guides at all-guides.com

Setting up your DP-G310 for

network printing in Windows XP

(continued)

Select “Create a new port.”

At the pull-down menu, highlight

“Standard TCP/IP Port.”

Click Next

Type in the IP address of the

print server. (i.e. 192.168.0.10)

The port name will automatically

be ﬁlled in.

Click Next

This may take a few seconds

All manuals and user guides at all-guides.com

Click Next

Setting up your DP-G310 for

network printing in Windows XP

(continued)

Click OK

Input the port name of the

port being used by the

printer

Select “Custom”

Then click on Settings.

Click Settings

Select “LPR”

PS-121B28-U1

All manuals and user guides at all-guides.com

Setting up your DP-G310 for

network printing in Windows XP

(continued)

In this window, scroll down to ﬁnd

your printer. (If it is not listed,

insert the driver CD or diskette that

came with your printer.)

Click on “Have Disk...”

Then, scroll down and highlight the

printer.

Click Next

Click Finish

At this screen, you can input a name

for this printer.

Click Next

All manuals and user guides at all-guides.com

Your Setup is Complete!

The printer is now ready for

printing with Windows XP, on

your network.

Click Finish

Setting up your DP-G310 for

network printing in Windows XP

(continued)

Select “Yes” to print a test page

Click Next

All manuals and user guides at all-guides.com
