Before You Begin:

DP-G310 AirPlus G Wireless USB Print Server

Check Your Package Contents

DP-G310

Air

PlusTM G 2.4GHz

Wireless USB Print Server

5V DC, 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage this

product and void its

warranty.

This product can be setup usingThis product can be setup using

This product can be setup using

anan

any curry curr

y curry curr

y currenen

enen

ent Wt W

t Wt W

t Web breb br

eb breb br

eb browserowser

owserowser

owser, i.e, i.e

, i.e, i.e

, i.e.,.,

.,.,

Internet Explorer 6 or NetscapeInternet Explorer 6 or Netscape

Internet Explorer 6 or Netscape

Navigator 7.0Navigator 7.0

Navigator 7.0

You will need an Ethernet-enabled device, such as a laptop or desktop computer

and a USB printer that will connect to the DP-G310.

Important: TURN OFF the power to the printer before installing

the DP-G310.

Next, make sure that your Printer is turned OFF.

Using your USB cable, connect one end of the cable to the USB port of the

DP-G310 and the other end to the USB port of your printer. Turn ON the

printer.

Then, plug one end of the power adapter into the DP-G310 and the other end

into your electric outlet. The DP-G310 will turn on and begin a self-test.

Connecting The DP-G310 To Your Network

For Mac OS printing, please refer to manual (.pdf) located on the CD-ROM.

USB Port

Receptor for

AC Power

Adapter Network Port

First, insert one end of a straight-through CAT5 Ethernet cable into the DP-

G310’s Network Port (shown below.) Connect the other end of the cable to the

LAN port of the gateway or switch. Note: Do not connect the power cord to

the DP-G310 until you are advised to do so.

Warning!

Only a USB printer may be connected to the USB port of the DP-G310. Do

not connect any other USB device to the DP-G310’s USB port; doing so

may damage the unit, voiding the warranty for this product.

Setting up your DP-G310 for network

printing in Windows XP

The factory default IP address of the DP-G310 is 192.168.0.10. In order to network

to the printer through the DP-G310, the DP-G310 must have the same IP network

settings as your network.To access the Print Server’s Web configuration interface,

assign an IP address on one of the wired PCs on your network to the same IP

scheme as the Print Server.

For additional Windows operating system setup or information

on the Web-management interface, refer to the manual located

on the CD-ROM.

Go to Start > Right-click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with your Network Adapter.

Input a static IP address in the

same range as the print server.

Click OK

Click Internet Protocol (TCP/IP)

Click Properties

Select Use the following IP address

IP address: 192.168.0.52

Subnet mask: 255.255.255.0

Setting up your DP-G310 for network

printing in Windows XP (continued)

Using your Web browser

enter the IP address of the

DP-G310. By default the IP

address is 192.168.0.10

The IP address of the DP-G310 can

be modified on the Network tab of

the Web configuration menu.

The following instructions use the Print

Server’s default IP address as an

example. Make the appropriate changes

if you have modified the DP-G310’s IP

address.

Click OK to apply

the new settings

Setting up your DP-G310 for network

printing in Windows XP (continued)

What is Infrastructure and Ad-Hoc Mode?

Ad-Hoc: Refers to two or more 802.11 wireless devices that communicate directly with

one another without using an access point or any connection to a wired network.

Infrastructure: Refers to an 802.11 network in which wireless devices communicate

with each other by first going through an access point or wireless router.

Enter the SSID of the

remote access point or

wireless router you wish

to connect to.

If you would like to set WEP

Encryption, select the encryption

level and the key here.

Select your Connection Mode

Click on the Configuration tab

to view the current Wireless

Settings.

64-bit WEP encryption uses a 10 hexidecimal character key. 128-bit WEP

uses a 26 hexidecimal character key. The WEP encryption key must match

the WEP settings on your AP or wireless router to connect properly.

A workgroup name of your Wireless Network. All wireless devices must all

have the same SSID to communicate on the wireless network. All D-Link

wireless devices have the default SSID of default, all lower case.

What is an SSID?

How does WEP Work?

Click on System to view the

current Port Settings.

Write down on a piece of paper

the Port Name that you wish to use.

Select “Local Printer.”

Click Next

Please make sure to

uncheck Automatically

detect and install my

Plug an Play printer.

Setting up your DP-G310 for network

printing in Windows XP (continued)

Click Next

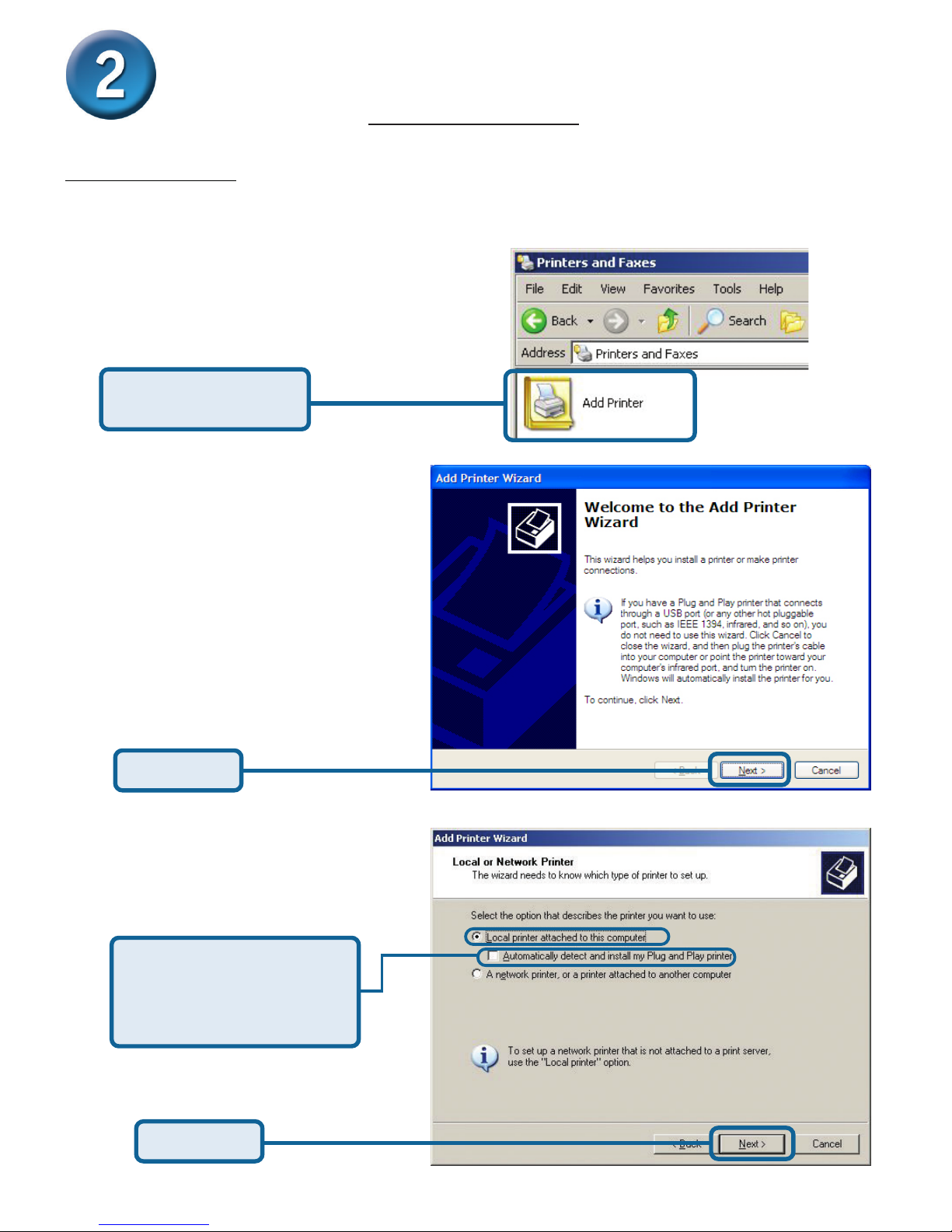

For Windows XP:

Go to Start>Printers and Faxes>Add

a Printer or Go to Start>Control

Panel> Printers and Faxes

Double-click on the

“Add Printer” icon

Setting up your DP-G310 for network

printing in Windows XP (continued)

Select “Create a new port.”

At the drop-down menu, choose

“Standard TCP/IP Port.”

Click Next

Type in the IP address of the

Print Server. (i.e. 192.168.0.10)

The Port Name will automatically

be filled in.

Click Next

This may take a few seconds

Click Next

Setting up your DP-G310 for network

printing in Windows XP (continued)

Click OK

Input the Port Name of

the port being used by

the printer

Select “Custom”

Click Settings

Select “LPR”

Setting up your DP-G310 for network

printing in Windows XP (continued)

In this window, scroll down to find

your printer. (If it is not listed, insert

the driver CD or diskette that came

with your printer.)

Click Next

Click Finish

At this screen, you can input a

name for this printer.

Click Next

Click on “Have Disk...”

Then, scroll down and

highlight the printer.

Your Setup is Complete!

The printer is now ready for printing

with Windows XP, on your network.

Click Finish

Setting up your DP-G310 for network

printing in Windows XP (continued)

Select “Yes” to print a test page

Click Next
