D-Link Express Ethernetwork DI-704P Manuel utilisateur

This product can be set up using

any current Web browser, i.e.,

Internet Explorer or Netscape

Navigator.

DI-704P

Ethernet Broadband

Router and Print Server

5V DC Power Adapter

specifications subject to change without notice. DI-704P. 08122003

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-704P Broadband Router. The DI-704P acts as a DHCP server and will assign

all the necessary IP address information on your network. See Appendix at the

end of this Quick Installation Guide or the Manual on the CD-ROM for setting

each network adapter to automatically obtain an IP address.

Check Your Package Contents

DI-704P Ethernet Broadband Router

CD-ROM (containing Manual, Warranty and

Print Server Software for Windows)

Ethernet (Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

Connecting The DI-704P Broadband

Router To Your Network

B. WAN Port This is for the

connection of an Ethernet cable

to the Cable or DSL modem

C. LAN Ports These are the

connections for Ethernet cables

to Ethernet enabled computers.

D. Printer Port You

can connect a Printer to

the Parallel Port here.

A. Receptor for

Power Adapter.

Reset Button Pressing this

button restores the Router to its

original factory default settings.

A. First, connect the power adapter to the receptor at the back panel of the

DI-704P and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-704P

should be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-704P (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable /

DSL modem by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-704P (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-704P. The WAN LED light will illuminate to indicate proper connection.

If the WAN LED is not illuminated, please go back to step B1 and repeat the

instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-704P and an

available Ethernet port on the network adapter in the computer you will use to

configure the DI-704P. The LED light for LAN Port 1 will illuminate to indicate

proper connection. (Note: The LAN Ports on the DI-704P are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to the LAN

Ports.)

D. The parallel port on the DI-704P is used to connect printers only. Connect one

end of the printer cable to your printer and the other end to the DI-704P.

Restart Your Computer

Connecting Additional Computers To

The DI-704P

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-704P

WAN LED – a

solid light indicates

connection on the

WAN port. This

LED blinks during

data transmission.

LOCAL NETWORK

LEDs – a solid light

on the port indicates a

connection to an

Ethernet enabled

computer on ports 1-4.

This LED blinks during

data transmission.

POWER LED – a solid

light indicates a proper

connection to the

power supply.

M1 LED – will flash

consistently to indicate

that the DI-704P is

working properly.

M2 LED – a solid light indicates

that Internet connection has

been established.

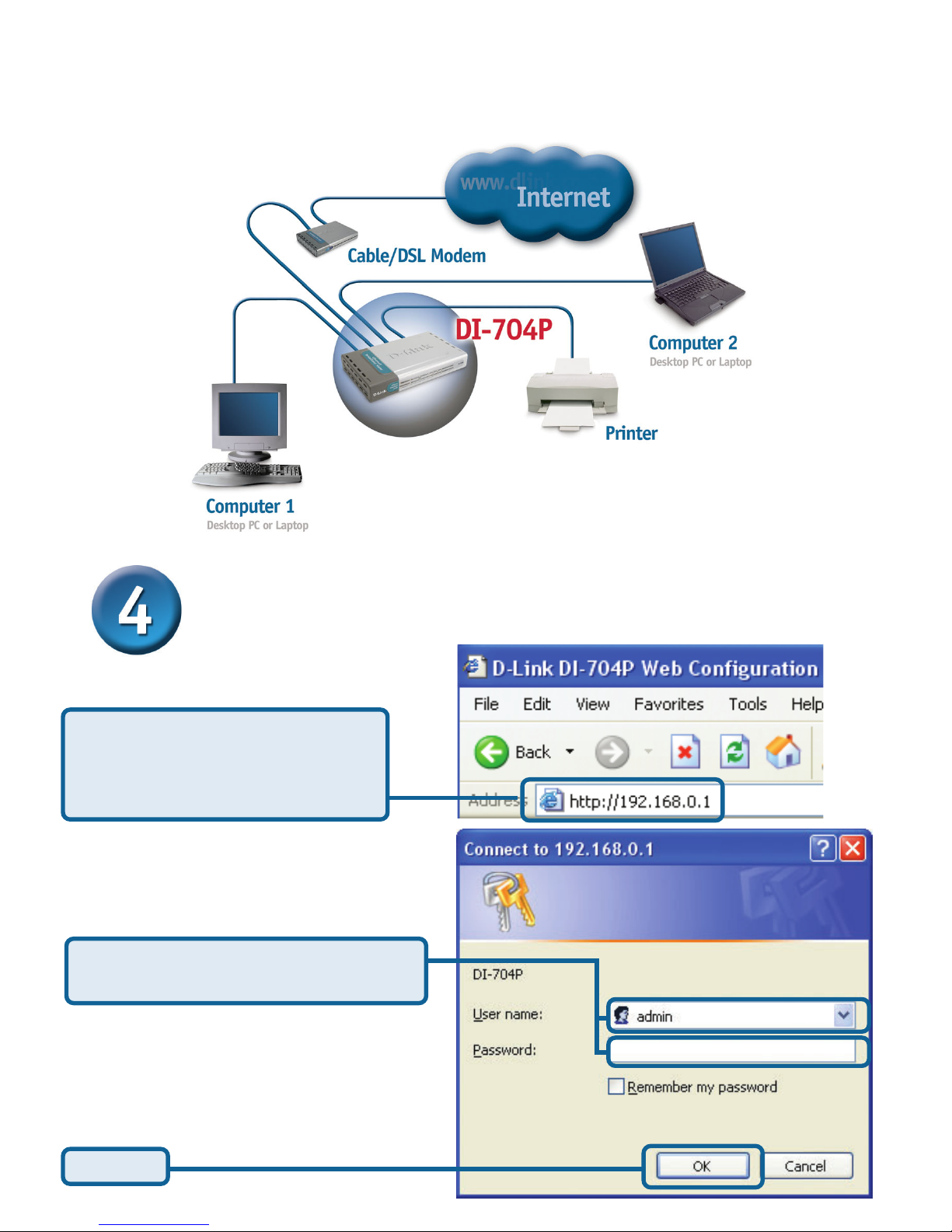

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

The Setup Wizard (continued)

Once you have logged in, the

Home screen will appear.

You will see the following screens

Set up your new password.

You have the option to

establish a password.

Click Run Wizard

Click Next

The Setup Wizard (continued)

Select your Internet Connection.

You will be prompted to select the type

of Internet connection for your router.

If you are unsure of which setting to select,

please contact your Internet Service Provider.

If you selected Dynamic IP Address,

this screen will appear: (Used mainly

for Cable Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

This setup should be done on the computer

that is registered on the ISP’s network.

Choose your time zone from the drop

down list.

Click Next

The Setup Wizard (continued)

If your ISP requires a Static IP

Address, and this option is

selected, then this screen will

appear:

If your ISP uses PPPoE (Point-to-Point

Protocol over Ethernet), and this option

is selected, then this screen will

appear: (Used mainly for DSL Internet

service.)

Enter the IP address information

originally provided to you by your

ISP. You will need to complete all

the required fields.

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and password

provided to you by your ISP.

Click Next

Your Setup is Complete!

Click Restart

Test Internet Connection.

You will be returned to the Home tab.

For additional settings or

information, refer to the

Advanced, Tools, or

Status tabs on the web-

management interface;

or to the Manual located

on the CD.

Then relaunch your Web

browser (i.e., Internet

Explorer or Netscape

Navigator), to link to your

favorite Web site to test

your Internet connection.

Click to Exit

APPENDIX

Insert the installation CD-ROM into the

CD-ROM drive. The following window

will be shown automatically. If it is not,

please run “autorun.exe” on the CD-

ROM.

Installing the Print Server Software

Wait until the following Welcome

dialog appears.

Select the destination folder.

Click Next

Click Install Windows

Printer Software

Click Next

Select your Windows

operating system

After rebooting your computer, the software installation procedure is finished.

Installing the Print Server Software (continued)

Configuring on Windows 98se/Me Platforms

After you finish the software installation procedure, your

computer will be capable of network printing provided by

the DI-704P. On a Windows 95/98 platform, open the

Printers window in the My Computer menu.

Now, you can configure the print server of the DI-704P:

Find out the corresponding icon of your printer, for

example, the HP LaserJet 6L. Right click on that icon,

and then select Properties.

The following screen appears:

When the following window is displayed.

Click Finish

Click OK

Then, the setup program will begin to

install the programs into the destination

folder.
