D-Link DIR-815 Manuel utilisateur

Quick Installation Guide

DIR-815

AC1200 Wave 2 MU-MIMO Wi-Fi Router

with 3G/L E Support and USB Port

DIR-815 Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-815

•Power adapter DC 12V/1A

•Ethernet cable

•“Quick Installation Guide” brochure).

If any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents are available

on D-Link website see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DIR-815 Quick Installation Guide

Default Settings

Domain name o device dlinkrouter.local.

IP address o device 192.168.0.1

Username (login) admin

Password admin

Name o wireless network

(SSID)

2.4GHz DIR-815

5GHz DIR-815-5G

Network key (PSK password)

see WPS PIN on the barcode

label on the bottom panel of

the device

Router DIR-815 with default settings cannot connect to the Internet. To

get started, please set your own password for access to the web-based

interface and change the WLAN name SSID); then, if needed,

configure other settings recommended by your ISP.

DIR-815 Quick Installation Guide

System Requirements and Equipment

•An Android or iPhone mobile device smartphone or tablet) or a computer

with any operating system that supports a web browser.

•A PC web browser to access the web-based interface:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft Internet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A NIC Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.

•A USB modem when it is necessary to connect to the Internet via mobile

operators' networks)1.

Your USB modem should be equipped with an active SIM card of your

operator.

Some operators require subscribers to activate their USB modems prior

to using them. Please, refer to connection guidelines provided by your

operator when concluding the agreement or placed on its website.

For some models of USB modems, it is required to disable the PIN

code check on the SIM card prior to connecting the USB modem to the

router.

1 Contact your operator to get information on the service coverage and fees.

DIR-815 Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Connect an Ethernet cable between any of LAN ports located on the back

panel of the router and the Ethernet port of your PC.

2. To connect via USB modem: connect your USB modem to the USB port2

located on the back panel of the router.

!In some cases you will need to reboot the router after connection of the

USB modem.

3. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

4. Turn on the router by pressing the POWER button on its back panel.

Then make sure that your PC is configured to obtain an IP address

automatically as DHCP client).

2 It is recommended to use a USB extension cable to connect a USB modem to the

router.

DIR-815 Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 7)

1. Click the Start button and proceed to the Control Panel window.

2. Select the Network and Sharing Center section. If the Control Panel

has the category view the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the Network and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

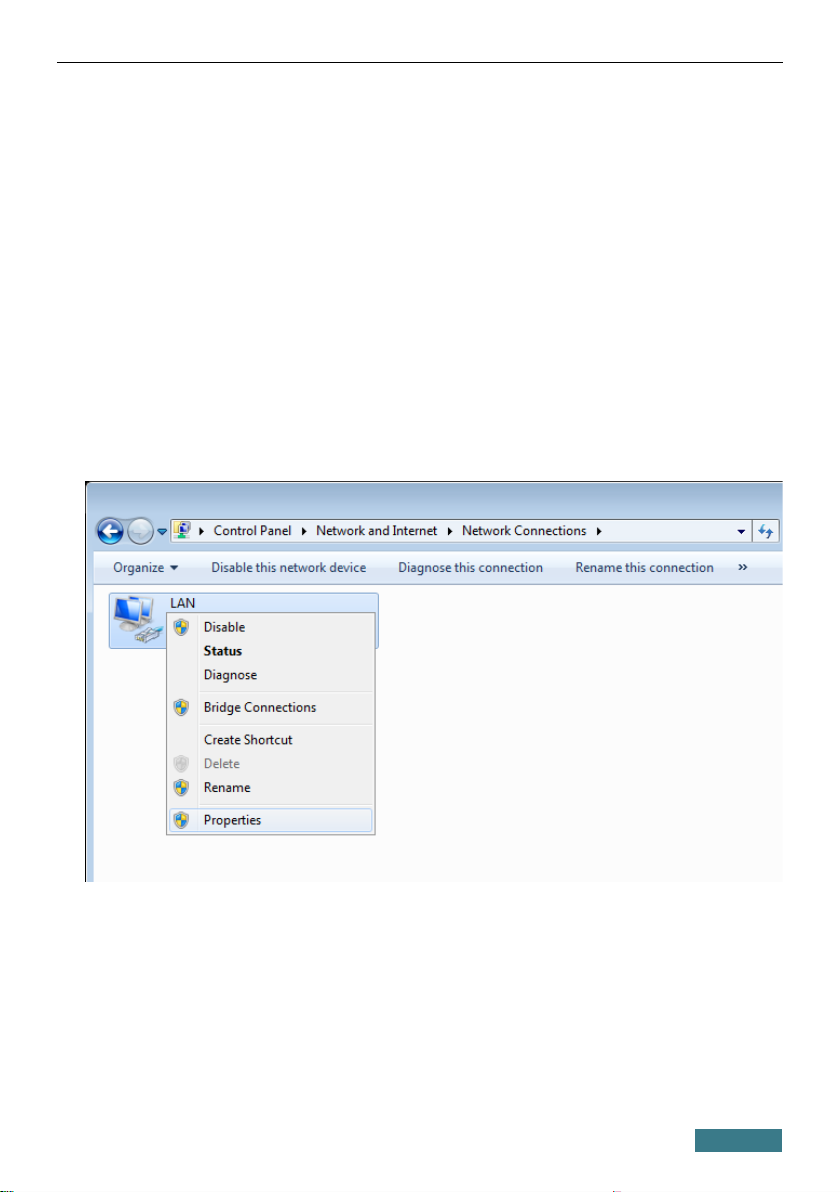

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the menu displayed.

5. In the Local Area Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DIR-815 Quick Installation Guide

6. Make sure that the Obtain an IP address automatically and Obtain

DNS server address automatically choices of the radio buttons are

selected. Click the OK button.

7. Click the OK button in the connection properties window.

DIR-815 Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 10)

1. Click the Start button and proceed to the Settings window.

2. Select the Network & Internet section.

3. In the Change your network settings section, select the Change

adapter options line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the menu displayed.

5. In the Local Area Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DIR-815 Quick Installation Guide

6. Make sure that the Obtain an IP address automatically and Obtain

DNS server address automatically choices of the radio buttons are

selected. Click the OK button.

7. Click the Close button in the connection properties window.

DIR-815 Quick Installation Guide

PC with Wi-Fi Adapter

1. To connect via USB modem: connect your USB modem to the USB port3

located on the back panel of the router.

!In some cases you will need to reboot the router after connection of the

USB modem.

2. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

3. Turn on the router by pressing the POWER button on its back panel.

4. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern

notebooks with built-in wireless NICs are equipped with a button or

switch that turns on/off the wireless adapter refer to your PC documents).

If your PC is equipped with a pluggable wireless NIC, install the software

provided with your Wi-Fi adapter.

Then make sure that your Wi-Fi adapter is configured to obtain an IP address

automatically as DHCP client).

3 It is recommended to use a USB extension cable to connect a USB modem to the

router.
