D-Link DVA-2800 Manuel utilisateur

5. Connecting your devices to broadband

Once you have connected your modem router, and the

correct LED lights are displaying you will need to connect

your internet devices to your broadband connection.

Connecting Wireless Devices (Wi-Fi)

1. To set up your wireless internet devices you will need

the Wi-Fi name and password, which is located

on the back of your modem router.

2. Using your smart phone, laptop or other wireless

internet device, click the wireless symbol and

connect to the network name on the back of your

modem router. If you have not changed this, the

network names will be D-Link DVA-2800 and D-Link

DVA-2800 5GHz.

3. Connect manually to each network and use the same

password for both network names.

Once both networks are saved on your device it

should automatically choose the best network, or

you can manually select between them.

Connecting Wired Devices (Eg. Computer)

1. If you have a device such as a computer that is wired

to your modem router, you will need either your

existing ethernet cable or the one provided in your

pack.

2. Connect the ethernet cable from your computer to

any of the 4 yellow LAN Ports on your modem router.

3. For further assistance setting up your internet

connection, please consult the user guide of your

device.

Note: If you have changed the name of your network connection and

password you will need to use these details. To nd out how to change

the name and password of your connection see the Conguration section

of the Quick Installation Guide. This is included in your modem pack.

4. If you have a phone or landline

Connect your phone to VOIP 1 Port of the modem

router (located to the right of the USB Port), if you are

using our phone service.

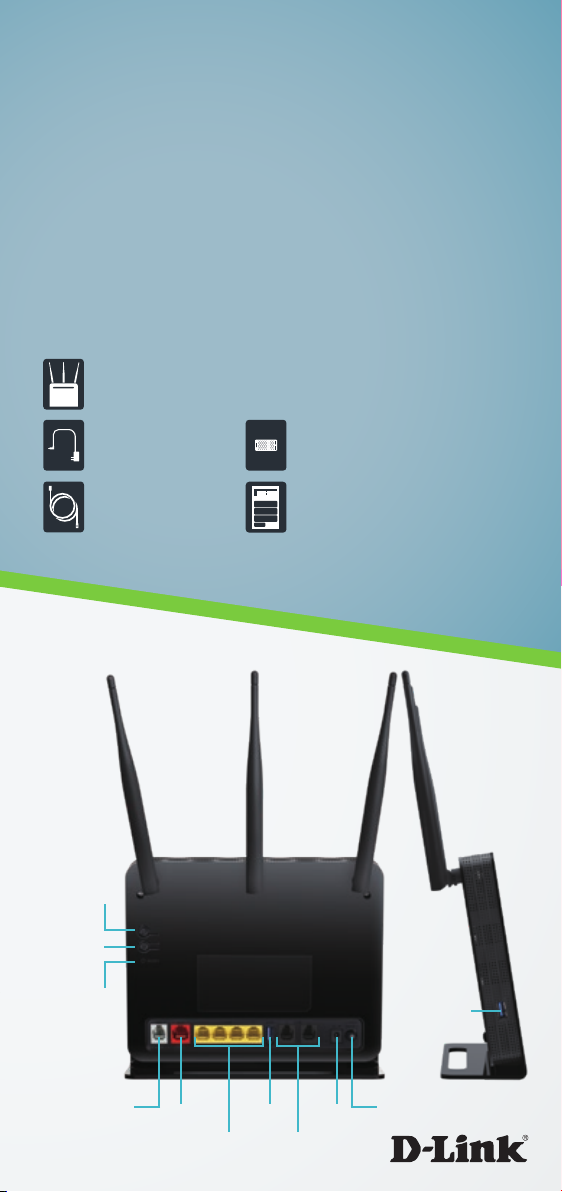

DSL Port

WPS Button

Reset Button

Wireless

On/Off Button

Power Button

GE WAN

Port

USB Port

USB

Port

Power Input

GE LAN

Ports

VOIP

Phone Ports

Quick

Start Guide

This is what has been Included in your modem pack:

Follow these instructions to set up your new

unlimited Broadband connection!

Your Modem Router

xDSL Microlter/Splitter

Dual Band AC1600 ADSL2+/VDSL2

Modem Router with VoIP (DVA-2800)

Power Adapter

Ethernet Cable Quick Install Guide &

Warranty Document

Having problems with your set up?

Please see the broadband FAQ Help

section on our website

POTS1 POTS2 RESET GE1 GE3 GE3 GE4 POWER

ADSL or VDSL: The power, internet and DSL LEDs should all

light up when you are connected (1, 2, 10 below).

FIBRE: The power, internet and WAN LEDs should all light up

when you are connected (1, 2, 9 below).

What do the LED lights on my modem mean?

2. Connecting to Power

Your Optical Network Terminal (ONT)

3. Checking your modem is working

Plug the power adapter into your modem router then connect

to your nearest power point.

1 2 3 54 6 7 8 9 10

GE1 This connects to your modem

Make sure this button is pushed

in so that the POWER light at the

front of the ONT shows green.

This connects to

your modem.

This is the under side of your ONT, which will be located on

your wall if you have a bre network connection.

1Power

Solid Green A solid green light indicates the device

is powered on and working properly.

Solid Red A solid red light indicates that the device

is booting or an error has occured.

Blinking Green A blinking green light indicates that

backup mode is active

2Internet

Solid Green A solid green light indicates an Internet

connection.

Solid Red A solid red light indicates no Internet

connection is available.

3WPS Solid Green A solid green light indicates the WPS

process is active.

4Wireless 2.4 Solid Green A solid green light indicates that the

2.4GHz wireless network is enabled.

5Wireless 5G Solid Green A solid green light indicates that the

5 GHz wireless network is enabled.

6VoIP Solid Green A solid green light indicates that a VoIP

phone connection is congured.

7USB Solid Green A solid green light indicates that a USB

device is detected on a USB port.

8LAN

Ports 1-4

Solid Green A solid green light indicates an Ethernet

WAN port connection.

Blinking Green A blinking green light indicates LAN port

activity.

9WAN

Solid Green A solid green light indicates an Ethernet

WAN port connection.

Blinking Green A blinking green light indicates Ethernet

WAN port activity.

10 DSL

Solid Green A solid green light indicates a proper

connection to a DSL enabled telephone line.

Blinking Green A blinking green light indicates the DSL

port is negotiating a connection.

1. For ADSL or VDSL Connections

1. Connect the

microlter to the

phone jack on

your wall.

2. Connect the phone

cable from the

microlter to the

DSL Port of your

modem router

Connect the yellow

ethernet cable from the

red WAN Port of your

modem router to either

the LAN1 or GE1 Port of

your ONT. Your ONT will

be located on your wall.

(See below for details)

For Fibre Connections

WAN Port

1 Microlter

2Phone Cable

DSL Port

Depending on your broadband connection

(ADSL, VDSL or Fibre) follow the steps below:

TEL LAN1 LAN2 LAN3 LAN4 POWER RESET WLAN WPS LED ON/OFF

POTS1 POTS2 RESET GE1 GE3 GE3 GE4 POWER

ADSL or VDSL: The power, internet and DSL LEDs should all

light up when you are connected (1, 2, 10 below).

FIBRE: The power, internet and WAN LEDs should all light up

when you are connected (1, 2, 9 below).

What do the LED lights on my modem mean?

2. Connecting to Power

Your Optical Network Terminal (ONT)

3. Checking your modem is working

Plug the power adapter into your modem router then connect

to your nearest power point.

1 2 3 54 6 7 8 9 10

GE1 This connects to your modem

Make sure this button is pushed

in so that the POWER light at the

front of the ONT shows green.

This connects to

your modem.

This is the under side of your ONT, which will be located on

your wall if you have a bre network connection.

1Power

Solid Green A solid green light indicates the device

is powered on and working properly.

Solid Red A solid red light indicates that the device

is booting or an error has occured.

Blinking Green A blinking green light indicates that

backup mode is active

2Internet

Solid Green A solid green light indicates an Internet

connection.

Solid Red A solid red light indicates no Internet

connection is available.

3WPS Solid Green A solid green light indicates the WPS

process is active.

4Wireless 2.4 Solid Green A solid green light indicates that the

2.4GHz wireless network is enabled.

5Wireless 5G Solid Green A solid green light indicates that the

5 GHz wireless network is enabled.

6VoIP Solid Green A solid green light indicates that a VoIP

phone connection is congured.

7USB Solid Green A solid green light indicates that a USB

device is detected on a USB port.

8LAN

Ports 1-4

Solid Green A solid green light indicates an Ethernet

WAN port connection.

Blinking Green A blinking green light indicates LAN port

activity.

9WAN

Solid Green A solid green light indicates an Ethernet

WAN port connection.

Blinking Green A blinking green light indicates Ethernet

WAN port activity.

10 DSL

Solid Green A solid green light indicates a proper

connection to a DSL enabled telephone line.

Blinking Green A blinking green light indicates the DSL

port is negotiating a connection.

1. For ADSL or VDSL Connections

1. Connect the

microlter to the

phone jack on

your wall.

2. Connect the phone

cable from the

microlter to the

DSL Port of your

modem router

Connect the yellow

ethernet cable from the

red WAN Port of your

modem router to either

the LAN1 or GE1 Port of

your ONT. Your ONT will

be located on your wall.

(See below for details)

For Fibre Connections

WAN Port

1 Microlter

2Phone Cable

DSL Port

Depending on your broadband connection

(ADSL, VDSL or Fibre) follow the steps below:

TEL LAN1 LAN2 LAN3 LAN4 POWER RESET WLAN WPS LED ON/OFF

5. Connecting your devices to broadband

Once you have connected your modem router, and the

correct LED lights are displaying you will need to connect

your internet devices to your broadband connection.

Connecting Wireless Devices (Wi-Fi)

1. To set up your wireless internet devices you will need

the Wi-Fi name and password, which is located

on the back of your modem router.

2. Using your smart phone, laptop or other wireless

internet device, click the wireless symbol and

connect to the network name on the back of your

modem router. If you have not changed this, the

network names will be D-Link DVA-2800 and D-Link

DVA-2800 5GHz.

3. Connect manually to each network and use the same

password for both network names.

Once both networks are saved on your device it

should automatically choose the best network, or

you can manually select between them.

Connecting Wired Devices (Eg. Computer)

1. If you have a device such as a computer that is wired

to your modem router, you will need either your

existing ethernet cable or the one provided in your

pack.

2. Connect the ethernet cable from your computer to

any of the 4 yellow LAN Ports on your modem router.

3. For further assistance setting up your internet

connection, please consult the user guide of your

device.

Note: If you have changed the name of your network connection and

password you will need to use these details. To nd out how to change

the name and password of your connection see the Conguration section

of the Quick Installation Guide. This is included in your modem pack.

4. If you have a phone or landline

Connect your phone to VOIP 1 Port of the modem

router (located to the right of the USB Port), if you are

using our phone service.

DSL Port

WPS Button

Reset Button

Wireless

On/Off Button

Power Button

GE WAN

Port

USB Port

USB

Port

Power Input

GE LAN

Ports

VOIP

Phone Ports

Quick

Start Guide

This is what has been Included in your modem pack:

Follow these instructions to set up your new

unlimited Broadband connection!

Your Modem Router

xDSL Microlter/Splitter

Dual Band AC1600 ADSL2+/VDSL2

Modem Router with VoIP (DVA-2800)

Power Adapter

Ethernet Cable Quick Install Guide &

Warranty Document

Having problems with your set up?

Please see the broadband FAQ Help

section on our website

Autres manuels pour DVA-2800

Table des matières

Autres manuels D-Link Routeur réseau

D-Link

D-Link DHP-W311AV Manuel utilisateur

D-Link

D-Link DIR-865L Manuel utilisateur

D-Link

D-Link DIR-619 Manuel

D-Link

D-Link DES-3018 Manuel utilisateur

D-Link

D-Link DWR-500 Manuel utilisateur

D-Link

D-Link DES-1004 Manuel utilisateur

D-Link

D-Link DIR-140L Manuel utilisateur

D-Link

D-Link SharePort DIR-825 Manuel utilisateur

D-Link

D-Link DIR-814 Manuel utilisateur

D-Link

D-Link DI-LB604 - Load Balancing Router Manuel utilisateur

D-Link

D-Link DRO-250i Manuel utilisateur

D-Link

D-Link DIR-882 Manuel utilisateur

D-Link

D-Link GO-RT-N300 Manuel utilisateur

D-Link

D-Link DIR-651 Manuel utilisateur

D-Link

D-Link Air Premier DAP-2695 Manuel utilisateur

D-Link

D-Link xStack DES-3810 Manuel

D-Link

D-Link DIR-602L Manuel utilisateur

D-Link

D-Link DSL-504G Manuel utilisateur

D-Link

D-Link DGS-1224T - Web Smart Switch Manuel utilisateur

D-Link

D-Link DIR-615 - Wireless N Router Manuel utilisateur

D-Link

D-Link DSL-G2562DG Manuel utilisateur

D-Link

D-Link DSL-2650NRU Manuel utilisateur

D-Link

D-Link DSL-3900 Manuel utilisateur

D-Link

D-Link DIR-842 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
