D-Link DIR-651 Manuel utilisateur

Quick Installation Guide

DIR-651

Wireless N 300 Gigabit Router

DIR-651 Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-651

•Power adapter DC 12V/1.2A

•Ethernet cable (CA 5E)

•“Quick Installation Guide” (brochure).

If any of the items are missing, please contact your reseller.

he “User Manual” and “Quick Installation Guide” documents are available

on D-Link website (see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address o wireless router 192.168.0.1

Username (login) admin

Password admin

Name o wireless network (SSID) DIR-651

Network key (PSK)

see WPS PIN on the

barcode label on the

bottom panel of the

device

For security reasons, router DIR-651 with default settings cannot connect

to the Internet. o get started, please set your own password used to access

the web-based interface and, if needed, configure other settings

recommended by your ISP.

DIR-651 Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the router:

◦Apple Safari 5 and later

◦Google Chrome 5 and later

◦Microsoft Internet Explorer 8 and later

◦Mozilla Firefox 5 and later

◦Opera 10 and later.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.

DIR-651 Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet cable between any of LAN ports located on the back

panel of the router and the Ethernet port of your PC.

3. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

4. urn on the router by pressing the ON/OFF button on its back panel.

5. urn on your PC and wait until your operating system is completely

loaded.

Now you should configure your PC to obtain an IP address automatically (as

DHCP client).

DIR-651 Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. Click the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-click the relevant Local

Area Connection icon and select the Properties line in the menu

displayed.

3. In the Local Area Connection Properties window, on the General

tab, select the Internet Protocol (TCP/IP) line. Click the Properties

button.

DIR-651 Quick Installation Guide

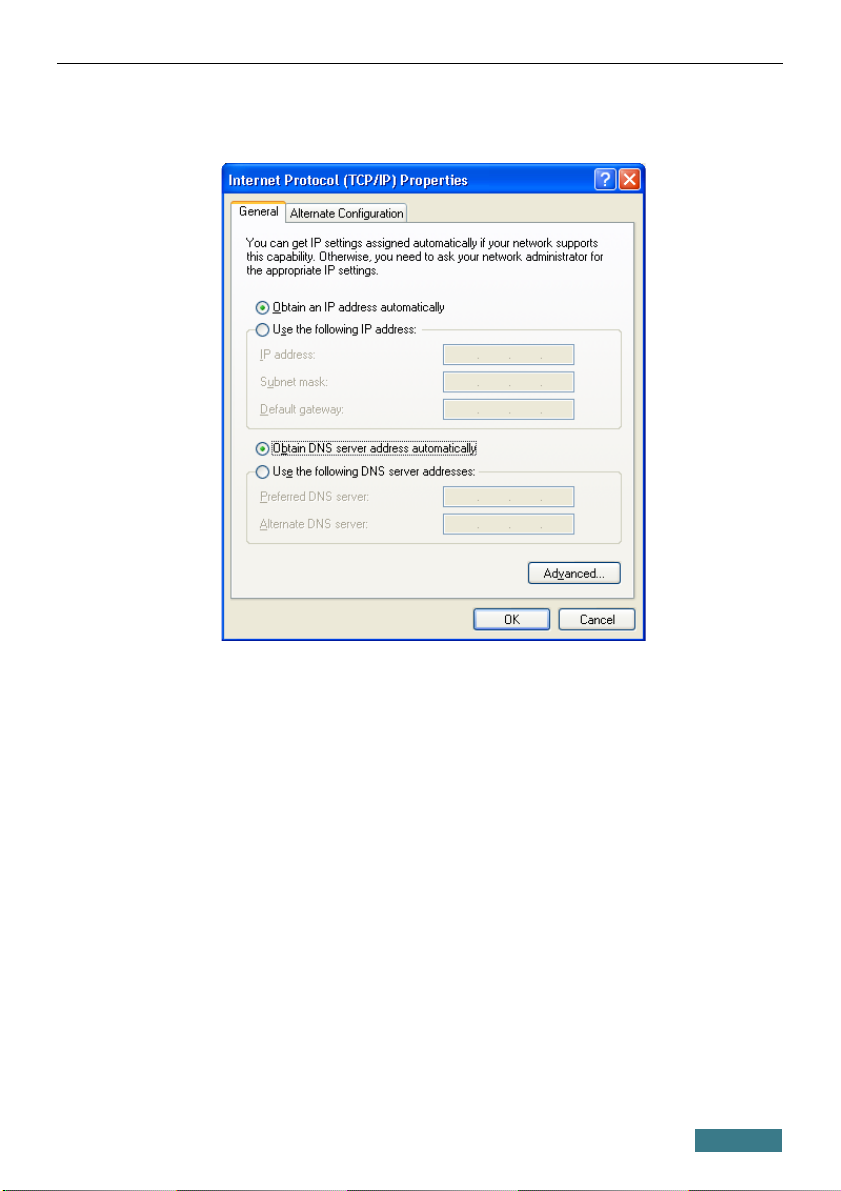

4. Select the Obtain an IP address automatically and Obtain DNS

server address automatically radio buttons. Click the OK button.

5. Click the ОК button in the connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-651 Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. Click the Start button and proceed to the Control Panel window.

2. Select the Network and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the Network and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the menu displayed.

5. In the Local Area Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DIR-651 Quick Installation Guide

6. Select the Obtain an IP address automatically and Obtain DNS

server address automatically radio buttons. Click the OK button.

7. Click the OK button in the connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-651 Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

2. urn on the router by pressing the ON/OFF button on its back panel.

3. urn on your PC and wait until your operating system is completely

loaded.

4. urn on your Wi-Fi adapter. As a rule, modern notebooks with built-in

wireless NICs are equipped with a button or switch that turns on/off the

wireless adapter (refer to your PC documents). If your PC is equipped

with a pluggable wireless NIC, install the software provided with your

Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.

DIR-651 Quick Installation Guide

Configuring Wi-Fi Adapter in OS Windows XP

1. Click the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. Select the icon of the wireless network connection and make sure that

your Wi-Fi adapter is on.

3. Search for available wireless networks.

4. In the opened Wireless Network Connection window, select the

wireless network DIR-651 and click the Connect button.

5. In the opened window, enter the network key (see WPS PIN on the

barcode label on the bottom panel of the device) in the Network key and

Con irm network key fields and click the Connect button.

After that the Wireless Network Connection Status window appears.

If you perform initial configuration of the router via Wi-Fi connection,

note that immediately after changing the wireless default settings of the

router you will need to reconfigure the wireless connection using the

newly specified settings.
