D-Link DSL-G604T Manuel utilisateur

their respective holders. Software and specifications subject to change without notice. DSL-G604T

Wireless ADSL Router

ADSL Cable (standard telephone cable)

DSL-G604T

shown with antenna and stand

Ethernet Cable

(CAT5 UTP Straight-Through)

12V, 1.2A Power

Adapter

Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have an established Internet account from an Internet Service

Provider (ISP).

2. It’s best to use the same computer that is connected to your router for configuring the

DSL-G604T Wireless ADSL Router. The DSL-G604T acts as a DHCP server and will

assign all the necessary IP address information on your network. See at the Quick

Installation Guide or the Manual on the CD-ROM for setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

If any of the above items is missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

DSL-G604T

Wireless ADSL Route

Using a power adapter with

a different voltage rating will

damage and void the

warranty for this product.

CD-Rom

containing Manual and Warranty

EENGLISH

Connecting the Router to your Computer

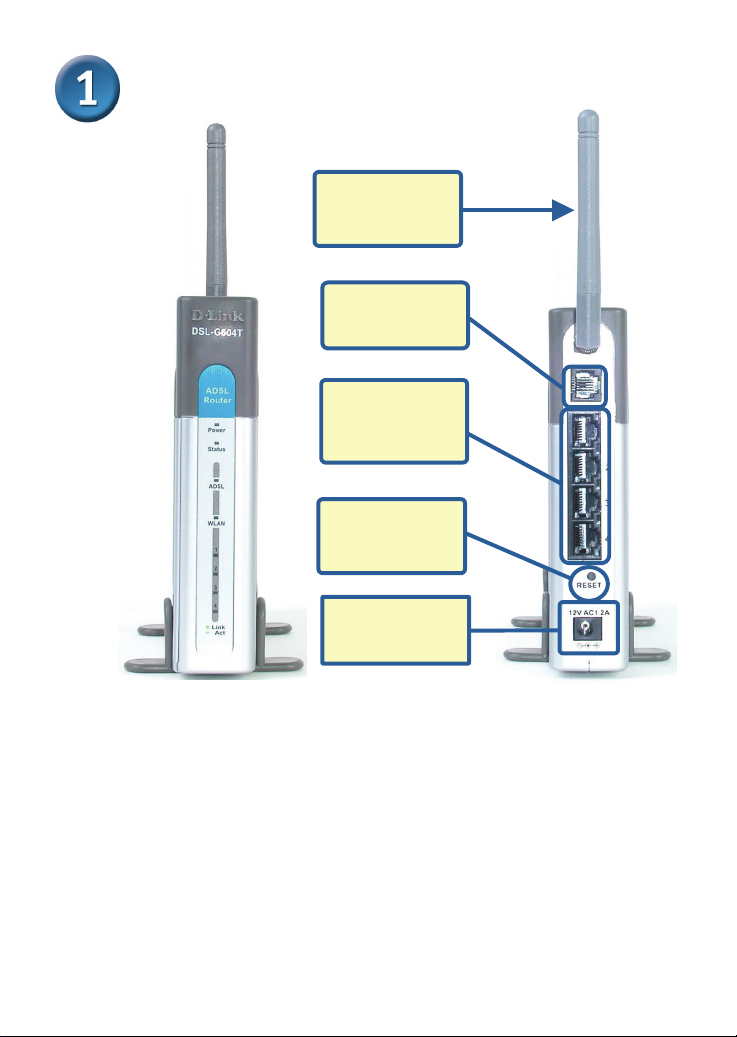

A. First, connect the power adapter to the power input at the back

panel of the DSL-G604T and then plug the other end of the

power adapter to a wall outlet or power strip. On the front of the

device, the Power LED will turn ON to indicate proper operation.

B. Insert one end of the Ethernet cable into an Ethernet (LAN) port

on the back panel of the DSL-G604T and the other end of the

cable to an Ethernet Adapter or available Ethernet port on your

computer.

C. Insert the telephone cable included with the Router into the

ADSL port, then connect the cable to your telephone line.

D. Check the LED display on the front of the Router to confirm that

the connections have been made.

Power Input

Connect to AC

Adapter

Reset

Push to return to

factory settings

LAN Ports

Connect to the

LAN and other

computers

DSL Port

Connect to your

ADSL provider

ntenna

Ensures good

wireless reception

Configure IP Settings

For Microsoft Windows XP

To connect to the network, make sure the network adapter in

your computer is configured properly. Here’s how to configure

the network adapter to obtain an IP address automatically for

the DSL-G604T Wireless ADSL Router.

Go to Start > select

Settings > click

Control Panel >

Double-click on the

Network

Connections icon

Double-click on

Network Connections

Right-click the

Local Area

Connection icon,

and then select

Properties.

Select Properties

EENGLISH

The dialog box displays with a

list of currently installed

network items.

Click Internet Protocol

(TCP/IP)

Make the choice to get IP

settings assigned

automaticall

Select Obtain an IP address

automatically

Click OK

Click Properties

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-

equipped computers to the LAN ports on the back panel of the DSL-

G604T.

When you have completed the steps in this Quick Installation Guide,

your connected network should look similar to this:

Connecting Additional Computers

To The DSL-G604T

Wireless ADSL Router

EENGLISH

Configuring the Router

You can select two methods to configure your new router. The first

method is by using D-Link Click’n Connect Utility, which is included on

the CD designed to run on Windows XP/2000. Just follow the instructions

step by step to configure your router for Internet access for the first time.

The second method is to use your Web browser to access the built in

web server pages used to setup the Router, your computer’s network

adapter must be configured to “Obtain an IP address automatically”, that

is, you must set the IP network settings of your computer so it is DHCP

Client. If you are using Windows XP and do not know how to change your

network settings, skip ahead to Appendix and follow the instructions

provided. You may also read the User Manual for instructions on

changing IP settings for computers running other Windows operating

systems.

Open your Web browser and

type http://192.168.1.1 into

the URL address box. Press

Enter or Return.

The Home/Login page

appears.

When you first log in, your

your password is also

admin. These may be

changed later.

Click Login

The Home screen

appears. Click on

the Setup tab to

bring up the Setup

menu.

Click Setup

Click the

Connection 1

button to go to the

configuration menu

to make the Internet

connection.

Click

Connection 1

EENGLISH

Configuring the WAN

Connection

Check your ISP information,

If you configure for PPPoA type, refer to Manual page 25-27.

If you configure for PPPoE type, refer to Manual page 27-28.

If you configure for Bridge type, refer to Manual page 29-30.

If you configure for DHCP type, refer to Manual page 32-33.

If you configure for CLIP type, refer to Manual page 33-34.

In the Connection 1

window, type the

Username and

Password used to verify

the identity of your ISP

account. Click the Apply

button when you have

entered the information.

Click Apply

Enter the Username and

Password assigned by

your ISP.

Configure Connection 1 for PPPoA

To configure the default connection type (PPPoA) for Connection 1,

follow the steps listed below. To change the connection type of

Connection 1 to an alternative type follow the instructions according to

the desired type as described below in change the connection type.

Type the

Username and

Password used

for your account.

Click the

Connection 1

button to view

the PPPoA

Connection

Setup menu

pictured.

EENGLISH

Select PPPoA

from the Type,

VPI: and VCI: -

if these values

are not correct,

change these

according to the

instruction of

our ISP.

Click the

Apply button

after you have

entered the

account

information.

Click Tools

when you

have applied

the new

settings.

Click

System

Commands

to view the

menu used

to save

changes.
