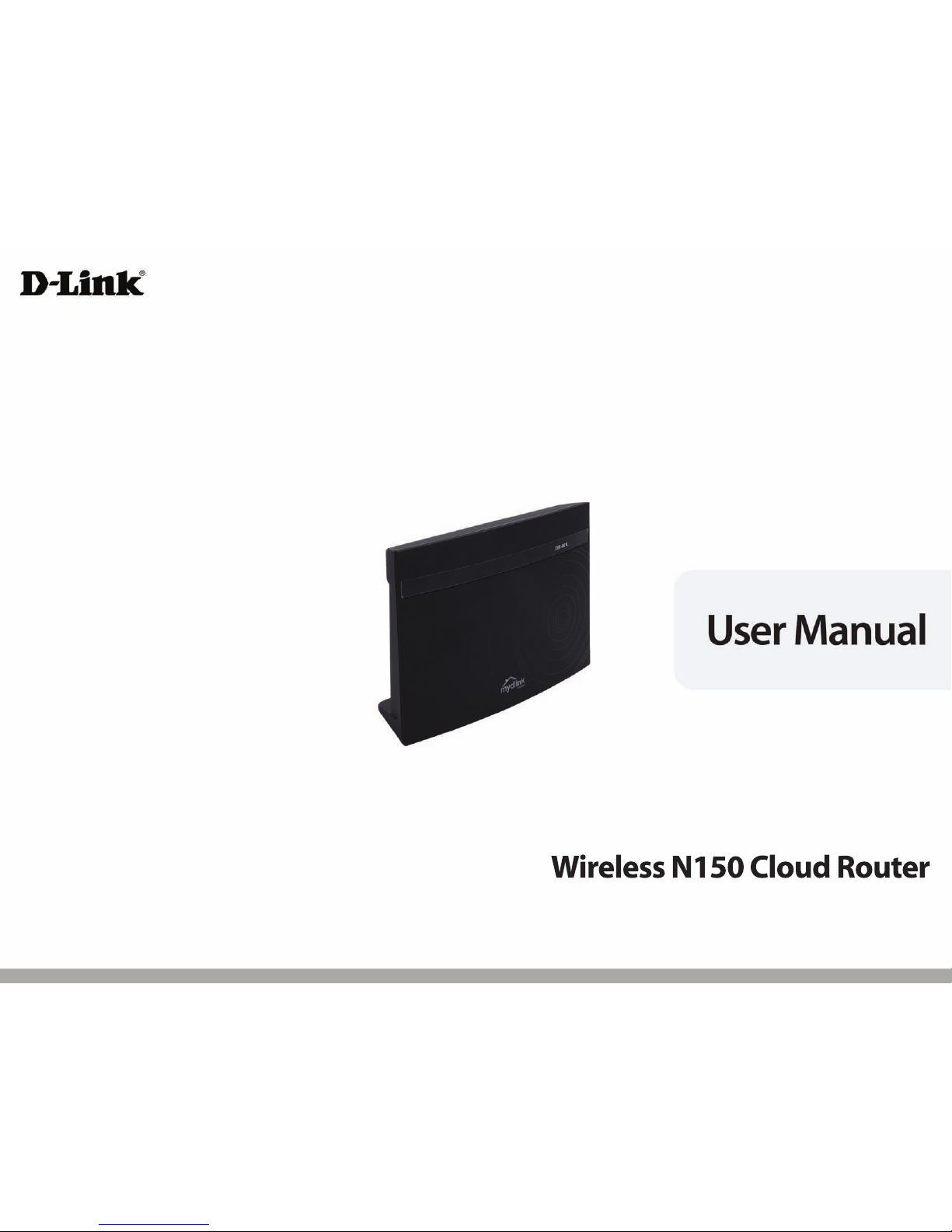

D-Link DIR-602L Manuel utilisateur

DIR-602L

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization

of such revisions or changes.

Preface

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.

All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Section 1 - Product Overview

Product Overview

Package Contents

DIR-602L Wireless N150 Cloud R outer

Power Adapter

Ethernet Cable

Quick Installation Guide

Check for the supplied accessories below:

Note: Using a power supply with a dierent voltage rating than the one included with the product, will cause damage and void the warranty for

this product.

Section 1 - Product Overview

System Requirements

Network Requirements

• An Ethernet-based Cable or DSL modem

• IEEE 802.11n or 802.11g wireless clients

• 10/100 Ethernet

Web-based Conguration

Utility Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 6.0 or higher

• Chrome 2.0 or higher

• Firefox 3.0 or higher

• Safari 3.0 or higher (with Java 1.3.1 or higher)

Windows® Users: Make sure you have the latest version of Java

installed. Visit www.java.com to download the latest version.

CD Installation Wizard

Requirements

Computer with the following:

• Windows® 7, Vista®, or XP with Service Pack 2

• An installed Ethernet adapter

Section 1 - Product Overview

Features

•Internet Connectivity - In conjunction with a DSL or Cable Modem, this device provides high-speed Internet

connectivity to your local network for up to four wired devices.

•Wireless LAN functionality - This router supports features like WMM, RF Output Level Control, WPS, and much

more.

•Networking - This router comes with one WAN port and four LAN ports that enable up to four computers on your

local network to be connected.

•Wireless Distribution System (WDS) mode- The router supports WDS where it can extend the network coverage

from another router.

•Advanced Security - The router also supports a range of security features like Network Filtering, Access Control,

Website Filtering, Inbound Filtering, and SPI.

•IPv6 - This router supports local IPv6 support and IPv6 Internet Connection.

•User-friendly Setup Wizard -

your router qickly and conveniently.

The DIR-602L’s easy-to-use Web-based user interface lets you manage and congure

Section 2 - Hardware Installation

Wireless Installation Considerations

The router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network.

Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may

limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to

maximizing the wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum. Each wall or

ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters.) Position your devices so that the number of walls

and/or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to

be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal

will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall.

Materials such as glass, metal, brick, insulation, concrete and water can aect wireless performance. Large objects such as sh

tanks, mirrors, le cabinets, metal doors and aluminum studs may also have a negative eect on range.

4. Keep your product at least 3 to 6 feet (1-2 meters) away from electrical devices or appliances that generate RF noise.

5. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as

possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and

electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless

connectivity.

Section 2 - Hardware Installation

Connect to Cable/DSL/Satellite Modem

If you are connecting the router to a Cable/DSL/Satellite Modem, please follow the steps below:

1. Place the router in an open and central location. Do not plug the power adapter into the router.

2. Turn the power o on your modem. If there is no on/o switch, unplug the modem’s power adapter. Shut down your computer.

3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet

port on the router.

4. Plug an Ethernet cable into one of the LAN ports on the router. Plug the other end into the Ethernet port on your computer.

5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).

6. Plug the power adapter into the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot

up.

7. Turn on your computer.

8. Verify that the Power LED on the router is lit. If the Power LED does not light up, make sure your computer, modem, and router

are powered, on and verify that the cables connected correctly.

9. In a later section in this manual we’ll discuss the Web GUI conguration of the router in more detail..

Section 3 - Software Conguration

Conguration

This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.

Web-based Conguration Utility

To access the conguration utility, open a web browser such as Internet

Explorer and enter the IP address of the router (192.168.0.1).

You may also connect using the NetBIOS name in the address bar

(http://dlinkrouter).

Enter your password. Admin is the default username and cannot be

changed. The password is left blank by default.

If you get a Page Cannot be Displayed error message, please refer to the

Troubleshooting section for assistance.

Click Login to log into the Router.

Section 3 - Software Conguration

Setup Wizard

Click Internet Connection Setup Wizard to quickly congure your

router. Skip to the next page.

If you want to enter your settings without running the wizard, click

Manual Conguration and skip to page 20.

Internet Connection

Section 3 - Software Conguration

Internet Connection(Setup Wizard)

When conguring the router for the rst time, we recommend that you

click Internet Connection Setup Wizard, and follow the instructions

on the screen. This wizard is designed to assist user with a quick and

easy method to congure the Internet connection of this router.

Anytime during the Internet Connection Setup Wizard, you can click on

Cancel to discard any changes made and return to the main Internet

page. Also you can click on Prev to return to the previous window for

re-conguration.

This wizard will guide you through a step-by-step process to congure

your new D-Link router and connect to the Internet.

Click Next to continue.

Step 1: Set Your Password

By default, the D-Link Router does not have a password congured for

administrator access to the Web-based conguration pages. To secure

your new networking device, please enter and verify a password in the

spaces provided. The two passwords must match.

Click Next to continue.
