D-Link DI-804V Manuel utilisateur

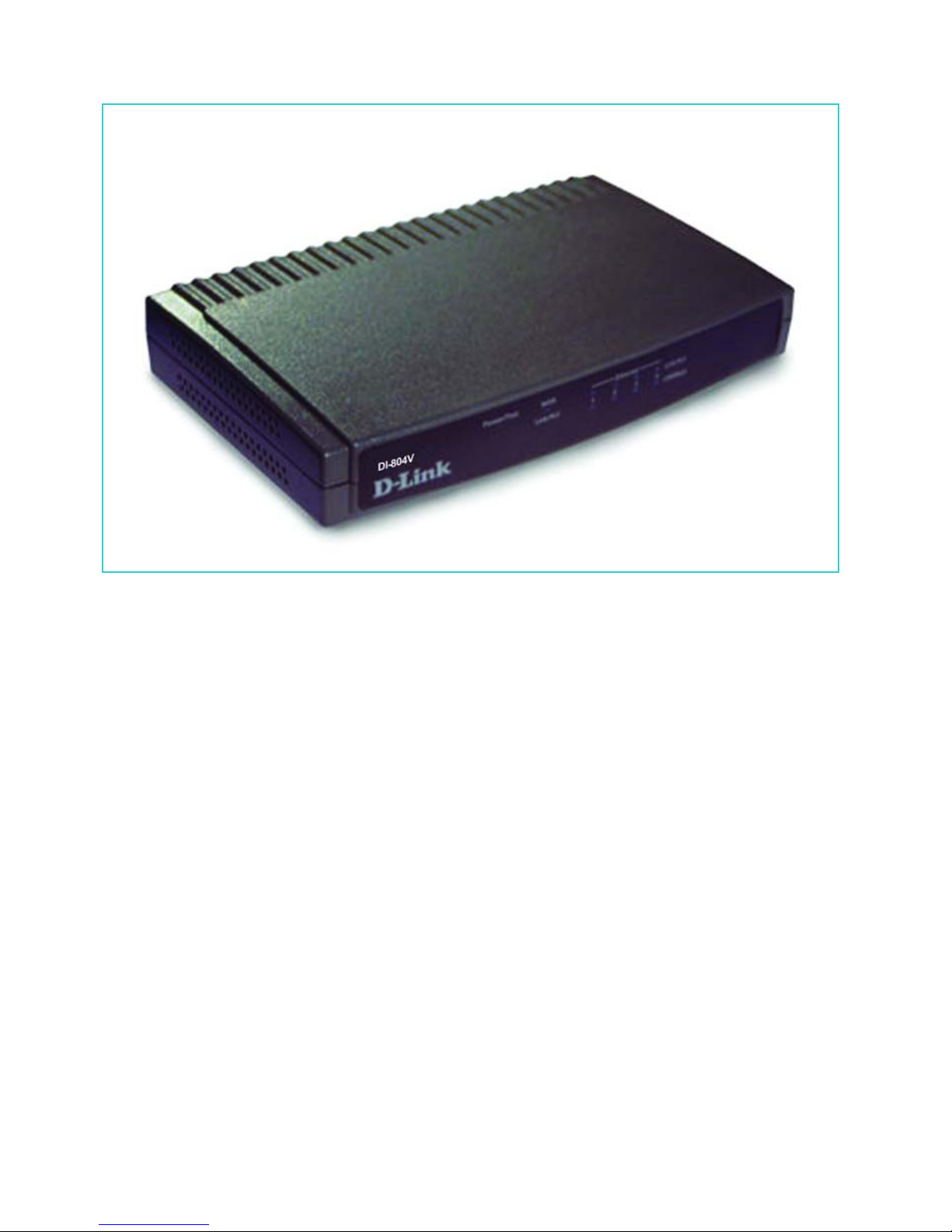

D-Link DI-804V

Broadband VPN Router

Manual

Rev. 031902

Building Networks for People

Contents

Package Contents .................................................... 3

Introduction............................................................... 4

IP Address Settings and Computer Settings ............ 8

Using the Configuration Utility .................................. 9

Basic Setup ............................................................ 10

Device Information.................................................. 18

Device Status ......................................................... 19

Advanced Settings.................................................. 20

System Tools .......................................................... 29

Configuring Your PCs to Connect to the DI-804V

Router..................................................................... 34

Networking Basics .................................................. 37

Contacting Technical Support................................. 49

Limited Warranty and Registration ......................... 50

Package Contents

Contents of Package:

• D-Link DI-804V Broadband VPN Router

• Manual

• Quick Installation Guide

• Power Adapter - 5V DC, 2A*

*Using a power supply with a different voltage rating will damage and void

the warranty for this product. If any of the above items are missing, please

contact your reseller

System Requirements:

Internet Explorer 4.0 or higher or Netscape Navigator 4.0 or higher, with JavaScript

enabled

One computer with an installed 10Mbps, 100Mbps or 10/100 Mbps Ethernet adapter

One Modem or ISDN TA (if a dial-up connection is needed)

One RJ-45 DSL/Cable Modem for Internet connection

Introduction

The D-Link DI-804V Broadband VPN Router enables your network to

connect to the Internet via a secure, private connection using a Cable/DSL

modem, such as the D-Link DCM-200 Cable Modem. The Virtual Private

Network that is created on the Internet between your home and your office

(with a VPN server) is secure from interference when you use the DI-804V.

It is an ideal way to connect your computer to a Local Area Network (LAN).

After completing the steps outlined in the Quick Install Guide (included in

your package) you will have the ability to share information and resources,

such as files and printers, and take full advantage of a “connected”

environment for work or play!

Connect the WAN port on the DI-804V to the Cable/DSL modem (e.g., the

DCM-200) using an Ethernet cable. Your entire LAN can now access the

Internet using just one Internet account. The DI-804V has 4 LAN ports.

That means that 4 computers can share the benefits of the DI-804V- equipped

network.

For the price of one Internet account, the DHCP-capable DI-804V will

automatically provide unique IP Addresses for all the computers on the

network. (DHCP stands for Dynamic Host Configuration Protocol. It is a

protocol for assigning IP Addresses automatically. With a DHCP router like

the DI-804V, there is no need to assign static IP Addresses, or purchase

multiple addresses from the ISP - Internet Service Provider.)

Everyone in your home can access the Internet on his or her own computer, at

the same time, without any noticeable decrease in speed.

With the serial port, you can connect an analog modem (dial-up modem) as a

back up in case of any difficulties that may arise with the Cable or DSL

connection.

With Firewall Protection, Hacker attack logging, and Virtual Private

Networking, the DI-804V provides a level of security suitable for many

businesses.

This manual provides a quick introduction to network technology. Please

take a moment to read through this manual and get acquainted with your

DI-804V.

Front View

LED Indicators

LAN (1-4) LINK (Green) Green LED will LIGHT when link is

established.

Link/Act ACT (Green) Green LED will BLINK when packet is

transmitting or receiving.

Serial (Green) Green LED will LIGHT when a good link is

established.

WAN (Green) Green LED will LIGHT when a good link is

established.

Status (Yellow) Yellow LED will BLINK when started up

and when firmware is upgraded.

Power (Red) Red LED will LIGHT when powered ON.

Rearview

Power (5V DC) Connect the DC power adapter to the Power port

WAN Connect DSL/Cable modem to the WAN Ethernet port

Serial Connect a 56k modem/ISDN TA to the serial port

Ports 1-4 Connect networked devices such as computers and ftp

servers to the four LAN ports, which support auto

crossover

Reset To reload the factory default settings, press the reset button

for 5-6 seconds. Pressing the Reset button will clear the

current data.

Product Features

VPN

Provides Virtual Private Networking when communicating with a VPN server-

equipped office, or with another DI-804V-equipped network. Supports PPTP and

L2TP pass through function.

DSL/Cable Modem support

The DI-804V can connect any DSL/Cable Modem to the network.

DHCP

The DI-804V is a DHCP-capable router. It automatically assigns unique IP

Addresses to each network users that is connected to the DI-804V, for the price of

one Internet account.

Firewall Protection

Supports general hacker attack pattern monitoring and logging

PPPoE Client

Supports PPPoE client function to connect to the remote PPPoE server.

Virtual Server

Allows the internal server to be accessible from the Internet

Upgradeable New Features

Allows new features to be added in the future

High Performance 32 bit RISC CPU Engine

With the most advanced 32 bit RISC CPU Engine, DI-804V guarantees full

compatibility with future DSL/Cable technologies

IPSec Security

(DES, 3DES, MD5, SHA-1)

Idle Timer

Set a specified idle-time before automatically disconnecting

Dial-on Demand

Eliminates the need for Dial-up. Automatically logs in to your ISP

Serial port

May connect to a 56k modem or ISDN TA (should a Cable/DSL connection be

unavailable or fail.)

Web-Based Configuration

No software installation required. Can be configured through a web browser making

it OS independent

IP Address Settings and Computer Settings

In order to install the DI-804V you will need to check your computer’s

settings and the values from your ISP.

The information offered by your ISP:

• Dynamic IP settings

• Your fixed IP address for the gateway

• Your subnet mask for the gateway

• Your default gateway IP address

• Your DNS IP address

If you would like to use PPPoE, you will need the following values from your

ISP in order to install your router:

• User Name

• Password

The static IP settings for the PC:

• Your PC’s fixed IP address

• Your PC’s subnet mask

• Your PC’s default gateway

• Your PC’s primary DNS IP address

Note: The router’s default IP address setting is 192.168.0.1.

Dynamic IP Settings:

The dynamic IP settings for the PC. It is recommended that you leave your IP

settings as automatically assigned. By default, the gateway is a DHCP server, and it

will give your computer the necessary IP settings.

Using the Configuration Utility

Launch your web browser and type the device IP address (http:// 192.168.0.1)

in the browser’s address box. This IP address is the default value of your

gateway. Press Enter.

Note: Please make sure that the computer’s IP Address is in the same IP

Address range as the DI-804V. The IP Address of the DI-804V is

192.168.0.1. All computers on your network must be within that range, for

instance, the computer IP Address could be 192.168.0.x. All computers on

the network must have the same subnet mask.

The main menu appears showing all the settings available.

Basic Setup

Basic setup is a step-by-step process that will let you input all the basic

settings.

Click BASIC SETUP

A username and password screen will appear. Leave the password box empty

and type admin (the default username) in the username box.

Click OK

The Setup Wizard’s page will appear.

Note: If you choose to input a password at any time, please remember it. If

you should lose the password, you will need to reset the unit. After you reset

the DI-804V, all your settings will be lost and will need to be re-input.
