D-Link DI-808HV Manuel utilisateur

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

8-Port Broadband

VPN Router

5V DC Power Adapter

Check Your Package Contents

DI-808HV 8-Port BroadbandVPN Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight-Through) Cable

Using a power supply

with a different voltage

rating will damage this

product and void the warranty

If any of the above items are missing, please contact your reseller.

DI-808HV

specifications subject to change without notice. DI-808HV. 09192003

1. Thank you for purchasing this Router to share your high-speed Internet connection

with other computers. To share high-speed Broadband access, you must have

either an Ethernet-based cable or DSL modem with an established Internet account

from an Internet Service Provider (ISP).

2. It is best to use the same computer that is connected to your modem for

configuring the DI-808HV. The DI-808HV acts as a DHCP server and will assign all

the necessary IP address information on your network. See Appendix at the end

of this Quick Installation Guide or the Manual on the CD-ROM for setting each

network adapter to automatically obtain an IP address.

Connecting The DI-808HV 8-Port Broad-

band VPN Router To Your Network

B. WAN PORT This is

for the connection of an

Ethernet cable to the

Cable or DSL modem

C. LAN PORTS These are the connections for

Ethernet cables to Ethernet enabled computers.

D. COM Port Used to

connect to an external

dial-up modem.

Reset Button

Pressing this button restores

the Router to its original factory

default settings.

A. Receptor for

Power Adapter.

A. First, connect the power adapter to the receptor at the back panel of the

DI-808HV and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED lights up indicating proper operation.

B. 1. Power off your cable or DSL modem; devices that do not have a on/off switch

will require you to unplug the power adapter. Now, the DI-808HV should be

powered on and the cable / DSL modem should be turned off.

cable / DSL modem (Power Off) – DI-808HV (Power On)

2.Connect an Ethernet cable to the Ethernet jack located on the cable / DSL

modem. After the Ethernet cable is securely connected, power on the cable / DSL

modem by turning on the unit or plugging in the power adapter.

cable / DSL modem (Power On) – DI-808HV (Power On)

3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-808HV. The WAN LED light will illuminate to indicate proper connection.

If the WAN LED is not illuminated, please check your Ethernet connection or go

back to step B1 and repeat the steps.

C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-808HV and an

available Ethernet port on the network adapter in the computer you are using to

configure the DI-808HV. The LED light for LAN Port 1 illuminates to indicate proper

connection. (Note: The LAN Ports on the DI-808HV are Auto MDI/MDIX. Meaning

you can use a straight-through or crossover Ethernet cable in the LAN Ports.)

D. COM Port for dial-up Internet connection.

Restart Your Computer

Connecting Additional Computers To

The DI-808HV

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-808HV.

Power LED – a solid

light indicates a proper

connection to the

power supply.

WAN LED – a solid

light indicates

connection on the

WAN port. This

LED blinks during

data transmission.

Local Network LEDs – a solid

light on the port indicates a

connection to an Ethernet

enabled computer on ports 1-8.

This LED blinks during data

transmission.

StatusStatus

Status – will flash

consistently to indicate

that the DI-808HV is

working properly.

COM LED – a solid light

indicates a proper

connection to a dial-up

modem.

The LAN Ports on the DI-808HV are Auto MDI/MDIX. Meaning you can

use a straight-through or crossover Ethernet cable in the LAN Ports.)

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

The Setup Wizard (continued)

Once you have logged in, the

Home screen will appear.

You will see the following screens

Set up your new password.

You have the option to

establish a password.

Click Run Wizard

Click Next

The Setup Wizard (continued)

You may manually select an Internet

connection type in this menu.

Click Next

Choose your time zone from the

drop down list.

Click Next

If you are unsure of which

setting to select, please contact

your Internet Service Provider.

A this point, the setup wizard will try to

auto-detect your Internet connection type.

If you have a Dynamic IP Address or

PPPoE connection, you will be brought to

the corresponding page.

The Setup Wizard (continued)

If your ISP provides a Static IP

Address, and this option is

selected, then this screen will

appear:

Enter the IP address information

originally provided to you by your

ISP. You will need to complete all

the required fields.

Click Next

If you selected Dynamic IP

Address, this screen will appear:

(Used mainly for Cable Internet

service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

This setup should be done on the computer

that is registered on the ISP’s network.

The Setup Wizard (continued)

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet), and

this option is selected, then this

screen will appear (Used mainly for

DSL Internet service):

Please be sure to remove

any existing PPPoE client

software installed on your

computers.

Enter in the username (PPPoE

Account) and password provided to

you by your ISP.

Click Next

Configure this section only if you

have an analog dial-up account.

Otherwise click Next to skip.

Your Setup is Complete!

Test Internet Connection.

You will be returned to the Home tab.

For additional settings or

information, refer to the

Advanced, Tools, or

Status tabs on the web-

management interface; or

to the Manual located on

the CD.

Relaunch your Web

browser (i.e., Internet

Explorer or Netscape

Navigator), to link to your

favorite Web site to test

your Internet connection.

Click to Exit

Click Restart

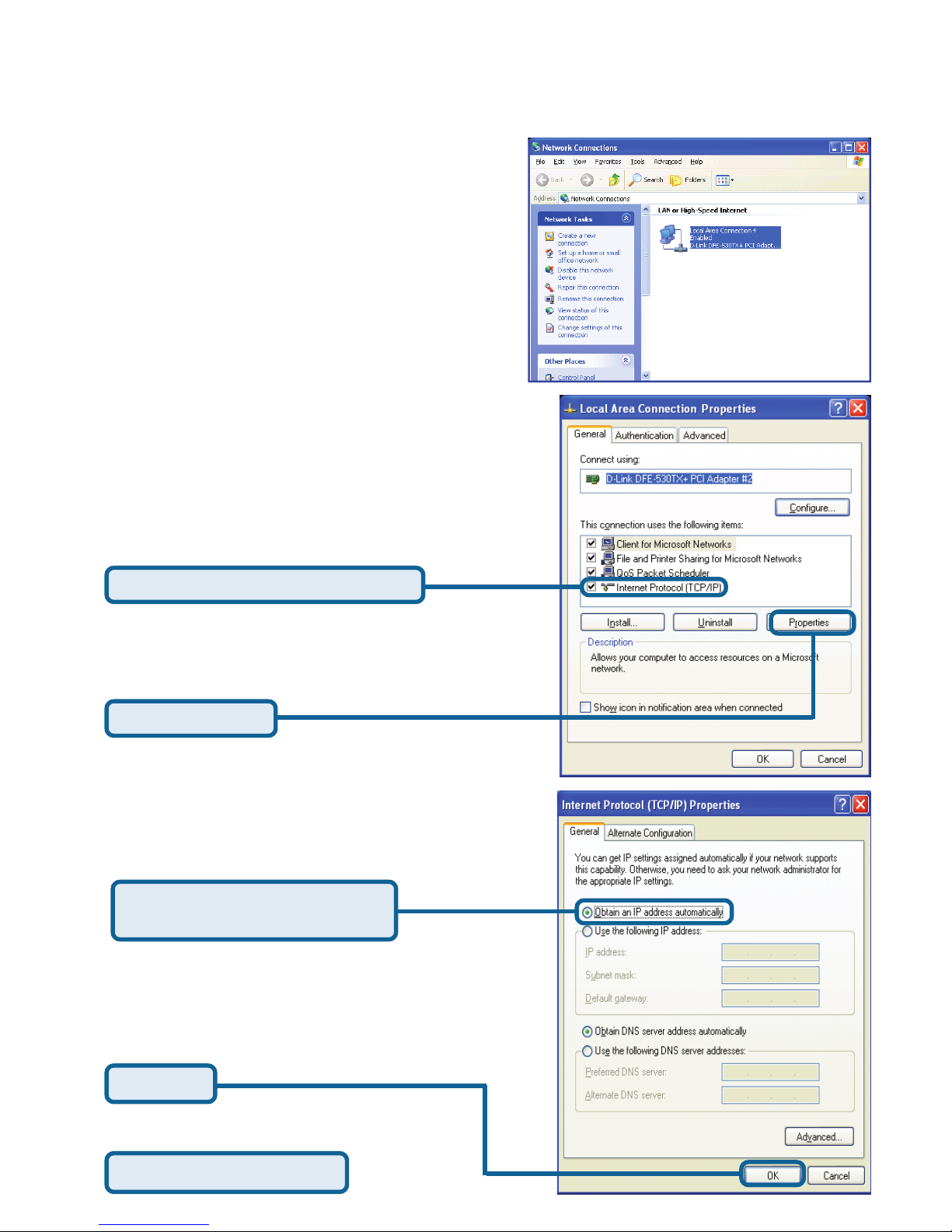

To connect to the network, make sure the network adapter in your

computer is configured properly. Here’s how to configure the network

adapter to obtain an IP address automatically for the DI-808HV 8-

Port Broadband VPN Router.

APPENDIX (continued)

Restart your computer

Click OK

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

For Microsoft Windows XP: Go to Start >

right-click on My Network Places > select

Properties > right-click on the Network

Connection associated with the Ethernet

adapter and select Properties (i.e., D-Link

DFE-530TX+).
