D-Link DIR-410 Manuel utilisateur

D-Link

DIR-410

M2M 3G VPN Router

User Manual

The contents of this publication may not be reproduced in any part or as a whole, stored,

transcribed in an information retrieval system, translated into any language, or transmitted in any

form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or

otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered trademarks of their respective

companies. They are used for identification purpose only. Specifications are subject to be changed

without prior notice.

FCC Interference Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

●Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of

other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction with any other

antenna or transmitter.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN

55022/A1 Class B.

TABLE OF CONTENTS

COPYRIGHT......................................................................................................................... 2

FCC INTERFERENCE STATEMENT................................................................................... 2

CHAPTER 1. INTRODUCTION ............................................................................................ 4

1.1 PACKAGE LIST.............................................................................................................. 4

1.2 HARDWARE INSTALLATION ....................................................................................... 4

CHAPTER 2. GETTING STARTED...................................................................................... 8

2.1 EASY SETUP BY WINDOWS UTILITY.......................................................................... 8

2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................................ 16

CHAPTER 3. MAKING CONFIGURATION........................................................................ 21

3.1 BASIC SETTING........................................................................................................... 21

3.2 FORWARDING RULES................................................................................................ 40

3.3 SECURITY SETTING.................................................................................................... 43

3.4 ADVANCED SETTING ................................................................................................. 59

3.5 TOOL BOX.................................................................................................................... 66

CHAPTER 4. TROUBLESHOOTING ................................................................................. 70

APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 74

APPENDIX B. LICENSING INFORMATION...................................................................... 75

CHAPTER 1. Introduction

Congratulations on your purchase of this outstanding product: DIR-410 M2M 3G VPN Router. This

product is specifically designed for Office needs. It provides a complete solution for Internet surfing,

3G backup, and VPN tunneling. Instructions for installing and configuring this product can be

found in this manual. Before you install and use this product, please read this manual carefully for

fully exploiting the functions of this product.

1.1 Package List

Items Description Contents Quantity

1 M2M 3G VPN Router 1

Power adapter 12V 2A

1.2 Hardware Installation

1.2.1 Hardware configuration

1.2.2 LED indicators

LED color Description

WAN Green It is connected to Internet.

Green in flash Data access

LAN Green RJ45 cable is plugged, and Ethernet

connection is established.

Green in flash Data access

WLAN Green WiFi is on.

Green in flash Data access

3G USB Amber 3G/3.5G is on.

Amber in flash Data access

3G Express

Card Amber Connection established

Amber in flash Data access

RS232 Amber Serial port connection established

Amber in flash Data access

Power Green in flash Normal mode (The power is on.)

Green in fast flash Reset mode

1.2.3 Installation Steps

Step 1. Attach the antenna:

Screw the antenna in a clockwise direction to the back

panel of the unit.

DO NOT connect M2M 3G VPN Router to

power before performing the installation

steps below.

Step 2. Insert the 3G USB to the router:

Plug your USB modem which is with activated SIM

card provided by your 3G service provider.

to the USB interface.

Step 3. Connect with the Ethernet patch cable:

Insert the Ethernet cable into RJ45 Ethernet Port on

the back panel. And then plug the other end of RJ45

into the computer or Laptop computer. The LED of

Internet connection will show green color if the

Ethernet connection is normally connected.

Step 4. Connect the power adapter:

Plug the other end of the power adapter into a wall

outlet.

Step 5. Press the power button

Step 6. Start to configure the device:

You can start to configure the device via the Easy

Setup.

(see Easy Setup Utility)

CHAPTER 2. Getting Started

2.1 Eas

Setup b

Windows Utilit

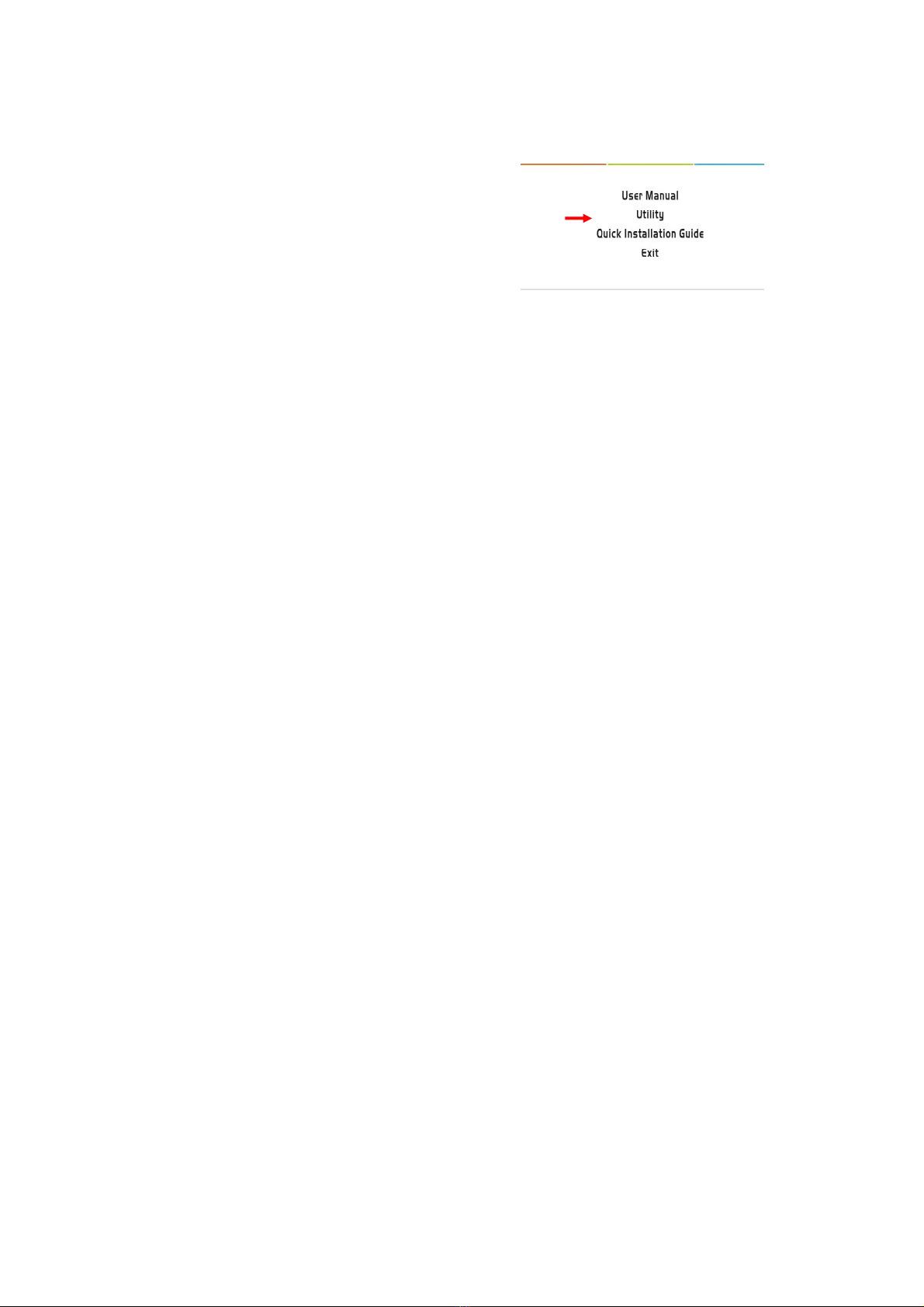

Step 1:

Install the Easy Setup

Utility from CD then

follow the steps to

configure it.

Step 2:

Select Language then

click “Next” to continue.

Step 3:

Then click the “Wizard”

to continue.

Or click “advanced” to

run advanced mode for

more detailed setting.

(See User Manual)

Step 4:

Click “Next” to continue.

Step 5:

Select time zone. It can

help us to synchronize

the system time with

network time server.

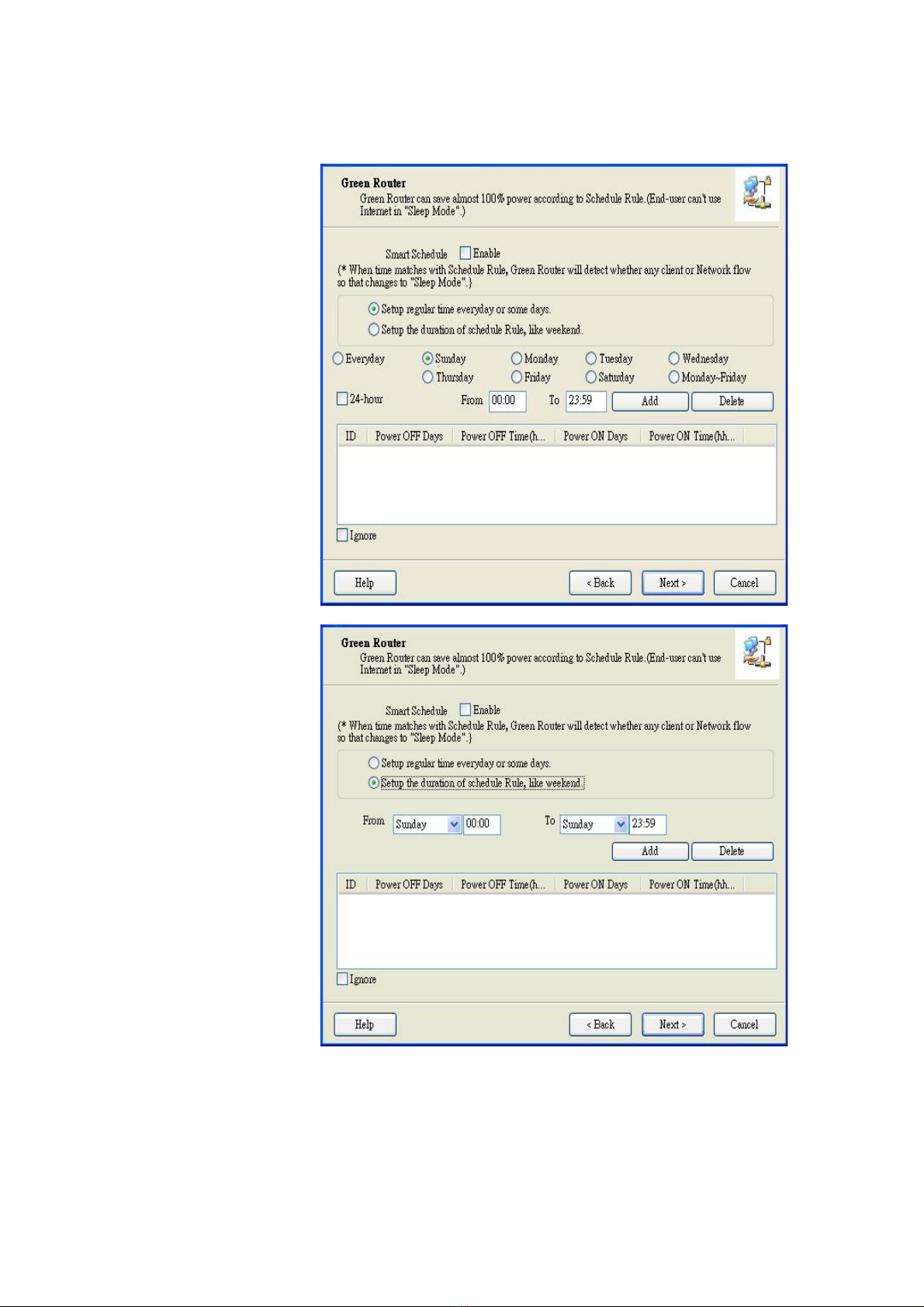

Step 6-1:

Configure the schedule

setting for Green

function. You can set

the schedule for turning

on or turning off this

device automatically.

Step 6-2:

Click SMART

Schedule setting for

Green function. The

device would check the

packet flow before the

power is turned off.

For instance, if the

router is on the sleeping

mode, you could surf

the Internet at that time.

Afterwards, if there are

not any packet flows,

the router would be

turned off automatically.
