D-Link DIR-868L Manuel utilisateur

ETISALAT Plug & Play Firmware

Wireless AC1750Dual Band

Gigabit Router

D-link DIR-868L

User Manual

Version 1.0 Page 1of 14

System Requirements

Network Requirements

• An Ethernet-based cable or DSL modem

• IEEE 802.11ac/n/g/b/a wireless clients

• 10/100/1000 Mbps Ethernet

Web-based Configuration

Utility Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 7 or higher

• Firefox 12 or higher

• Safari 4 or higher

• Chrome 20 or higher

Windows® Users: Make sure you have the latest version of Java

Installed. Visit www.java.com to download the latest version.

mydlink Requirements

• IPhone/iPad/iPod touch (iOS 4.3 or higher)

• Android device (2.3.3 or higher)

• Computer with the following browser requirements:

• Internet Explorer 7 or higher

• Firefox 12 or higher

• Safari 5 or higher

• Chrome 20 or higher

iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.

Version 1.0 Page 2of 14

Hardware Overview

LEDs

Version 1.0 Page 3of 14

Hardware Overview

Connections

Version 1.0 Page 4of 14

Admin Login Page

If this is your first time installing the router, open your web browser and,

enter The IP address of the router (default: http://192.168.1.1)

a. Give the default Username and Password to login to the router (Username and Password

will be mentioned on the sticker at the back of your router)

Note: If no admin password mentioned, use “admin” as username and password.

b. To Change “admin” password

Go to Administration » Users and edit admin.

Version 1.0 Page 5of 14

1) WAN Setting ( Setup INTERNET Connection )

To configure wan settings,

Go to Network » WAN » WAN IPv4 Configuration

a) Connection Mode –Auto via ACS ( For ETISALAT Plug & Play Connection )

*All configuration including username, password and Vlan Id information will be pushed by Etisalat

ACS.

Version 1.0 Page 6of 14

b) ISP Connection type - PPPoE (Manual)

Give the Username and Password provided by your ISP in the User Name and Password

column and save the settings, enable Vlan only if it is required by ISP.

Version 1.0 Page 7of 14

2) LAN Setting & DHCP

To change lan setting and DHCP ,

Go to Network » LAN » LAN IPv4 Configuration

. By default the IP address is 192.168.1.1 & DHCP Pool is 100 ~254

Version 1.0 Page 8of 14

3) Wireless Configuration

Go to Wireless » Profiles

Then Right click and Edit 2.4GHz or 5GHz to change the SSID and Security.

a. 2.4 GHz

b. 11AC 5 GHz

Version 1.0 Page 9of 14

4) Port Forwarding

a. To create port forwarding rules ,

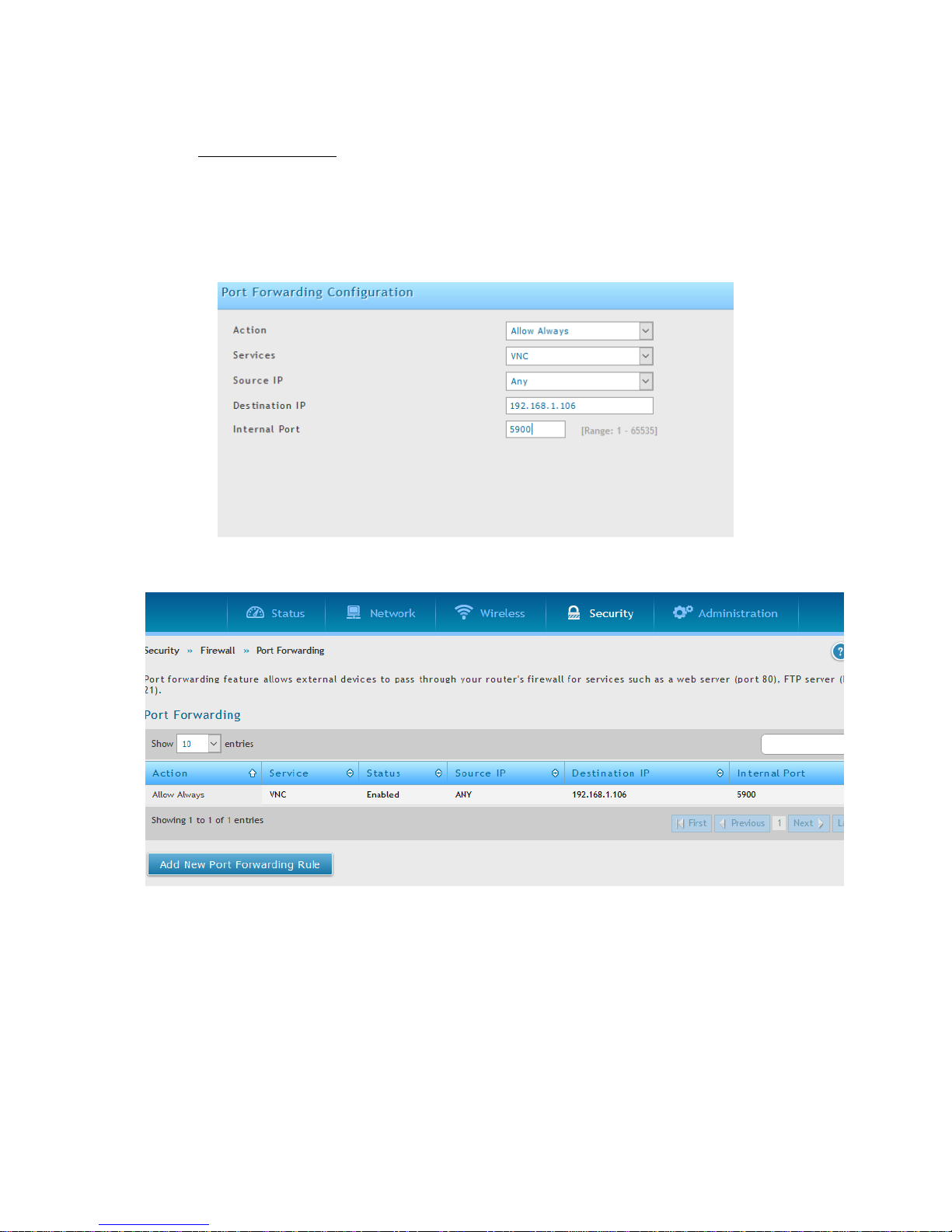

Go to Security » Firewall » Port Forwarding and then “Add New Port Forwarding Rule”,

You can choose the predefined services or the added custom services.

b. Custom services

Go to Security» Firewall » Custom Services and “Add New Custom Service”,

*Custom service is required if the service is not listed on the available services.
