D-Link DWR-500 Manuel utilisateur

D-Link Quick Installation Guide

DWR-500 Wireless Mesh Router

Quick Installation Guide

Version 1.5.5 January 30, 2007

DWR-500 Quick Installation Guide

D-Link Corporation reserves the right to change, modify, and revise this publication without notice.

Trademarks

trademarks of D-Link Corporation. All other brand and product names are registered trademarks or

trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operation function, and/or reliability, D-Link Corporation

reserves the right to make changes to products described in this document without notice. D-Link

Corporation does not assume any liability that may occur due to the use or application of the product(s)

described herein.

Standards

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Modifications to this product not authorized by D-Link International Pte Ltd could void the FCC approval

and negate your authority to operate the product. To meet regulatory restrictions, the outdoor access

point and external antennas must be professionally installed.

DWR-500 Quick Installation Guide

III

Safety Warnings

The DWR-500 must be installed by trained professional installation technician. Read all warning

information below before installation.

GENERAL SAFETY WARNINGS

Beware of electrical power lines!

Ensure there is no high voltage electronic field or exposed power lines in the area where DWR-500 is

installed.

Lightning Activity Warning

Do not connect or disconnect any cables to DWR-500 during periods of lightning activity. Surge

protectors should be installed to prevent potential damage from surges caused by lightning

Explosive Device Proximity Warning

Do not operate wireless network device close to explosive merchandise or environment. Electronic

components emit electrical charges which can be a potential danger in the vicinity of any explosive

medium, product or devices. For example, gas stations.

Antenna Placement Warning

Beware of power lines or electrical circuits near antenna installation site. Take extreme caution when

installing antennas. Do not to come into contact with power lines or electrical circuits as they can cause

serious injury or death.

Grounding Warning

Always ground the equipment before power up. The required resistance must be less than 5 ohm

between the ground termination points to grounding tier.

Power Socket Installation Warning

Power socket installation should be performed by a trained technician. If the main power supply is not

available, please engage a trained technician to install the socket. Should power cord reassembly be

required, it should be done by a trained technician to comply with local requirements.

Solar Radiation and high Temperature Protection

Solar radiation will cause the working temperature of DWR-500 to rise. Always take note the DWR-500

operating temperature range. When the DWR-500 is setup outdoors, please install the solar shield

provided to protect the equipment. Warranty is void for outdoor installation of DWR-500 without solar

shield setup. Please contact our authorized technical support engineers for more detailed information.

DWR-500 Quick Installation Guide

Table of Contents

DWR-500 Quick Installation Guide 1

Scope Of This Document 1

Further Reading

More detailed configuration instructions can be found in the CD-ROM.

Before You Begin

Open the shipping carton and carefully unpack its contents. The packing list is as shown below. Please

ensure all items are present and undamaged. If any of the items is found missing or damaged, please

contact your local D-Link representative as soon as possible.

Package Contents

ITEM QUANTITY

DWR-500 1

Solar Shield 1

Installation Bracket 1

Power Cable 1

Screws and nuts for solar shield and bracket 10

Anchor Ears 2

Quick Installation Guide 1

CD-Rom 1

License 1

DWR-500 Quick Installation Guide

System Overview

The D-Link DWR-500 is a wireless mesh router for high performance, large-scale, and fast outdoor wireless

coverage at low cost. The key advantages of the DWR-500 are:

•Multi-radio, multi-channel design

•Flexible and easy deployment

•High throughput, low latency

•Efficient routing

•Fast cross-subnet roaming

•High scalability

•Self-discovery of neighbor nodes,

•Auto-disaster recovery

•End-to-end QoS support

•Reliable and secure

Hardware Introduction

Figure 1 shows the connectors on the DWR-500 Wireless Mesh Router.

Figure 1. DWR-500 and the location of the connectors

For safe installation and operation, it is recommended that you:

•Visually inspect the power cord and ensure it is secured fully to the AC Power Input.

•Verify there is proper heat dissipation and adequate ventilation

•Do no place heavy objects on the DWR-500

DWR-500 Quick Installation Guide

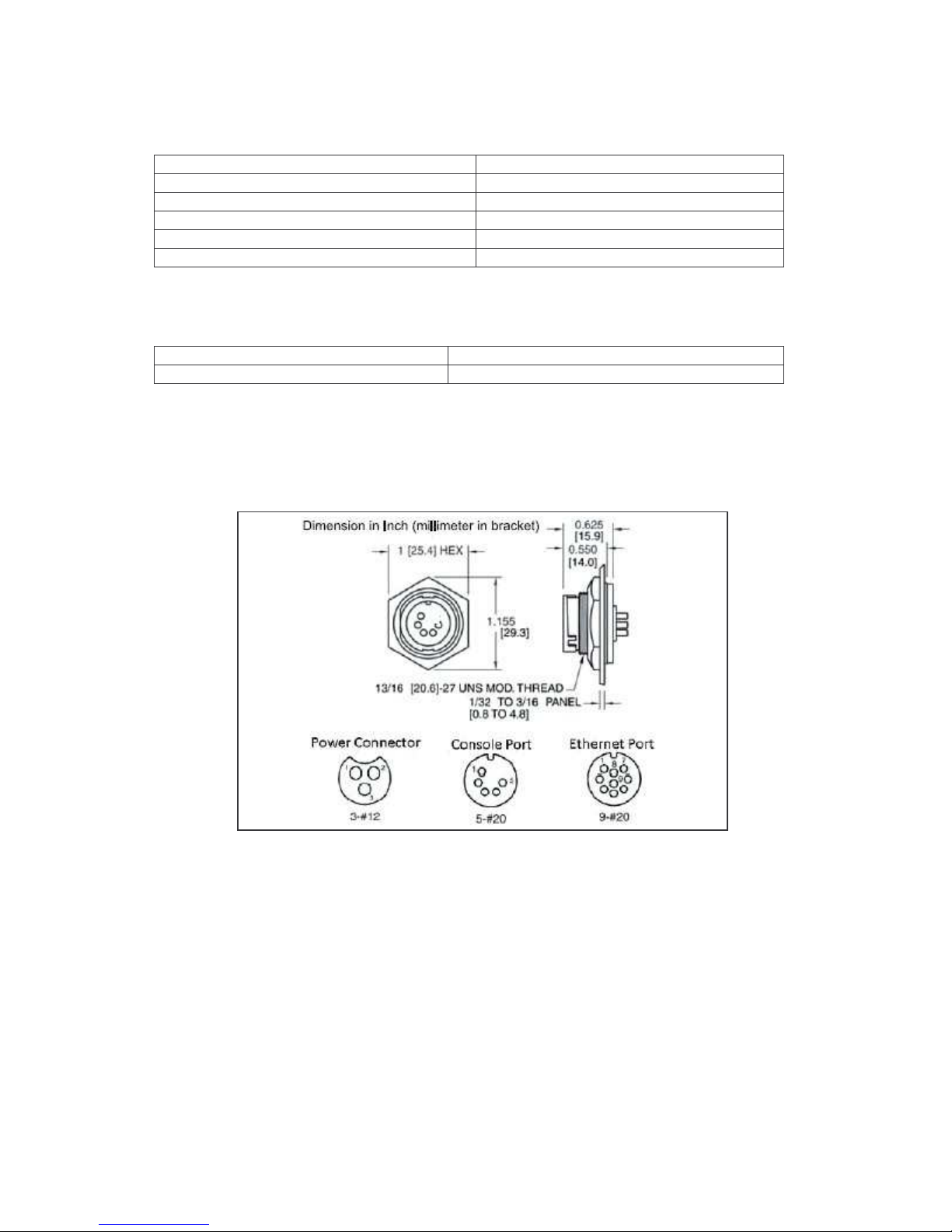

DWR-500 Operating Range

Operating Temperature Range -40°C ~ +55°C

Storage Temperature Range -40°C ~ +80°C

Non-Condensing Humidity Range 10% ~ 90%

Wind Survivability Rating > 165mph

Power input (VAC) 110/240 (50/60 Hz)

AC Power Consumption 5W (typical) – 30 W (Maximum)

Table 1. DWR-500 Operating Range

DWR-500 Environmental Rating

Ingress Protection (IP) Rating 66

Shock and Vibration Rating ETSI 300-19-2-4 spec T41.E class 4M3

Table 2. DWR-500 Environmental Rating

Connector ports

Figure 2 shows the Ethernet port, Console port and Power cable connector. Radio Port 0 and Port 1 are

standard N-type female connectors.

Figure 2. Power cable connector, console port and Ethernet port

DWR-500 Connection Interfaces

As the DWR-500 is equipped for outdoor coverage, the connection interfaces needs to be insulated against

the weather. Appended are information on the various interfaces used by the DWR-500:

Ethernet Cable

Figure 3 shows one end of the Ethernet cable for connecting to the port on the DWR-500, and the other

end of the cable with a normal RJ45 jack. Between the two cable connectors in the diagram shows the pin

mapping.

DWR-500 Quick Installation Guide

Cable Color Pin Mapping

White/green Pin 1

Green Pin 7

White/orange Pin 5

Orange Pin 4

White/blue Pin 2

Blue Pin 3

White/brown Pin 6

Brown Pin 8

Ground Pin 9

Figure 3. Ethernet cable connector and RJ45 for DWR-500

Power Cable

The weather insulated power cable connector is seen in the Figure 4.

Color Code Function Pin Mapping

White (Yellow) Ground Pin 1

Red Live Pin 2

Black (Green) Neutral Pin 3

Figure 4. Power cable connector for DWR-500

Console Cable

The weather insulated end of the console cable is shown on the left in the Figure 5. The right shows the pin

mapping. The other end of the console cable to connect to the laptop has a normal DB9 connector.

Figure 5. Console Cable Connector and DB9 connector for DWR-500

Screws

10 screws and nuts are provided. These are standard M6 X 16.

Figure 6. Standard Screws used for installation of DWR-500

DWR-500 Quick Installation Guide

Installing the Solar Shield

As the DWR-500 is usually installed outdoors, the solar shield is provided for weather protection. It is highly

recommended that the solar shield be used for outdoor installations.

Locate the parts from the package as shown in Figure 7.

Solar shield disperses heat from sunlight and prevent DWR-500 from overheating.

Figure 7. Eight Screws (item 1), installation bracket (item 2), solar shield (item 3) and DWR-500

With the screws provided, place the installation bracket (item 2) onto the solar shield (item 3). Secure the

installation bracket with the screws and nuts as shown in Figure 8.

Figure 8. Tighten the nuts to secure the installation bracket

There are 2 ways to secure the installation bracket. This is dependent on the direction of the mast. If the

mast is horizontal, secure the installation bracket (item 2) as shown on the left in Figure 9. If the mast is

vertical, secure the installation bracket (item 2) as shown on the right in Figure 9.

Figure 9. Secure the solar shield mast mount to solar shield

DWR-500 Quick Installation Guide

Remove the protectors from the top of the DWR-500 and slide the DWR-500 into the solar shield as shown

in Figure 10.

Figure 10. Remove the protectors and slide DWR-500 into the solar shield.

Secure the DWR-500 onto the solar shield at the side with the screws provided as seen in Figure 11.

Figure 11. Secure DWR-500 onto the Solar Shield

Secure the screws at the top of the DWR-500 to the solar shield as shown in the left and center diagrams of

Figure 12. The diagram on the right of Figure 12 shows the DWR-500 setup with solar shield and

installation bracket.

Figure 12. Secure DWR-500 to the solar shield at the top
