D-Link DIR-853 Manuel utilisateur

QUICK

INSTALLATION

GUIDE

AC1300 MU-MIMO WI-FI GIGABIT ROUTER

DIR-853

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

PETUNJUK PEMASANGAN CEPAT

DIR-853

ENGLISH

• A broadband Internet connection

• An iPhone, iPad, or Android device (refer to the mobile app's store page to check compatibility)

• Computer with:

• Microsoft Windows 10/8/7 or Mac with OS X 10.6 or higher

• Internet Explorer 10, Firefox 28, Safari 6, or Chrome 28 or higher with Java installed and enabled

CONTENTS OF PACKAGING

POWER ADAPTER

12V / 1A

CAT5eETHERNET CABLE

CONNECTS THE ROUTER TO YOUR PC DURING SETUP

If any of these items are missing from your packaging, contact

your reseller.

WI-FI CONFIGURATION CARD

CONTAINS THE DEFAULT WI-FI INFORMATION

Wi-Fi Conguration Note

AC1300 MU-MIMO WI-FI GIGABIT ROUTER

DIR-853

SYSTEM REQUIREMENTS

DIR-853 3

ENGLISH

PRODUCT SETUP

ROUTER MODE HARDWARE SETUP

Step 3

Connect the supplied power adapter to the router and a power

outlet, press the power button, and wait approximately one minute

until the LED indicator on the front of the device changes from

orange to solid blue.

Step 4

If you are conguring the DIR-853 wirelessly from a PC, connect to

a Wi-Fi network printed on the included Wi-Fi Conguration Card.

You can also nd the Wi-Fi network names and passwords printed

on the label attached to the bottom your router.

If you are conguring the DIR-853 from a PC with a wired Ethernet

connection, plug one end of an Ethernet cable into the port labeled

1 on the back of the router, and the other end into the Ethernet port

on your computer.

Step 1

Position your DIR-853 near your Internet-connected modem. Keep

the router in an open area for better wireless coverage.

ModemRouter

Step 2

Turn off or unplug your modem. Use the included Ethernet cable to

connect your modem to the port labeled INTERNET on the router.

Turn on or plug your modem back in and wait approximately one

minute before proceeding onward.

ModemRouter

PC PC Modem

Router

DIR-853

ENGLISH

CONFIGURATION

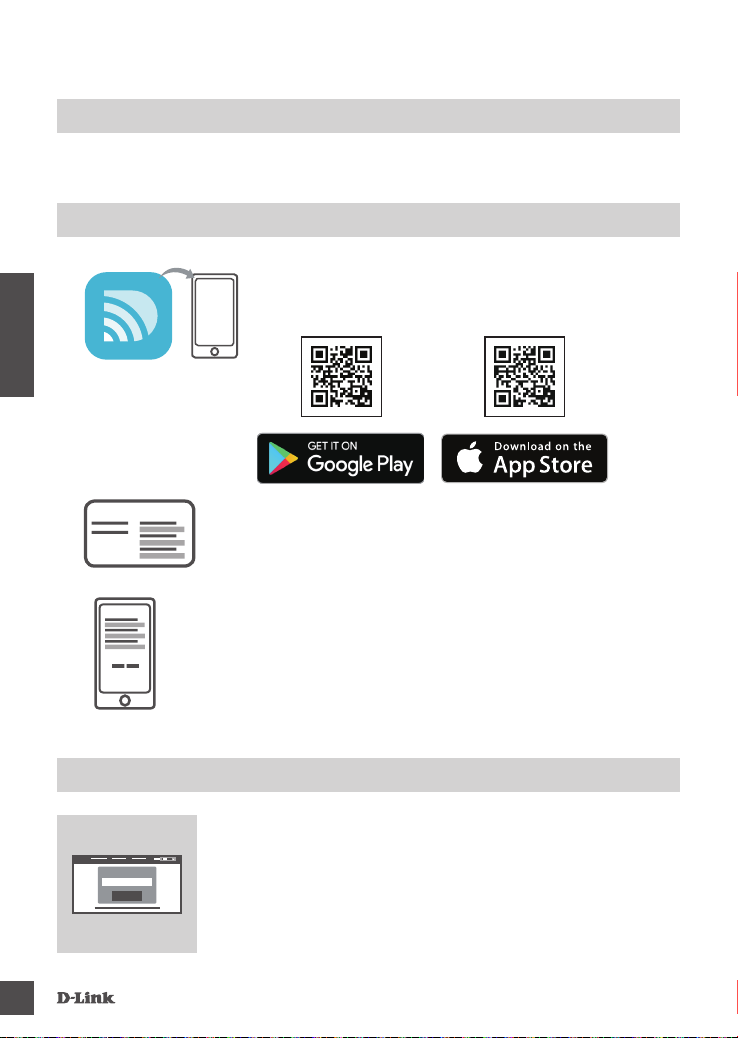

USING THE D-Link Wi-Fi APP

ROUTER MODE

USING THE QRS MOBILE APP

Step 2

Connect your mobile device to the Wi-Fi network printed on the

included Wi-Fi Conguration Card. You can also nd the Wi-Fi

network name and password printed on the label attached to the

bottom your router.

Wi-Fi Conguration Note

Step 3

Run the D-Link Wi-Fi app on your mobile device. It will guide you

step by step through the conguration of your router.

To configure your DIR-853, open a browser on a connected

computer. If you are not automatically directed to the D-Link Setup

Wizard, go to http://dlinkrouter.local./ and follow the onscreen

instructions. In the box under Admin Password, leave the password

blank and click Log In.

Admin Password:

USING THE BUILT-IN WEB INTERFACE

To set up and manage your DIR-853, you can use the free D-Link Wi-Fi app, or you can use the

built-in web interface.

ROUTER MODE CONFIGURATION

Step 1

On your mobile device, go to the Apple App Store or Google Play

and search for the free D-Link Wi-Fi app and download it.

DIR-853 5

ENGLISH

TROUBLESHOOTING

SETUP AND CONFIGURATION PROBLEMS

1. HOW DO I CONFIGURE MY DIR-853 ROUTER MANUALLY?

- Connect your PC to the router wirelessly or using an Ethernet cable.

- Open a web browser and enter the address ‘http://dlinkrouter.local./’ or ‘192.168.0.1’.

- The router password should be left blank by default.

- If you have changed the password and can not remember it, reset the router to return to an empty

password eld.

HOW DO I RESET MY DIR-853 ROUTER TO FACTORY DEFAULT SETTINGS?

- Ensure the router is powered on.

- Using a paper clip, press and hold the reset button on the back of the device for 10 seconds.

Note: Resetting the router to factory default will erase the current conguration settings.

To re-congure your settings, log into the router as instructed in question 1 and run the setup wizard.

3. I CANNOT CONNECT TO THE ROUTER USING THE WEB INTERFACE OR D-Link

Wi-Fi APPLICATION.

If you cannot connect to your DIR-853, check the following:

- Ensure the router's power adapter is plugged in and the device is powered on.

- Verify that your network cables are rmly attached.

- Make sure you are connected to the wireless network printed on the Wi-Fi Conguration Card.

- If you are still having difculty, reset the DIR-853 to the factory default settings as described in

question 2 above.

4. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY

WI-FI NAME (SSID) OR WI-FI PASSWORD?

- For each device that needs to connect to the router wirelessly, you will need to ensure you use the

correct Wi-Fi Name (SSID) and Wi-Fi password.

- Use the web-based user interface (as described in question 1 above) to check or congure your

wireless settings.

- Make sure you write down these settings so that you can enter them for each wirelessly connected

device.

5. WHY CAN'T I GET AN INTERNET CONNECTION?

- For DSL users, please contact your ISP to make sure the service has been enabled/connected by

your ISP and that your ISP username and password is correct.

DIR-853

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-700-100

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000 or 1860-233-3999

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

DIR-853 7

ENGLISH

TECHNICAL SUPPORT

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

DIR-853

ESPAÑOL

• Una conexión de Internet de banda ancha

• iPhone®/ iPad®/ Android™ o Tablet. (Consulte la página de la tienda de la aplicación móvil para

vericar si su dispositivo es compatible)

• Computador con:

• Microsoft Windows®10/8/7o Mac con OS X 10.6 o superior

• Internet Explorer 10, Firefox 28, Safari 6, o Chrome 28 o versión superior con Java instalado y

habilitado

CONTENIDO DEL EMPAQUE

FUENTE DE ALIMENTACION

12V / 1A

CABLE ETHERNET CAT5e

CONECTE EL ROUTER A SU PC DURANTE INSTALACIÓN

Si cualquiera de estos elementos no se encuentran en el

empaque, póngase en contacto con su distribuidor.

WI-FI TARJETA DE CONFIGURACIÓN

CONTIENE LA INFORMACIÓN WIFI POR DEFECTO

AC1300 MU-MIMO WI-FI GIGABIT ROUTER

DIR-853

REQUISITOS DEL SISTEMA

Wi-Fi Conguration Note

DIR-853 9

ESPAÑOL

CONFIGURACIÓN DE PRODUCTOS

INSTALACIÓN MODO ROUTER

Paso 3

Conecte el adaptador de alimentación suministrado al router y

una salida de energía, pulse el botón de encendido, y espere

aproximadamente un minuto hasta que el indicador LED en la parte

frontal del dispositivo cambie de color naranja a azul sólido.

Paso 4

Si va a congurar el router DIR-853 de forma inalámbrica desde un

PC, conecte a la red Wi-Fi impresa en la tarjeta de conguración

Wi-Fi incluida. Usted también puede encontrar los nombres de las

redes Wi-Fi y contraseñas impresas en la etiqueta adherida a la

parte inferior de su router.

Si va a congurar el router DIR-853 desde un PC con una conexión

Ethernet por cable, conecte un extremo de un cable Ethernet en

el puerto 1 en la parte posterior del router y el otro extremo en el

puerto Ethernet de su PC.

Paso 1

Coloque el DIR-853 cerca de su módem conectado a Internet.

Mantenga el router en un área abierta para una mejor cobertura

inalámbrica.

Paso 2

Apague o desconecte el módem. Utilice el cable Ethernet incluido

para conectar el módem al puerto de Internet del router. Encienda o

conecte el módem de nuevo y espere aproximadamente un minuto

antes de continuar adelante.

ModemRouter

PC PC Modem

Router

DIR-853

ESPAÑOL

CONFIGURACION

ROUTER MODE

USING THE QRS MOBILE APP

Para configurar el router DIR-853, abra un navegador en un PC

conectado. Si no se dirigen automáticamente al Asistente para

conguración de D-Link, vaya a http: //dlinkrouter.local./ y siga las

instrucciones en pantalla. Utilice admin como nombre de usuario y

deje la contraseña en blanco.

Admin Password:

UTILIZANDO LA INTERFAZ WEB INCORPORADA

Para congurar y administrar su DIR-853, puede usar la aplicación gratuita D-Link Wi-Fi, o puede

usar la interfaz web incorporada.

CONFIGURACIÓN DE MODO ROUTER

UTILIZANDO LA APP D-LINK WI-FI

Paso 1

En su dispositivo móvil, vaya a App Store o Google Play y busque

la aplicación gratuita D-Link Wi-Fi para descargarla.

Paso 2

Conecte su dispositivo móvil a la red Wi-Fi impresa en la tarjeta de

conguración Wi-Fi incluida. También puede encontrar el nombre y

la contraseña de la red Wi-Fi impresos en la etiqueta adjunta en la

parte inferior de su Router.

Wi-Fi Conguration Note

Paso 3

Ejecute la app D-Link Wi-Fi en su dispositivo móvil. Le guiará paso

a paso a través de la conguración de su Router.

Autres manuels pour DIR-853

Table des matières

Langues :

Autres manuels D-Link Routeur réseau

D-Link

D-Link DIR-605L Manuel utilisateur

D-Link

D-Link DIR-120 Manuel utilisateur

D-Link

D-Link DIR-855L Manuel utilisateur

D-Link

D-Link DIR-865L Manuel utilisateur

D-Link

D-Link DSL-G256DG Manuel utilisateur

D-Link

D-Link GO-RT-AC750 Manuel utilisateur

D-Link

D-Link DES-1005D Manuel utilisateur

D-Link

D-Link DIR-816 Manuel utilisateur

D-Link

D-Link DAP-1860 Manuel

D-Link

D-Link DES-3326 Manuel utilisateur

D-Link

D-Link AirPlus XtremeG Ethernet-to-Wireless Bridge... Manuel utilisateur

D-Link

D-Link DIR-X1530 Manuel utilisateur

D-Link

D-Link DSL-2540T Manuel utilisateur

D-Link

D-Link DIR-651 Manuel utilisateur

D-Link

D-Link DIR-457U Manuel utilisateur

D-Link

D-Link COVR-2203 Manuel utilisateur

D-Link

D-Link DIR-868L Manuel utilisateur

D-Link

D-Link DES-3225G Series Manuel utilisateur

D-Link

D-Link DI-824VUP+ 2.4GHz Wireless VPN Router and Print... Manuel utilisateur

D-Link

D-Link xStack DGS-3600 Series Manuel

D-Link

D-Link DIR-600 Manuel utilisateur

D-Link

D-Link SharePort DIR-825 Manuel utilisateur

D-Link

D-Link COVR-C1202 Manuel utilisateur

D-Link

D-Link DIR-841 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
