D-Link DSL-2750E Manuel

-1-

FAQ : How to Enable Port Forwarding on the DSL-2750E

Technical Support Setup Procedure

FAQ : How to Enable Port Forwarding on the DSL-2750E

Release date : 27/05/2013

Model Support : DSL-2750E

H/W: T1

S/W:1.04

-2-

FAQ : How to Enable Port Forwarding on the DSL-2750E

Technical Support Setup Procedure

Port Forwarding DSL-2750E 

1:  ,  ,  , 

Address IP Address DSL-2750E 192.168.1.1 

Enter 

2: (User Name) 

(Password) “admin” 

Log In

-3-

FAQ : How to Enable Port Forwarding on the DSL-2750E

3: Advanced Port Forwarding 

4: PORT FORWARDING SETUP Add

-4-

FAQ : How to Enable Port Forwarding on the DSL-2750E

5: PORT FORWARDING SETUP 

1. Select a Service Service list 

Customer Server (Server)

2. Server IP Address IP Address 

(WAN)

3. External Start , External Port

End , Internet Port Start, Internal Port End

4. TCP UDP 

-5-

FAQ : How to Enable Port Forwarding on the DSL-2750E

6: Apply 

-6-

FAQ : How to Enable Port Forwarding on the DSL-2750E

Technical Support Setup Procedure

How to Enable Port Forwarding on the DSL-2750E

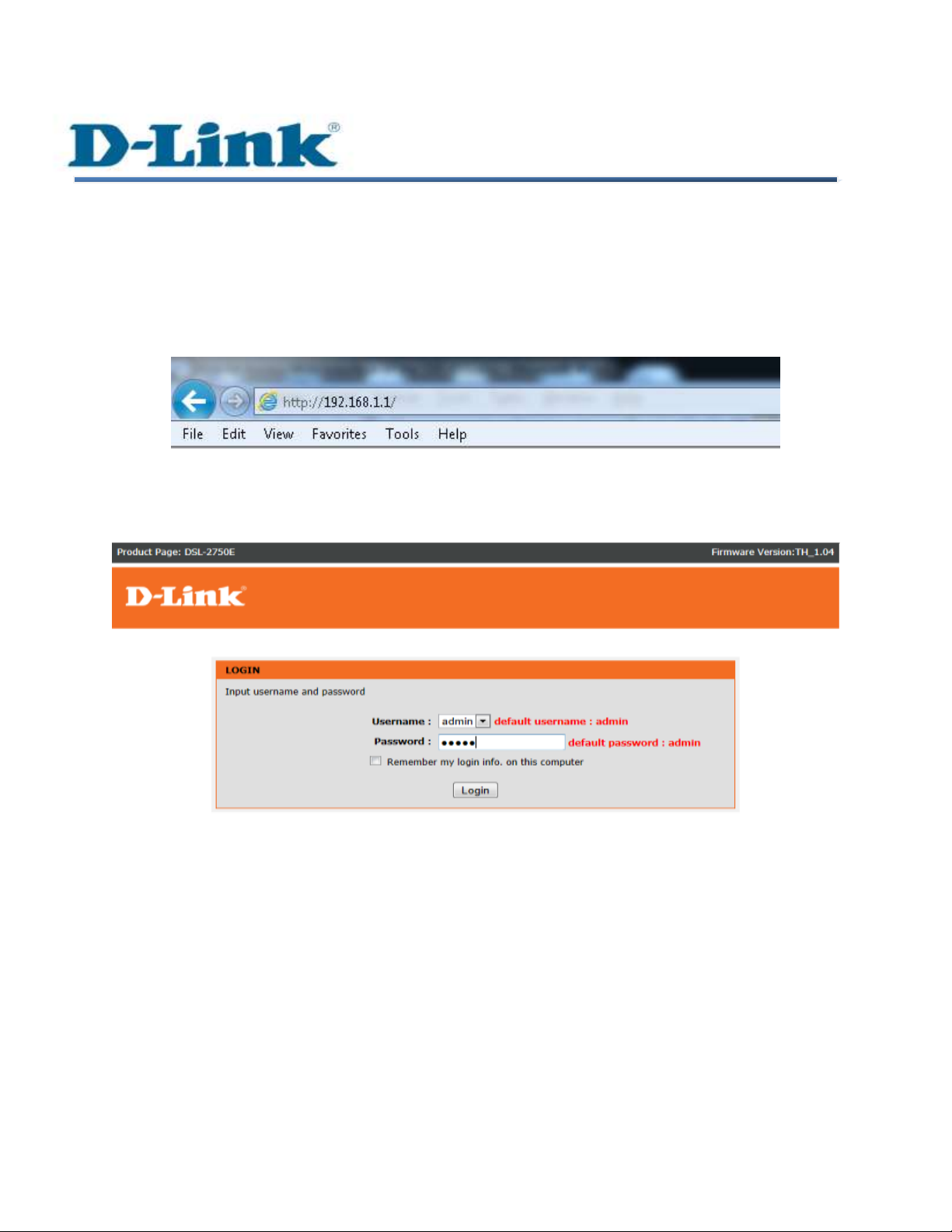

Step 1: Open a web browser such as Internet Explorer, Mozilla Firefox, Safari and etc. On the Address

bar, enter the LAN IP Address of the DSL-2750E. The default ip address is 192.168.1.1. Press ‘Enter’

key on your keyboard. Please enter the new ip address of the router if you have changed it.

Step 2: A login screen will appear, type in the User Name and Password as “admin” all in lower case

(This is the default setting, please enter the new username and password if you have changed it).

Click on the Log In button.

-7-

FAQ : How to Enable Port Forwarding on the DSL-2750E

Step 3: You are now at the DSL-2750E web interface. Click on the ADVANCED tab, select Port

Forwarding on the left.

Step 4: Under the PORT FORWARDING SETUP section, click on the Add button.

-8-

FAQ : How to Enable Port Forwarding on the DSL-2750E

Step 5: Under the PORT FORWARDING SETUP section, configure the following;

1. Select a Service (If your service already shown on list) or you can define your own service

under Custom Server. Just enter a name for the Server.

2. Schedule: Select the time schedule which you want this rule to take effect.

3. Server IP Address: Enter the IP Address of the Device or Application which allowed to be

accessed from the WAN using this service.

4. Enter the port used on the device or application on the External Port Start, External

Port End, Internal Port Start, Internal Port End

5. Select TCP or UDP (depends on your service type) on the Protocol.

Step 6: Click on the Apply button to take effect.

-9-

FAQ : How to Enable Port Forwarding on the DSL-2750E

 

Call Center  02-6617997

: 9.00 –18.00 

Thai: Mon –Fri : Time 9.00 –18.00.

: 18.00 

English : Sat –Sun , Public Holiday and after 18.00 weekday.

Website : www.dlink.co.th

email: support@dlink.com.sg

Facebook : http://www.facebook.com/DLinkThailandFans
