D-Link DSL-G624M Manuel utilisateur

Check Your Package Contents

1. If you purchased this Router to share your high-speed xDSL Internet connection with

other computers, you must have an established Internet account from an Internet Service

Provider (ISP).

2. It’s best to use the same computer that is connected to your router for conﬁ guring the DSL-

G624M Wireless 108G MIMO ADSL 2/2+ Router. By default the DSL-G624M acts as a

DHCP server and will assign all the necessary IP address information for your network.

See below in this Quick Installation Guide or the Manual on the CD-ROM for how to set

each network adapter to automatically obtain an IP address.

DSL-G624M

Wireless ADSL Router

DSL-G624M Wireless 108G MIMO ADSL 2/2+

Router

CD-Rom (containing Manual and Warranty)

Ethernet Cable (CAT5 UTP/Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty for this product.

ADSL Cable (TP RJ-11)

Power Adapter

12VDC 1.2A

Software and speciﬁ cations subject to change without notice.

If any of the above items is missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6x or Netscape

Navigator 7x.

Before You Begin

Connecting the Router to Your Computer

A.First, connect the power adapter to the power input at the back panel of the

DSL-G624M, then plug the other end of the power adapter to a wall outlet or

power strip. On the front of the device, the Power LED will turn ON to indicate

proper operation.

B.Insert one end of the Ethernet cable into an Ethernet (LAN) port on the back

panel of the DSL-G624M and the other end of the cable to an Ethernet Adapter

or available Ethernet port on your computer.

C.Insert the ADSL (telephone) cable included with the Router into the ADSL port

and then connect the cable to your telephone line.

Antenna

For good wireless

reception.

Reset Button

Push to return to

default settings.

ADSL Port

Connect ADSL

line here.

LAN Ports

Connects to your

PC on the Ethernet

LAN

Power Input

Connect to AC

power adapter.

Conﬁguring the Router

To access your new D-Link DSL-G624M router use your Web browser to access

the web pages used to setup the Router, your computer must be configured to

“Obtain an IP address automatically”, that is, you must change the IP network

settings of your computer so that it is a DHCP Client. If you are using Windows

XP and do not know how to change your network settings, skip ahead to Appen-

dix and read the instructions provided. You may also read the User Manual for

instructions on changing IP settings for computers running Windows operating

systems.

Type “admin” for

the User Name

and “admin” in the

Password ﬁeld.

Open your Web browser and

type “http://192.168.1.1” into

the URL address box. Then

press the Enter or Return

key.

The login prompt appears.

Conﬁguring the Router

Once you have logged in, the Home directory tab is prominent with the Setup

Wizard menu displayed. Most users will be able to use the Setup Wizard to estab-

lish the ADSL connection to your ADSL Internet Service Provider (ISP). To begin

using the Setup Wizard, click on the Run Wizard button in the middle of the web

page. A pop-up menu will appear. This pop-up menu is the Setup Wizard. The

Setup Wizard procedure consists of three general steps:

1.Choose your time zone

2.Set Internet connection

3.Save & Restart

Please see the user manual for information on setting up wireless operation.

Click Run Wizard

Conﬁguring the Router - Setup Wizard

The first Setup Wizard menu

lists a summary of the steps

required to complete the setup.

Click the Next button to begin

setup.

Change the default Password

for the router from admin.

Now configure the Time Zone

used for the Router’s system

clock. Select the appropriate

time zone setting for your

location.

Select the Time Zone

in which you are

located.

Click Next

Conﬁguring the Router - ADSL

Connection

Next you will Select the ADSL Connection Type for the WAN interface. Your

ISP has given this information to you. If you do not know what type of connection

to use, exit the Setup Wizard and contact your ISP for the information. The

Setup wizard menu that appears when you click the Next button depends on

what connection type you select. The connection types available in the Setup

Wizard menu are RFC2684 Pure Bridged, RFC2684 Bridged Static IP, RFC2684

Bridged DHCP, RFC2684 Routed Mode, PPPoE, and PPPoA . Follow the

instructions below for the type of connection you are using.

Select the

Connection Type

used for your ADSL

service.

Click Next

Conﬁguring the Router - ADSL

Connection

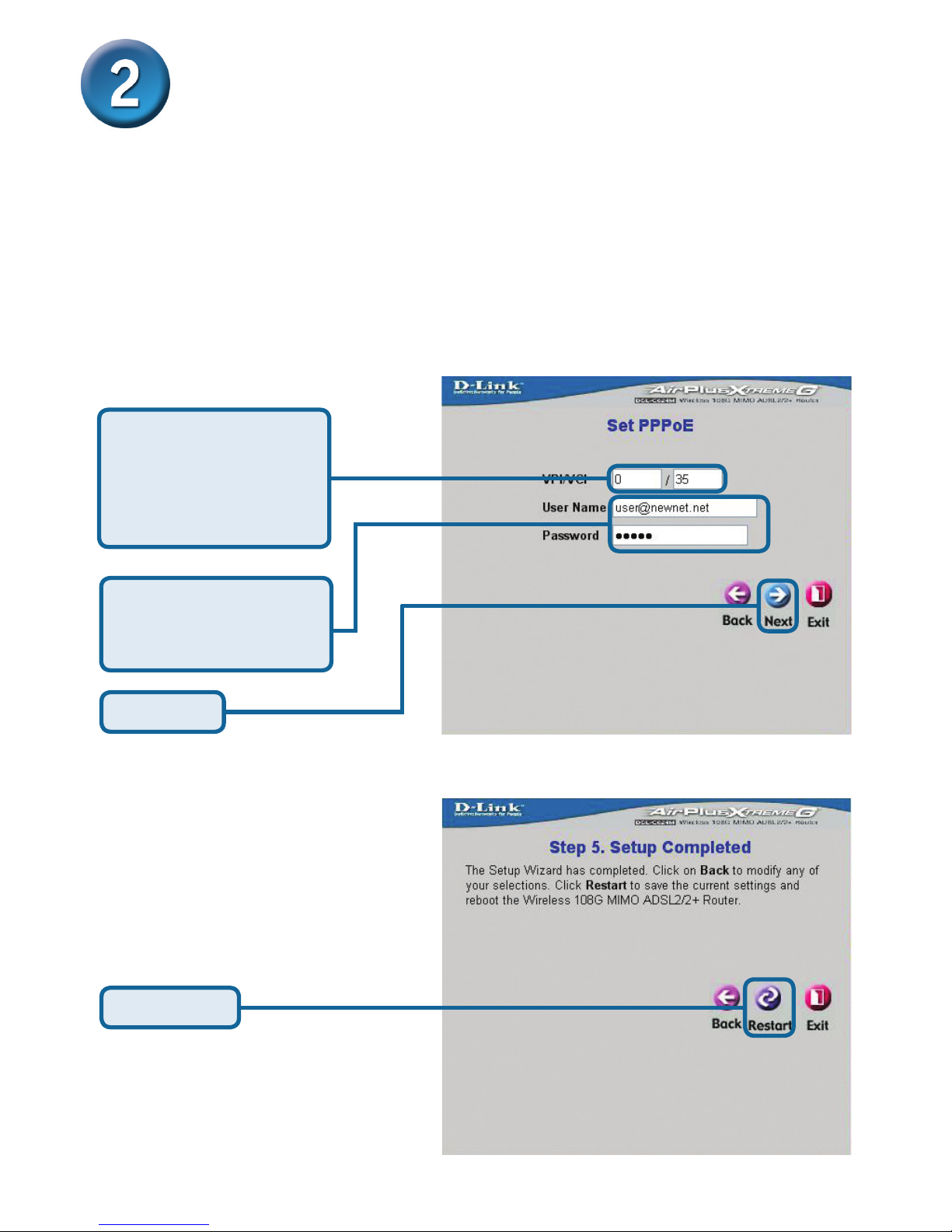

If you selected the PPPoE connection type in the previous menu, you will see the

Setup Wizard menu pictured here. Type in the Username and Password used to

identify and verify your account to the ISP. If you have been instructed to change

the VPI number and VCI number, type in the new values. Select the Connection

Type used for encapsulation speciﬁc to your service. Click Next when you are

ready to continue the Setup Completed menu.

Click Restart

Change the VPI and

VCI n u m b e r s a s

instructed by your

ISP by Typing in the

new values.

PPPoE Connections

Type the Username

a n d Password f o r

your ISP account.

Click Next

Conﬁguring the Router - ADSL

Connection

If you selected the PPPoA connection type in the previous menu, you will see the

Setup Wizard menu pictured here. Type in the Username and Password used to

identify and verify your account to the ISP. If you have been instructed to change

the VPI number and VCI number, type in the new values. Select the LLC header

mode used for encapsulation speciﬁc to your service. Click Next when you are

ready to continue the Setup Completed menu.

Click Restart

Change the VPI and

V C I numbers as

instructed by your

ISP by Typing in the

new values.

PPPoA Connections

Select the LLC header

mode used for your

ADSL service.

Type the Username

a n d Password f o r

your ISP account.

Click Next

Conﬁguring the Router - ADSL

Connection

If you selected the RFC2684 Bridged DHCP connection type, select the Encap.

(Encapsulation type) used for your account. If you have been instructed to change

the VPI number and VCI number, type in the new values. Click Next when you are

ready to continue the Setup Completed menu.

Click Restart

Change the VPI and

VCI n u m b e r s a s

instructed by your

ISP by Typing in the

new values.

RFC2684 Bridged DHCP Connections

Select the

Encapsulation type

used for your ADSL

service.

Click the Next button.

S k i p a h e a d t o t h e

Setup Completed

menu.

Conﬁguring the Router - ADSL

Connection

If you selected the Static IP Address connection type, change the WAN IP

Address, Subnet Mask, Default Gateway address and if the router will be your

main Internet connection, select Default Route Enabled. Select the Encap. type

used for encapsulation. If you have been instructed to change the VPI number and

VCI number, type in the new values. Click Next when you are ready to continue

the Setup Completed menu.

Click Restart

Change the VPI and

V C I n u m b e r s a s

instructed by your

ISP by Typing in the

new values.

RFC2684 Static IP Address Connections

Select the

Encapsulation type

used for your ADSL

service.

Type the IP addresses

for the WAN IP Address,

W A N Subnet Mask,

Default Gateway Address

and select Default Route

Enabled if the router will

be your main Internet

connection.

Click Next
