D-Link DIR-505 Manuel utilisateur

Quick Installation Guide

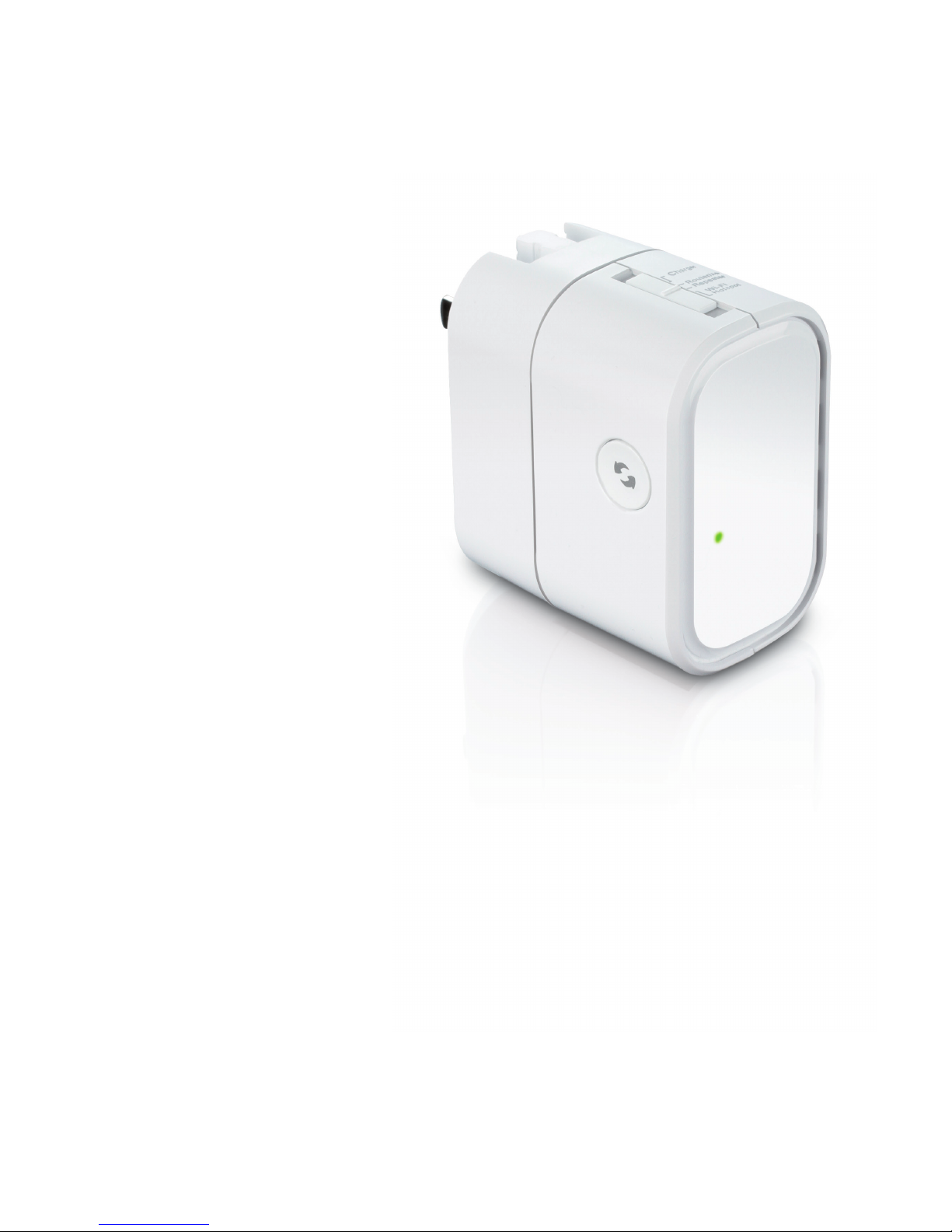

DIR-505

Mobile Companion

Version 2.00 | January 14, 2013

Installationsanleitung

Guide D’installation

Guía de Instalación

Guida di Installazione

Installatiehandleiding

Instrukcja Instalacji

Instalační Příručka

Telepítési Segédlet

Installasjonsveiledning

Installationsvejledning

Asennusopas

Installationsguide

Guia de Instalação

Οδηγο Γρηγορη Εγκατασταση

Vodič za Brzu Instalaciju

Kratka Navodila za Uporabo

Ghid de Instalare Rapidă

DIR-505

ENGLISH

Important Information

Users who subscribe to limited or “pay as you use” broadband internet

access.

In the WAN conguration settings, there is a parameter called Maximum idle timer. This

parameter controls how many seconds of inactivity before dropping connection to the internet.

The default setting is “0” which disables this functionality and the internet will be connected all

the time. We suggest that you should change the Maximum idle timer to “300” (5 minutes) so

that the device will drop the line after 5 minutes of inactivity and keep usage costs down.

Users who subscribe to unlimited broadband internet access.

You can just leave this parameter unchanged or enable Auto-reconnect to be always on line.

Technical notes:

The Maximum idle timer is only relevant if your ISP is using a PPPoE connection.

IMPORTANT INFORMATION REGARDING YOUR

INTERNET SUBSCRIPTION EN

DIR-505

ENGLISH

Package Contents

Mobile Companion (DIR-505)

If any of these items are missing from your packaging, contact your

reseller.

Using the Plug Adapters

Your DIR-505 includes plug adapters that allow you to use it in your

region’s power outlets. The DIR-505 is compatible with both 110/120 V

and 220/240 V power outlets.

• Flip the folding plug up, then slide the plug

adapter you want to use over it. To remove

the plug adapter, simply pull it up and o

the plug.

Plug Adapters (UK and EU plugs)

Wi-Fi Conguration Card

DIR-505

ENGLISH

Select Your Mode

Your DIR-505 has several modes, which you can select by using the

switch on the top of the device:

• Charger: This lets you use the USB port to charge high-power

devices like iPads.

• Router/AP(Access Point): This lets you share an Internet

connection from a DSL or cable modem, or from another wired

connection. This can be used at home, at work, or in a hotel. You

can also share les on an attached USB storage drive through

SharePort Mobile.

• Repeater: This will extend the range of an existing wireless

network.

• Wi-Fi Hotspot: This lets you share an Internet connection from

another wireless network, like a café or airport hotspot. You

can also share les on an attached USB storage drive through

SharePort Mobile.

Charger

Repeater

Wi-Fi

Hotspot

Router/AP

DIR-505

ENGLISH

Connection Setup with QRS Mobile

The free QRS Mobile app is the easiest way to get your DIR-505

congured and ready to use. It guides you step by step through setup

of your device so you can be up and running in no time!

• Search for QRS Mobile in the App Store or Google Play, or use a

QR code scanner to scan the corresponding code and download

the app.

• Move the switch on the top of the DIR-505 to the mode you want

to use and plug it into a power outlet.

• Connect your mobile device to your DIR-505 wirelessly by using

the default Wi-Fi network name and password printed on the

included Wi-Fi Conguration Card.

• You can now open the QRS Mobile app and follow the on-screen

instructions to congure your DIR-505.

• After, setting up your DIR-505, you may need to set your PC and

mobile devices to connect to the wireless network name you have

just created.

DIR-505

ENGLISH

Router/Access Point Mode

• Connect your DSL/cable modem or wired

Internet line to the DIR-505 with your existing

Ethernet cable, then plug the DIR-505 into a

power outlet.

• Move the switch on the top of the DIR-505 to

Router/AP Mode.

Outlet Ethernet

Charger

Repeater

Wi-Fi

Hotspot

Router/AP

Router/Access Point Mode lets you share an Internet connection from a

broadband modem or other wired connection.

• Connect your PC or mobile device to your

DIR-505 wirelessly by using the default Wi-Fi

network name and password printed on the

included Wi-Fi Conguration Card.

• Open a web browser, and the setup wizard

should appear. If it does not appear, enter

http://dlinkrouter.local. into the address

bar and log in. The default username is

admin, and the default password is blank.

Click the Internet Connection Setup

Wizard button.

DIR-505

ENGLISH

• The DIR-505 will automatically detect your

Internet connection type.

• Select Router from the dropdown menu to

share your Internet connection.

• Enter a network name (SSID) and a password

to secure access to your network, then click

Next.

• Enter a password to secure access to your

DIR-505 router, then click Next.

• Select your time zone then click Next.

• After nishing the setup wizard, the DIR-505

is ready to use.

DIR-505

ENGLISH

Repeater Mode

• Move the switch on the top of the DIR-505 to

Repeater Mode

Charger

Repeater

Wi-Fi

Hotspot

Router/AP

If your router has a WPS button, you can use WPS to set up Repeater

Mode quickly and easily:

Repeater Mode lets you extend the range of an existing wireless

network.

• You can now connect your PC or mobile

device to your extended network by

using the default Wi-Fi network name and

password printed on the included Wi-Fi

Conguration Card.

• Press and hold the WPS button on the

DIR-505 for at least 5 seconds, then press the

WPS button on your router within 2 minutes.

The DIR-505 will automatically create a

connection to your router. A connection has

been successfully created when the green

LED stops ashing.

DIR-505

ENGLISH

• Select Manual and click Next. Select the

Wi-Fi Network you want to extend, then click

Connect, and enter the Wi-Fi Password for

the selected network if needed.

• Enter the Wi-Fi Network name and password

you want to use for your extended network.

• After nishing the setup wizard, your devices

can connect to the new wireless network.

• Open a web browser, and the setup wizard

should appear. If it does not appear, enter

http://dlinkrouter.local. into the address

bar and log in. By default, the username is

Admin, and the password should be left

blank. Click the Launch Setup Wizard

button.

If your router does not have a WPS button, you can use a web

browser to set up your DIR-505:

• Connect your PC or mobile device to your

DIR-505 wirelessly by using the default Wi-Fi

network name and password printed on the

included Wi-Fi Conguration Card.

DIR-505

ENGLISH

Wi-Fi Hotspot Mode

• Move the switch on the top of the DIR-505 to

Wi-Fi Hotspot Mode

Wi-Fi Hotspot Mode lets you share a connection to another wireless

hotspot, like at a café or airport.

Charger

Repeater

Wi-Fi

Hotspot

Router/AP

• Open a web browser, and the setup wizard

should appear. If it does not appear, enter

http://dlinkrouter.local. into the address

bar and log in. The default username is

admin, and the default password is blank.

Click the Launch Wireless Setup Wizard

button.

• Connect your PC or mobile device to your

DIR-505 wirelessly by using the default Wi-Fi

network name and password printed on the

included Wi-Fi Conguration Card.
