D-Link DIR-806A Manuel utilisateur

Quick Installation Guide

DIR-806A

Wireless AC750 Multi-Function Router

DIR-806A Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Wireless router DIR-806A

•Power adapter DC 5V/1.2A

•Et ernet cable (CAT 5E)

•“Quick Installation Guide” (broc ure).

If any of t e items are missing, please contact your reseller.

T e “User Manual” and “Quick Installation Guide” documents in Russian

and Englis are available on D-Link website (see ftp.dlink.ru/pub/Router/DIR-

806A/Description/).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP add ess of wi eless oute 192.168.0.1

Use name (login) admin

Passwo d admin

Name of wi eless netwo k (SSID)

2.4GHz DIR-806A

5GHz DIR-806A-5G

DIR-806A Quick Installation Guide

System Requirements and Equipment

•A computer wit any operating system t at supports a web browser.

•A web browser to access t e web-based interface of t e router:

◦Apple Safari 5 and later

◦Google C rome 5 and later

◦Microsoft Internet Explorer 7 and later

◦Mozilla Firefox 5 and later

◦Opera 10 and later.

•A NIC (Et ernet or Wi-Fi adapter) to connect to t e router.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.

DIR-806A Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Make sure t at your PC is powered off.

2. Connect an Et ernet cable between any of LAN ports located on t e back

panel of t e router and t e Et ernet port of your PC.

3. Connect t e power cord to t e power connector port on t e left side panel

of t e router, t en plug t e power adapter into an electrical outlet or

power strip.

4. Turn on your PC and wait until your operating system is completely

loaded.

Now you s ould configure your PC to obtain an IP address automatically (as

DHCP client).

DIR-806A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. Click t e Sta t button and proceed to t e Cont ol Panel > Netwo k

and Inte net Connections > Netwo k Connections window.

2. In t e Netwo k Connections window, rig t-click t e relevant Local

A ea Connection icon and select t e P ope ties line in t e menu

displayed.

3. In t e Local A ea Connection P ope ties window, on t e Gene al

tab, select t e Inte net P otocol (TCP/IP) line. Click t e P ope ties

button.

DIR-806A Quick Installation Guide

4. Select t e Obtain an IP add ess automatically and Obtain DNS

se ve add ess automatically radio buttons. Click t e OK button.

5. Click t e ОК button in t e connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-806A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. Click t e Sta t button and proceed to t e Cont ol Panel window.

2. Select t e Netwo k and Sha ing Cente section. (If t e Control Panel

as t e category view (t e Catego y value is selected from t e View by

drop-down list in t e top rig t corner of t e window), c oose t e View

netwo k status and tasks line under t e Netwo k and Inte net

section.)

3. In t e menu located on t e left part of t e window, select t e Change

adapte settings line.

4. In t e opened window, rig t-click t e relevant Local A ea Connection

icon and select t e P ope ties line in t e menu displayed.

5. In t e Local A ea Connection P ope ties window, on t e

Netwo king tab, select t e Inte net P otocol Ve sion 4 (TCP/IPv4)

line. Click t e P ope ties button.

DIR-806A Quick Installation Guide

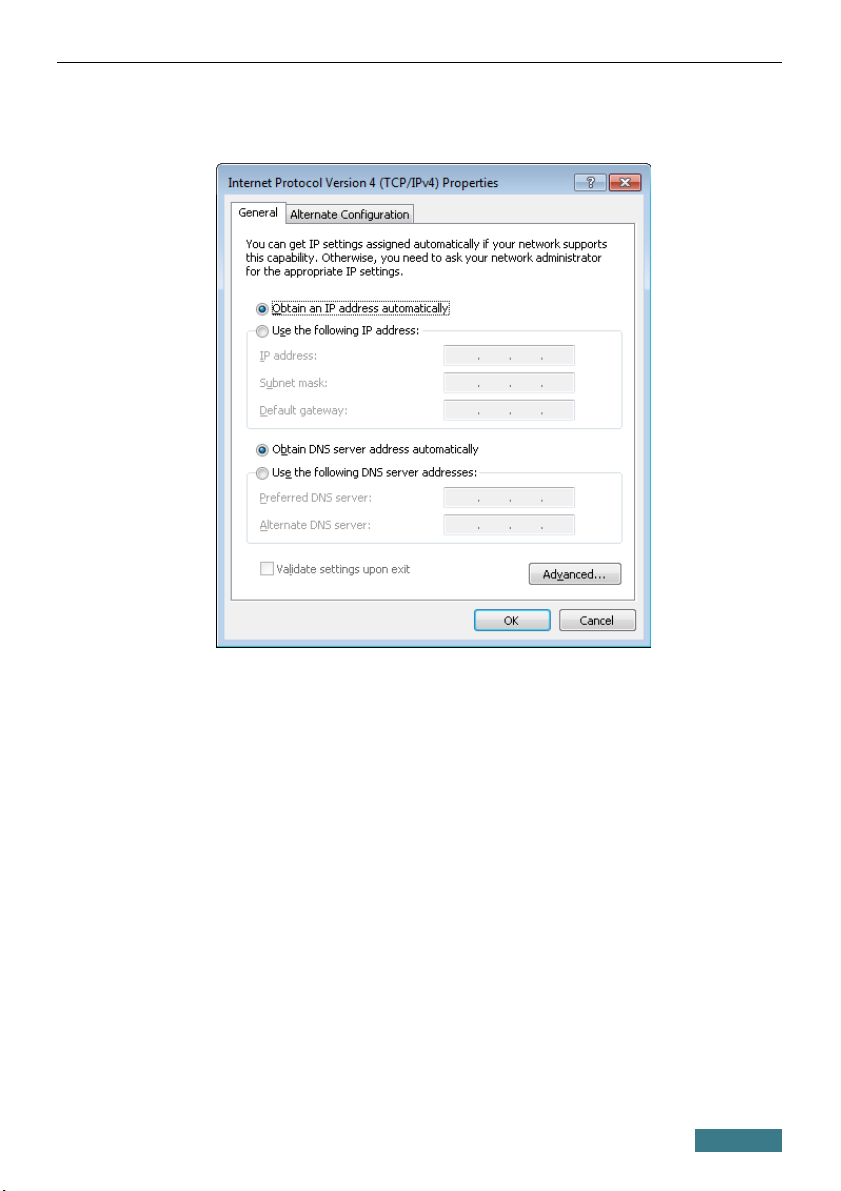

6. Select t e Obtain an IP add ess automatically and Obtain DNS

se ve add ess automatically radio buttons. Click t e OK button.

7. Click t e OK button in t e connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-806A Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect t e power cord to t e power connector port on t e left side panel

of t e router, t en plug t e power adapter into an electrical outlet or

power strip.

2. Turn on your PC and wait until your operating system is completely

loaded.

3. Turn on your Wi-Fi adapter. As a rule, modern notebooks wit built-in

wireless NICs are equipped wit a button or switc t at turns on/off t e

wireless adapter (refer to your PC documents). If your PC is equipped

wit a pluggable wireless NIC, install t e software provided wit your

Wi-Fi adapter.

Now you s ould configure your Wi-Fi adapter.

DIR-806A Quick Installation Guide

Configuring Wi-Fi Adapter in OS Windows XP

1. Click t e Sta t button and proceed to t e Cont ol Panel > Netwo k

and Inte net Connections > Netwo k Connections window.

2. Select t e icon of t e wireless network connection and make sure t at

your Wi-Fi adapter is on.

3. Searc for available wireless networks.

4. In t e opened Wi eless Netwo k Connection window, select t e

wireless network DIR-806A (for operating in t e 2.4GHz band) or

DIR-806A-5G (for operating in t e 5GHz band) and click t e Connect

button.

After t at t e Wi eless Netwo k Connection Status window appears.

If you perform initial configuration of t e router via Wi-Fi connection,

note t at immediately after c anging t e wireless default settings of t e

router you will need to reconfigure t e wireless connection using t e

newly specified settings.
