D-Link Airspot DSA-3100 Manuel utilisateur

Before You Begin

This QuickInstallation Guide (QIG) provides instructionfor installing the DSA-3100and Ethernetconfiguration for

otherPCs. The former part is goingtoshow howtoconnect DSA-3

100withother NetworkequipmentsandNetwork

configuration ofDSA-3100.

The latter part is adescription for configuring Networksetting ofother PCs onEthernet

to make sure the normal functionofwhole Network.

CheckYour Package Contents

DSA-3100

Wireless Service Gateway

♦ DSA-3100 WirelessService Gateway

Balancer

♦ CD-ROM (Containing Manual and Warranty)

♦ Ethernet (CAT5 UTP/Straight-Through) cablex2

♦ 5V DC, 3APower Adapter

Using a power

supplywith a

different voltage

rating will damage and void

the warrantyfor this product.

♦ Console Cable

♦ Ethernet (CAT5 UTP/Cross over)cablex1

♦ DSA-3100 Quick Installation Guide

This product can beset up using

anycurrent web browser,i.e.,

Internet Explorer 5x,and

Netscape Navigator4x or above.

AEnsure the DSA-3100 is power OFF.

BUplink portconnection

Please use the Ethernet (CAT 5 UTP/Straight-Through) cable to connect the DSA-3100 andthe internal Switch (or Hub) in

the unmanaged network.

If your Uplinkhas been connected192 to internal Firewall or Router, please use the Ethernet (CAT5 UTP/Crossover) cable

to connect the DSA-3100 to theFirewall or Router.

CAuthentication & Local Networkport connection

Please use theEthernet (CAT 5 UTP/Straight-Through) cable to connect the DSA-3100sAuthentication Port and the

internal Switch (or Hub) in the Managed network.

Use the Ethernet(CAT 5 UTP/Straight-Through) cableto connect the DSA-3100sLocal Network Port and the internal

Switch(or Hub) in the Trusted network.

Ifyouwantdirectly connectto theDSA-3100s Authentication Port (or Local Network Port) to thePC or thewireless AP,

you have to usetheEthernet (CAT5 UTP/Crossover) cable as connection.

DC Power Inlet

Connect thesupplied power

adapter here.

Console Port

Ifyouneedtoconfiguretheadmin password,

please connect the

PC tothis port andchange

above itemswith theterminal

linking applications of

the PC.

Connect the DSA-3100 toYour Ethernet

B.WAN Port

Please use theEthernet cable to

connect the DSA-

3100 and the internal

Switchinthe unmanaged network

C.Authentication & Local Network Port

Please use theEthernet cable to connect the

DSA-3100sAuthentication Port (or Local

Network Port) and the internal Switch in the

Managed network (or Trusted network)..

DPower up

Connect thesupplied power adapter to the DSA-3100 and power up.

ECheckthe LED

The Power Indicator shouldbe ON. The AuthenticationIndicator Local NetworkIndictor andUplinkIndicator should be ON,

ifthe corresponding UplinkExternal Port was connected to a Switch(or Hub) DSL/Cable Modem Firewall or a Router.

Connection Legend

Here comes aconnection legend, youhave toconnectyour Unmanaged Network totheDSA-3100s WANPort,thenyou

have toconnect DSA-3100 s Authentication port with your internalSwitchor Hub inthe Managed Network, thenyou

have toconnect DSA-3100 s Local Network port with your internal Switch or Hub in the Trusted Network. Ifyou need to

connect DSA-3100with administrator's PC directly, you have to useCross Line as a connection.

Status LED ActivityLED

WAN LED

Power LED

Local Network LED

Authentication LED

After DSA-3100installation,for each PC,thefollowing itemsmayneed tobe configured:

n TCP/IPNetwork Setting

n Internet Access Configuration

ATCP/IPNetwork Setting

Configure PC on Your Ethernet

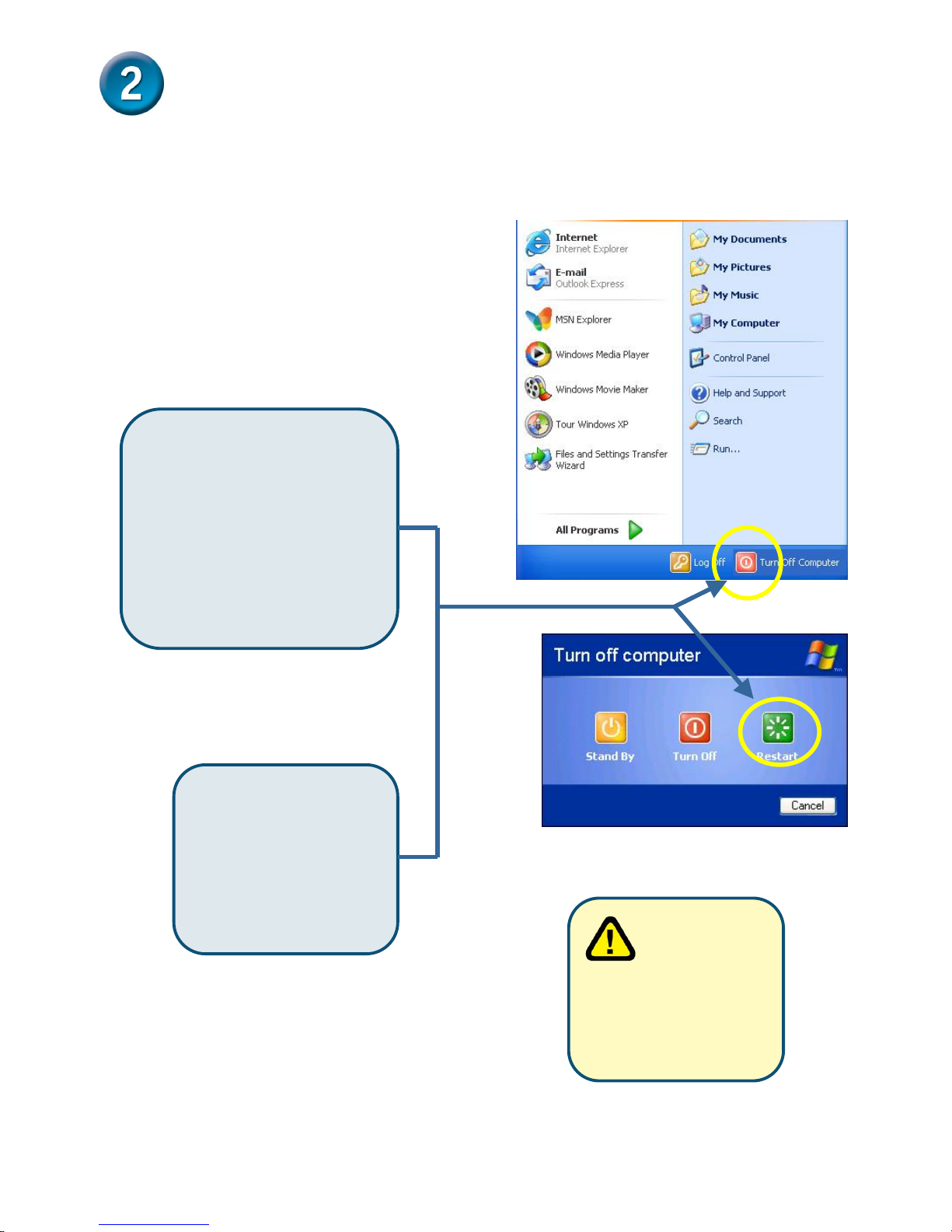

Reboot other PCs. For all

non-S

erver version ofWindow,

the default TCP/IPsetting is to

act as a DHCPclient. In

Windows, this called Obtainan

IPaddress automatically.

Ifadministrator's PC uses the default

Windows 95/98/ME/2000/XPsetting,

no changes needto be made. Please

restart or reboot the PC. Then

DSA-3100will act as aDHCPServer,

automaticallyproviding a suitableIP

Address (and related information) to

each PC.

Ifusing fixed IP

Address onyour

LAN, or youwant

to check your TCP/IPsetting,

refer to Appendix - Windows

TCP/IPSetup.

BInternetAccess Configuration

If you hopeanyPC on Ethernet can linkup Internet throughDSA-3100, Please make configurations according to different

environment byfollowing steps.

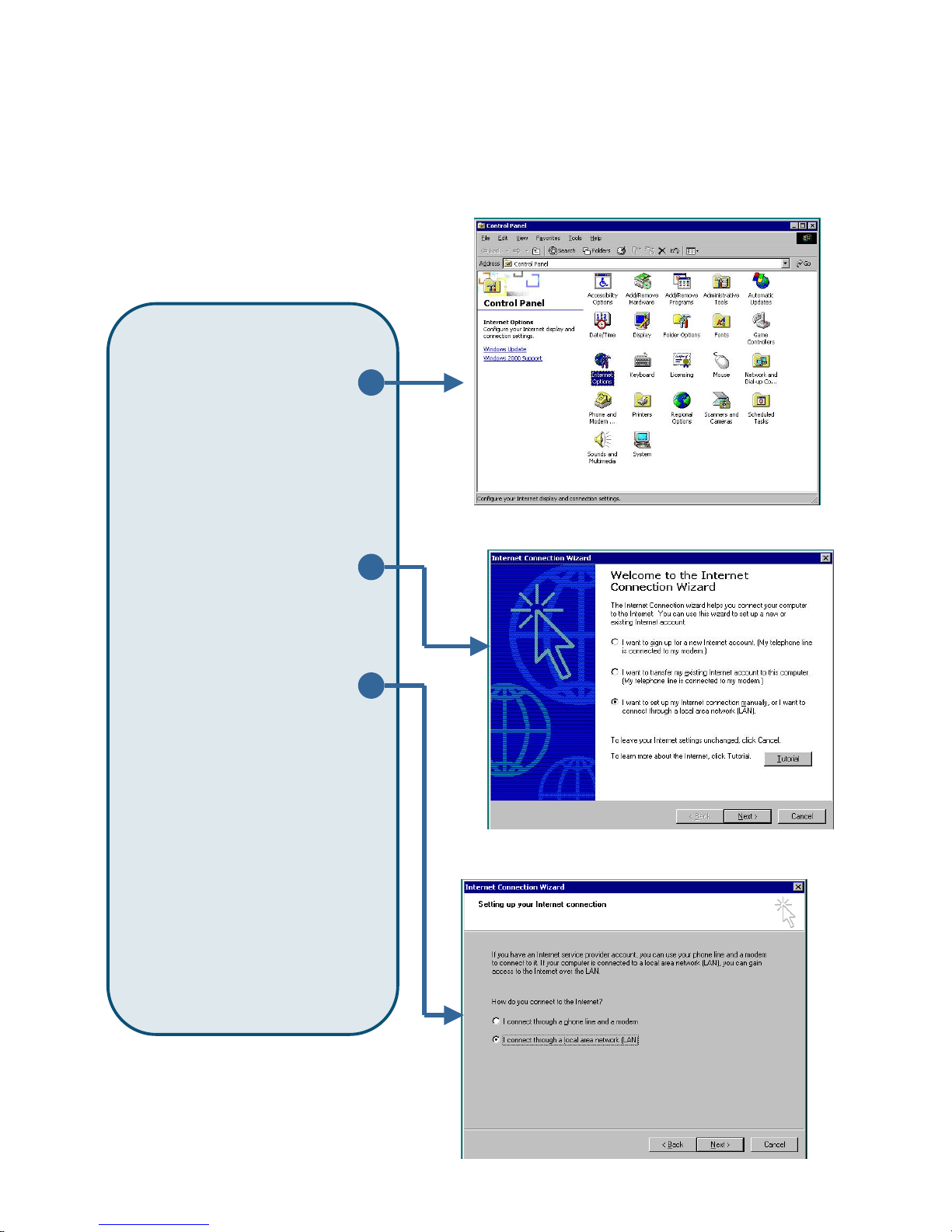

For Windows 9x/2000

1. Select Star Menu - Setting -

Control

Panel - Internet Option.

2. Select the Connection Tab, and

clickthe setup button.

3. Select "I want toset up myInternet

connection manually, or I want to

connect through a local area

Network(LAN)" and clickNext.

4. Select "I connect througha local

area network(LAN)" and clickNext

5. Ensure the entire box on the

following Local area network

Internet Configurationscreen is

unchecked.

6. Please checkthe "No" option when

prompted "Do youwant toset up an

Internet mail account now?

7. ClickFinish to closetheInternet

ConnectionWizard to complete the

setup.

For Windows XP

1. Select Star Menu - Control

Panel - Networkand Internet

Connection.

2. Select Set up or changeyour

Internet Connection.

3. When InternetProperties

Dialogue Box pops up, click

"Setup" button and click"Next"

on the "NewConnection

Wizard" screen.

4. Select "Connect tothe

Internet" andclick"Next".

5. Select "Setup myconnection

manually"and click"Next".

6. Check"Connect using a

broadband connection that is

always on" andclick"Next".

7. ClickFinish to closetheNew

ConnectionWizard to complete

the setup.

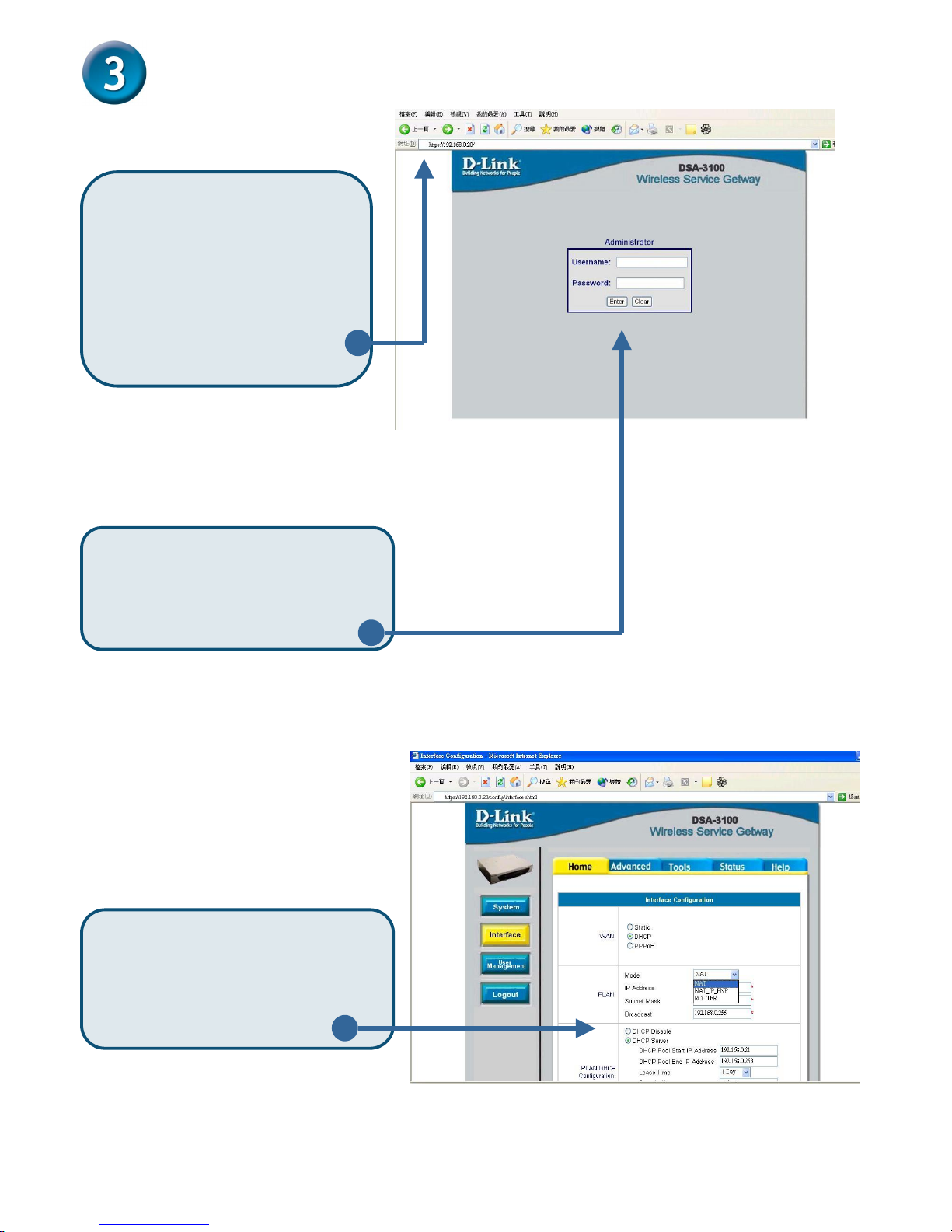

AOpen WEB Browser

BEnter theUsername and Passwords

CNetwork Configuration

If you have done aboveinstallation and

configurations, please openWEB

Browser like Microsoft Internet Explore

and enter the administrator's URL. For

example, please enter

"https://192.168.0.40" in the Address or

Location Box.

When enteringtheURL

,you'll findthe

following dialoguebox on screen. Please

enter "admin" in the "Username" column

and

enter “admin: in the “Password”column.

When WEB management interface of

DSA-3100pops

up, please refer to

DSA-3100

User Manualin Product Package

for further networkconfigurations.

For Further Configuration

Appendix - WindowsTCP/IPSetup

Before ensureyour TCP/IP settings correct, please checkDSA-3100's IPAddress with your networkadministrator, and

ask your ISP for DNS Address or Address before making the following changes.

AChecking TCP/IPSettings - Windows9x/ME

1. Select "ControlPanel" -

"Network

and Dial-up Conn

ections", then

click"Properties".

Select the TCP/IPprotocol for

your networkcard.

3. Clickon theProperties button.

4. Ifthe DNS Server fields are

empty, select Use the following

DNS server addresses, and enter

the DNS address or addresses

provided byyour ISP, then click

OK.

5. On the Gatewaytab,enter the

DSA-3100's IP address in the

NewGatewayfield and click Add.

(Your LAN administrator can

advise youofthe IPAddress they

assigned to the DSA-3100.)

BCheck TCP/IPSetting -Windows2000

1. Select "ControlPanel" -"Ne

twork

and Dial-

up Connections", then

click"Properties".

Rightclickthe "LocalArea

Connection" iconand select

"Properties", thenselect the

TCP/IP protocolfor your network

card.

3. Clickon theProperties button.

4. Ifthe DNS Server fields are

empty, select Use the following

DNS server addresses, and enter

the DNS address or addresses

provided byyour ISP, then click

OK.

5. On the Gatewaytab,enter the

DSA-3100's IP address in the

NewGatewayfield and click Add.

(Your LAN administrator can

advise youof

the IPAddress they

assigned to the DSA-3100.)

CChecking TCP/IPSetting -WindowsXP

1. Select Star Menu - Control

Panel - NetworkConnections

and click"Network

Connections".

2. Right clickthe LocalArea

Connection icon and select

Properties.

3. Select the TCP/IP protocol

for your network card and

clickthe Properties button.

4. If the DNS Server fields are

empty, select Use the

following DNS server

addresses,and enter the

DNS address or addresses

provided byyour ISP, then

clickOK.

5. On the Gatewaytab,enter the

DSA-3100's IP address in the

NewGatewayfield and click Add.

(Your LAN administrator can

advise youofthe IPAddress they

assigned to the DSA-3100.)
