D-Link DES-1316 - Switch Manuel utilisateur

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DES-1316 PoE Web-Smart Switch. The model you have purchased may appear slightly

different from those shown in the illustrations. For more detailed information about the

Switch, its components, making network connections and technical specifications,

please refer to the User’s Manual on the master CD included with your switch.

Check Your Package Contents

If any item is found missing or damaged, please contact your local reseller for

replacement.

holders. Software and specifications subject to change without notice.

Web Smart 16-Port 10/100Mbps Switch with PoE

CD-ROM(Containing manual and Utility

Installation)

Before Your Begin

C powe

cord (Suitable for your area’s

electrical power connections)

DES-1316

Web Smart 16-Port 10/100Mbps

Switch with PoE

Setup The DES-1316 PoE Web Smart Switch

The setup of the Switch can be performed using the following steps:

A. Install DES-1316 in a fairly cool and dry place. See Technical Specifications fo

r the acceptable temperature and humidity operating ranges.

B. Install the Switch in a site free from strong electromagnetic field generators (su

ch as motors), vibration, dust, and direct exposure to sunlight.

C. Leave at least 10cm of space at the front and rear of the hub for ventilation.

D. Install the Switch on a sturdy, level surface that can support its weight, or in a

n EIA standard-size equipment rack. For information on rack installation, see the ne

xt section titled Rack Mounting.

E. When installing the Switch on a level surface, attach the rubber feet to the bott

om of each device. The rubber feet cushion the switch and protect the case from s

cratching.

Rack Mounting

The DES-1316 can be mounted in an EIA standard-size, 19-inch rack, which can be

placed in a wiring closet with other equipment. Attach the mounting brackets at the

Switch’s front panel (one on each side), and secure them with the provided screws.

Combine the Switch with the provided screws

Then, use screws provided with the equipment rack to mount each Switch in the rack.

Mount the Switch in the rack

Connecting Network Cables

The DES-1316 supports 16 10/100M Ethernet ports and Port 1 ~ Port 8 are PoE

enabled ports. These PoE ports are automatically activated when a compatible terminal

is identified; the Switch will supply power through the Ethernet port to the connected

PoE device.

For Legacy devices that are not yet compatible, the PoE port will not offer power to this

device. This feature allows users to freely and safely mix legacy and Power over

Ethernet compatible devices on their network.

The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and it runs both in

half- and full- duplex mode using two pair of Category 5 cable.

These RJ45 ports are Auto-MDI type ports. The Switch can auto transform to MDI-II or

MDI-X type, so you can make an easy connection without worrying if you are using a

standard or crossover RJ45 cable.

AC Power

The Switch uses a 100-240V AC, 50-60 Hz power supply. The power switch is located at the rear

of the unit adjacent to the AC power connector and the system fan. The Switch’s power supply will

adjust to the local power source automatically and may be turned on without having any or all LAN

segment cables connected.

Identifying External Components

This chapter describes the front panel, rear panel, and LED indicators of the Switch.

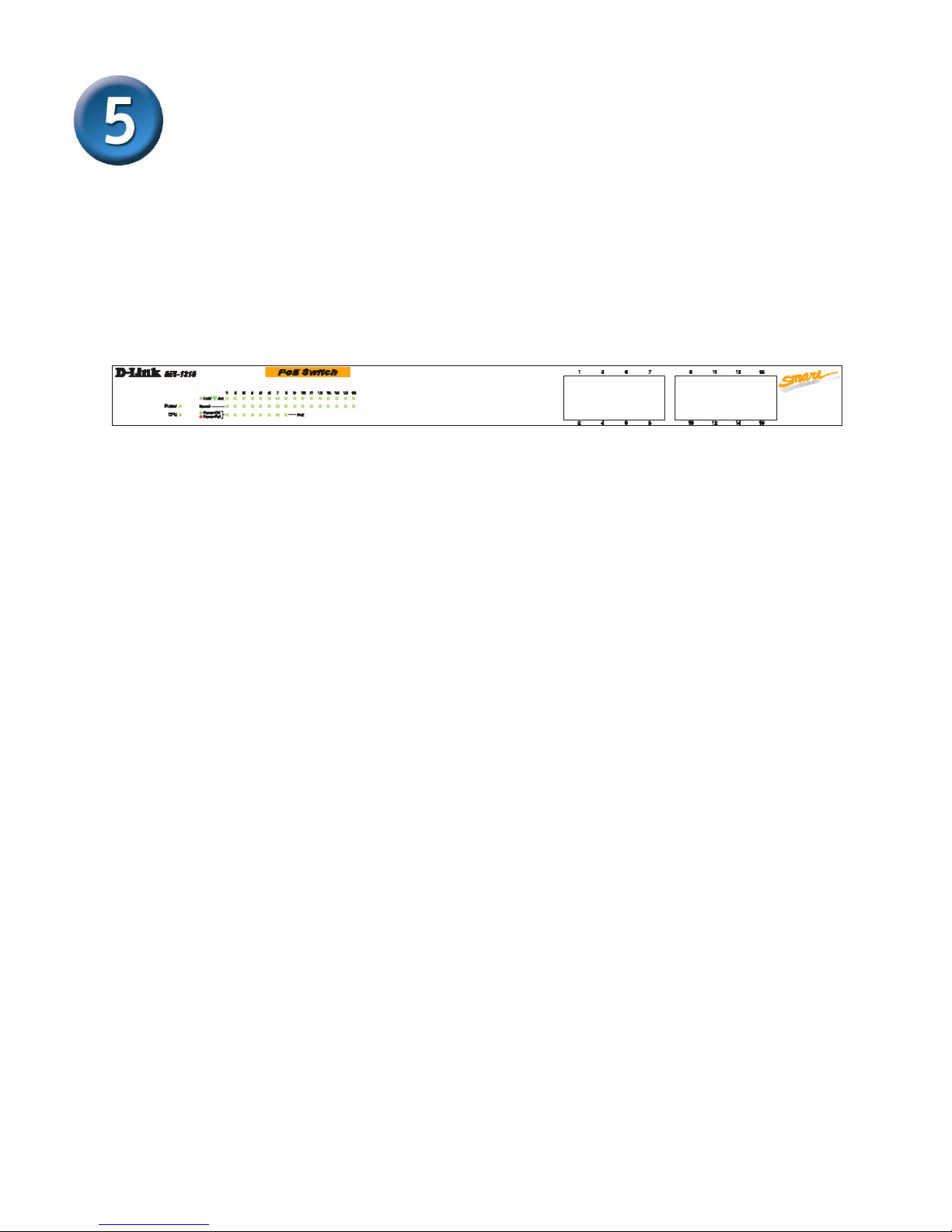

Front Panel

The figure below shows the front panels of the Switch.

PoE Ports

┌――┐

└――――┘ └―――┘

LEDIndicators EthernetPorts

Front panel of the Switch

LED Indicator:

Comprehensive LED indicators display the status of the Switch and the network (see the

LED Indicators chapter below).

PoE Ports (Ports 1~8):

These ports are PoE Enabled ports, the PoE port will automatically activate when a

compatible terminal is identified, the Switch will supply power through the Ethernet port

to the connected PoE device.

For Legacy devices that are not yet compatible, the PoE port will not offer power to this

device. This feature allows users to freely and safely mix legacy and Power over

Ethernet compatible devices on their network.

These ports support network speeds of either 10Mbps or 100Mbps, and can operate in

half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX

crossover detection to give true “plug and play” capability. You just need to plug-in the

network cable to the Switch directly, regardless of if the end node is a NIC (Network

Interface Card) or a switch and a hub.

Ethernet Ports (Port 9~16):

These ports support network speeds of either 10Mbps or 100Mbps, and can operate in

half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX

crossover detection to give true “plug and play” capability. You just need to plug-in the

network cable to the Switch directly, regardless of if the end node is a NIC (Network

Interface Card) or a switch and a hub

Note: When the port is set to “Forced Mode”, Auto MDI/MDIX will be disabled.

Rear Panel

Rear panel of the Switch

AC Power Connector:

This is a three-pronged connector that supports the power cord. Plug in the female connector of

the provided power cord into this connector, and the male into a power outlet. Supported input

voltages range from 100-240V AC at 50-60Hz.

Reset:

The Reset button is to reset all settings back to the factory defaults.

Note: Be sure that you record the settings of your device, or else all the settings w

ill be erased when pressing the “Reset” button.

Understanding LED Indicators

The front panel LEDs provide instant status feedback, and, help monitor and troubleshoot when

needed.

AC Power Connector

Reset Button

LED indicators of the Switch

Power and CPU LEDs

POWER: Power Indicator

On When the Power LED lights on, the Switch is receiving power.

Off When the Power turns off or the power cord has an improper connection.

CPU: Management Indicator

Blinking When the CPU is working, the CPU LED is blinking.

On/Off The CPU is not working.

Ports 1~8 PoE port status LEDs

Link/ACT: Link/Activity

When the Link/ACT LED lights on, the respective port is successfully connected to an

Ethernet network.

Blinking

When the Link/ACT LED is blinking, the port is transmitting or receiving data on the

Ethernet network.

Off There is no link.

100Mbps

When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off When the respective port is connected to a 10Mbps Ethernet network.

PoE Status

Green When the PoE device is connected and the port supplies power successfully.

Red

When the following failure occurs on the PoE port:

9PoE power short circuit

9PoE Power over current

9PoE Power fault

Off No Powered Device is detected.

Ports 9~16 Ethernet port status LEDs

Link/ACT: Link/Activity

When the Link/ACT LED lights on, the respective port is successfully connected

to an Ethernet network.

Blinking

When the Link/ACT LED is blinking, the port is transmitting or receiving data on

the Ethernet network.

Off There is no link.

100Mbps

When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off When the respective port is connected to a 10Mbps Ethernet network

Installing the Web Management Utility

The following provides instructions guiding you through the installations of the Web

Management utility.

1. Insert the Utility CD in the CD-ROM Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe (D:\ depends

where your CD-Rom drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files -> web_management_utility and execute

the Web Management utility. (Figure 1.)

Figure 1. Web Management Utility

Configuring the Switch

The 8-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE has a Web GUI

interface for smart switch configuration. The Switch can be configured through the Web

Browser. A network administrator can manage, control, and monitor the Switch from the

local LAN. This section indicates how to configure the Switch to enable its smart

functions including:

Port Settings (Speed/Duplex and Flow Control)

VLAN Settings (802.1Q VLAN)

Trunking

Port Mirroring

PoE Settings

System Settings

Device status and Statistics

Before you configure this device, note that when the Web Smart Switch is configured

through an Ethernet connection, the manager PC must be set on same the IP network.

For example, when the default IP address of the Web Smart Switch is 192.168.0.1, then

the manager PC should be set at 192.168.0.x (where x is a number between 2 and 254),

and the default subnet mask is 255.255.255.0.

Open Internet Explorer 5.0 or above Web browser.

Enter the IP address http://192.168.0.1 (the factory-default IP address setting) into the

address location. (Figure 2.)

Figure 2.

Through the Web Management Utility, you do not need to remember the IP Address.

Select the device shown in the Monitor List of the Web Management Utility to settle the

device on the Web Browser.

When the following dialog page appears, enter the default password "admin" and press

Figure 3.

After entering the password, the main page appears and the screen will display the

device status. (Figure 4.)

Figure 4. Device Status
