D-Link DWL-G650M - Super G With MIMO Manuel utilisateur
1
DWL-G650MDWL-G650M
DWL-G650MDWL-G650M
DWL-G650M
If any of the above items are missing, please contact your reseller
CD-ROM (containing Drivers and Manual)
Thisproductworkswiththefollowingoperating
systems: Windows XP, Windows 2000
BefBef
BefBef
Beforor
oror
ore Ye Y
e Ye Y
e You Beginou Begin
ou Beginou Begin
ou Begin
DWL-G650M Super G™MIMO
Wireless Notebook Adapter
Check YCheck Y
Check YCheck Y
Check Your Pour P
our Pour P
our Packack
ackack
ackage Contentsage Contents
age Contentsage Contents
age Contents
ThesearetheitemsincludedwithyourDWL-G650Mpurchase:
You must have at least the following:
•Alaptop computer with an available 32-bit Cardbus slot
•At least a 500MHz processor and 64MB of memory
•CardbusController properly installed and working in the laptop computer
•An802.11gAccessPoint (for Infrastructure Mode)
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DWL-G650M.12212004
Super G™MIMOSuper G™MIMO
Super G™MIMOSuper G™MIMO
Super G™MIMO
Wireless Notebook AdapterWireless Notebook Adapter
Wireless Notebook AdapterWireless Notebook Adapter
Wireless Notebook Adapter
2

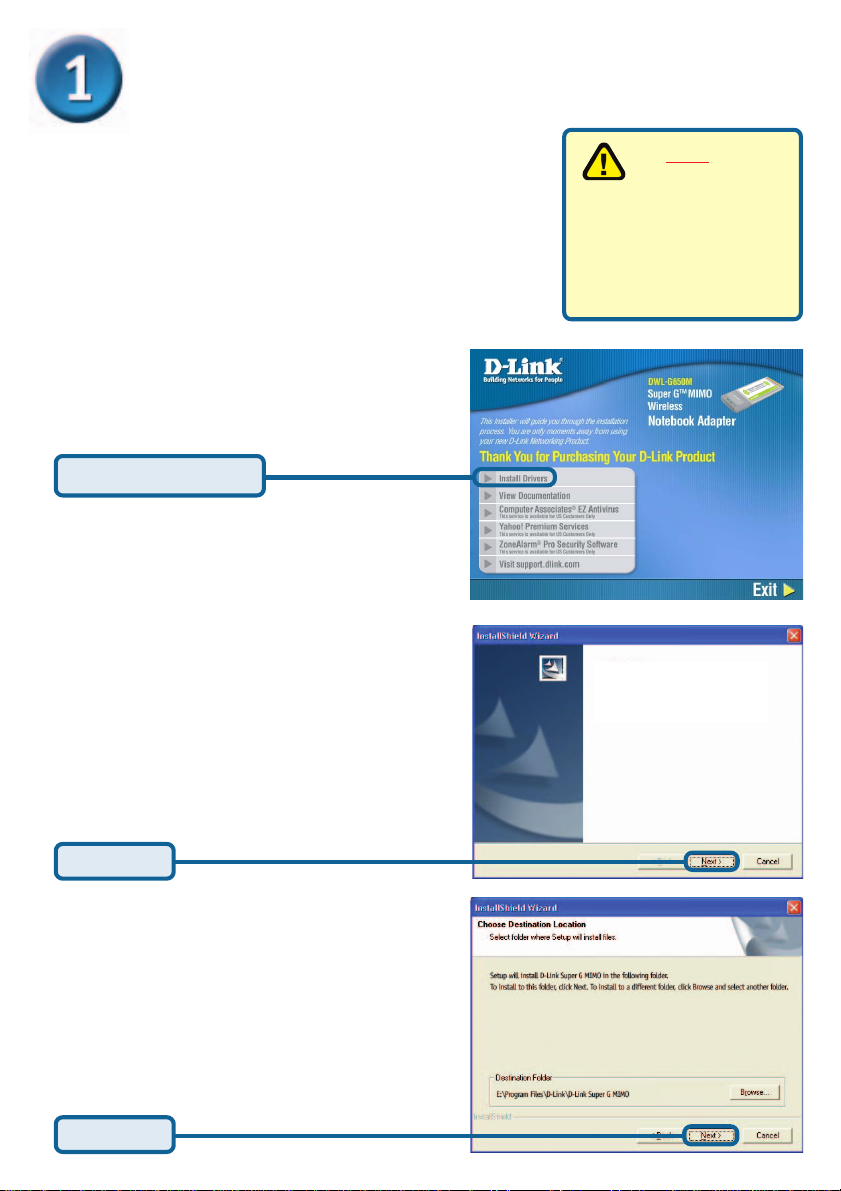

Click Next
Click Next
Click Install Drivers
If the CD Autorun function does not
automatically start on your computer,
type “D:\Drivers\setup.exe.” If it does
start, proceed to the next screen.
Turn on the computer and Insert the D-Link
Super G™MIMO DWL-G650M Driver CD in
theCD-ROMdrive.
The step-by-step instructions that follow are shown in
WindowsXP.Thestepsandscreensaresimilar forthe
otherWindows2000
Installing the DriversInstalling the Drivers
Installing the DriversInstalling the Drivers
Installing the Drivers
Super GTM MIMO Wireless Utility
TheInstallShield Wizardwillinstall
D-Link Super G MIMO on your
computer.To continue click Next.
®
Do NOT install
the DWL-G650M
Notebook Adapter into
your computer before
installing the driver
software from the
D-Link CD!
3
Click Next
Installing the Drivers (continued)Installing the Drivers (continued)
Installing the Drivers (continued)Installing the Drivers (continued)
Installing the Drivers (continued)
Click Finish
Click Next
Shut down your computer
Remember to leave the DWL-G650M Driver CD in the CD-ROM drive.
Super G Mimo Utility
D-LinkSuper G MIMO
Setuphas finishedinstalling Super G Mimo onyour
computer.
4
Installing the DWL-G650M Wireless
Notebook Adapter in Your Laptop
A. Make sure to turn off the laptop computer.
B. LocatetheCardbusslotonyour laptop computer.
C. GentlyinserttheDWL-G650MintotheCardbusslotinyourlaptop
computerasshownbelow.
Antenna
Used to wirelessly connect
to802.11gnetworks.
32-bit connector
This is the connector that fits into
the Cardbus slot of your laptop.
Indicates that the
DWL-G650Misproperly
installed when the
computer is on.
Link
Blinkswhen data is
beingtransmitted.
ActivityLED
5
Completing the InstallationCompleting the Installation
Completing the InstallationCompleting the Installation
Completing the Installation
Whenyourestartyourcomputer this
Found New Hardware Wizard
(WindowsXP) screen mayappear:
Click Next
Select Install the software
automatically (Recommended)
Click Finishto finalize
the installation.
D-LinkSuper G MIMO DWL-G650M
6
YY
YY
Your Installation is Complete!our Installation is Complete!
our Installation is Complete!our Installation is Complete!
our Installation is Complete!
Aftertheinstallation, theConfiguration Utility will automatically start and the utility icon
will appear in the bottom right hand corner of the desktop screen (systray). If this icon
appears GREEN, then you have successfully installed the DWL-G650M, are
connected to a wireless network and are ready to communicate!
Double-click the utility icon to
use the configuration utility.
If the utility icon does not appear,
double-click the shortcut icon that
has appeared on your desktop.
AppendixAppendix
AppendixAppendix
Appendix
WPA-PSK:
WPA-Personal is directed at home users who do not have the server based equipment
requiredfor user authentication. The method ofauthenticationis similar to WEP because
you define a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared key is
confirmed and satisfied on both the client and access point, then access is granted. the
encryptionmethod usedis referredto astheTemporalKeyIntegrityProtocol (TKIP),which
offers per-packet dynamic hashing. It also includes an integrity checking feature which
ensures that the packets were not tampered with during wireless transmission.
7
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration Utility
Click the XP Networking icon
to use the Zero Configuration
Wireless Settings.
Click Advanced
Uncheck “Use Windows to
configure my wireless
network settings.”
ClickOK
For Windows XP, if you wish to use the Super G™MIMO utility, please complete
thefollowing steps:
8
• Status: Displays the MAC Address of the Access Point that is associated with the
DWL-G650M.
• SSID:The Service Set Identifier is the name assigned to the wireless network. The factory
SSID setting is set to default.
• TxRate: Thedefault setting is Auto; meaning, TxRate settings are automatically determined
by the DWL-G650M depending on the distance from the access point.
• Channel: Displays the channel information. By default, the channel is set to 6 and selection
is automatically determined by the DWL-G650M.
• Link Quality / Signal Strength: Displays the Link Quality for the DWL-G650M wireless
connection to the access point. The Signal Strength represents the wireless signal between
the access point and the DWL-G650M. The percentage coincides with the graphical bar.
• Data Rate: Graphically displays the statistics of data transmitted and received.
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration Utility
(continued)(continued)
(continued)(continued)
(continued)
9
K
• SSID: The Service Set Identifier is the name assigned to the wireless network. The factory
SSID setting is set to default. Make changes here to match the SSID on existing Wireless
Router or Access Point.
• Wireless Mode: The factory setting is set to Infrastructure.Ad-Hoc mode is used for peer-
to-peer networking.
• AdHoc Band: Specifies the Ad-Hoc Band used whether 802.11b/g when setting up an Ad-
Hoc network.
• Channel: By default, the channel is set to 6. Channel selection is automatically adjusted by
the DWL-G650M depending on the channel setting of the access point selected for
association. To change the channel settings, the Wireless Mode must be set to Ad-hoc.
• TxRate: You can adjust the transmission rate to get the best signal possible depending
on your usage and your environment.
• Power Mode: By default, Power Mode is set to Continuous Access Mode.
Continuous Access Mode — this default setting consumes the most power.
Maximum Power Save — this setting consumes the least power.
Power Save — this setting consumes a moderate amount of power.
• Support Band: By default, the DWL-G650M will scan & connect to an 802.11b/g network.
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration UtilityAppendix A - Using the Configuration Utility
Appendix A - Using the Configuration Utility
(continued)(continued)
(continued)(continued)
(continued)
10
Appendix B - IP Address ConfigurationAppendix B - IP Address Configuration
Appendix B - IP Address ConfigurationAppendix B - IP Address Configuration
Appendix B - IP Address Configuration
To connect to a network, make sure the proper
network settings are configured for DWL-G650M.
Microsoft Windows XP:
Goto Start,right click onMy Network Places,
select Properties, and Double-click on the
Network Connection associated with the
DWL-G650M.
Input a static IP address in the same range
as the Wireless Router or Access Point.
Static IP address setup
Click OK
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
Click OK
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically (ifthe Wireless Routeror
AccessPointhas DHCPserverenabled)
Select Obtain DNS server
address automatically
Dynamic IP address setup
Used when a DHCP server is available on
the local network. (i.e. Router)
Used when a DHCP server is not available
on the local network.
Select Use the following IP address
D-Link Super G MIMO DWL-G650M
