Cypress S6E2DH series Manuel utilisateur

www.infineon.com

Please note that Cypress is an Infineon Technologies Company.

The document following this cover page is marked as “Cypress” document as this is the

company that originally developed the product. Please note that Infineon will continue

to oer the product to new and existing customers as part of the Infineon product

portfolio.

Continuity of document content

The fact that Infineon oers the following product as part of the Infineon product

portfolio does not lead to any changes to this document. Future revisions will occur

when appropriate, and any changes will be set out on the document history page.

Continuity of ordering part numbers

Infineon continues to support existing part numbers. Please continue to use the

ordering part numbers listed in the datasheet for ordering.

www.cypress.com Document No. 002-04388 Rev. *B 1

AN204388

Getting Started For FM4S6E2DH (GAT-D)

Associated Part Family: S6E2DH Series

The purpose of this guide is to provide a brief introduction of the graphics resolution of S6E2DH designated by

Cypress.

Contents

1Preface.....................................................................1

1.1 About This Guide.............................................1

2Overview ..................................................................1

3Utilization of GAT-D Tool Step by Step ....................2

3.1 Create a New Project.......................................3

3.2 Import Images..................................................4

3.3 Page Creation..................................................6

3.4 Flow Design Table Creation...........................17

3.5 Source Generation.........................................21

3.6 Add Generated Source to IAR project ...........22

3.7 Download and Run after Build.......................24

4Application of GAT-D..............................................26

4.1 Event Management........................................26

4.2 User’s Source Code.......................................27

4.3 Display Simulation .........................................29

4.4 Sprite Special Effect ......................................30

4.5 Touch Panel Resolution.................................31

4.6 Source Generate Option................................32

5GAT-D API .............................................................34

5.1 Interface Description......................................35

5.2 Join with Source ............................................37

6Program..................................................................38

6.1 Debugging Mode ...........................................38

6.2 Product Mode ................................................39

7Sample Project Instruction......................................39

7.1 Construction ..................................................39

7.2 Function Overview.........................................41

Document History............................................................42

1 Preface

1.1 About This Guide

The purpose of this guide is to provide a brief introduction of the graphics resolution of S6E2DH designated by

Cypress. This guide explains:

1. How to work with Graphics Authoring Tool for S6E2DH (GAT-D).

2. Advanced application of GAT-D.

3. How to integrate the generated source and Graphics Driver to embedded software.

4. Program to internal Flash and external Flash.

5. Construction of sample.

Note: This guide is described with example while using EWARM of IAR Systems AB. For other IDE please refer it

properly.

2 Overview

Follow figure shows the exact relationship of each component.

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 2

Figure 1. Overview

GAT-D Tool and GAT-D API Library could be found in S6E2DH-Graphics resolution-Ver1.0.zip.

GAT-D Tool: S6E2DH-Graphics resolution-Ver1.0\01. GAT-D Tool\01. Installer\GAT-D_xxx.exe

GAT-D API Library: S6E2DH-Graphics resolution-Ver1.0\02. GAT-D API Library\01. IAR\01. bin\GAT-D API.a

Graphics Driver: In the package of S6E2D-2DGraphicsDriver-v1.00.798-IAR.zip

S6E2D-2DGraphicsDriver-v1.00.798-IAR \01_bin\arm_none_iar\release\basic_graphics.a

S6E2D-2DGraphicsDriver-v1.00.798-IAR \01_bin\arm_none_iar\release\util.a

3 Utilization of GAT-D Tool Step by Step

The follow steps explain how to use GAT-D Tool to arrange a video (a series of frame) to display on S6E2DH Series

based LCD device.

1. Create a new project

2. Import images

3. Page creation

4. Flow Design Table creation

5. Source generation

6. Add generated source to IAR project

7. Download and run after build

Also assumed conditions:

1. GAT-D Tool installed

2. IAR Embedded Workbench installed (ver.7.10 or upper)

3. Image material prepared

4. A S6E2DH series based LCD device and ICE (I-Jet recommend) prepared

environment

GAT-D

Tool

Images

.Bmp

.Jpeg

.Png

.Gif

.etc. I

Project creation

Image convert

Display configuration

Display simulation

Source generation

IAR EW

IDE

Generated source

GAT-D API.a

GAT-D API

Library

Graphics

Driver

basic_graphics.a

util.a

Other function source

User

edited

Flash image

(.Mhx)

Embedded

device

External flash

Program

S6E2DH internal

flash

Build/Program

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 3

3.1 Create a New Project

Step1: Open GAT-D Tool, the tool will open as follow.

Figure 2. Opened GAT-D Tool Window

Step2: Click “Project” menu and click “new” as follows

Figure 3. New Project Menu

Step3: Input the name and select LCD Size.

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 4

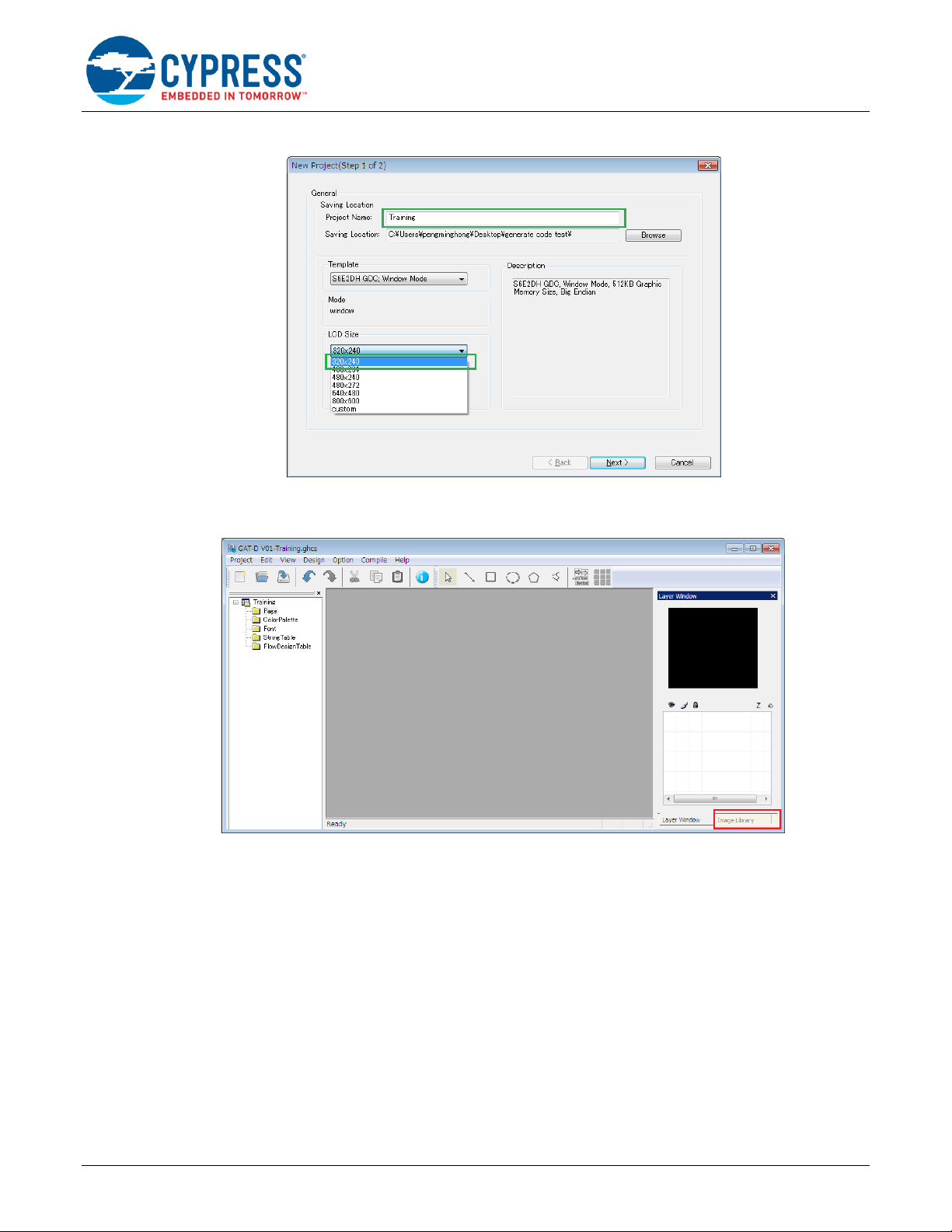

Figure 4. New Project Step 1 of 2

Step4: Click “Next” and then click “Finish” a new project will create as follow.

Figure 5. New Project

3.2 Import Images

Step1: Click “Image Library”

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 5

Figure 6. Image Library Tab

Step2: Right click “Stencil” in “Image Library”, and Click “Add New Image” in the menu.

Figure 7. Add New Image Menu

Step3: Go to the path and select images, image will list as follow.

Note: Image’s file type support bmp, png, jpeg, gif, psd.

Figure 8. Added Image List

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 6

3.3 Page Creation

3.3.1 Create a new Page

Step1: Right click “Page” folder, and click “New Page” in the menu.

Figure 9. New Page Menu

Then a new page is created as follow.

Figure 10. Created New Page

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 7

3.3.2 Page Configuration

Step1: Right Click “Page1” and click “Properties…” in menu

Figure 11. Page Property Menu

Step2: Check “Enable”, the background color of page could be changed.

Select RGB Color, if there is nothing on the page, LCD will display background color.

Figure 12. Page Property Window

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 8

3.3.3 Add Window to Page

Step1: Select window from drawn tool bar, left click to work area, window is added as follow.

If want to add several window to a layer, you have to set the layer option to multi-window layer, otherwise could only

add one window to a layer

Figure 13. Add Window

Step2: Double click window in work area, window configuration window will displays. Configure them.

Figure 14. Window Property

Getting Started for FM4 S6E2DH (GAT-D)

www.cypress.com Document No. 002-04388 Rev. *B 9

If want add several image to one window, you have to check “Blend Operator”

Figure 3-14 shows difference of image in windows that are set to “Blend Operator” or not

Figure 15. Blend Operator

The setting of “Alpha-blending”, will effects blend result of image on the window with background.

Figure 16. Window Alpha Blend Illustrations

Illustrations A:

External

Flash

Image in

window set to

“Blend

Operator”

Image in window

not set to “Blend

Operator”

S6E2DH

MCU

GDC Blend

Engine

VRAM

GDC Display

Engine
