Cypress DCT-7 Manuel d'installation

DCT-7

Virtual 5.1 Surround

Audio Processor

Operation Manual

DCT-7

Revision History

Version No Date Summary of Change

V1 20090408 Preliminary Release

Precaution

Failure to follow the precautions described below may cause damage to

Audio Processor and void the warranty.

 DO NOT open the case. Doing so will void the warranty. If you ﬁnd

problem with it, please return back to your retailer or seller who will

assist you or provide you with solution.

 DO NOT use third-Party AC adapter or power cord. Doing so may

damage Audio Processor.

 DO NOT bump, jar or drop contents of the products as it may

damage it and result in warranty void.

 DO NOT set any liquids or beverages on the drive as they may

damage Audio Processor.

Table of Contents

1. Introduction…………………………………………………........……….

2. Application…………………………………………………................….

3. Contents……………………………………………….........................…

4. System Require…………………………………….…………........…….

5. Features…………………………………………….......……........………

6. Operation Controls and Functions…………………………………….

6.1 Front Panel ...............................................................................

6.2 Rear Panel ………………………………………….........….….…

6.3 Side Panel ………………………………………….........….….…

7. Connection and Installation…………………………….........……..…

8. Specications……………………………………………...........………..

1. Introduction

The Audio Processor is a comprehensive application for your entertainment

usage. It allows stereo sound to imitate 5.1CH sound and adjust different

sound volume into a balance form to make the listening more enjoyable.

With only a pair of L/R input and a pair of L/R output users can set up the

surrounding very easily and play the sound directly. Without extra speakers

require a theater like sound will be performed.

2. Application

 Home Theater

 Personal Entertainment

 Cable TV

 Night time entertainment

3. Contents

 Audio processer x 1

 5V/1A Power adaptor x 1

 Operational Manual

4. System Require

Source input (DVD player, PS3, Wii ….etc.) with L/R RCA cable and L/R

RCA cable with output display TV.

5. Features

 Supports stereo 2 channels input and converts a surround audio signal

(5.1 channels) output through L/R jack.

 Support AST (Adaptive Surround Technology) technology to coverts 2

channels audio signal to Virtual 5.1 channels surround sound audio.

 Support DVX (Virtualizer X) technology for virtual 5.1 channels surround

sound audio.

 Support DBEX (Bandwidth Extender) technology to compensate the

low/high frequency and perform it in real environment sound effects.

 Support DSC (Smart Compression) technology to correct some error

sound effects.

 Compact size and easy to install.

①L/R output: Connect L/R stereo analog audio output to the display audio

input of TV.

6.2 Rear Panel

LROUT

①L/R input: Connect L/R stereo analog audio input port to the L/R source

equipment, such as DVD player or PS3.

6. Operation Controls and Functions

6.1 Front Panel

IN RL

6.3 Side Panel

DC 5V

OFF

①On/Off switch: Switch On/Off to enable the stereo sound into 5.1CH Sound.

②Power: Plug 5V DC power supply into the unit and connect the adaptor

to AC wall outlet.

Input ports L/R stereo

Input Impedance 6.8K

Output ports L/R surround sound

Output Impedance 1K

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certiﬁed)

Dimensions (mm) 42(W) x 40.5(D) x 22(H)

Weight(g) 25

Chassis Material Plastic

Silk Skin Color White

Operating Temperature Operating from 0°C ~ 40°C

Power Consumption 0.5W

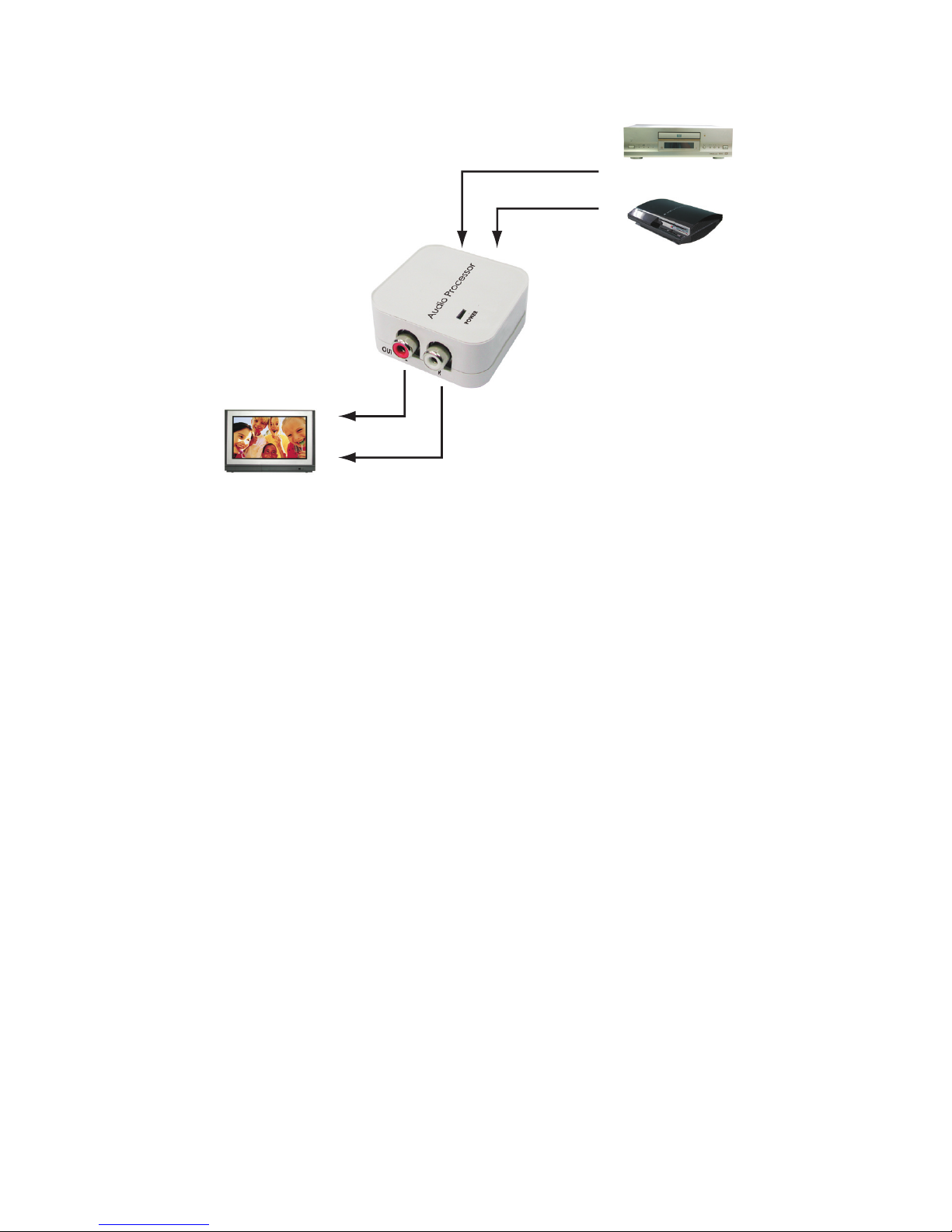

7. Connection and Installation

8. Specications

L/R

DVD

PS3

LCD TV

2008.07.08 MPM-DCT7

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
