DCT-7

Virtual 5.1 Surround

Audio Processor

Operation Manual

DCT-7

Revision History

Version No Date Summary of Change

V1 20090408 Preliminary Release

Precaution

Failure to follow the precautions described below may cause damage to the

Audio Processor and will void the warranty.

 DO NOT open the casing, doing so will void the warranty. If you

have a problem with this device, please return it back to your

retailer or seller who will then assist you with your problem.

 DO NOT use a third party AC adapter or power cord. Doing so

may damage the Audio Processor.

 DO NOT bump, shake or drop the contents of this product as this

may result in damaged parts and will void the warranty.

 DO NOT place any liquids on the processor as this could cause the

system to short circuit.

Table of Contents

1. Introduction…………………………………………………........……….

2. Applications..………………………………………………................….

3. Package Contents.………………………………….........................…

4. System Requirements.…………………………….…………........…….

5. Features…………………………………………….......……........………

6. Operation Controls and Functions…………………………………….

6.1 Front Panel ...............................................................................

6.2 Rear Panel ………………………………………….........….….…

6.3 Side Panel ………………………………………….........….….…

7. Connection and Installation…………………………….........……..…

8. Specications……………………………………………...........………..

1. Introduction

Searching for a way to improve your audio experience, well why not consider

the DCT-7 Virtual 5.1 Surround Audio Processor. This gadget allows stereo

sound to imitate 5.1CH sound while adjusting your volume level to give you

a more balanced and enjoyable audio experience. With only a pair of L/

R inputs and outputs to worry about users can set up this system without

much hassle or the need for additional speakers. What you end up getting is

theater like sound, in the convenience of your living room, making the DCT-7

Virtual 5.1 Surround Audio Processor an ideal companion for those wishing for

big sound in small packages.

2. Applications

 Home Theater

 Personal Entertainment

 Cable TV

3. Package Contents

 Audio processer x 1

 5V/1A Power adaptor x 1

 User Manual

4. System Requirements

Input sources (DVD player, PS3, Wii etc.) and output displays with L/R

audio cables.

5. Features

 Supports 2 channel stereo input and converts it into surround sound

audio signal (5.1 channels) output through L/R jack.

 Supports AST (Adaptive Surround Technology) technology to convert 2

channel audio signal into Virtual 5.1 channel surround sound.

 Supports DVX (Virtualizer X) technology for virtual 5.1 channel surround

sound audio.

 Supports DBEX (Bandwidth Extender) technology that helps low and

high frequencies sound closer to the original sound.

 Supports DSC (Smart Compression) technology to correct some sound

effect errors.

 Compact and easy to install.

① L/R output: Connect the L/R audio output to the audio input of a display

or TV.

6.2 Rear Panel

L ROUT

① L/R input: Connect the L/R audio input port to the sources (DVD/Blu-

Ray,PS3) L/R audio output port

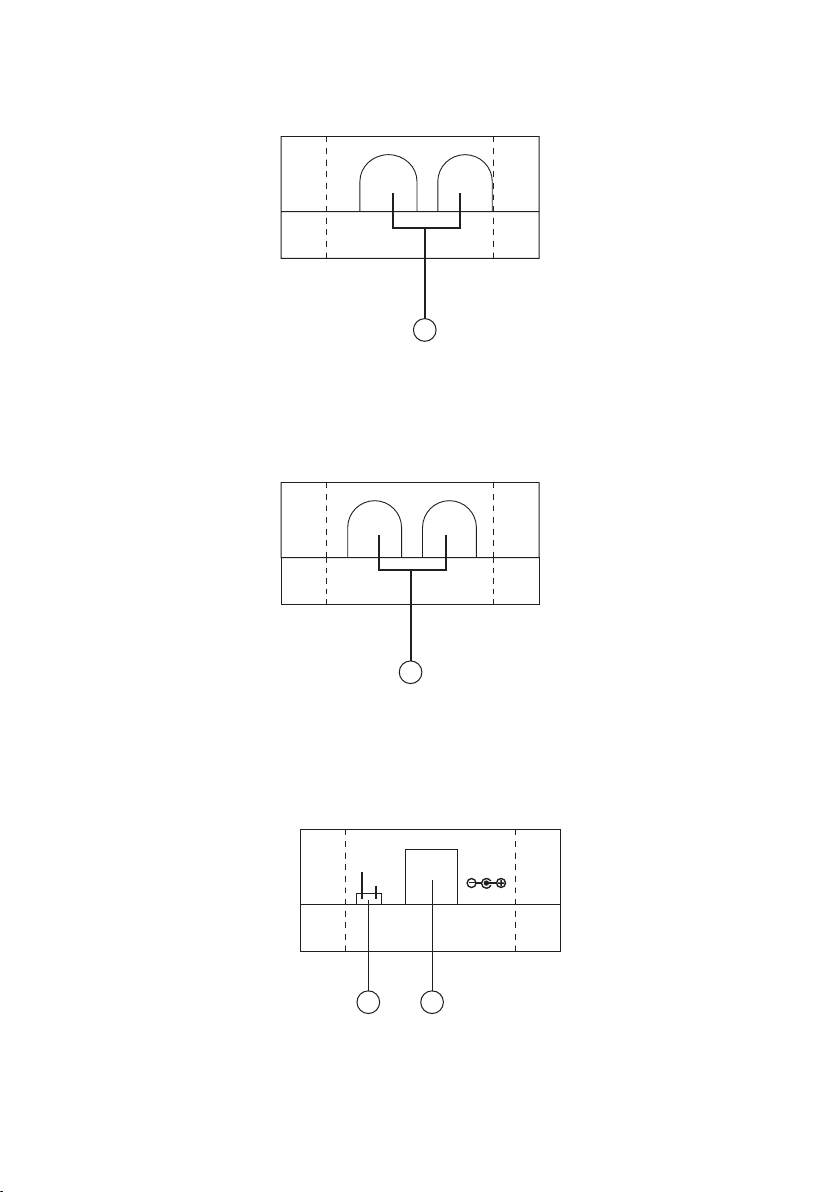

6. Operation Controls and Functions

6.1 Front Panel

IN RL

6.3 Side Panel

DC 5V

OFF

① On/Off switch: Switch On/Off to enable or disable the Virtual 5.1 Surround

Audio Processor.

② Power: Plug the 5V DC power supply into the unit and connect the

adaptor to an AC outlet.

Input Ports L/R stereo

Input 6.8K

Output Ports L/R surround sound

Output 1K

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certiﬁed)

Dimensions (mm) 42(W) x 40.5(D) x 22(H)

Weight(g) 25

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0°C ~ 40°C

Power Consumption 0.5W

7. Connection and Installation

8. Specications

L/R

LCD TV

L/R

DVD

PS3

2008.07.08 MPM-DCT7

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
