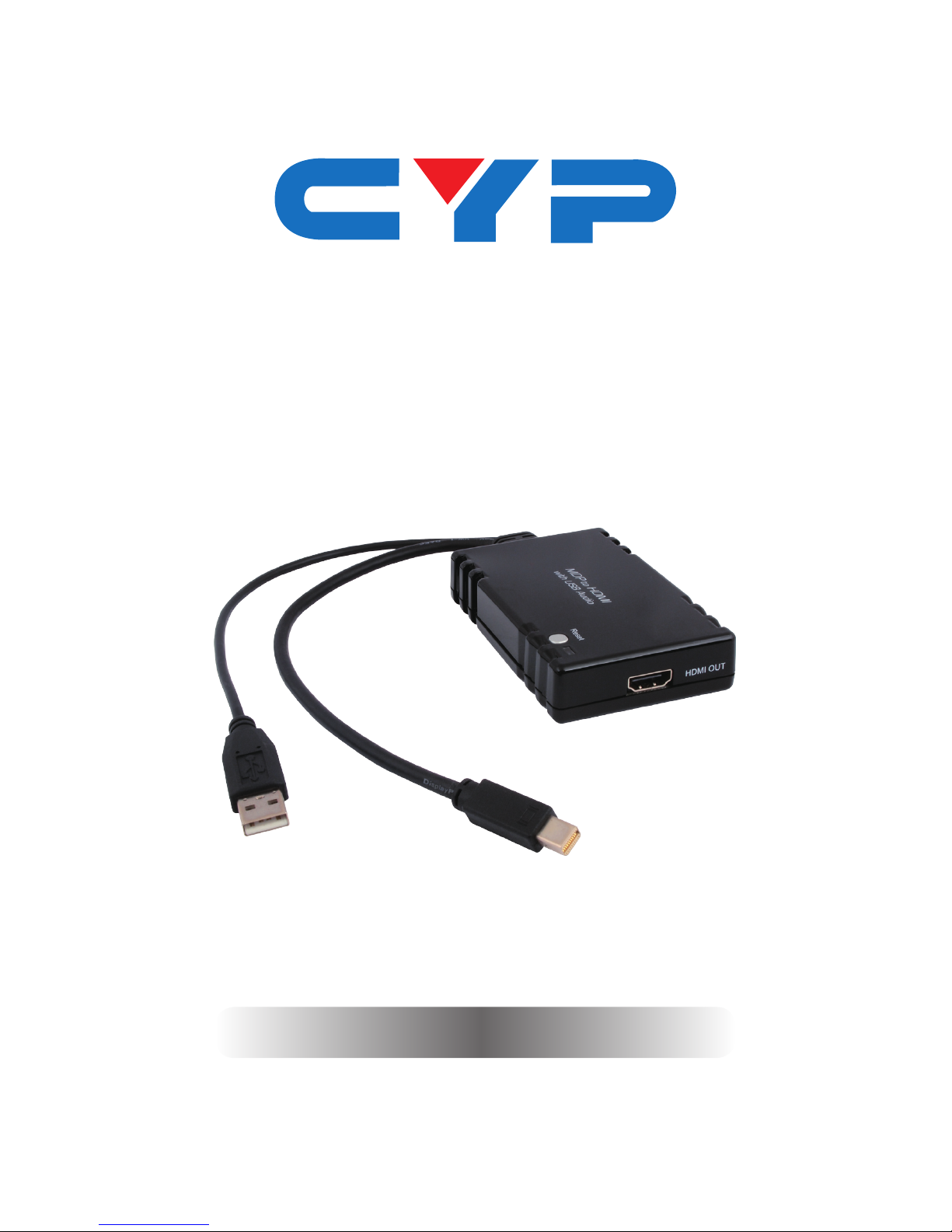

CYP CMDPH-2C Manuel utilisateur
CMDPH-2C
Mini-DisplayPort to HDMI Converter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
V1 06/10/10 Preliminary Release
VS2 30/08/12 Updated format/texts
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................2
6.3 Top Panel ..........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The Mini-DisplayPort to HDMI Converter is designed to display your
MAC /PC / Notebook content on an HDTV or monitor. No external
power supply is required, as the model can be powered by USB
directly. No need to install any software, the model can work with
MAC / PC / NB in a plug-and-play fashion, the installation is easy to
anyone.
2. APPLICATIONS
• Convert DisplayPort signal to VGA signal
• Display DisplayPort signal on VGA monitor or projector
3. PACKAGE CONTENTS
• Mini-DisplayPort to HDMI Signal Converter
• Operation Manual
4. SYSTEM REQUIREMENTS
Input Mini-DisplayPort/DisplayPort source equipment, USB powering
connection, and HD TV or monitor.
5. FEATURES
• Compliant with HDMI (with Deep Color Video), HDCP1.1 and DVI1.0
• Supports up to 1080p@50/60 and WUXGA
• Supports pixel component format with RGB: YCbCr422: YCbCr444
• Supports bit depth per color with 8/10/12-bit
• Bi-direction Color Space Conversion (CSC) between RBG and
YCbCr
• Dithering for conversion from 12-bit component to 10/8-bit
• Support USB 2CH, LPCM 48K@24-bit
• Automatic audio error detection with soft mute function, preventing
annoying harsh output sound due to audio error or hot-unplug
• Automatic loss of signal detection for link management
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
1
1Mini-DisplayPort/USB INPUT
Connect Mini-DisplayPort port to the source equipment, and
USB port to device providing power supply. The USB cable, if
connected to MAC/PC/NB, can be used to transfer audio signal
from the source and be integrated to the HDMI output.
6.2 Rear Panel
2
1HDMI OUTPUT
Connect to output display such as HD TV or monitor supporting
HDMI.
3
6.3 Top Panel
1 2
1Reset
Press this button only when there is no picture output. Press it
repeatedly until there is image shown on the display properly.
2Power LED
The red LED will illuminate when the USB power is connected.
4
7. CONNECTION DIAGRAM
HDTV
PC Apple NB
or
or or
Monitor
5
8. SPECIFICATIONS
TMDS Clock Frequency 2.7Gbps
Input ports 1 x Mini-DisplayPort (Male type), 1 x USB
Output port 1 x HDMI (Female type)
Input Resolution 480i ~1080p, VGA ~ WUXGA
Output Resolution 480i ~1080p, 1920 x 1200@60Hz,
VGA~WUXGA
I/O Audio Sample Rate Up to 48 kHz
I/O Audio Support PCM 2CH
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions (mm) 100(W) x 62.5(D) x 22(H)
Weight(g) 22
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0°C~40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
