CM-398M

CV/SV to PC/HD

Converter

Operation Manual

CM-398M

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer ﬁle, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 September 2010

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

V1 20100923 Preliminary Release

Table of Contents

1. Introduction………………………………………..………........……….

2. Applications……………………..…………….....………................….

3. Package Contents…………………………......…………...............…

4. System Requirements……...…………………..….…………......…….

5. Features……………………………………………......……........………

6. Specications..……………………………………….........………...….

6.1 Support Timing Chart .............................................................

7. Operation Controls and Functions.......……........…....................…

7.1 Left side Panel ........................................................................

7.2 Right side Panel …………………………………………....….…

7.3 Front Panel ………………………...….......…….............…….…

7.4 Top Panel …………………………………………...........…….…

8. OSD..................………….................................................…....…..…...

9. Connection and Installation.................…………..........…....…..…...

10. Acronyms …….……….................…………..........…..….............…...

1. Introduction

This economical Video to PC converter box that can convert CV/SV (NTSC or

PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of

480p to 1080p. With frame rate conversion feature that allows users to view

DVD, VCR or Game sources on the PC monitor, this device also has an On-

Screen Display that allows users to easily select their desired output resolution.

2. Applications

 CV/SV signal display on VGA/PC monitor

 STB/Camcorder signal display on PC monitor

 DVD signal display on PC monitor

3. Package Contents

 Video to PC/HD Converter

 Power Adaptor

 Operation Manual

4. System Requirements

Input source equipments such as DVD/Video cassette player and output PC/

VGA monitor component TV (output component TV needs D-Sub-15 to 3RCA

cable adaptor) display with connection cables.

5.Features

 Operates in NTSC 3.58 and PAL system

 Can scale CV/SV to PC or Component format

 Output resolution:

■ PC resolutions: XGA, SXGA, UXGA

■ Component resolutions: 480p/576p, 720p,1080p

 3D (frame based) motion adaptive YNR/CNR noise reduction

 On-Screen Display

 Advance 3D motion adaptive de-interlace

 Automatic 2:2 & 3:2 ﬁlm mode detection

 50/60 Hz frame rate conversion ensures glitch-free display

 Play video games on your VGA monitors

 High-resolution output picture

 Plug & play- no drive software required

6. Specications

Input port 1 x CV, 1 x SV

Output port 1 x VGA (Component out needs D-Sub 15 to

3RCA adaptor)

Output Resolution PC: XGA/SXGA/UXGA

Component: 480p/576p/720p/1080p

Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certiﬁed)

ESD Protection Human body model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

Dimensions (mm) 162.6(W) x 164.5(D) x 33.5(H)

Weight(g) 100

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F

Storage temperature -20˚C~60˚C / -4˚F ~ 140˚F

Relative Humidity 20~90% RH (no condensation)

Power Consumption (W) ??(Max)

6.1 Support Timing Chart

Input AV

System

Output Resolution

Component (50Hz

CANNOT convert

to 60Hz)

Component (50Hz CAN

convert to 60Hz)

NTSC(60Hz) XGA/SXGA/

UXGA @60

480p60/720p60/1080p60

PAL(50Hz) 576p50/720p50/

1080p50

480p60/720p60/

1080p60

7. Operation Controls and Functions

The following sections describe the hardware components of the unit.

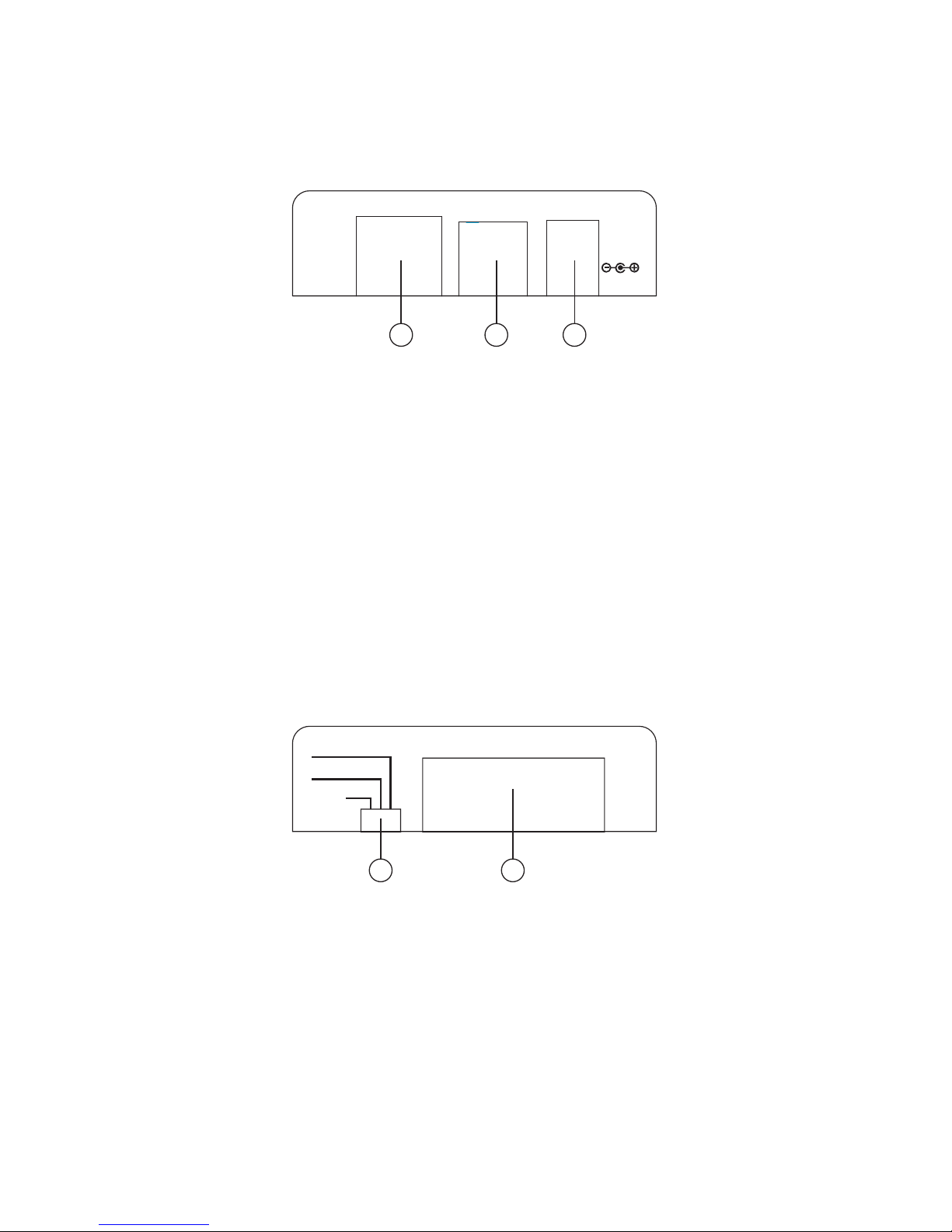

7.1 Left side Panel

1 2 3

SVideo

DC 5V

① S-Video input: This slot is where you connect the input source

equipment such as digital camcorder or PDAs with S-Video cable for

input signal sending.

② Composite (CV) input: This slot is where you connect the input source

equipment such as personal media player or personal recorder with CV

cable for input signal sending.

③ DC 5V In: This slot is where you plug the 5V DC power supply into the

unit and connect the adaptor to an AC wall outlet.

7.2 Right side Panel

1 2

XGA/

480P

576P

SXGA/720P

UXGA/1080P

PC/HD

Out

① Output resolution switch: This dip switch allows you to set PC/Composite

output Timing to PC resolution: XGA/SXGA/UXGA or Component resolu-

tion: 480p/576p/720p/1080p. Simply push the dip switch to left, middle

or right and the output image will display your desire timing.

② PC OUT: This slot is where you connect the output display monitor with

D-Sub 15pin cable for image display. When connecting to TV, using

D-Sub 15pin to 3RCA adaptor is required.

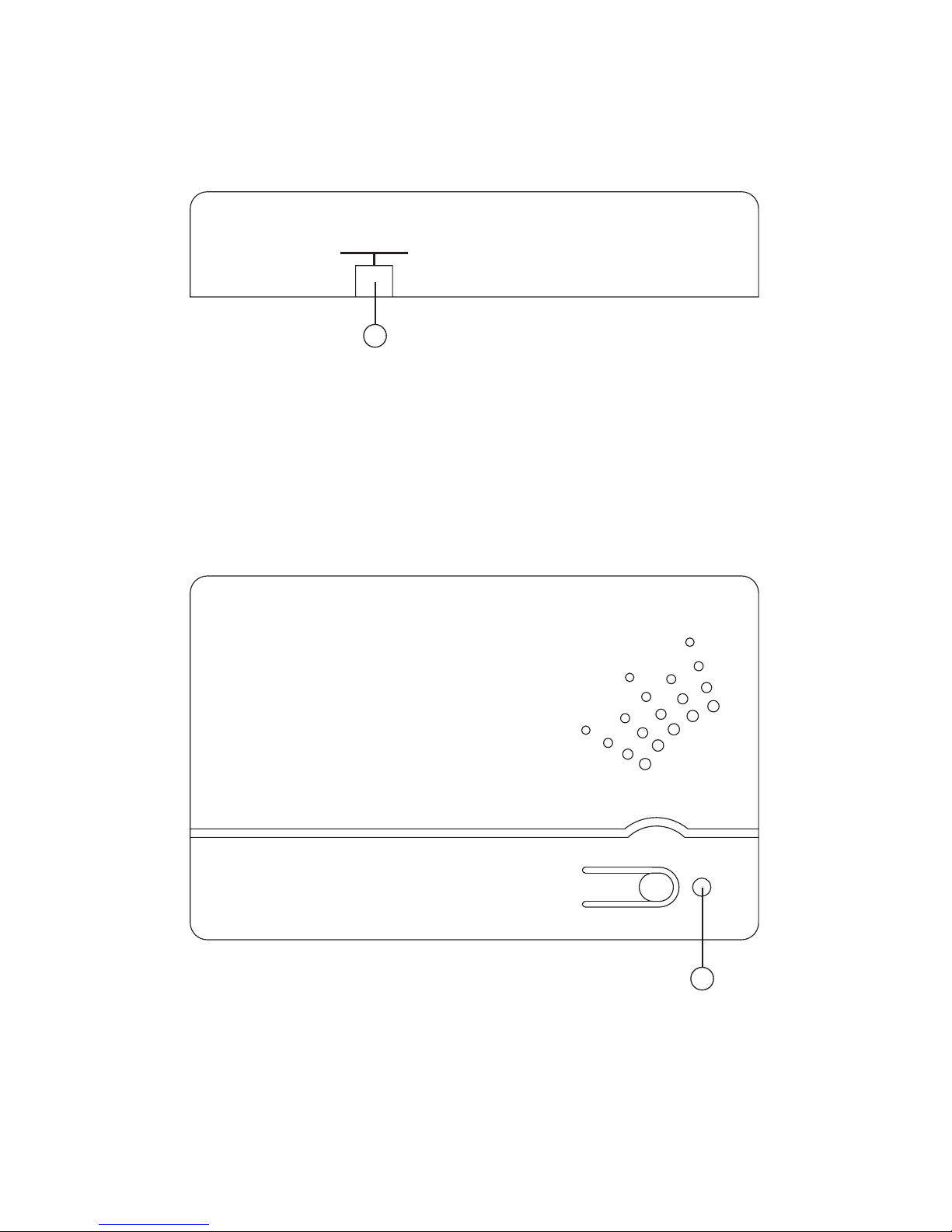

7.3 Front panel

Mode

① PC/HD switch: This dip switch allows you to select PC or component HD

timing output. Simply slide the dip switch to left or right and the output

mode will display your desire selection.

7.4 Top panel

CV:Yellow

SV:Red

VIDEO TO PC/HD CONVERTER

① CV/SV SW & LED: Press this button to switch input source between com

posite or S-Video. The Led will illuminate in yellow when switch to com-

posite input and red when switch to S-Video input.

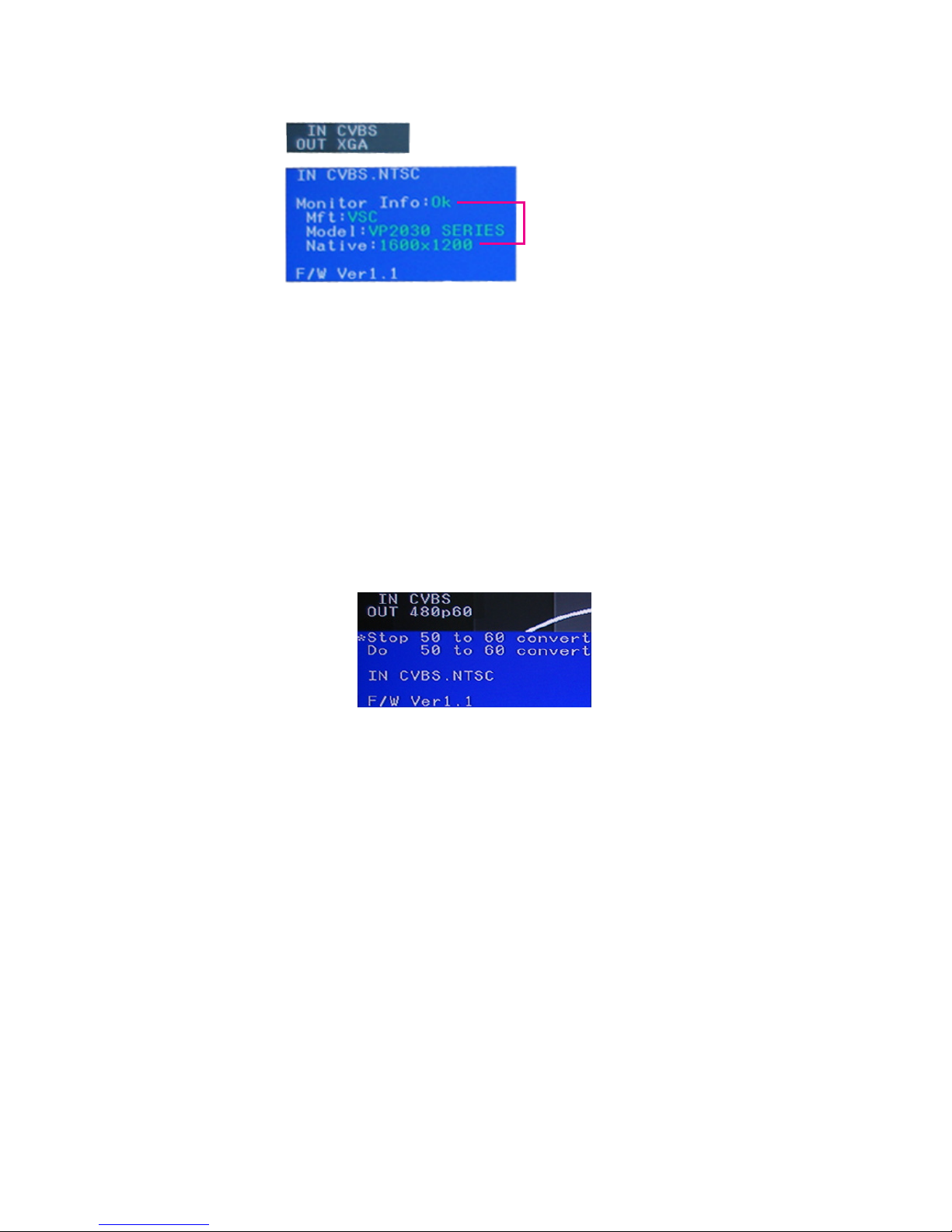

8. OSD

← IN / OUT

← F / W

← PC Monitor

1. Press the top panel’s button once to switch in between CV/SV. When

input source is disconnected the OSD will show “No Signal”.

2. Press the top panel’s button for 3 second to bring up OSD manual.

3. When the device is under PC mode the OSD will display input format and

output timing, source detection, PC monitor’s EDID and firmware version

as to above picture.

4. When the device is under HD mode the OSD will display input format and

output timing, frame rate conversion selection, video system and firmware

version as show in below picture.

← IN / OUT

← F / W

9. Connection and installation

CM-398M

Component TV

PC Monitor

D-Sub

3RCA
