CYP DCT-9 Manuel utilisateur
DCT-9
Universal Digital/Analog Audio Converter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
V1 13/07/09 Preliminary Release
VR2 19/01/11 Audio Specication
VR3 02/08/11 Intro w/o Model No.
VR4 10/11/11 Updated Format
VS5 22/02/13 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ...........................................3
6.2 Right Panel.........................................4
6.3 Left Panel ...........................................4
6.4 Rear Panel .........................................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
9. Acronyms ............................................... 9
1
1. INTRODUCTION
The Universal Digital/Analog Audio Converter allows users to convert
Optical, Coaxial and Analog audio signals. The unit can convert
between analog and digital formats and vice versa and can output
simultaneously to all outputs (depending on the audio format)
allowing it to act as an audio distributor.
2. APPLICATIONS
• Analog audio to digital audio signal conversion (ADC)
• Digital audio to analog audio signal conversion (DAC)
• Simultaneous digital and analog audio output
• Digital coaxial to TOSLINK optical and TOSLINK optical to coaxial
conversion
3. PACKAGE CONTENTS
• Universal Digital/Analog Audio Converter
• 5 V/1 A Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Audio source equipment such as CD/DVD Player with connection
cable(s) and AV receiver or similar for audio output.
2
5. FEATURES
• Integrated digital interpolator lter and Digital-to-Analog Converter
(DAC)
• Integrated Analog-to-Digital Converter (ADC)
• Supports sampling rates of 32, 44.1, 48 or 96 kHz
• Provides electromagnetic-noise-free transmission
• Easy to install and operate
• Compact and elegant design
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
POWERL/R COAX OPTICAL
UNIVERSAL
DIGITAL / ANALOG
AUDIO CONVERTER
1 2 3 4
1
POWER LED Indicator
The LED will illuminate in green when the power is connected and
in red when switched off.
2
L/R IN LED Indicator
Will illuminate in blue when the unit is switched to the analog L/R
input.
3
COAX IN LED Indicator
Will illuminate in blue when the unit is switched to the coaxial input.
4
OPTICAL IN LED Indicator
Will illuminate in blue when the unit is switched to the optical input.
4
6.2 Right Panel
1 2 3
1
OPTICAL IN
Connect to the audio source's optical output.
2
COAX IN
Connect to the audio source's coaxial output.
3
L/R IN
Connect to the analog audio source with an stereo RCA cable.
6.3 Left Panel
1 2 3
1
L/R OUT
Connect to a compatible audio equipment, such as a TV or
amplier with an stereo RCA cable.
2
COAX OUT
Connect to an audio system's coaxial input.
3
OPTICAL OUT
Connect to an audio system's optical input.
5

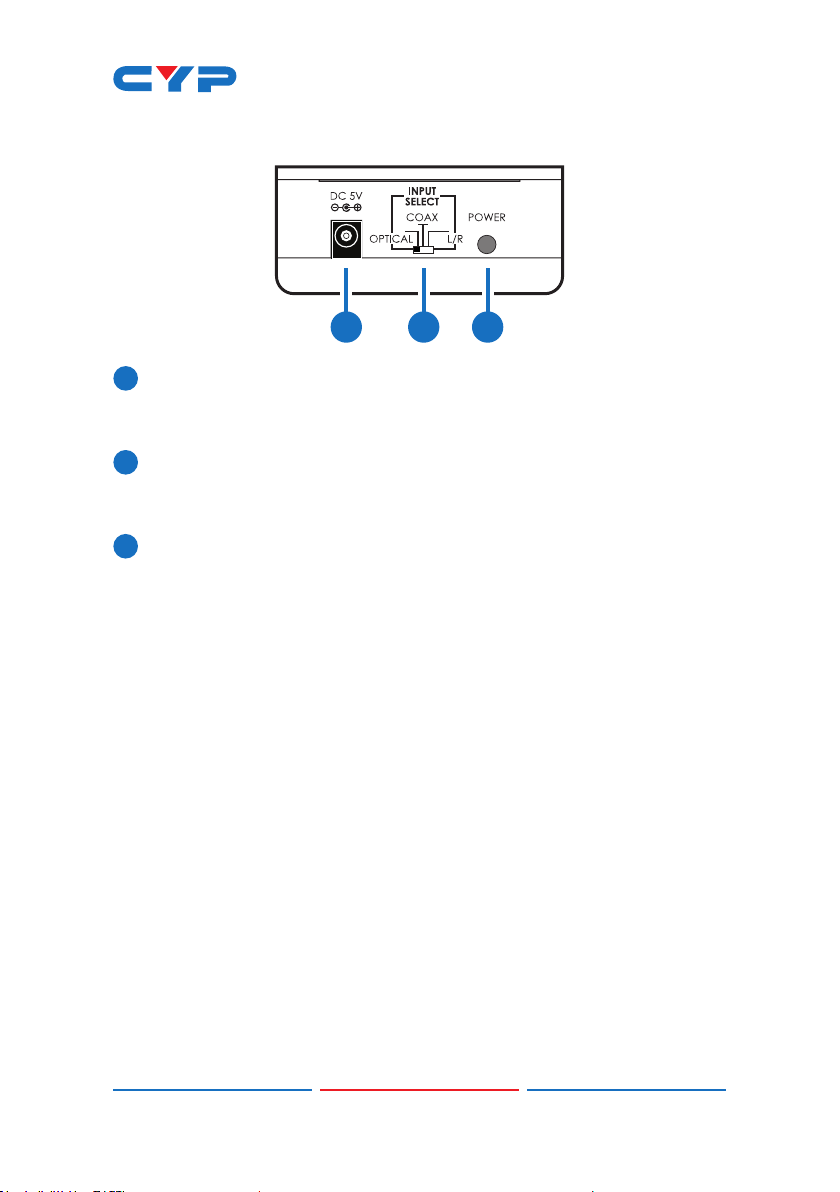

6.4 Rear Panel
1 2 3
1
DC 5V
Connect the 5 V/1 A DC power supply to the unit and plug the
adaptor into an AC wall outlet.
2
INPUT SELECT
Selects the current audio source, either optical, coaxial or L/R
(Analog).
3
POWER
Push the button to turn the unit on or off.
