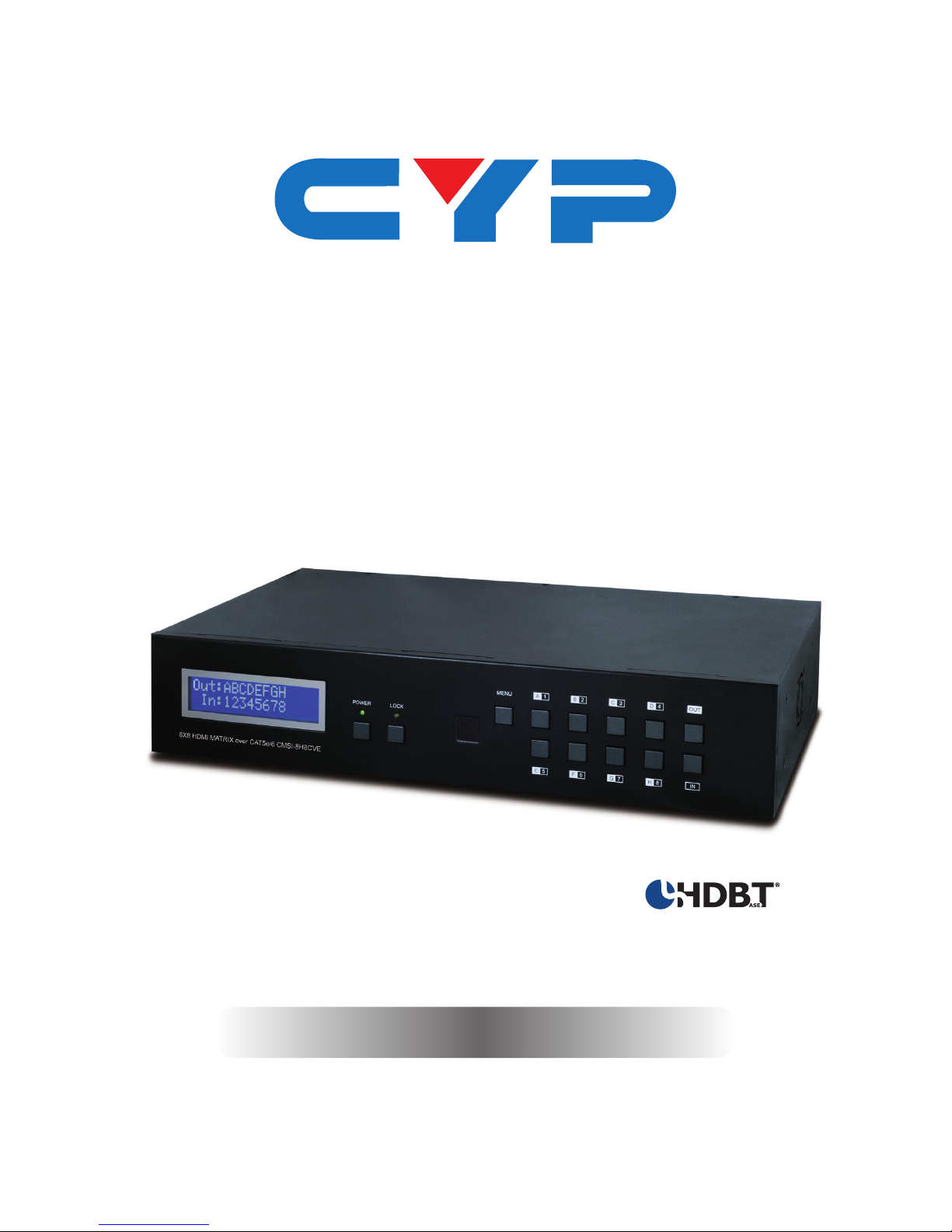

CYP CMSI-8H8CVE Manuel utilisateur
CMSI-8H8CVE
HDBaseT™ 8x8 HDMI Matrix over CAT5e/6/7
with LAN Serving
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 11/06/11 Preliminary Release
RDV2 13/06/11 Add CMSI-4H8CVE
RDV3 24/09/12 Cancel Web GUI Function
RDV4 04/10/12 Restore Web GUI Function
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................6
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Protocols ...............................7
6.7 RS-232 & Telnet Commands............8
6.8 Telnet Control ...................................9
6.9 Web GUI Control ............................11
7. Connection Diagram .......................... 13
8. Specications ...................................... 15
9. Acronyms ............................................. 16
1
1. INTRODUCTION
The HDBaseT™ 8 by 8 HDMI Matrix over CAT5e/6/7 supports
the transmission of video (resolutions up to 1080p Full HD and
1920x1200@60Hz), multi-channel digital audio and control via IR, RS-
232 or Telnet and Web GUI from eight high denition sources to eight
outputs over a single CAT5e/6/7 cable (up to 100m) for each output.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3DTV and 3D
source. Power over Ethernet (PoE) support means that compatible
receivers do not need their own power supplies allowing for greater
exibility in installations and LAN serving allows devices such as Smart
TVs to be connected to the network.
2. APPLICATIONS
• Domestic HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 8×8 HDMI Matrix Switcher over CAT5e/6/7
• 2×IR Extender
• 2×IR Blaster
• 2×24 V/6.25 A DC Power Adaptor (1 for PoE)
• 1×IR Remote Control
• Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers (i.e. CH-506RX, CH-507RX or CH-1109RX)
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports HDMI 3D features
• Supports resolutions VGA~WUXGA and 480i~1080p dependent upon
the output display’s EDID settings
• Supports distances up to 100 meters through CAT6/7 cables
• Supports 3D signal display dependent upon the output display EDID
settings
• Supports PoE (Power over Ethernet) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• Supports LAN serving function through the LAN/CANTROL port
• 2U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note: 1. The PoE function is designed for powering compatible
receiver units only—non-PoE receivers will need their own
power supply. Receivers of another brand may not be
compatible.
2. Do not connect the LAN/CONTROL port to CAT outputs of
this device.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 HDMI MATRIX over CAT5e/6 CMSI-8H8CVE
2 3 4 5 61
1LCM : Displays the setting information of each input and output
setting.
2POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6
1~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: Out →A→B→C→D→In→1→Menu,
and then press: Out→E→F→G→H→In→2→Menu.
Note: If the menu button is not pressed the selection will not be
changed.
4
6.2 Rear Panel
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
LAN
24
3
510 111
6
8
7
9
1
LAN: Connect to an active network for LAN serving and Telnet and
Web GUI control (refer to Sections 6.8 and 6.9).
When the Matrix or any compatible LAN equipped receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the Matrix and
all connected receivers. Connect any Ethernet equipped device
e.g. a Smart TV or games console to the LAN port of a receiver for
that device to share the network/internet access.
2RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
3
ALL IR OUT: Connect to the IR blaster for IR signal transmission to
the source side. Place the IR blaster in direct line-of-sight of the
equipment to be controlled for it will blaster out all signal received
from the IR IN at the receiver sides.
4
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the signal to all receiver's IR OUT.
5
SERVICE: Manufacturer use only.
6
IR OUT 1~8: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
receiver side choosen by input selection.
7IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's
IR OUT.
5
8
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
11
PoE 24V: Plug the 24 V PoE power supply into the unit and connect
the adaptor to an AC outlet. This unit will power PoE (Power over
Ethernet) capable receiver units.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.
6.3 Side Panel
1
1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6
6.4 Remote Control
1POWER: Press this button to
switch on the device or set it to
standby mode.
2IN: Input ports selection 1~8.
3OUT: Output ports selection A~H.
6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Receiver
IR Blaster
1
23
Table des matières
Autres manuels CYP Commutateur matriciel
CYP
CYP OR-42-4K22 Manuel utilisateur
CYP
CYP PUV-662-4K22 Manuel utilisateur
CYP
CYP EL-42M-PIP Manuel utilisateur
CYP
CYP PU-O4H4C Manuel utilisateur
CYP
CYP PU-8H8HBTE Manuel utilisateur
CYP
CYP CFSW-51MHL Manuel utilisateur
CYP
CYP PU-8H8HBTPL-4K Manuel utilisateur
CYP
CYP PU-16H8HBT Manuel utilisateur
CYP
CYP PUV-1082-PRO Manuel utilisateur
CYP
CYP OR-42UHD Manuel utilisateur
CYP
CYP CMIR-882 Manuel utilisateur
CYP
CYP PU-44XL-KIT Manuel utilisateur
CYP
CYP PUV-662PL-4K22 Manuel utilisateur
CYP
CYP PUV-1082-4K22 Manuel utilisateur
CYP
CYP CMSDI-164 Manuel utilisateur
CYP
CYP PUV-1082-4K22N Manuel utilisateur
CYP
CYP CPLUS-1082CVEA Manuel utilisateur
CYP
CYP Elpro Video Labs CDPS-UC4H4HFS Manuel utilisateur
CYP
CYP CMPRO-U4H4CVE Manuel utilisateur
CYP
CYP PU-16HBT Manuel utilisateur
