Operation Manual
Operation Manual
CFSW-51MHL
5 by 1 HDMI with MHL Switcher
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 December 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 12/06/2011 PreliMINary Release
CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents ..................................1
4. System Requirements..............................1
5. Features....................................................2
6. Hardware Description.............................3
6.1 Front Panel..........................................3
6.2 Rear Panel...........................................4
7. Remote Control........................................5
8. RS-232 Protocols ......................................6
8.1 Pin Assignment ...................................6
8.2 Commands.........................................6
9. Connection and Installation...................7
10. Specications ........................................8
11. Acronyms...............................................8
1
1. INTRODUCTION
This is ve input and one output HDMI switcher which has MHL (Mobile
High-Denition Link) support integrated on its fth input port. With
the MHL port, you can share high denition video and audio from
any of your MHL-ready mobile devices on an HDTV, and charge
the connected device at the same time. This switcher support 3D
2.25Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and
other features dened by HDMI v1.3 specications, on all of its 5 input
ports. The operation of source selection can be done easily through
on-panel buttons, IR remote control, or RS-232 protocol.
2. APPLICATIONS
• Smart Home Entertainment
• Show room or meeting room
• Smart AV Installation
3. PACKAGE CONTENTS
•5 by 1 HDMI with MHL switcher
•12V DC power supply adaptor
•Remote Control CR-113 with battery
•Operation Manual
•IR Receiver cable
•MHL to HDMI cable
4. SYSTEM REQUIREMENTS
•HDMI sources such as PS3 or Blu-ray player for 1 to 5 ports
HDMI type A inputs and the 5th port can connect to MHL
mobile device with a MHL to HDMI cable.
•Output HDMI type A port connect to the HDMI display/TV.
Input sources with HDMI/DVI connector or MHL device.
2
5. FEATURES
• With Silicon Image’s new InstaPort Technology™
• Supports ve HDMI type A with one MHL to HDMI port
• Supports one HDMI type A output
• Supports video resolution up to 1080p@60Hz
• MHL port can charge the connected mobile device
• Support HDMI specication features, including data rates up to
2.25Gbps, 12-bit Deep color
• Supports 3D
• MHL port support 1080p@30Hz or 1080p@60Hz
3
6. HARDWARE DESCRIPTION

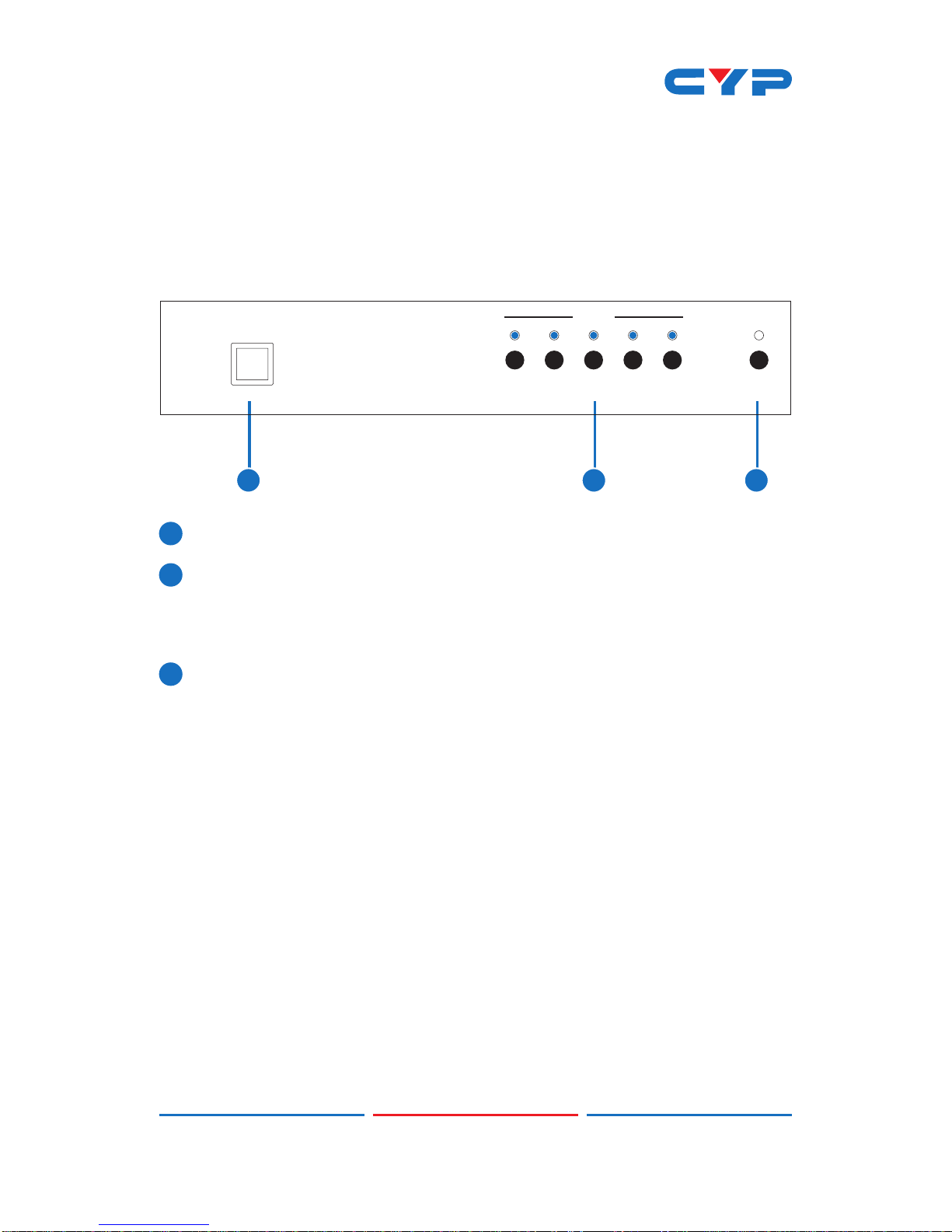

6.1 Front Panel
12 3
5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL
54321
POWER
INPUT
1IR Remote Control Sensor
2Input selection with LED:
Press input button to select input source, the Blue LED will illuminate
accordingly.
3Power button:
Press this button to switch on the device or press it again to set it
to standby mode. When the system is switch to on the green LED
will illuminate.
4

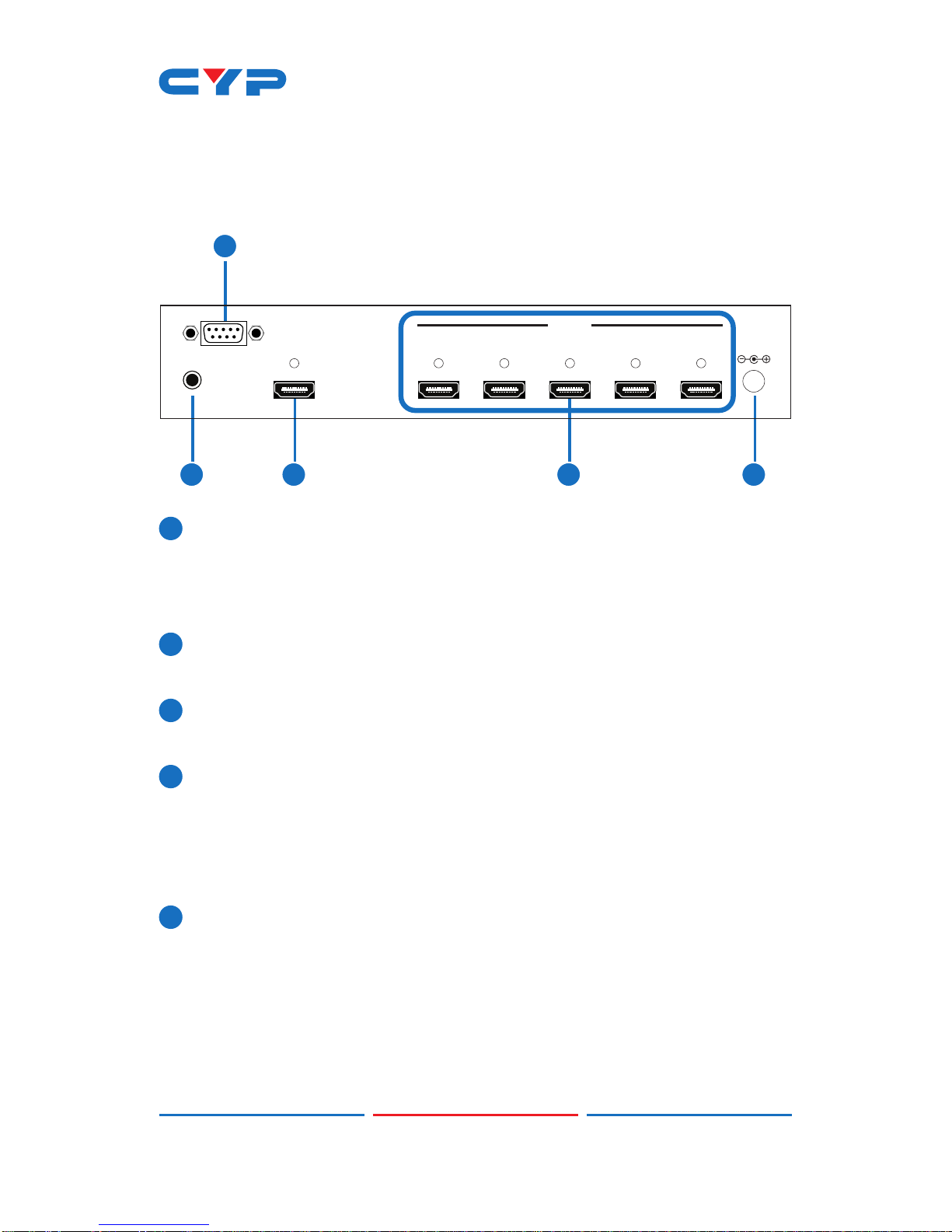

6.2 Rear Panel
1
2 3 4 5
DC 12V
54321 MHL/HDMI
HDMI IN
HDMI OUT
RS232
IR IN
1RS232:
This slot is to connect with a PC or control system with D-Sub 9pin
cable for RS-232 control. For detail RS-232 commands please refers
to section 9.
2IR IN:
Infrared control in port for included infrared receiver cable.
3HDMI OUT:
Connect your LCD TV or HD monitor with HDMI cables.
4HDMI IN:
Connect the equipments to the HDMI input ports 1 to 5 such as
DVD player, Blu-Ray, PS3 and other sources with HDMI cable.
Especially for port 5 can connected to MHL mobile device,
through the port 5 also allows charging the mobile device battery.
5Power:
Plug the DC 12V power supply into the system and connect the
adaptor to AC wall outlet.
5

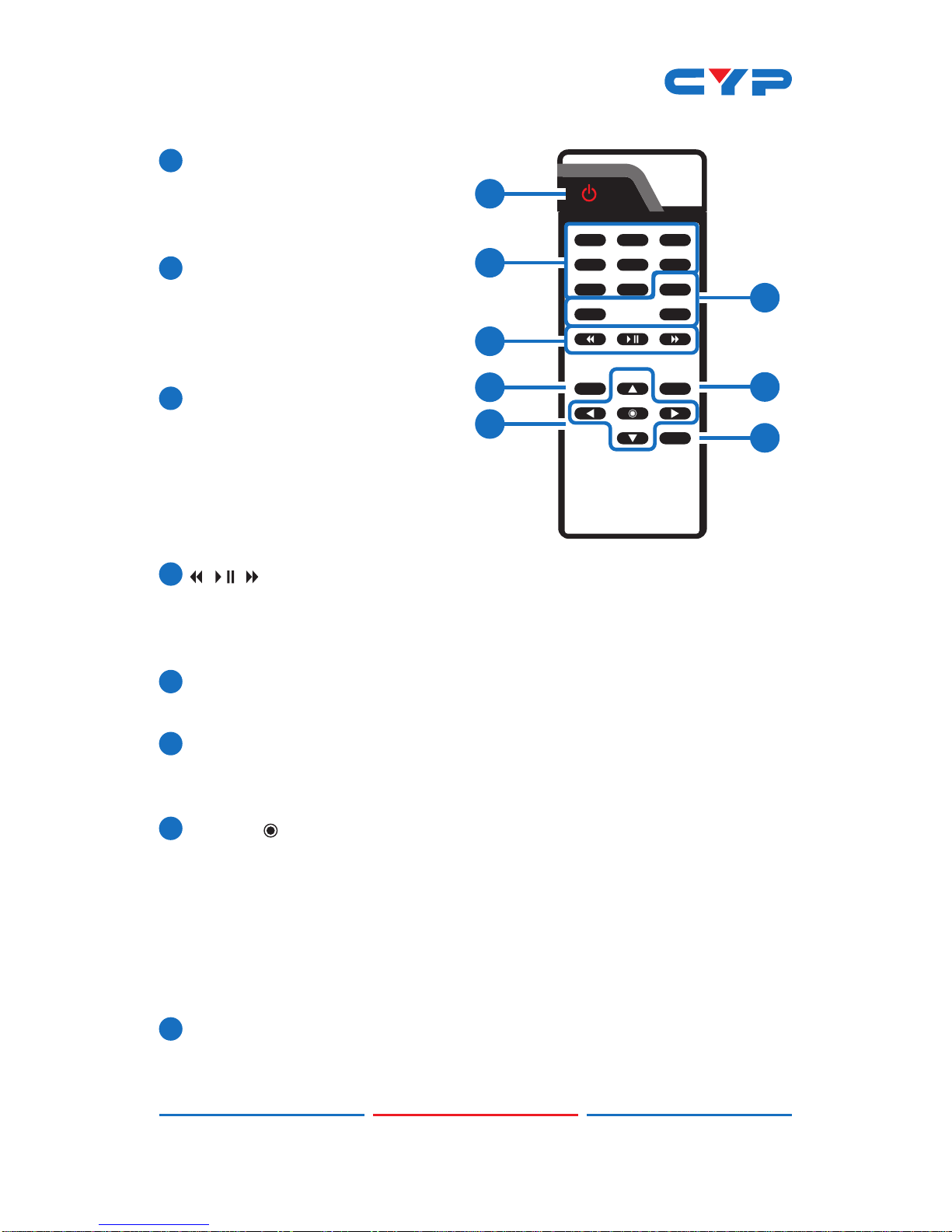

7. REMOTE CONTROL
1Power button:
Press this button to switch on
or turn the device to standby
mode.
2HDMI 1~8:
This buttons are the input HDMI
hot switching keys for selecting
HDMI sources. Note: for this
model on 1~5 is active.
3Mute / Vol + / Vol -:
These buttons are to control
the input source including DVD
or PS3 or Blu-ray or even MHL
mobile’s volume by set it to
mute or add up or down the
sound.
4:
These buttons are to control the input source including DVD or
PS3 or Blu-ray or even MHL mobile’s play list by set it to backward,
play/pause and forward.
5Input:
Press this button sequentially to select input source from 1 ~ 5.
6Menu:
Press this button to enter into the input source including DVD or PS3
or Blu-ray or even MHL mobile’s root menu.
7▲▼◄► & Enter:
These buttons are to control the input source including DVD or PS3
or Blu-ray or even MHL mobile’s OSD selection.
Note: In order to activate the functions 3~6, input source device
must compliance with the following
1. HDMI control (CEC/Via Link…etc) must switch on.
2. Must accept CEC command
8Exit:
Press this button to exit the selection .
Menu
Input
HDMI 1 HDMI 2 HDMI 3
HDMI 6
HDMI 4 HDMI 5
Vol +
HDMI 7 HDMI 8
Mute
Vol -
Exit
Enter
CR-113
1
2
4
5
7
3
6
8
6
8. RS-232 PROTOCOLS
8.1 Pin Assignment
CS-801H
►
◄
Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx2 Rx
3 Rx3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9NC 9NC
Baud Rate: 19200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
8.2 Commands
Command Action
POWER 00 Power Off (standby)
POWER 01 Power On
PORT 01 Output Select Input 1
PORT 02 Output Select Input 2
PORT 03 Output Select Input 3
PORT 04 Output Select Input 4
PORT 05 Output Select Input 5
