CYP OR-42UHD Manuel utilisateur
OR-42UHD
4x2 HDMI Matrix (4K)
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 03/09/12 Preliminary Release
RDV2 30/01/13 Add 4K x 2K HDMI cable spec.
RDV3 04/06/13 Separate 4H4H & 4H2H
RDV4 06/06/13 Remove Ethernet to Control
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................6
6. Operation Controls and Functions .......7
6.1 Front Panel................................................... 7
6.2 Rear Panel..................................................... 8
6.3 Remote Control.......................................... 9
6.4 D-Sub 9 Pin Denitions ........................... 9
6.5 RS-232 Protocols......................................10
6.6 Web GUI Control ......................................11
7. Connection Diagram .......................... 13
8. Specications...................................... 14
9. Acronyms............................................. 15
6
1. INTRODUCTION
The 4 by 2 HDMI matrix with 4kx2k supported which allows HDMI signal
from any of its four sources to be routed to and displayed on any of its
two connected HDMI displays simultaneously. It supports 3D, 3Gbps
bandwidth, 16-bit Deep Colour, Hi-Def lossless audio and other features
dened by HDMI specications. The management of source/ sink
scenarios can be operated easily through on-panel buttons, IR remote
control, RS-232 or Web GUI controls.
2. APPLICATIONS
Showroom display control
Educational demo
Installation usage
Advertising display
3. PACKAGE CONTENTS
4x2 HDMI Matrix
Remote Control (CR-33)
Power Adaptor
Operational Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD players with 3D/4kx2k
contents, output display HD TV/monitor with 3D/4kx2k functions and
HDMI high standard cables.
5. FEATURES
Support HDTV resolutions up to 4Kx2K
Supports 7.1CH of LPCM, Dolby TrueHD, and DTS-HD Master Audio
Supports Deep Colour up to 1080p 48-bit
Supports Internal/External EDID
Supports IR, RS-232 and Web GUI controls
7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER EDID A B 1234
A
B
1 2 3 4 5
1IR
IR receiver window accepts the remote control signal of this device.
2POWER & LED
Press this button to power the device on/o. The LED will illuminate
when the power is on.
3EDID & LED
Press this button to use the internal/STD or external/TV EDID. The
LED will illuminate when STD EDID is selected. STD EDID video up to
1080p@24/50/60 and audio up to LPCM 2CH at 192kHz & 24bit.
4OUTPUT A
Press this button to select input source for output A, the LED will
illuminate accordingly to the selection.
5OUTPUT B
Press this button to select input source for output B, the LED will
illuminate accordingly to the selection.
8
6.2 Rear Panel
1234 RS232 ETHERNET
SERVICE
DC 5V
POWER
INPUT OUTPUT
AB
12 3 4 5 6
1INPUT 1~4
Connect input source equipments such as DVD/Blu-ray players with
HDMI cables.
2OUTPUT A/B
Connect to HDMI 3D TV/display or monitor for both audio and video
or moving/static graphic play.
3RS-232
Connect to a PC or laptop with D-Sub 9-pin male cable for the
transmission of RS-232 commands.
4CONTROL
Connect to an internet or network activate device. The yellow LED will
illuminate up on connection and the green LED will blink during data
transmission.
5SERVICE
Reserved for factory using only.
6POWER DC 5V
Connect the 5V DC power supply included in the package to an AC
wall outlet.
9

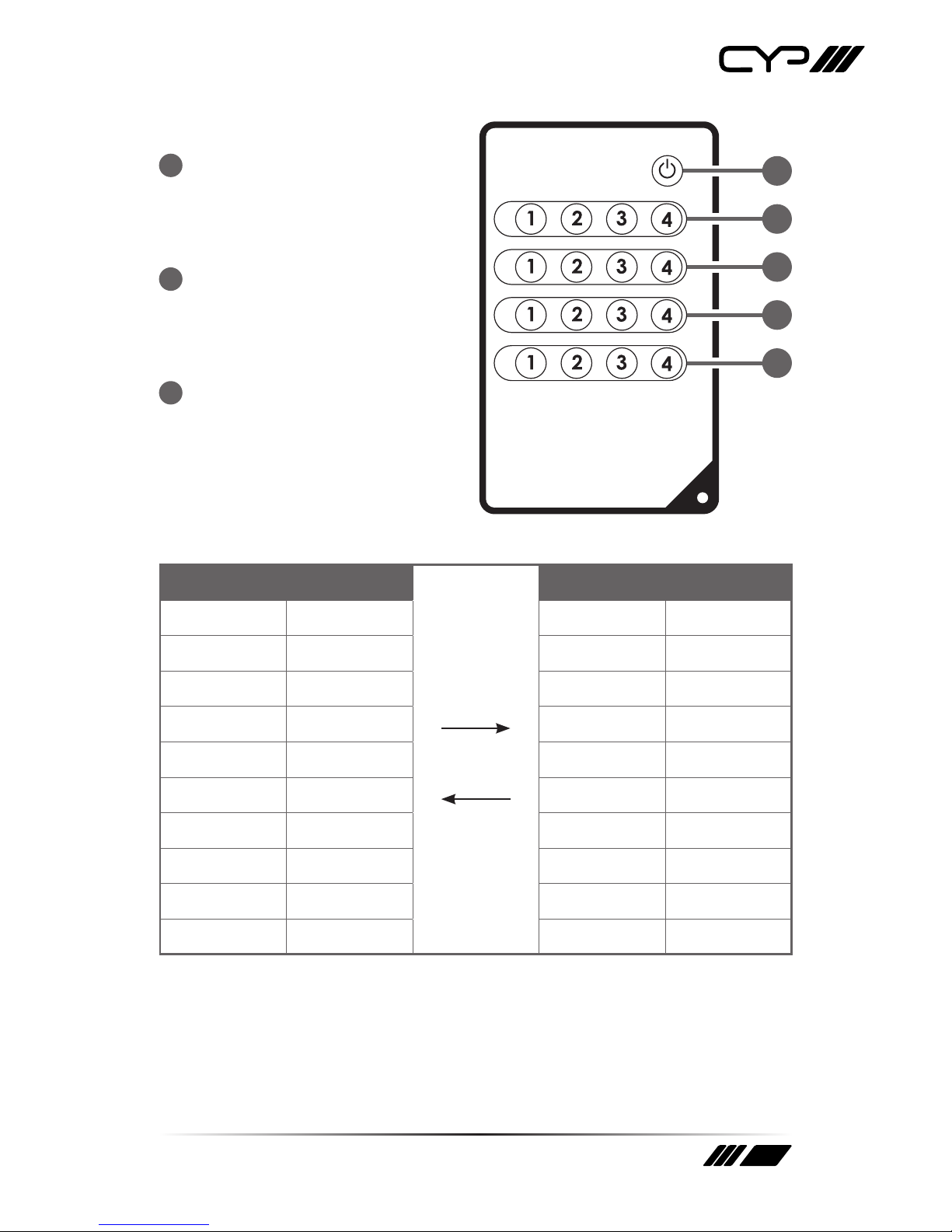

6.3 Remote Control
1POWER
Press this button to switch on
or set to standby mode of the
device.
2OUTPUT A 1~4
Press buttons 1~4 to selection
the nominated input for output
A.
3OUTPUT B 1~4
Press buttons 1~4 to selection
the nominated input for output
B.
6.4 D-Sub 9 Pin Denitions
OR-42UHD Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2TX 2RX
3RX 3TX
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
OUTPUT
A
OUTPUT
D
OUTPUT
C
OUTPUT
B
POWER
CR-33
1
2
3
4
5
10
6.5 RS-232 Protocols
Command Description
A1~A4 Switch Output A to 1~4
B1~B4 Switch Output B to 1~4
AB...1~AB...4 Switch Output A B ... to 1~4 at the
same time
SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay
<SataicIP>
RSTIP IP conguration was reset to
factory default<DHCP>
IPCONFIG Display the current IP cong
P0 Power O
P1 Power On
I1~I4 Switch all the output to 1~4
ST Display the current matrix state
and F/W version
RS System Reset to A1, B1
EM Setting EDID MODE. 1-STD 2-TV
?Display all available commands
Note: All the RS-232 command will be not executed unless followed with a
carriage return and all command are case-insensitive.
