CYP CA-USBLT Manuel utilisateur
DRAFT
CA-USBLT & CA-USBL70R
USB over CAT5e/6 Extender
Operation Manual
Operation Manual
DRAFT
DRAFT
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
DRAFT
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 22/01/14 Preliminary Release
DRAFT
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Transmitter.........................................3
6.1.1 Front Panel .....................................3
6.1.2 Rear Panel......................................3
6.2 Receiver ............................................4
6.2.1 Front Panel .....................................4
6.2.2 Rear Panel......................................4
7. Connection Diagram ............................ 5
8. Specications ........................................ 6
DRAFT
1
1. INTRODUCTION
With USB being the standard connection for consumer electronic
products, there has long been a need for something to let us operate
our many devices over long distances. The USB over CAT5e/6
Transmitter and Receiver boxes developed for this purpose as they
can operate in both the home and commercial markets. These
devices allow any USB host to send data within a 70-meter distance
while offering up to 4 USB outputs, giving this product the ability to act
like a USB hub. In addition, this product can also save data from the
output port devices or allow remote control through the display even
when there's 70 meters separating the devices. The USB over CAT5e/6
Transmitter and Receiver boxes are the ideal choice for your USB
extension needs.
2. APPLICATIONS
• Household usage
• Lecture/Class Room
• Ofce Presentation
• Showroom Presentation
3. PACKAGE CONTENTS
• 1* USB over CAT5e/6 Transmitter
• 1*CAT5e/6 to USB Receiver
• 1*USB Cable (Type A to Type B)
• 2*5V Power adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
PC or Laptop with CAT5e/6 cable and devices with USB cables.
DRAFT
2
5. FEATURES
• Supports USB2.0 high-speed and USB 1.1(full-speed, low-speed)
devices
• Operate with USB 2.0 high speed host controllers and USB 1.1 classic
hosts
• True hot plug and play without driver installation
• Supports all major operating systems including Windows®, Mac
OS®, and Linux
• Display or control the host device
• CAT5e/6 cable distance tested up to 70 meters without lag
• Simple set up and operation
• Each USB output port contains 500mA of power
DRAFT
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter
6.1.1 Front Panel
USB PORT
USB 1 BY 4 TRANSMITTER
POWER
1
1USB PORT: This slot is to connect with PC/Laptop with a USB A to B
type cable when sending signals or controlling the output of four
USB devices.
2POWER LED: This LED will illuminate when the device is plugged with
power supply.
6.1.2 Rear Panel
RJ45 OUT
1
1RJ45 OUT: This slot is to connect a CAT5e/6 cable from the Receiver
unit for distance up to 70 meters.
DRAFT
4
6.2 Receiver
6.2.1 Front Panel
USB PORT 1 USB PORT 2 USB PORT 3USB PORT 4
USB 1 BY 4 RECEIVER
1
1USB OUT 1~4 & LED: These slots are to connect with USB devices
such as keyboard, mouse, printer, webcam or etc. with USB cable.
The LED will illuminate when the device is plugged.
6.2.2 Rear Panel
POWER
RJ45 IN
DC 5V
1 2
1DC 5V: Connect to the power adaptor included in the package
from the AC wall outlet for power supply.
2RJ45 IN: This slot is to connect with a CAT5e/6 cable from the
Transmitter unit with distance up to 70 meters.
DRAFT
5

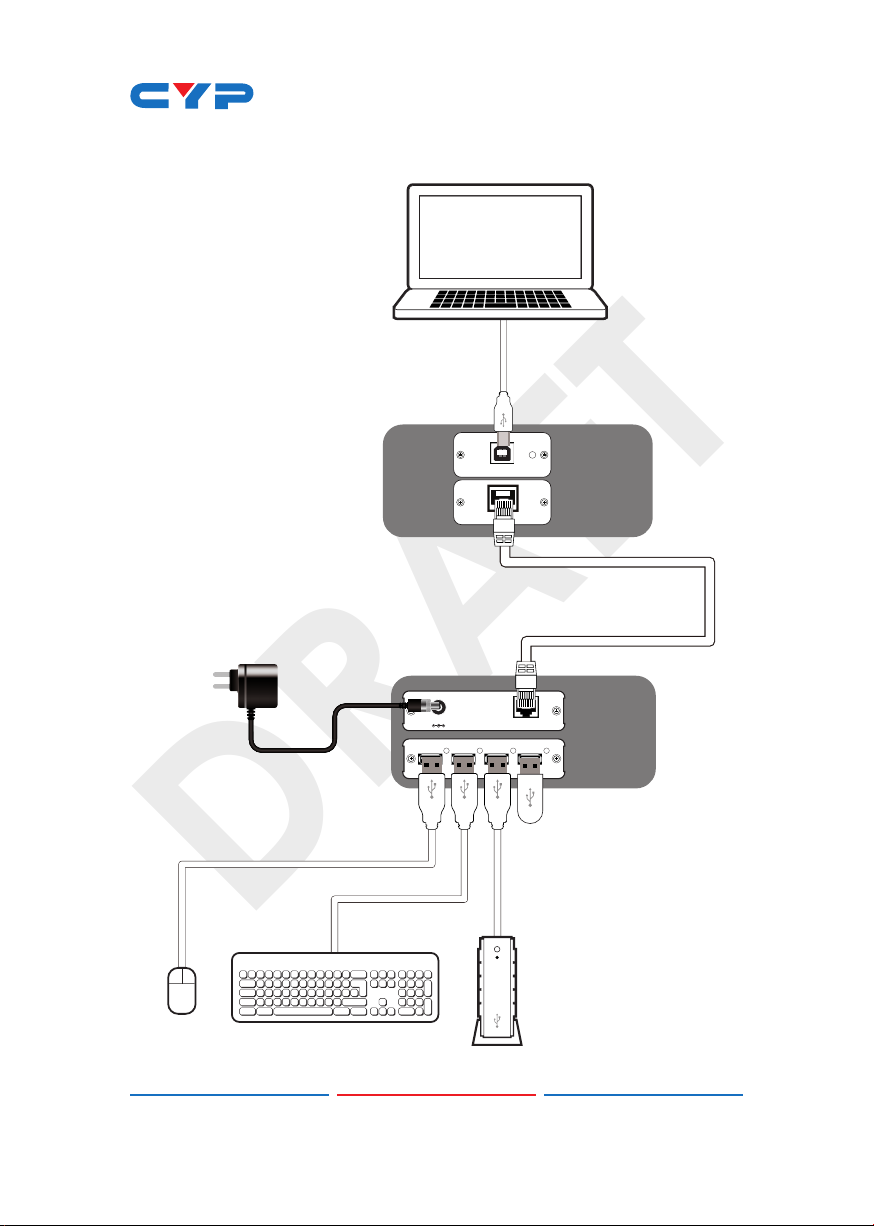

7. CONNECTION DIAGRAM
USB PORT
USB 1 BY 4 TRANSMITTER
POWER
RJ45 OUT
USB PORT 1 USB PORT 2 USB PORT 3USB PORT 4
USB 1 BY 4 RECEIVER
POWER
RJ45 IN
DC 5V
NB
CAT5/6 (70 meter)
Flash
Hard DriveUSB KeyboardUSB Mouse
