Crestron TSW-550 Manuel utilisateur
Crestron TSW-550/750/1050
5”/7”/10.1” Touch Screens
Configuration Guide
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other
countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in
typography or photography.
This document was written by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
Crestron TSW-550/750/1050 5”/7”/10.1” Touch Screens
Configuration Guide – DOC. 7366C Contents •i
Contents
5”/7”/10.1” Touch Screens: TSW-550/750/1050 1
Access the Setup Screens........................................................................................................... 1
Configure the Touch Screen ......................................................................................................3
Ethernet Setup ............................................................................................................. 3
IP Table Setup .............................................................................................................4
Audio Setup .................................................................................................................6
Display Setup .............................................................................................................. 7
Standby Timeout ......................................................................................................... 7
Diagnostics ..................................................................................................................8
About ......................................................................................................................... 11
Save & Exit ............................................................................................................... 11
Crestron TSW-550/750/1050 5”/7”/10.1” Touch Screens
Configuration Guide – DOC. 7366C 5”/7”/10.1” Touch Screens: TSW-550/750/1050 •1
5”/7”/10.1” Touch Screens:
TSW-550/750/1050
Access the Setup Screens
The “Setup” menu is the starting point for configuring the TSW-550, TSW-750 and
TSW-1050 touch screens from Crestron®.
NOTE: If no project has been loaded or if an invalid project has been loaded, the
touch screen defaults to the “Setup” menu.
The setup screens enable basic configuration procedures prior to regular operation of
the touch screen.
During regular operation of the touch screen, there are two ways to activate the setup
functions:
1. Place a button on the project main page and assign the reserved join number
(17242) that activates setup.
2. Press hard keys 1, 2, 3 and 4, to the right of the touch screen display, in
sequence twice (i.e., press 1, 2, 3, 4, 1, 2, 3, 4) within a five second period.
Button Numbering
4
3
2
1
The “Setup” menu is displayed.
5”/7”10.1” Touch Screens Crestron TSW-550/750/1050
2•5”/7”/10.1” Touch Screens: TSW-550/750/1050 Configuration Guide – DOC. 7366C
“Setup” Menu
The “Setup” menu is comprised of buttons for Ethernet Setup, IP Table Setup,
Audio Setup, Display Setup,Standby Timeout and Diagnostics. In addition, there
is an About button that provides information about the touch screen and a Save &
Exit button. The functions of each are detailed in the next section of this guide.
Crestron TSW-550/750/1050 5”/7”/10.1” Touch Screens
Configuration Guide – DOC. 7366C 5”/7”/10.1” Touch Screens: TSW-550/750/1050 •3
Configure the Touch Screen
Ethernet Setup
On the “Setup” menu, touch Ethernet Setup to display the “Ethernet Setup” menu.
“Ethernet Setup” Menu
The “Ethernet Setup” menu displays the touch screen’s Mac and IP Address, Subnet
Mask, Def Router, Primary DNS, Secondary DNS, Hostname and Domain. There are
controls for turning DHCP On or Off as well as a Static IP Settings button, which
provides access to controls which allow editing of these settings. This screen also
contains a Link indicator to show the status of the Ethernet connection.
Touch Static IP Settings to display the “Ethernet Setup – Static IPs” screen.
“Ethernet Setup – Static IPs” Screen
To edit the Static IP Address, Static Subnet Mask, Static Default Router, Preferred
DNS or Alternate Preferred DNS, touch the button directly under the label for the
entry to edit. The on-screen numeric keypad opens.
5”/7”10.1” Touch Screens Crestron TSW-550/750/1050
4•5”/7”/10.1” Touch Screens: TSW-550/750/1050 Configuration Guide – DOC. 7366C

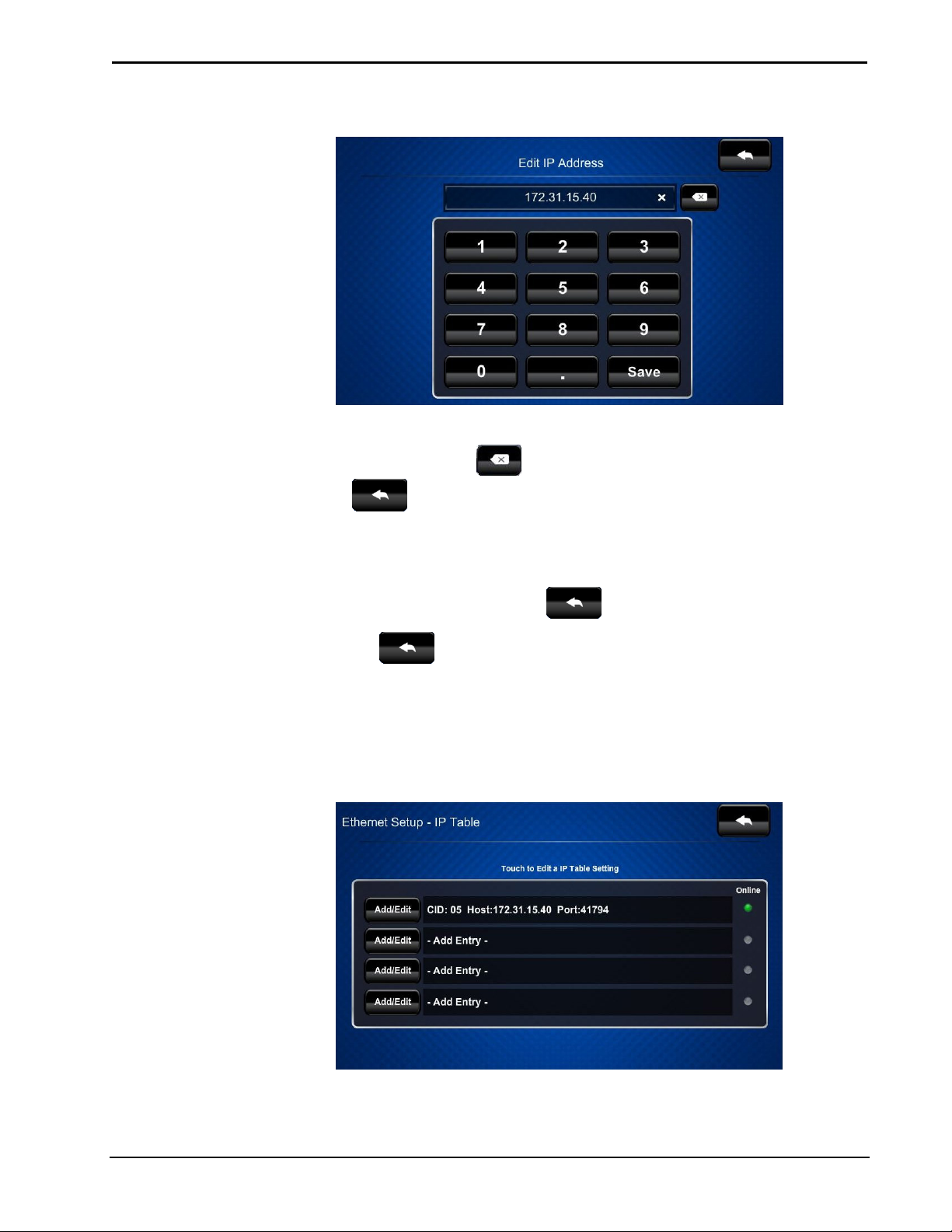

On-Screen Numeric Keypad
Use the keypad to make the new entry. Touch the “x” in the text field to clear any
previous entry. Touch to delete the last digit. Touch Save to save a new entry
or to return to the “Ethernet Setup – Static IPs” screen.
After new settings have been saved, touch Reboot to Apply Changes on the
“Ethernet Setup – Static IPs” screen to reboot the touch screen, so the new settings
can take effect.
If not making any changes, touch to return to the “Ethernet Setup” menu.
Touch again to return to the “Setup” menu.
IP Table Setup
On the “Setup” menu, touch IP Table Setup to display the “Ethernet Setup – IP
Table” menu.
“Ethernet Setup –IP Table” Menu
Crestron TSW-550/750/1050 5”/7”/10.1” Touch Screens
Configuration Guide – DOC. 7366C 5”/7”/10.1” Touch Screens: TSW-550/750/1050 •5
The “Ethernet Setup – IP Table” menu displays up to four IP table settings, each of
which has an Online indicator. To add or edit an entry, touch the Add/Edit button to
its left. The “Ethernet Setup – Edit IP Table Entry” screen is displayed.
“Ethernet Setup –Edit IP Table Entry” Screen
Touch the field below CIP ID to display the on-screen hex keypad.
On-Screen Hex Keypad
Use the keypad to make the new entry. Touch the “x” in the text field to clear any
previous entry. Touch to delete the last digit. Touch Save to save a new entry
or to return to the “Ethernet Setup – Edit IP Table Entry” screen.
Touch the field below IP Address/Hostname to display the on-screen keyboard.
5”/7”10.1” Touch Screens Crestron TSW-550/750/1050
6•5”/7”/10.1” Touch Screens: TSW-550/750/1050 Configuration Guide – DOC. 7366C
On-Screen Keyboard
Use the keyboard to make the new entry. Touch Cancel to return to the “Ethernet
Setup – Edit IP Table Entry” screen. Touch the “x” in the text field to clear any
previous entry. Touch to delete the last digit. Touch Save to save a new entry
and return to the “Ethernet Setup – Edit IP Table Entry” screen.
On the “Ethernet Setup – Edit IP Table Entry” screen, touch Save Entry to save the
current entry or Delete Entry to clear it.
If not making any changes, touch to return to the “Ethernet Setup –IP
Table” menu.
Touch again to return to the “Setup” menu.
Audio Setup
On the “Setup” menu, touch Audio Setup to display the “Audio Setup” screen.
“Audio Setup” Screen
The “Audio Setup” screen provides controls for muting (or unmuting) the audio,
adjusting level for both Master Volume and Media Volume, as well as a control for
