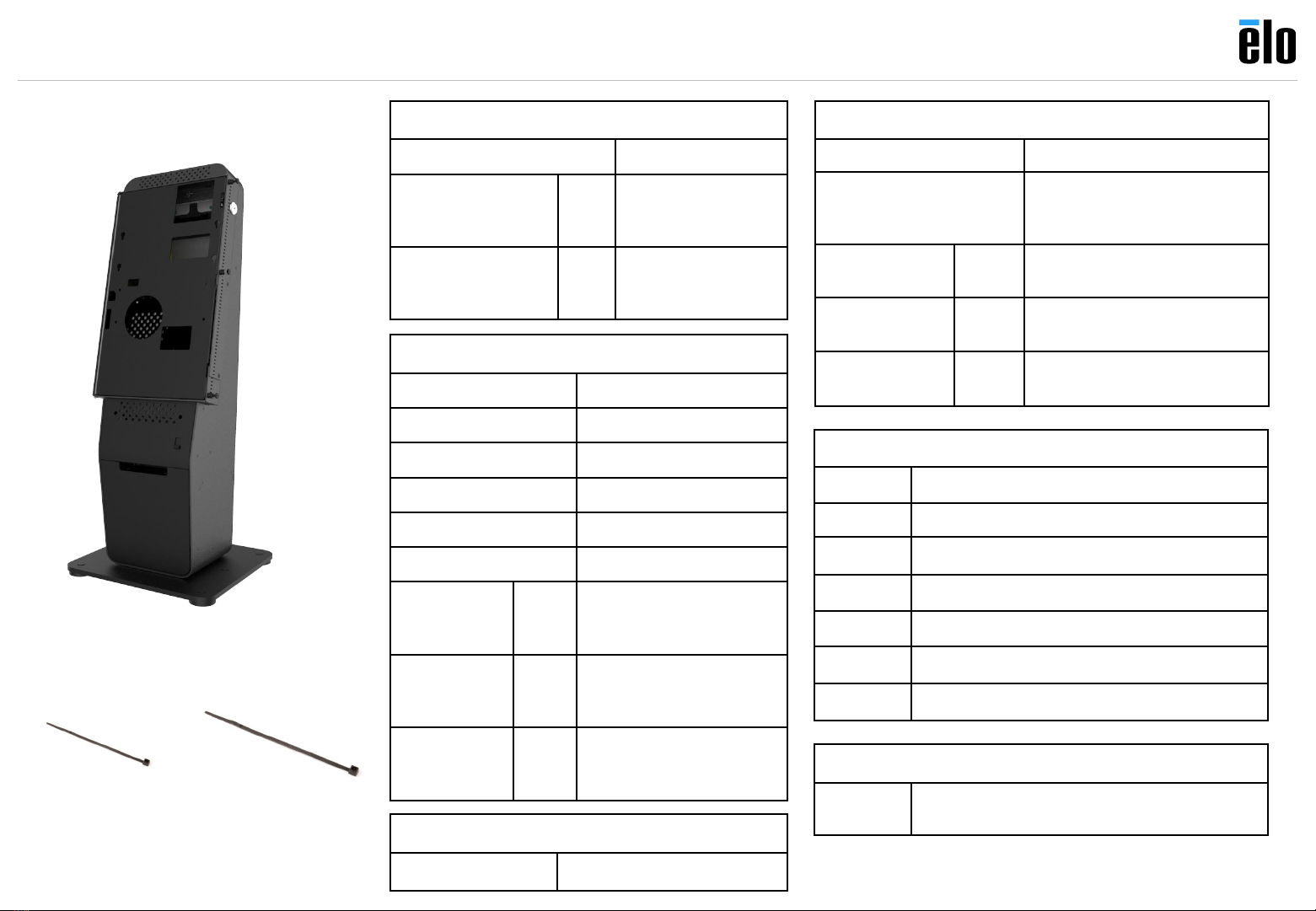

ASSEMBLY INSTRUCTIONS, WALLABYTM PRO COUNTERTOP STAND

Revision BUM600620

Warning: Elo recommends using hand tools to assemble the WallabyTM Pro. The use of power tools may result in damage to the product.

Recommended Assembly Torque

Thread Torque

M3 6 in-lb (0.7 N-m)

M4 12 in-lb (1.4 N-m)

M5 26 in-lb (3.0 N-m)

M6 46 in-lb (5.2 N-m)

Contents for Kits: E989127 / E534273, Wallaby Pro Self-Service Countertop Stand

Stand

Qty. 1

Printer Hardware Bag

Qty. 1 Printer Bracket 3

Qty. 1 Printer Bracket 4

Qty. 1 Printer Chute 2

Qty. 1 Printer Chute 3

Qty. 1 Printer Chute 4

Qty. 1 Printer Filler

Printer

Screws-

T3x6mm

Qty.

Screw, T3x6, Pan Head,

Cross Recess,

Sheetmetal type, Black

Printer

Screws-

T3x12mm

Qty.

Screw, T3x12, Pan

Head, Cross Recess,

Sheetmetal type, Black

Printer

Screws-

T2.5x8mm

Qty.

Screw, T2.5x8, Pan

Head, Cross Recess,

Sheetmetal type, Black

Android Backpack Screws Bag

Qty.4 Screws, M4x27, Flat Head, Cross Recess,

Black

Cables

Qty.3 Cable, 0.3m IEC C13 to IEC C14

Qty.3 Cable, 0.3m IEC C5 to IEC C14

Qty.1 Cable, 4.5m IEC C13 to NA (E989127 only)

Qty.1 Cable, 5.0m IEC C13 to EU (E989127 only)

Qty.1 Cable, 5.0m IEC C13 to UK (E989127 only)

Qty.2 Cable, SMA Extension, 18”

Qty.1 Cable, 0.35m ECMG4 to C14

ECMG4 Bracket Bag

Qty.1 ECMG4 Bracket

VESA Spacer and Screws Bag

Qty. 1 VESA Spacer

Qty.4 Screw, M4x6, Pan Head,

Cross Recess, Black

VESA Screws-

Length 14 Qty.4 Screw, M4x14, Flat Head,

Cross Recess, Black

VESA Screws-

Length 18 Qty.4 Screw, M4x18, Flat Head,

Cross Recess, Black

VESA Screws-

Length 22 Qty.4 Screw, M4x22, Flat Head,

Cross Recess, Black

Cable tie,

Medium

Qty. 15

Cable tie, Large

Qty. 2

(E534273 only)

Printer Door (ADA) Bag

Qty. 1 Printer Door (ADA)

AudioNav

Screws (Short)

Qty.

Screw, M3x6, Pan

Head, Cross

Recess, Black

AudioNav

Screws (Long)

Qty.

Screw, M3x10, Pan

Head, Cross

Recess, Black

Contents for Kits: E990079 / E534663, Wall Mount Kit for Wallaby Pro Countertop Stand

Cables (E990079 only)

Qty.1 Cable, 0.5m C13 to NA

Qty.1 Cable, 0.5m C13 to EU

Qty.1 Cable, 0.5m C13 to UK

Wallmount Bracket

Qty. 1

Install backer board (P/N E990854) to stand by removing eight screws

on back cover (discard screws and back cover) and installing backer

board with screws and washers included with backer board.

12Backer Board Install (Optional)

Place stand in final install location. Level base plate by

adjusting feet (turning it counter-clockwise lowers the

foot, turning it clockwise raises the foot).

Note: For wallmount installs, skip to step 57.

Remove cable cover doors from display. Attach VESA

Spacer to back of display using 14mm screws from “VESA

Spacer and Screws” bag. Note display orientation and

correct mounting holes for I-Series (“All Other Displays”).

Skip to step 10.

Android I-Series

Unscrew display door captive thumbscrews. Open door and engage

prop in hole. Next mount the display.

For Android I-Series displays, proceed to step 4.

For Windows I-Series 2.0 displays, skip to step 5.

For I-Series 3.0 with Intel® displays, skip to step 7.

For 2402L/2403LM/2702L/2703LM monitors, skip to step 8.

For 2470L/2770L monitors, skip to step 9.

Note

Display

Orientation

Windows I-Series 2.0

For Windows I-Series 2.0 displays, it is necessary to install the power

adapter to the display before attaching the VESA adapter.

Remove the display cable cover. Thread the power adapter cable

through the circular hole in the display door as shown and connect

it to the display. Reassemble the display cable cover.

Display Cable

Cover

Attach VESA Spacer to back of display using 22mm

screws from “VESA Spacer and Screws” bag. Note

display orientation and use correct mounting holes for

I-Series (“All Other Displays”). Skip to step 10.

Note

Display

Orientation

7I-Series 3.0 with Intel® 8

Note

Display

Orientation

Attach VESA Spacer to back of display using 18mm

screws from “VESA Spacer and Screws” bag. Note

display orientation and use correct mounting holes (“All

Other Displays”). Skip to step 10.

2402L/2403LM/2702L/2703LM Monitors

Remove cable cover doors from display. Attach VESA

Spacer to back of display using 18mm screws from “VESA

Spacer and Screws” bag. Note display orientation and

correct mounting holes (“2402L/2403LM/2702L/2703LM”).

Skip to step 10.

Note

Display

Orientation

910

2470L/2770L Monitors

Remove mylar screw covers & four screws from back of

display. Attach VESA Spacer to back of display using

14mm screws from “VESA Spacer and Screws” bag. Note

display orientation and correct mounting holes (“All Other

Displays”). Proceed to step 10.

Note

Display

Orientation

Loosely install two pan head screws from

“VESA Spacer and Screws” bag in upper

threaded holes of VESA Spacer.

Upper

mounting

holes

(24”/27”

displays)

Assemble display to display door. Use upper set of keyholes for 24” or 27”

displays. Use lower set of keyholes for 22” displays. Install two additional pan

head screws from “VESA Spacer and Screws” bag in screw holes as shown.

Fully tighten upper screws.

Lower

mounting

holes (22”

displays)

For 2470L/2770L monitors, skip to the next step.

For displays with separate power supply, install power

supply in right bay. Secure power supply with Velcro

strap.
