Crestron DTT-15V2 Manuel utilisateur

Crestron DTT-15V2

DualTouch™ Technology Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

DualTouch™ Technology Touchpanel Crestron DTT-15V2

Contents

DualTouch™ Technology Touchpanel: DTT-15V2 1

Introduction ........................................................................................................................1

Features and Functions .............................................................................................................. 1

Specifications ............................................................................................................................ 3

Physical Description .................................................................................................................. 4

Industry Compliance.................................................................................................................. 9

Setup...................................................................................................................................9

Hardware Hookup...................................................................................................................... 9

Display Settings....................................................................................................................... 11

The Kensington®Security Slot ................................................................................................ 15

Using the Pen........................................................................................................................... 15

Cleaning................................................................................................................................... 16

Alternative Mounting .............................................................................................................. 16

Problem Solving ...............................................................................................................17

Troubleshooting....................................................................................................................... 17

Further Inquiries ...................................................................................................................... 18

Future Updates......................................................................................................................... 18

Return and Warranty Policies...........................................................................................19

Merchandise Returns / Repair Service..................................................................................... 19

CRESTRON Limited Warranty............................................................................................... 19

Operations Guide – DOC. 6342 Contents •

DualTouch™ Technology Touchpanel Crestron DTT-15V2

DualTouch™ Technology

Touchpanel: DTT-15V2

Introduction

Features and Functions

The DTT-15V2 is a 15-inch touchpanel designed for use with the UPX-2 Universal

Presentation System. The Crestron®exclusive DualTouch™ Technology (patent

pending) allows the DTT-15V2 to function both as a touchpanel and a pen-based

annotation device to produce an amazingly flexible presentation solution.

The Crestron DualTouch Technology touchpanel employs a combination of analog

resistive touch sensing for fingertip-operated touchpanel control and the exclusive

Wacom®pen-based technology for precise drawing and annotation. Switching

between modes is automatic and instantaneous, disabling the analog membrane

whenever the pen is sensed, allowing users to rest the palm of their hand naturally on

the screen while drawing. The DTT-15V2 includes a tabletop stand with versatile tilt

adjustment.

Functional Summary

• Provides the primary user interface for the Crestron UPX-2 Universal

Presentation Processor

• Displays high-resolution RGB video from the UPX-2

• Features a bright 15-inch color display with 1024 x 768 native resolution

• Employs DualTouch Technology to support touchpanel control and pen-

based annotation as part of a complete UPX-2 system

• Provides VESA mount location

• Provides a Kensington®security slot (refer to page 15)

• Includes a pen tether

• Includes a tabletop stand with versatile tilt adjustment

NOTE: The DTT-15V2 can only be used with the UPX-2.

Operations Guide – DOC. 6342 DualTouch™ Technology Touchpanel: DTT-15V2 y

Crestron DTT-15V2 DualTouch™ Technology Touchpanel

DTT-15V2 DualTouch Technology Touchpanel and UPX-2 Universal Presentation Processor Typical Application

yDualTouch™ Technology Touchpanel: DTT-15V2 Operations Guide – DOC. 6342

DualTouch™ Technology Touchpanel Crestron DTT-15V2

Specifications

The following table provides a summary of specifications for the DTT-15V2.

DTT-15V2 Specifications

SPECIFICATION DETAILS

Power Requirements 24 Watts (2.0 Amps @ 12 Volts DC Power Supply Included)

Connectors

Power One connector for the power supply (included)

RGB Video In One RGB D15HD Female Connector

RGB Video Out One RGB D15HD Female Connector

USB One USB Port (Type “B” Female Connector)

Controls and Indicators Display Controls – Four Pushbuttons for Setup Controls

Power – One Pushbutton to turn On/Off

PWR LED – Indicates power status and presence of video

signal

Status LED - Indicates sensing of Annotation Pen

Annotation Pen

Pen Pressure 512 levels

Pen Switches One side switch (rocker type)

Accuracy ±1 pixel

Maximum Reading

Height

0.2 in (5 mm)

Report Rate 93 points/second

Reading Technology Electro-Magnetic Resonance

Display

Display Type Amorphous-Silicon Thin-Film Transistor (a-Si TFT) Active Matrix

Color LCD

Screen Size 15 inch (38.1 cm) diagonal

Active Area 11.98 inch x 8.99 inch (30.41 cm x 22.80 cm)

Resolution 1024 x 768 pixels (XGA), 800 x 600 pixels (SGA),

640 x 480 pixels (VGA)

Color Depth 16,777,216 (24 bit), 256 levels

Contrast Ratio 250:1

Brightness 200 cd/m2

Viewing Angle ±80 degrees horizontal, ±80 degrees vertical

Touchscreen Resistive Membrane

Screen Tilt Adjustable from 15 to 72 degrees

Operating Environment Temperature: 41° to 95°F (5° to 35°C)

Humidity: 20% to 80% RH (non-condensing)

Dimensions and Weight Height: 12.90 in (32.77 cm) at maximum stand elevation

4.82 in (12.24 cm) at minimum stand elevation

Width: 15.76 in (40.03 cm)

Depth: 7.88 in (20.02 cm) at maximum stand elevation

12.59 in (31.98 cm) at minimum stand elevation

Weight: 10.8 lbs (4.9 kg)

Operations Guide – DOC. 6342 DualTouch™ Technology Touchpanel: DTT-15V2 y

Crestron DTT-15V2 DualTouch™ Technology Touchpanel

Physical Description

The electronic hardware is housed in a black molded plastic enclosure, shown in the

following illustration. This touchpanel is designed for placement on a counter. It

possesses an adjustable stand, which can tilt from 15 to 72 degrees. All video and

power connections are made at the rear of the unit.

Each DTT-15V2 LCD panel is produced under very stringent quality control

standards. Because production techniques cannot guarantee an absolutely perfect

TFT display, some panels may exhibit a small number of pixels that display an

incorrect color. This does not qualify the device as defective.

The quality control standards are based on internationally accepted standards for

LCD monitors. Of the 786,432 pixels on each DTT-15V2, 99.999% are required to

function perfectly, and no pixels are allowed to be always white or always black. A

small number of pixels (10 or less) may acceptably display an incorrect color for

some portion of the color spectrum.

yDualTouch™ Technology Touchpanel: DTT-15V2 Operations Guide – DOC. 6342

DualTouch™ Technology Touchpanel Crestron DTT-15V2

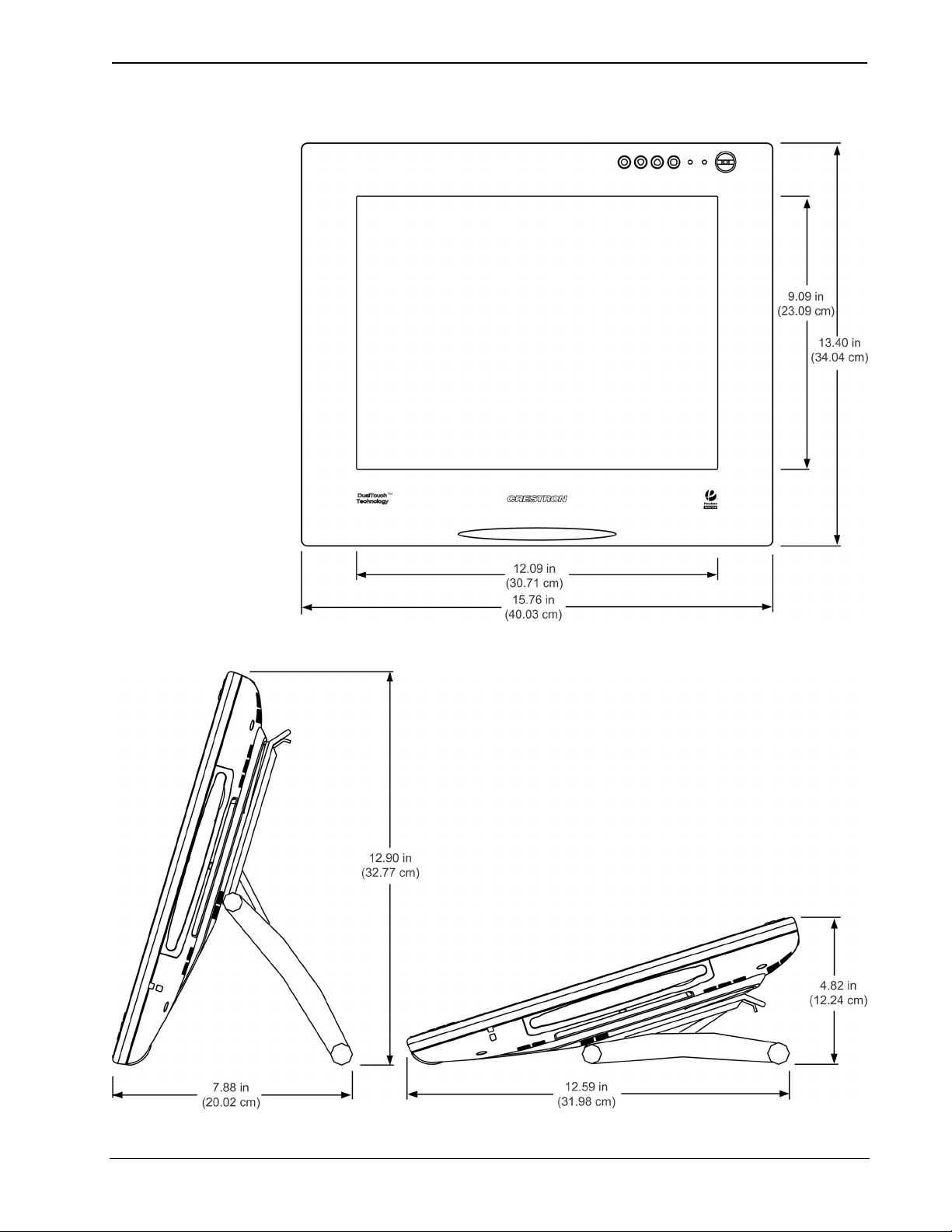

DTT-15V2 Physical View – Front

DTT-15V2 Physical View – Side (Maximum and Minimum Height)

Operations Guide – DOC. 6342 DualTouch™ Technology Touchpanel: DTT-15V2 y

Crestron DTT-15V2 DualTouch™ Technology Touchpanel

DTT-15V2 Physical View – Rear (Stand Not Shown)

The DTT-15V2 is shipped with the following accessories.

One Pen

(with five tip replacements)

One USB Cable

Approximately 6-feet long.

One VGA to VGA Cable

Approximately 6-feet long.

One Power Supply and

Power Cable

yDualTouch™ Technology Touchpanel: DTT-15V2 Operations Guide – DOC. 6342
