Series STX Touchpanels

Description

Functional Description

The Series STX touchpanels, also known as Spectrum touchpanels, are touchscreen

control panels of various sizes for the CRESNET remote control system (herein

referred to as the CRESNET system). The Spectrum family of touchpanels act as a

transceiver that offers long range, radio frequency (RF), two-way communication

with the CNRFGWX, to provide dynamic onscreen feedback for real-time

confirmation of commands. Up to 15 Spectrum touchpanels can communicate with

one CNRFGWX.

Crestron’s exclusive RF engineering permits transmission over extended ranges and

utilizes spread spectrum technology. Signals can travel up to 1000 feet to and from

the transceiver, even through walls. Spread spectrum eliminates the risk of signal

‘drop-out’ by automatically scanning for the best frequency.

There is no need to concern yourself about loss of power; all STX touchpanels offer

multiple power options. Two extra-long life, rechargeable nickel-cadmium (NiCad)

battery packs slip into the unit to handle any situation from anywhere in the range

without wires. Power backup is available from a supplied power pack that plugs into

the base of the unit. STX touchpanels also have a network port to provide power

backup via the network. Simply plug the CRESNET network wire into the port to

bypass RF transmission and communicate via a hardwire on the fly. Enjoy

uninterrupted control while simultaneously recharging the battery packs.

Have a comment about

Crestron’s software?

Direct software related

suggestions and/or complaints

to Crestron via email

([email protected]). Do

not forward any queries to this

address. Instead refer to

“Further Inquiries” on page

23 for assistance.

Software

VisionTools™ Pro (VT Pro), a design and programming Windows-based

software, permits the creation of unlimited control screen variations incorporating

two and three-dimensional graphics and text. A set of pages which make up a

project can be designed for each STX touchpanel application. Each page contains

objects such as custom control graphics, two and three-dimensional buttons, sliders,

and digital readouts which allow the user to interface with the control system. The

project is uploaded to the touchpanel and programmed into the flash PROM. The

touchpanel uses the programmed project until another set is uploaded from the PC.

The PC may be disconnected from the rack or panel except during reprogramming.

For additional software information, consult the VT Pro help file.

Operations Guide - DOC. 5716A Series STX Touchpanels •1

CRESTRON

Position Lock Button

The position lock button is centrally located at the front of the STX touchpanel base.

These touchpanels permit incremental angle positions indicated by audible clicks.

Range of motion is adjustable for user comfort and can vary depending on the STX

configuration. Thus the user can position the touchscreen to a comfortable angle, just

as a microphone can be repositioned for each speaker. The comfortable angle is

herein referred to as user position. The position lock guarantees that once a user

position is established or locked, the angle will not degrade from repeated presses on

the touchscreen.

The touchscreen is free to move up from the horizontal to an incremental angle.

Grasp the touchscreen with a hand at each side and gently tilt up to a comfortable

position. To activate position lock, slightly reverse the motion until the touchpanel

stops moving. Correct hand placement is shown below. The touchscreen is now set

into user position.

Hand Position for Tilting Touchpanel to Vertical

Once in user position, position lock is activated which means the touchscreen can

not be forced to the horizontal position without depressing the position lock button.

The touchscreen is still free to tilt up; a new user position is established at each

increment or audible click.

The position lock button needs to be depressed before the touchscreen can be

returned to the horizontal position. To depress the button, slightly position the

touchscreen in the vertical direction with two hands, avoiding any tilting. The

position lock button can be depressed with one hand; the touchscreen can be tilted

down to the horizontal position with the other, shown below.

Hand Position for Tilting Touchpanel to Horizontal

2 •Series STX Touchpanels Operations Guide - DOC. 5716A

CRESTRON

Physical Description

The touch sensitive viewing screen is located on the front of each STX touchpanel.

The electronic hardware is housed in a high impact, black molded plastic enclosure.

These touchpanels are designed to be placed on a counter and possess a hinged base

which can tilt (angle depends on STX configuration). Depress the position lock

button located at the front of the base when pivoting the touchpanel to the horizontal

position. The size of the base, shown below, is exactly the same for all STX

configurations; only the distance between the two hinges is smaller for the smaller

touchscreen.

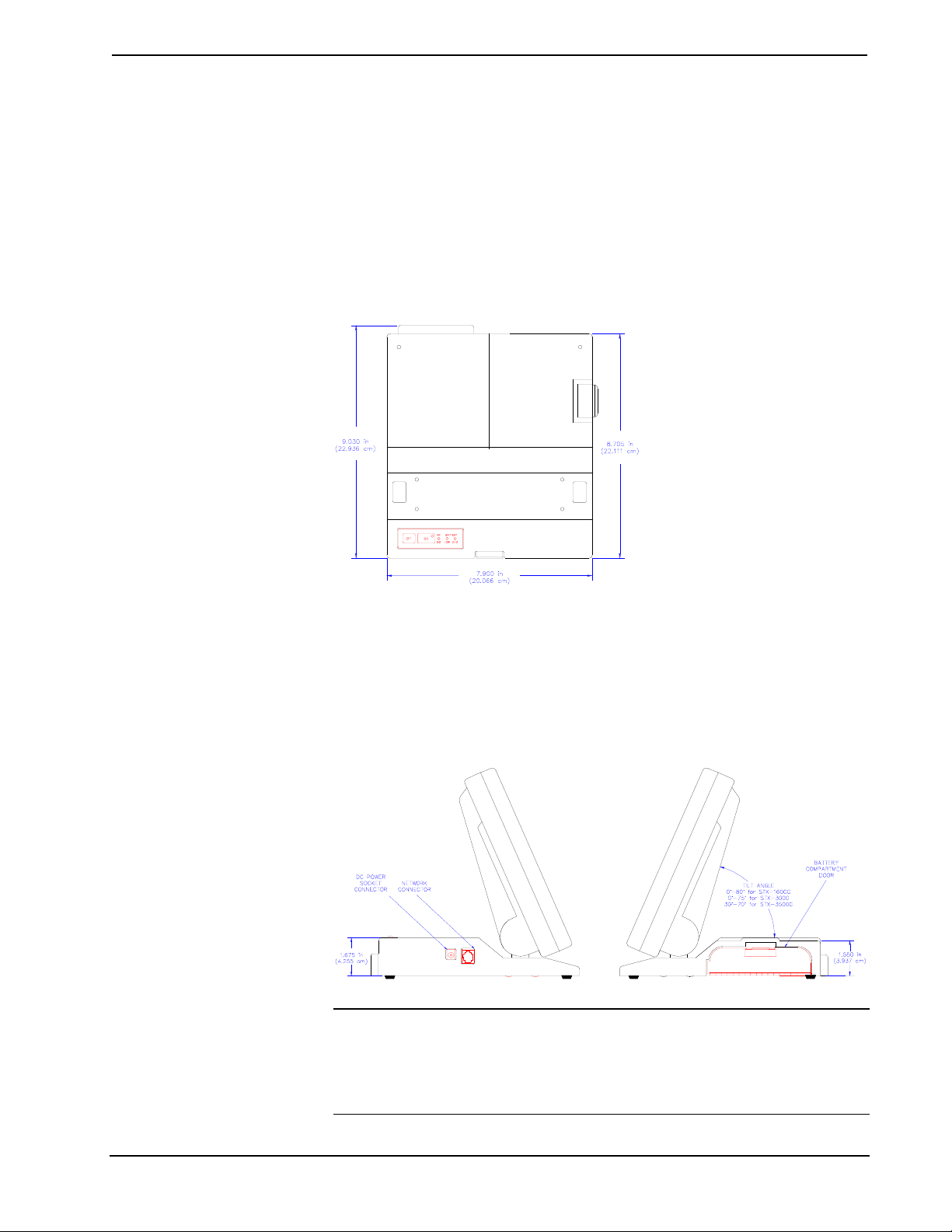

Physical View of STX Touchpanel Base

TOP VIEW

OF BASE

WITHOUT

TOUCHSCREE

Two battery packs must be inserted into the base of the touchpanel for wireless

operation. The battery compartment door is located on the right side (when facing

the touchscreen) of the base, shown below. Two connectors are located on the left

side (when facing the touchscreen) of the base. The DC power socket connector is

used to supply external power via the supplied 24 VDC power pack. The network

connector is a 6-pin, 6-position RJ11 modular jack. A network wire must be attached

to the touchpanel when uploading a program. The network wire provides power.

Side Views of STX Touchpanel Base

LEFT SIDE VIEW

OF STX TOUCHPANEL

RIGHT SIDE VIEW

OF STX TOUCHPANEL

NOTE: Most 4-conductor phone cables are wired in a crisscross fashion and are not

compatible with Crestron equipment.

NOTE: If the power pack and the network wire is attached at the same time, power

is drawn from the power pack. The touchpanel does not load the network power.

Operations Guide - DOC. 5716A Series STX Touchpanels •3

CRESTRON

Power buttons and LED indicators, shown below, are located on the touchpanel base

just left of the position lock button. Two membrane buttons, OFF and ON, can be

used to deactivate and activate the touchpanel when needed. The ON button has a

LED behind the membrane. It illuminates when the touchpanel is active. Three other

LEDs are positioned to the right of the membrane buttons: RF SIG, BATTERY

LOW, and BATTERY CHG. RF SIG illuminates when the touchpanel

communicates with the CNRFGWX transceiver. BATTERY LOW illuminates when

the battery packs in the touchpanel have a low charge. BATTERY CHG illuminates

while the low or discharged battery packs inserted in the touchpanel are slow

charged; assuming the touchpanel is powered from the external power pack or the

network.

Power Switch and Indicators (Close-Up)

Configuration Differences

There are three Series STX configurations available and selection depends on color

versus grayscale display, display size, and memory. A configuration is defined by an

alphanumeric suffix after STX. Refer to the table shown below for a concise listing

of each Series STX configuration. Following the table, front views of each STX

touchpanel are shown.

Series STX Touchpanel Configurations

CONFIGURATION DISPLAY DIAGONAL VIEW

SCREEN MEMORY

STX-1600C 256 Color 5.7 in (14.5 cm) 768 Kbytes

STX-3000 256 Grayscale 9.4 in (23.9 cm) 256 Kbytes

STX-3500C 256 Color 9.4 in (23.9 cm) 1 Mbyte

Front View of the STX-1600C

4 •Series STX Touchpanels Operations Guide - DOC. 5716A

CRESTRON

Front View of the STX-3000

Front View of the STX-3500C

Leading Specifications

The table below and on the next page provides a summary of leading specifications

for the STX touchpanels. Dimensions and weight are rounded to the nearest

hundredth unit.

Operations Guide - DOC. 5716A Series STX Touchpanels •5

CRESTRON

Leading Specifications of the STX Touchpanels

SPECIFICATION DETAILS

Power Requirements

STX-1600C & STX-3000 12 Watts, 24 VDC 0.5 Amp

STX-3500C 24 Watts, 24 VDC 1.0 Amp

Power Options 2 Rechargeable NiCd Battery Packs

CRESNET Network Power

AC Adapter (power pack - supplied)

Communications RF: Bidirectional Spread Spectrum 2.4 GHz

(1000-foot range). Requires one CNRFGWX

transceiver per 15 STX series touchpanels.

CRESNET: 6-wire, RJ-type connectors; allows

wired network interface in addition to wireless

operation. Only 4 wires are required; pins 1 and 6

are not connected.

SIMPL Windows Version 1.21.04 or later*

CNX Operating System Version 5.01.09x or later

CNX Monitor Version 2.00 or later

CNMS, CNRACK, CNLCOMP Version 3.16.08 or later

Operating System

ST-CP Operating System Version 4.00.29 or later

ST-CP Monitor Version 1.29 or later

VisionTools Pro (VT Pro) Version 1.1.3 or later*

Memory

STX-1600C 768 Kbytes flash memory for display

STX-3000 256 Kbytes flash memory for display

STX-3500C 1 Mbyte flash memory for display

Dimensions & Weight for STX-1600C Height: 6.14 in (15.59 cm) - with 80 degree tilt

(without battery packs) Width: 7.90 in (20.07 cm)

Depth: 9.03 in (22.94 cm)

Weight: 4.94 lb (2.54 kg)

Dimensions & Weight for STX-3000 Height: 8.70 in (22.09 cm) - with 75 degree tilt

(without battery packs) Width: 11.21 in (28.48 cm)

Depth: 9.03 in (22.94 cm)

Weight: TBD lb (TBD kg)

Dimensions & Weight for STX-3500C Height: 9.29 in (23.59 cm) - with 70 degree tilt

(without battery packs) Width: 11.29 in (28.67 cm)

Depth: 9.03 in (22.94 cm)

Weight: 7.40 lb (3.36 kg)

View Screen Dimensions Height x Width

STX-1600C 3.50 in (9.00 cm) x 4.70 in (11.90 cm)

STX-3000 5.80 in (14.70 cm) x 7.70 in (19.60 cm)

STX-3500C 6.20 in (15.75 cm) x 8.30 in (21.08 cm)

* The latest software versions can be obtained from the Software Downloads page

of Crestron’s website (www.crestron.com). New users are required to register in

order to obtain access to the FTP site.

6 •Series STX Touchpanels Operations Guide - DOC. 5716A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron TSW-70 Series Manuel utilisateur

Crestron

Crestron SmarTouch STS ST-1550C Manuel utilisateur

Crestron

Crestron Isys TPS-3100L Manuel utilisateur

Crestron

Crestron MT-500C Manuel utilisateur

Crestron

Crestron TSS-770 Manuel utilisateur

Crestron

Crestron Isys TPS-5000 Manuel utilisateur

Crestron

Crestron SmarTouch ST-1700C Manuel utilisateur

Crestron

Crestron TPMC-4SMD-FD Instructions d'utilisation d'origine

Crestron

Crestron CT-1600 Guide de démarrage rapide

Crestron

Crestron MTX-3 Manuel utilisateur

Crestron

Crestron Isys TPS-4500LV Manuel utilisateur

Crestron

Crestron TSW-560 Manuel utilisateur

Crestron

Crestron V12 Manuel utilisateur

Crestron

Crestron CT-1000 Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-15-CH-L Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-4X Manuel utilisateur

Crestron

Crestron STX-1700CXPW Manuel utilisateur

Crestron

Crestron TPS-17B/W Manuel utilisateur

Crestron

Crestron TSW-770R Series Manuel utilisateur

Crestron

Crestron Lsys TPS 2000L Manuel utilisateur

Crestron

Crestron C2N-FT-TPS4 Manuel utilisateur

Crestron

Crestron TSW-550-TTK Dessin dimensionnel

Crestron

Crestron STX-1700C Manuel utilisateur

Crestron

Crestron Crestron Isys TPS 6000L Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
