Crestron Wallmount Touchpanel Manuel utilisateur

Pre-Construction Options

Wallmount Touchpanel Mounting Options/Accessories

quickstart guide

www.crestron.com

change without notice

For details, check the latest revision of the appropriate

mounting kit Installation Guide for your touchpanel.

QUICKSTART DOC. 6140D (2001953) 10.07

Crestron Touchpanels

This guide covers mounting options and accessories for wallmount/surfacemount touchpanels.

Mud Mount Kit (MMK)

Use with BB or PMK installations to fill in

larger irregularities around the opening.This

option requires plastering.

NOTE: The illustrations in this guide are representative of a mounting option or accessory type. The main difference in

option/accessory types for each touchpanel series is size and, where applicable, the number of screws required.

Pre-construction options - Back Box Kit (BB) and Pre-Construction Mount Kit (PMK) - are installed prior to hanging

drywall or other wall surface material, and require access to an adjacent structural support (stud). The Trim Mount Kit

(TMK) and Mud Mount Kit (MMK) accessories are used to correct irregularities in the holes cut in the mounting

surface.

NOTE: Make certain the template used to mark the opening in the mounting surface is level (if on a wall), or square

to the front edge (if on a lectern). Cut the opening carefully, the mounting options provide for only minor position

adjustment.

800.237.2041

201.767.3400

Crestron Touchpanels

Trim Mount Kit (TMK)

Use with BB or PMK installations for smaller

irregularities around the opening.This option

provides a smooth, finished appearance and is

preferred when wallpaper is hung.

Back Box Kit

(BB)

Use in installations where a back box

is either required or preferred.

Pre-Construction Mount Kit

(PMK)

Use in installations where a back box is

not required or not preferred.

Side mount Installations Front mount Installations

Crestron Touchpanels

Wallmount Touchpanel Mounting Options/Accessories

quickstart guide

Crestron Touchpanels

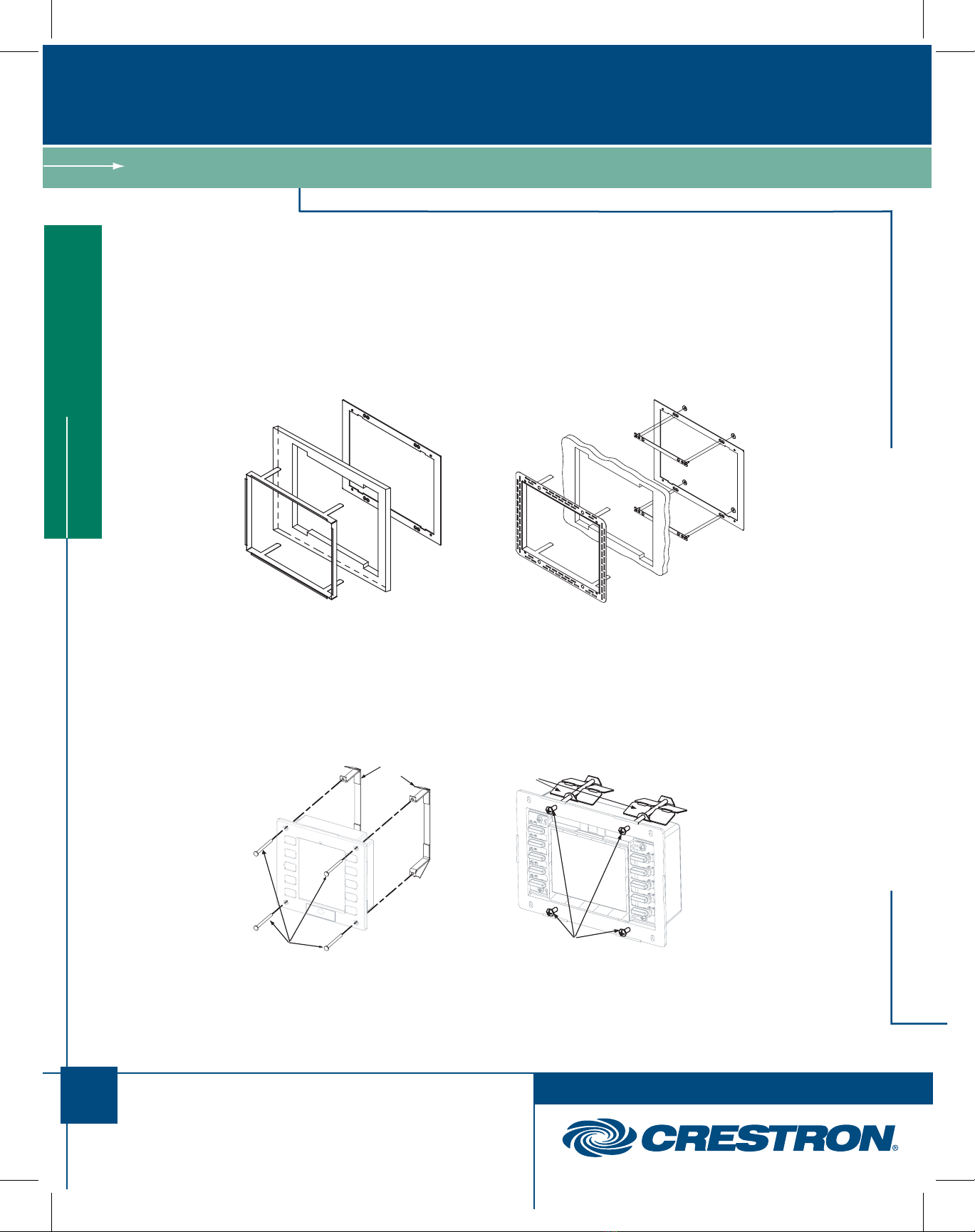

Post-Construction Options

Wall Mount Kit with Trim Ring

(WMKT)

Wall Mount Kit with Mud Ring

(WMKM)

Post-construction options (WMKT, WMKM, WMKB) are for mounting to finished walls or other surfaces where

access to a structural support member (stud) is not possible or does not apply (e.g., lectern mount).

Mounting

Clips

Mounting

Screws

Mounting

Screws

Mounting

Brackets

Wall Mount Kit - Bracket

(WMKB)

Used to correct larger irregularities around

the opening.This option requires plastering.

These kits are used to secure the touchpanel directly to the mounting surface without requiring an

internal mounting plate .The specific mounting hardware used depends on the touchpanel. After

installation, the mounting screws are hidden by the touchpanel bezel (not shown).

Used to fill in smaller irregularities around the

opening.This option provides a smooth, finished

appearance and is preferred when wallpaper is hung.

For details, check the latest revision of the appropriate

mounting kit Installation Guide for your touchpanel.

QUICKSTART DOC. 6140D (2001953) 10.07
