Crestron CT-1550 Manuel utilisateur

Crestron CT-1550

Wired 5.7 Inch Tabletop Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron CT-1550 Wired 5.7 Inch Tabletop Touchpanel

Operations Guide – DOC. 6116A Contents •i

Contents

Wired 5.7 Inch Tabletop Touchpanel: CT-1550 1

Introduction ...............................................................................................................................1

Functions and Features ................................................................................................ 1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Industry Compliance ...................................................................................................5

Setup ..........................................................................................................................................5

Network Wiring........................................................................................................... 5

Identity Code ............................................................................................................... 6

Configuring the Touchpanel........................................................................................6

Hardware Hookup ....................................................................................................... 8

Recommended Cleaning..............................................................................................9

Programming Software..............................................................................................................9

Earliest Version Software Requirements for the PC ...................................................9

Programming with the Crestron SystemBuilder........................................................10

Programming with SIMPL Windows ........................................................................ 10

Programming with VT Pro-e.....................................................................................14

Reserved Join Numbers............................................................................................. 15

Uploading and Upgrading........................................................................................................ 16

Communication Settings ...........................................................................................16

Uploading a SIMPL Windows Program.................................................................... 18

Uploading a VT Pro-e Project ................................................................................... 20

Firmware Upgrade..................................................................................................... 21

Problem Solving ...................................................................................................................... 23

Troubleshooting......................................................................................................... 23

Further Inquiries ........................................................................................................ 24

Future Updates .......................................................................................................... 24

Software License Agreement................................................................................................... 25

Return and Warranty Policies .................................................................................................. 27

Merchandise Returns / Repair Service ...................................................................... 27

CRESTRON Limited Warranty.................................................................................27

Crestron CT-1550 Wired 5.7 Inch Tabletop Touchpanel

Operations Guide – DOC. 6116A Wired 5.7 Inch Tabletop Touchpanel: CT-1550 •1

Wired 5.7 Inch Tabletop

Touchpanel: CT-1550

Introduction

Functions and Features

The CT-1550 Wired 5.7 Inch Tabletop Touchpanel provides user interface to a

Crestron®remote control system (Cresnet®system). The unit provides dynamic

onscreen feedback for real-time confirmation of commands, and gives users

simplified command of their control environment. Customized graphic icons let

users easily control any function.

The following table provides a functional summary of the touchpanel.

Functional Summary

•

5.7" (14.48 cm) color display

• 320 x 240 screen resolution

• STN 256 color, dot matrix LCD

• 1 MB of Flash (768KB available for user display lists)

• Multiple button, slider control, and icon configurations

• Imported photographs, drawings, and icons

• Up to 999 digital joins, 255 analog joins, and 127 serial joins

• Connection to Cresnet via 6-pin RJ-11 port in base

• CN-RJ11 4-wire to RJ-11 converter and 12-foot cable supplied

Wired 5.7 Inch Tabletop Touchpanel Crestron CT-1550

2 •Wired 5.7 Inch Tabletop Touchpanel: CT-1550 Operations Guide – DOC. 6116A

Specifications

The table below provides a summary of specifications for the CT-1550.

Specifications of the CT-1550 Touchpanel

SPECIFICATION DETAILS

Power Requirements 8 Watts (0.33 Amps @ 24 VDC)

Default Net ID 3

Default Backlight Timeout 10 minutes

Signal Join Maximums 999 (digital), 255 (analog), 127 (serial)

Control System Update Files 1, 2, 3

2-Series Control System

CEN/CN-TVAV

CNMSX-AV/PRO

CNRACKX/-DP

ST-CP

Version C2-2004.CUZ or later

Version 5.12.63V.UPZ or later

Version 5.12.63X.UPZ or later

Version 5.12.63W.UPZ or later

Version 4.02.4S.UPZ or later

Acceptable File Extensions4

.hex

.csf

projectname.hex (compiled file)

CT1500.vx.xxx.x.csf (panel firmware)

Memory 1 MByte flash memory

(768 Kbytes available for user programming)5

Touchscreen Dimensions Height: 3.50 in (8.89 cm)

Width: 4.60 in (11.68 cm)

Diagonal: 5.70 in (14.48 cm)

Touchscreen Angles ±50° for X dir, +40/-50° for Y dir

Touchscreen Resolution 320 x 240 pixels, 256 colors

Touchscreen LCD STN color, dot matrix type

Touchscreen Illumination Backlit fluorescent

Touchscreen Composition Resistive Membrane

Dimensions Width: 8.75 in (22.23 cm)

Height: 3.69 in (9.37 cm)

Depth: 5.42 in (13.77 cm)

Weight 1.85 lb (0.84 kg)

1. The latest versions can be obtained from the Crestron website. Refer to NOTE after last footnote.

2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems.

3. CNX update files are required for either CNMSX-AV/PRO or CNRACKX/-DP. Filenames for CNX

update files have a UPZ extension and ST-CP files are in one EXE or zipped UPZ file. To avoid

program problems, make certain you are using the update file with the correct suffix (e.g., S, V, W, X).

4. Extension requires a prefix specific to the touchpanel type. In DETAILS, projectname represents the

assigned project name, and vx.xxx.x. represents a version number.

5. Use VT Pro-e to check program size prior to upload to avoid storage capacity problems.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers only. New users may be required to register to obtain access to certain areas

of the site (including the FTP site).

Crestron CT-1550 Wired 5.7 Inch Tabletop Touchpanel

Operations Guide – DOC. 6116A Wired 5.7 Inch Tabletop Touchpanel: CT-1550 •3

Physical Description

The touchpanel viewing screen has a 5.7-inch (14.48 cm) active matrix color display

panel with 320 x 240 resolution. The electronic hardware is housed in a black and

silver molded plastic enclosure. Connection to the control system is via a 6-pin

RJ-11 connector mounted on the bottom of the unit base. Refer to the illustrations

below and on the next page.

Physical Views of CT-1550

Bottom view

6-Pin RJ-11

Connector

(Refer to Page 9 for Pinout)

(6 - - - 1)

Wired 5.7 Inch Tabletop Touchpanel Crestron CT-1550

4 •Wired 5.7 Inch Tabletop Touchpanel: CT-1550 Operations Guide – DOC. 6116A

Physical Views of CT-1550 (continued)

Four rubber feet on the underside of the unit are for stability and to prevent slippage

on flat surfaces.

Crestron CT-1550 Wired 5.7 Inch Tabletop Touchpanel

Operations Guide – DOC. 6116A Wired 5.7 Inch Tabletop Touchpanel: CT-1550 •5

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with

specifications for CE marking and standards per EMC and Radio Communications

Compliance Labeling.

NOTE: These devices comply with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) these devices may not cause harmful interference,

and (2) these devices must accept any interference received, including interference

that may cause undesired operation.

Setup

Network Wiring

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to

do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to

unpredictable results or damage to the equipment. Please use the Crestron Power

Calculator to help calculate how much power is needed for the system

(http://www.crestron.com/calculators).

NOTE: When installing network wiring, refer to the latest revision of the wiring

diagram(s) appropriate for your specific system configuration, available from the

Crestron website.

When calculating the wire gauge for a particular Cresnet run, the length of the run

and the Cresnet power usage of each network unit to be connected must be taken into

consideration. If Cresnet units are to be daisy-chained on the run, the Cresnet power

usage of each unit to be daisy-chained must be added together to determine the

Cresnet power usage of the entire chain.The length of the run in feet and theCresnet

power usage of the runshouldbe used inthe following resistance equation to

calculate the value ontheright side of the equation.

Resistance Equation

R = Resistance (refer to the following table).

L = Length of run (or chain) in feet.

P = Cresnet power usage of entire run (or chain).

R < L x P

40,000 Where:

The required wire gauge should be chosen such that the resistance value is less than

the value calculated in the resistance equation. Refer to the following table.

Wired 5.7 Inch Tabletop Touchpanel Crestron CT-1550

6 •Wired 5.7 Inch Tabletop Touchpanel: CT-1550 Operations Guide – DOC. 6116A

Wire Gauge Values

RESISTANCE (R) WIRE GAUGE

416

618

10 20

15 22

13 Doubled CAT5

8.7 Tripled CAT5

NOTE: All network wiring must consist of two twisted pairs. One twisted pair is

the +24V conductor and the GND conductor, and the other twisted pair is the Y

conductor and the Z conductor.

NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to

avoid nicking the conductors. Twist together the ends of the wires that share a pin on

the network connector, and tin the twisted connection. Apply solder only to the ends

of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.

Insert the tinned connection into the Cresnet connector and tighten the retaining

screw. Repeat the procedure for the other three conductors.

NOTE: For larger networks (i.e., greater than 28 network devices), it may be

necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality

throughout the network. Also, for networks with lengthy cable runs, it may be

desirable to add a hub/repeater after only 20 network devices.

Identity Code

Every equipment and user interface within the Cresnet system requires a unique

identity code (Net ID). These codes are two-digit hexadecimal numbers from 03 to

FE. Refer to “Interface Menu” on page 8 for instructions on setting the unit’s Net ID.

The Net ID of the unit must match the Net ID specified in the SIMPL Windows

program. Refer to “Setting the Net ID in Device Settings” on page 12 for details of

the SIMPL Windows procedure.

Configuring the Touchpanel

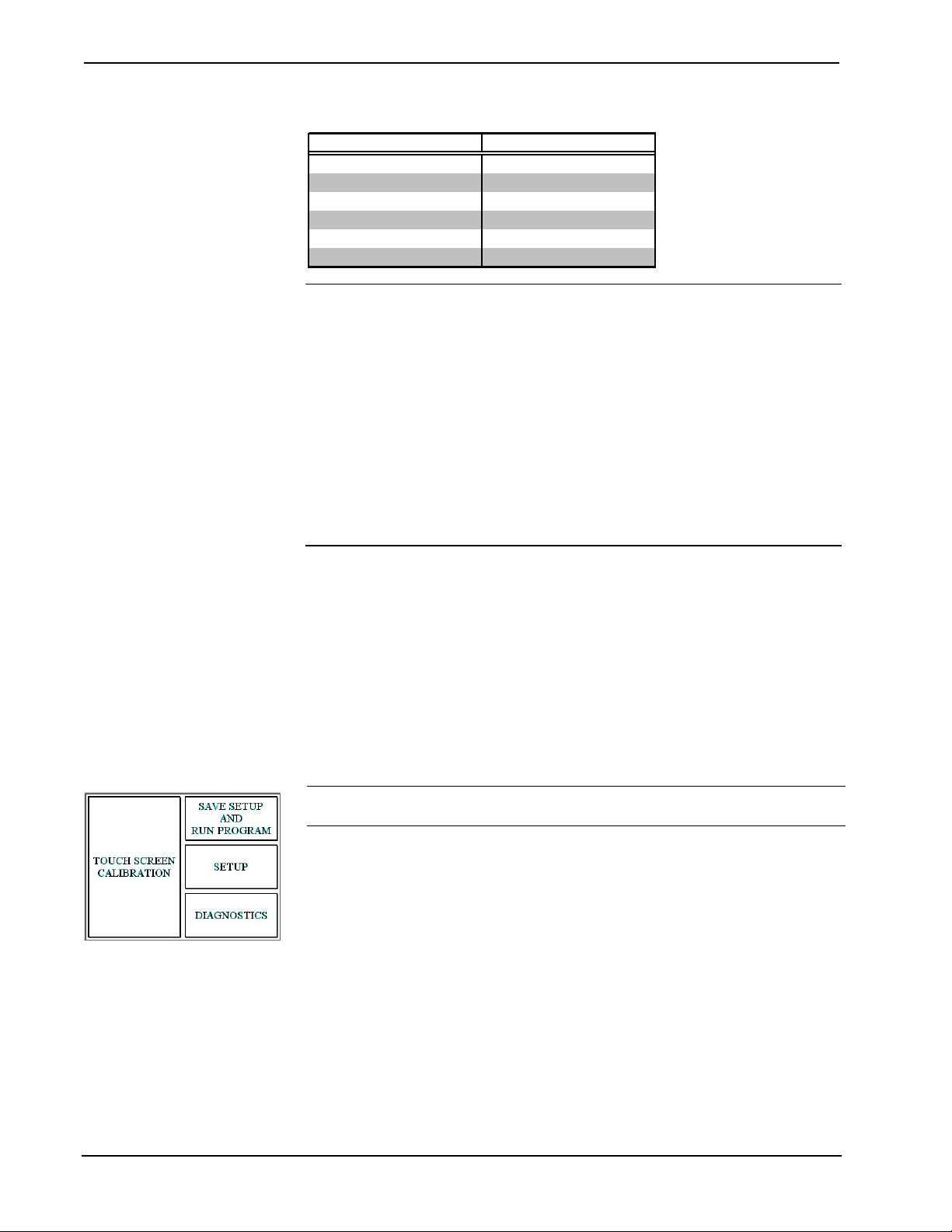

Main Menu for CT-1550

NOTE: The only connection required to configure the touchpanel is power. Refer to

“Hardware Hookup” on page 8 for details.

It may be necessary to make adjustments or configure the touchpanel to accommodate

proper operation for the end user. This is accomplished through the Setup Mode.

Instructions for configuring the touchpanel are given in the following paragraphs.

The Main Menu, shown to the left of this paragraph, appears when a finger is held to

the touchscreen for about three seconds from the powered down state. This screen

indicates that you are in “setup mode” and can proceed to configure the touchpanel.

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron TSW-560 Manuel du propriétaire

Crestron

Crestron Isys i/O TPMC-15-CH Manuel utilisateur

Crestron

Crestron SmarTouch STX-1700CW Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-8X Manuel utilisateur

Crestron

Crestron CT-1600 Guide de démarrage rapide

Crestron

Crestron Isys TPS-6L Comment utiliser

Crestron

Crestron Isys TPS-5000L Manuel utilisateur

Crestron

Crestron SmarTouch ST-1700C Manuel utilisateur

Crestron

Crestron TS-770 Manuel utilisateur

Crestron

Crestron MTX-3 Manuel utilisateur

Crestron

Crestron Isys TPS-4500 Manuel utilisateur

Crestron

Crestron Isys TPMC-4SM Comment utiliser

Crestron

Crestron Isys TPS-4500LV Manuel utilisateur

Crestron

Crestron TPMC-4XG Manuel utilisateur

Crestron

Crestron MiniTouch MT-1000C Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-15-CH-L Manuel utilisateur

Crestron

Crestron TSW-560 Manuel du propriétaire

Crestron

Crestron QM-FTCC-TPS4 Comment utiliser

Crestron

Crestron TPS-FPAR6000L Manuel utilisateur

Crestron

Crestron TPMC-9 Manuel utilisateur

Crestron

Crestron Isys TPS-12 Manuel utilisateur

Crestron

Crestron Isys TPS-15G-QM Manuel utilisateur

Crestron

Crestron Lsys TPS 2000L Manuel utilisateur

Crestron

Crestron V12 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
