Crestron TMK-2000L & WMKT-2000L

Trim Ring Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Crestron TMK-2000L & WMKT-2000L Trim Ring Mount Kits

Trim Ring Mount Kits:

TMK-2000L & WMKT-2000L

Description

Trim Ring Mount Kits are the preferred mounting option for the Crestron Isys

TPS-2000L, compact video touchpanel when a finished appearance within a neatly

trimmed cutout is required. This application is perfect for wallpapering.

There are two Trim Ring Mount Kits. The TMK-2000L is a pre-construction

accessory. Pre-construction refers to framed walls prior to hanging drywall. This

accessory is designed be used with the Pre-Construction Mount Kit (PMK-2000L) or

Back Box Kit (BB-2000L).

The WMKT-2000L is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support from a stud.

NOTE: If necessary, consult the latest revision of the TPS-2000L Operations Guide

(Doc. 5972) for a complete list of mounting options.

Supplied Hardware

Both Trim Ring Mount Kits contain a trim plate. The WMKT-2000L also contains a

mounting plate, which is the item that provides the necessary support for post-

construction applications.

Installation

This section provides an installation procedure for each Trim Ring Mount Kit. The

procedure for the TMK-2000L starts on the next page and the “WMKT-2000L

Procedure” starts on page 3.

Installation Guide – DOC. 6026 Trim Ring Mount Kits: TMK-2000L & WMKT-2000L •1

Trim Ring Mount Kits Crestron TMK-2000L & WMKT-2000L

TMK-2000L Procedure

The procedure in this section provides the necessary steps for the assembly of the

TMK-2000L to either the PMK-2000L or BB-2000L. It is assumed that the

PMK-2000L or BB-2000L has been secured to the stud according to the procedures

in the latest revisions of their respective Installation Guides (Doc. 6018 and Doc.

5973, respectively). Also, it is assumed that drywall is in place and a rectangular

cutout for the touchpanel is made in the drywall (measuring 6 3/8inches wide

(16.159 cm) x 4 7/16 inches high (11.283 cm)).

Complete the steps in the order provided. The only tool required and not supplied is

a level.

NOTE: When installing into the PMK-2000L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

1. Verify that the rectangular cutout in the drywall measures 6 3/8inches

wide (16.159 cm) x 4 7/16 inches high (11.283 cm) and is level.

2. Insert the symmetrical trim plate into the opening, as shown in the

illustration after this step.

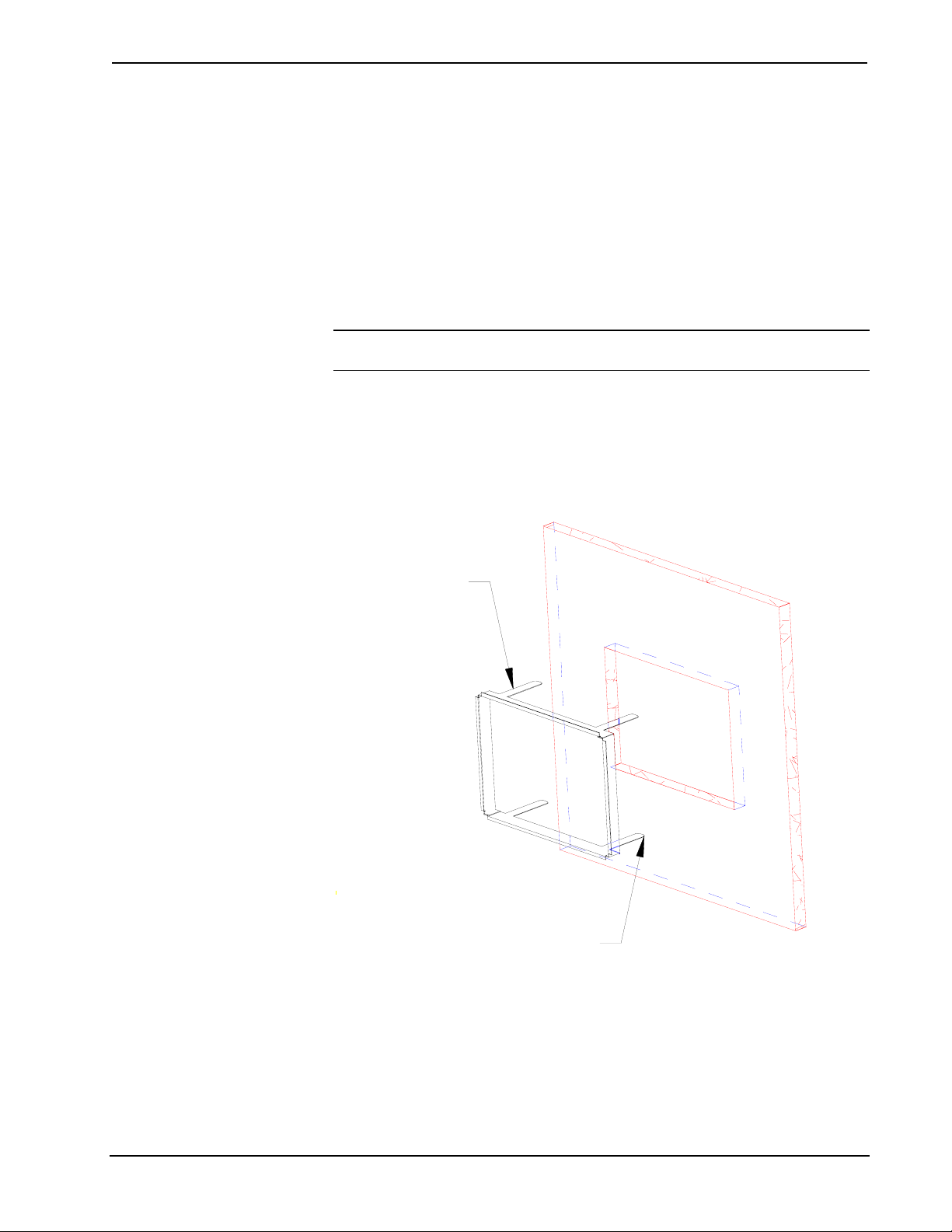

Insert Trim Plate into Opening

FLANGES

QUANTITY 4

TRIM PLATE

QUANTITY 1

3. When the trim plate is in position, bend the top two flanges of the plate

upward (approximately 90 degrees) and the bottom two flanges

downward (approximately 90 degrees).

2 •Trim Ring Mount Kits: TMK-2000L & WMKT-2000L Installation Guide – DOC. 6026

Crestron TMK-2000L & WMKT-2000L Trim Ring Mount Kits

4. The TPS-2000L can be installed using the four tapped holes in the

PMK-2000L or BB-2000L. Refer to the latest revision of the

TPS-2000L Operations Guide (Doc. 5972) for details.

WMKT-2000L Procedure

The procedure in this section provides the necessary steps for installation of the

WMKT-2000L into a wall. Complete the steps in the order provided. The only tools

or materials required and not supplied are a drywall saw or equivalent and a level.

1. Locate an area on the wall that is free of miscellaneous wiring and

studs.

2. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level and smooth as possible. The mounting plate allows

for only minor leveling adjustments. If a larger cutout is accidentally made, consider

purchasing the Crestron Mud Mount Kit, MMK-2000L. It and the mounting plate

supplied with the WMKT-2000L provide a cost-effective means of correction.

Essentially, The combination of these two kits makes up the Crestron Mud Mount

Kit for the Wall, WMKM-2000L. Simply follow the “WMKM-2000L Procedure” in

the latest revision of the Mud Mount Kits Installation Guide (Doc. 6025).

3. Use the drywall saw or equivalent to produce a level, rectangular cutout

in the drywall that measures 6 3/8inches wide (16.159 cm) x 4 7/16

inches high (11.283 cm).

4. Insert the symmetrical trim plate into the opening, as shown in the

illustration after this step.

Insert the Trim Plate into the Opening

MOUNTING

PLATE

RECTANGULAR

CUTOUT

TRIM

PLATE

DRYWALL

Installation Guide – DOC. 6026 Trim Ring Mount Kits: TMK-2000L & WMKT-2000L •3

Trim Ring Mount Kits Crestron TMK-2000L & WMKT-2000L

5. Carefully pass the mounting plate through the opening and rest it

against the interior surface of the drywall.

6. When the mounting plate is in position, bend the top two flanges of the

trim plate upward (approximately 90 degrees) and the bottom two

flanges downward (approximately 90 degrees). Refer to the illustration

after this step.

NOTE: The mounting plate will have slight play; this is normal. It allows for minor

adjustments to the TPS-2000L during installation.

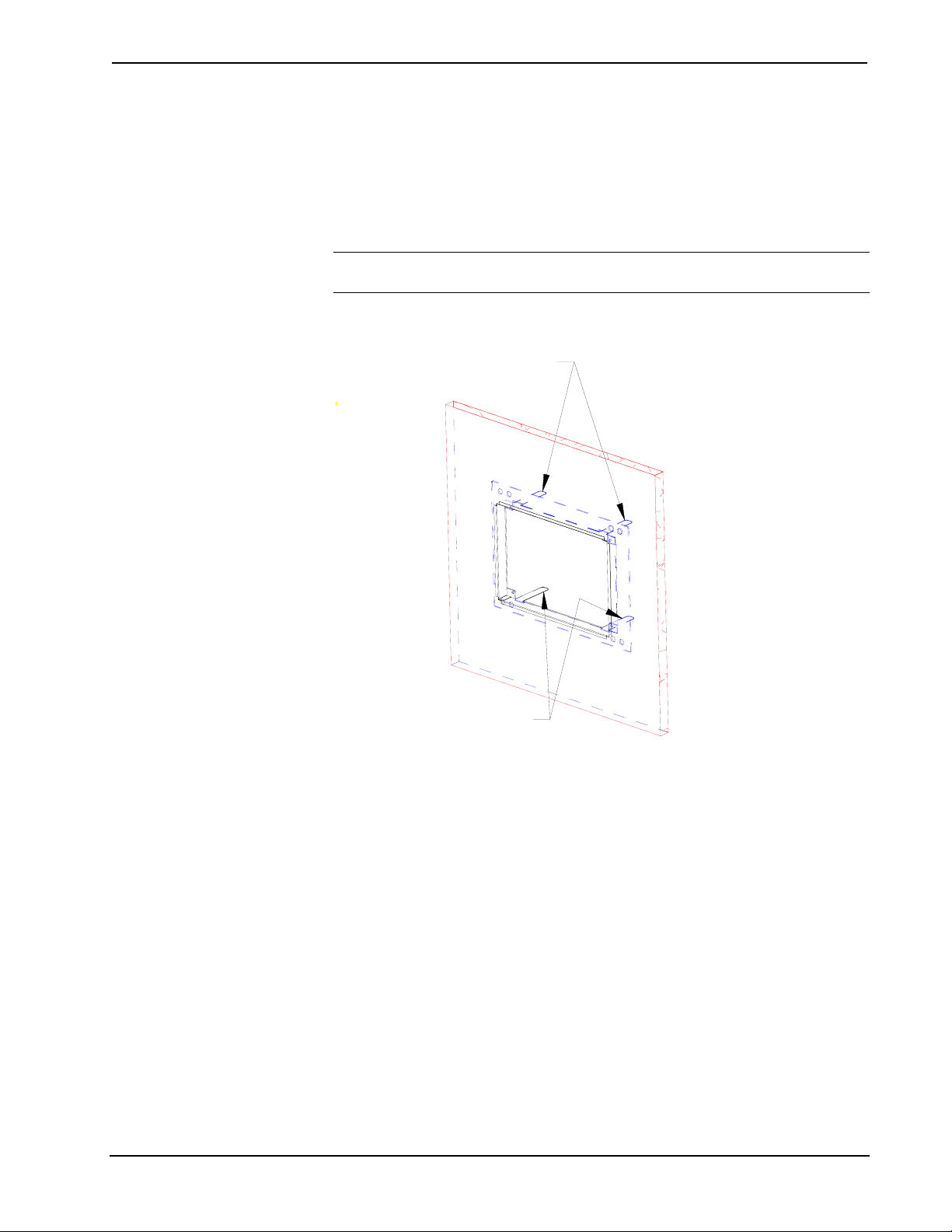

Bend Flanges

BEND FLANGES DOWN

PPROXIMATELY 90°

BEND FLANGES UP

APPROXIMATELY 90°

7. Run the necessary cables for the touchpanel and secure them behind the

drywall.

8. The TPS-2000L can be installed using the four tapped holes in the

mounting plate. Refer to the latest revision of the TPS-2000L

Operations Guide (Doc. 5972) for details.

4 •Trim Ring Mount Kits: TMK-2000L & WMKT-2000L Installation Guide – DOC. 6026

Crestron TMK-2000L & WMKT-2000L Trim Ring Mount Kits

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or

have questions, please take advantage of Crestron's award winning customer service

team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at +32-15-50-99-50.

• In Asia, call Crestron Asia at +852-2341-2016.

• In Latin America, call Crestron Latin America at +5255-5093-2160.

• In Australia and New Zealand, call Crestron Control Solutions at

+61-2-9737-8203.

As of the date of manufacture, the MMK-2000L and WMKM-2000L have been

tested and found to comply with specifications for CE marking.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of

the TMK-2000L or WMKT-2000L, additional information may be made available as

manual updates. These updates are solely electronic and serve as intermediary

supplements prior to the release of a complete technical documentation revision.

The Downloads page of the Crestron website (www.crestron.com) directs the reader

to the location and description of each update. Check the site periodically for update

availability and its relevance.

Installation Guide – DOC. 6026 Trim Ring Mount Kits: TMK-2000L & WMKT-2000L •5

Trim Ring Mount Kits Crestron TMK-2000L & WMKT-2000L

This page intentionally left blank.

6 •Trim Ring Mount Kits: TMK-2000L & WMKT-2000L Installation Guide – DOC. 6026

Crestron TMK-2000L & WMKT-2000L Trim Ring Mount Kits

This page intentionally left blank.

Installation Guide – DOC. 6026 Trim Ring Mount Kits: TMK-2000L & WMKT-2000L •7

Trim Ring Mount Kits Crestron TMK-2000L & WMKT-2000L

This page intentionally left blank.

8 •Trim Ring Mount Kits: TMK-2000L & WMKT-2000L Installation Guide – DOC. 6026
